Rugged. Reliable. Refined.
Introducing the 2021 V2 STEDI™ 24W LED Tractor Light — a heavy-duty lighting upgrade engineered to outperform OEM units while maintaining perfect compatibility. Fitted with 8 × 3W Osram P7 LEDs, this compact powerhouse delivers true white 5700 K illumination, offering exceptional brightness and durability for demanding agricultural and industrial applications.
⚡ Superior Performance

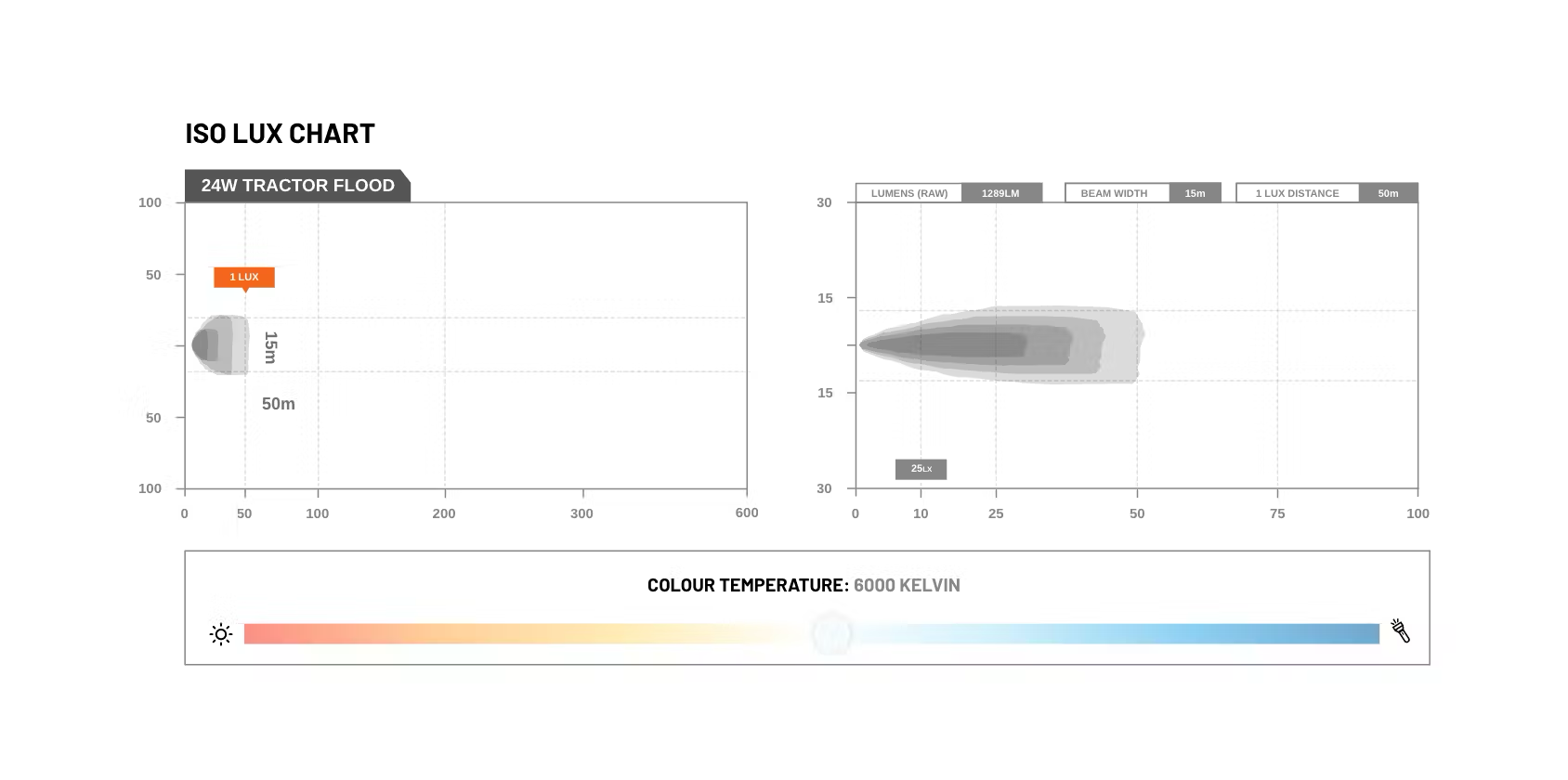

The 24W LED Tractor Light provides a 2,600-lumen flood beam, twice as bright as most OEM tractor lights (including John Deere factory LEDs). Built for professional-grade reliability, it features CISPR25 Class 3 RFI suppression, ensuring no interference with your radio or communication systems.
🧭 Built to Last

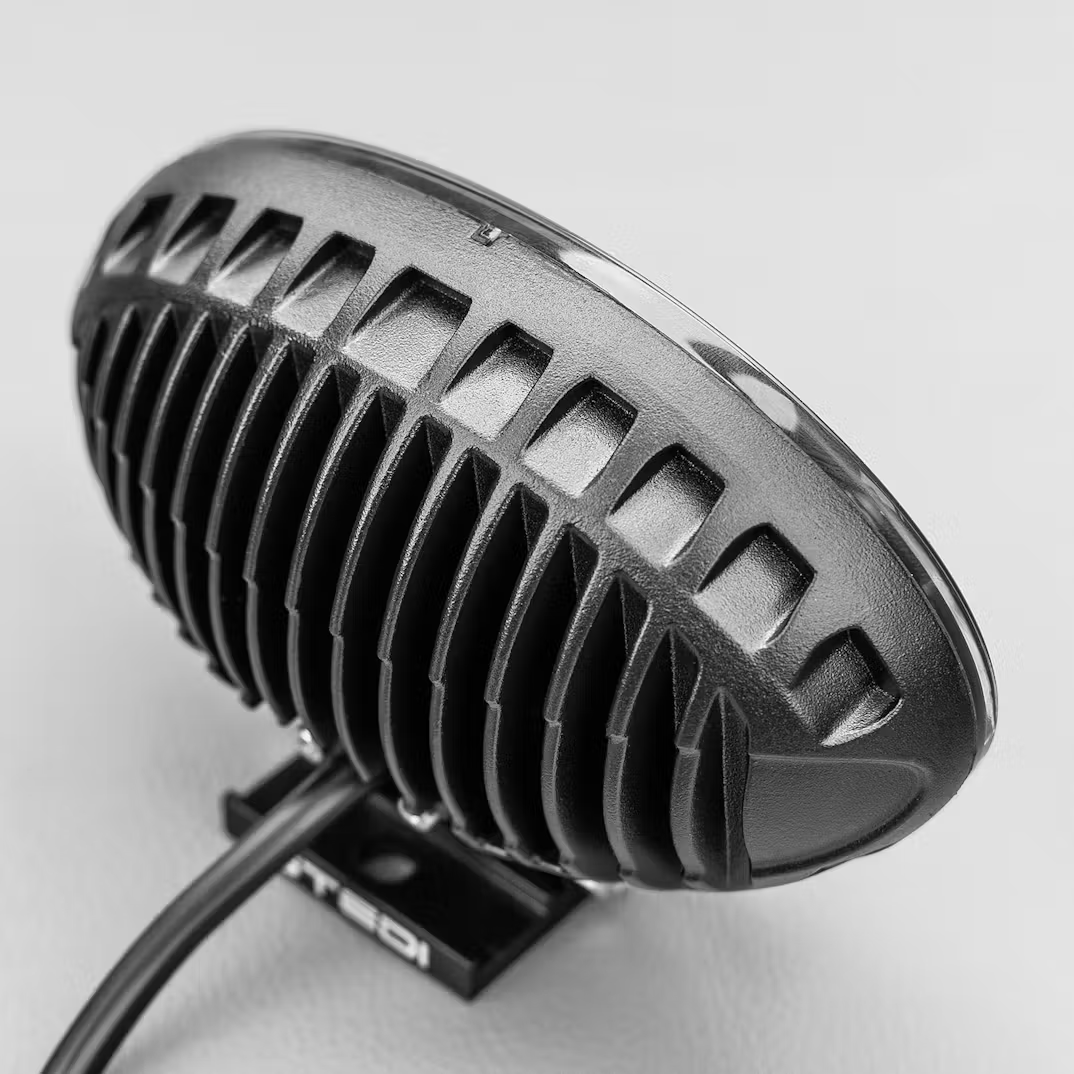

Engineered with a 6063 die-cast aluminium housing and a virtually indestructible UV-stabilised polycarbonate lens, the Tractor Light – 24W Flood is made to handle vibration, weather, and continuous operation. The Deutsch DT-2 sealed connector ensures secure, moisture-resistant wiring for long-term use.
🔩 Key Features
-

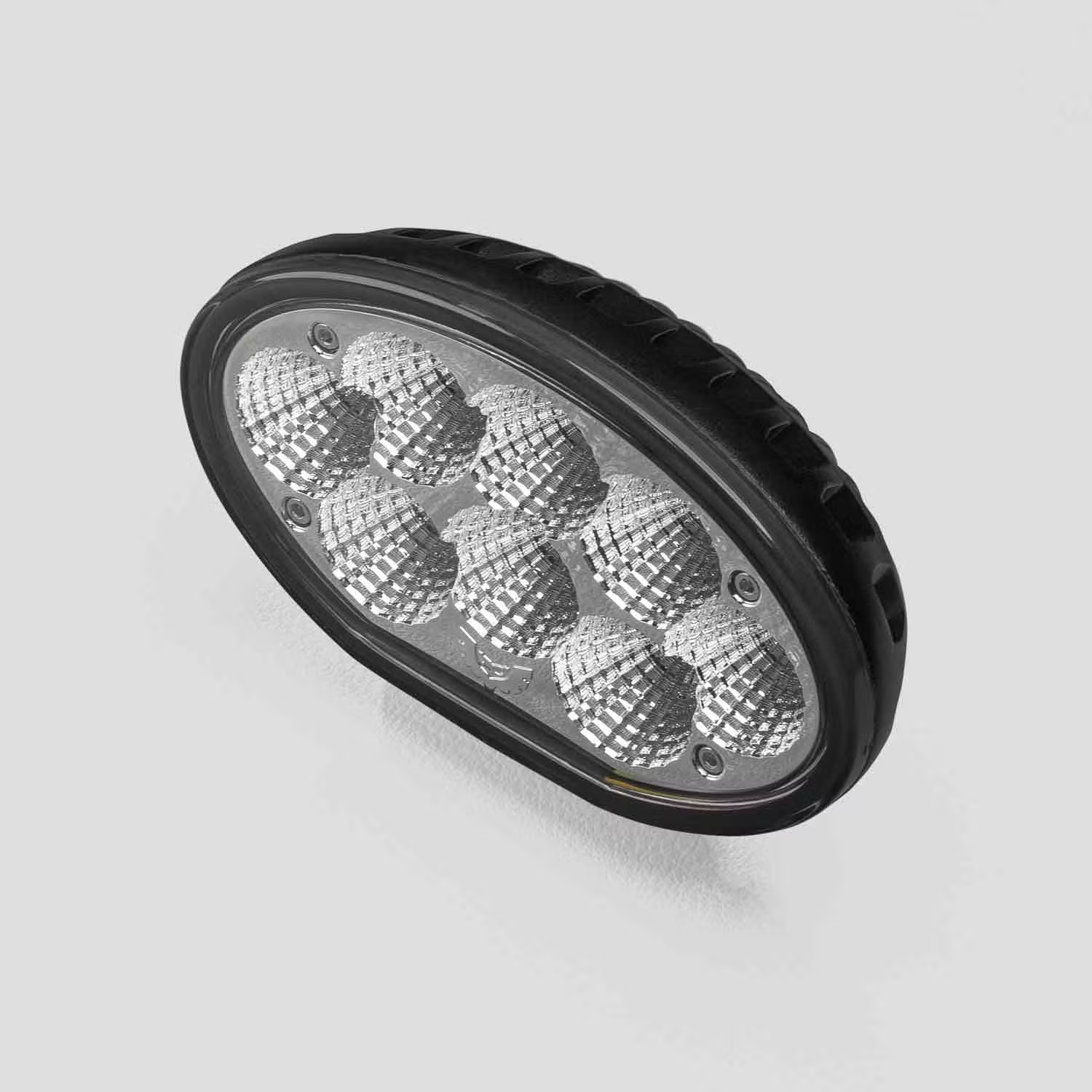

8 × 3W Osram P7 LEDs – efficient, high-output illumination
-
CISPR25 Class 3 certified – zero radio interference
-

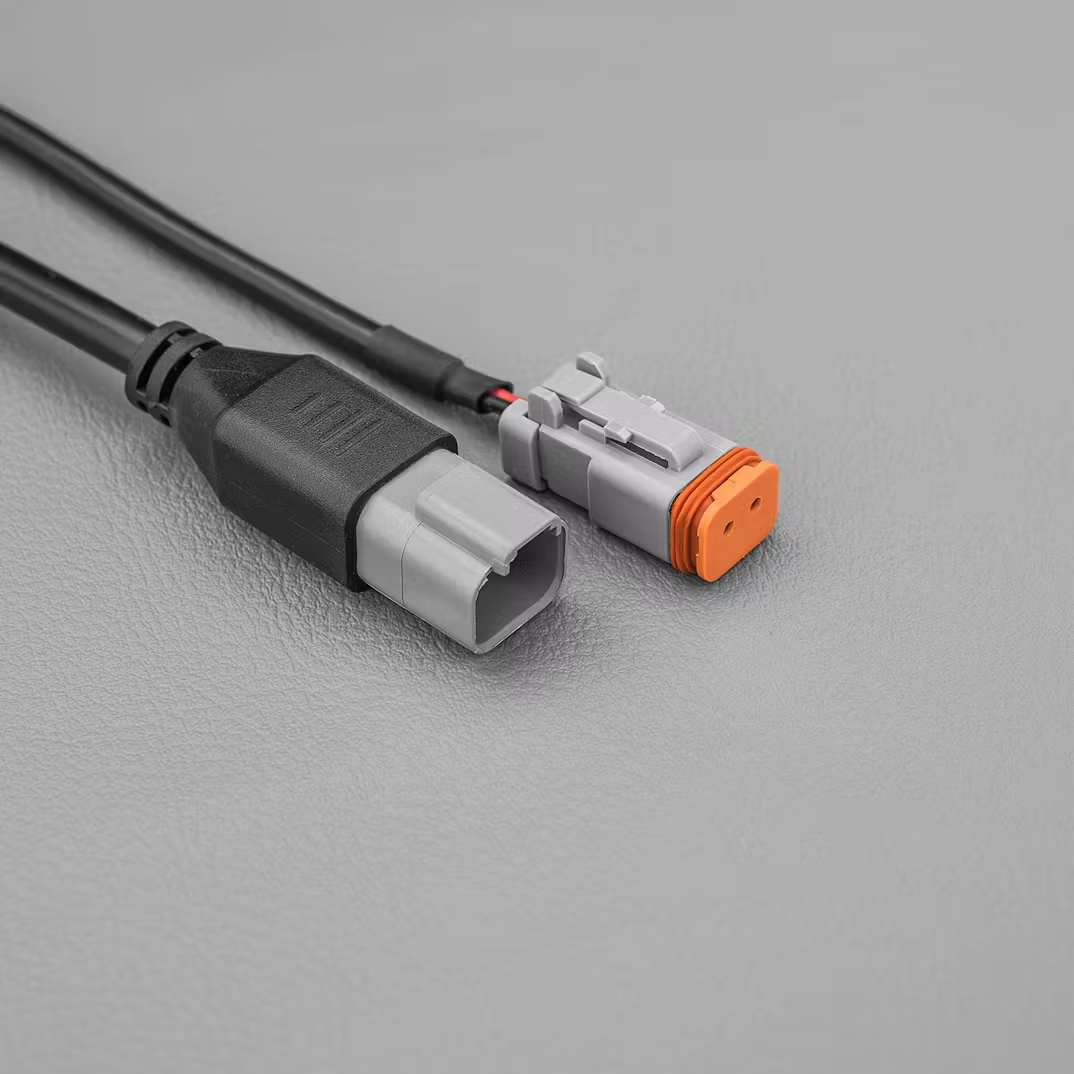

Deutsch DT-2 environmentally sealed connector
-
6063 die-cast aluminium housing for maximum strength
-

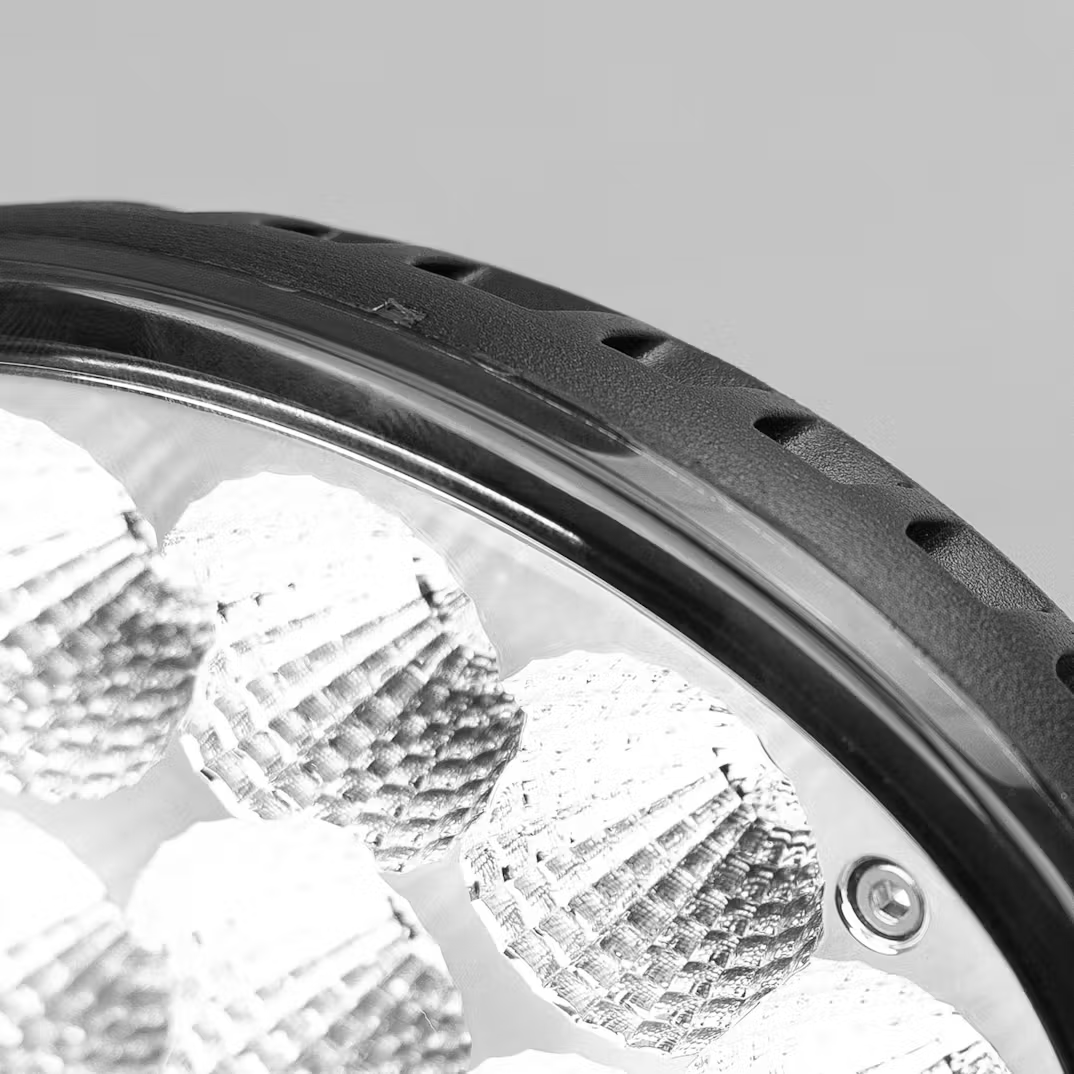

UV-stabilised polycarbonate lens – virtually indestructible
-
5700 K true white light for natural colour and clarity
-

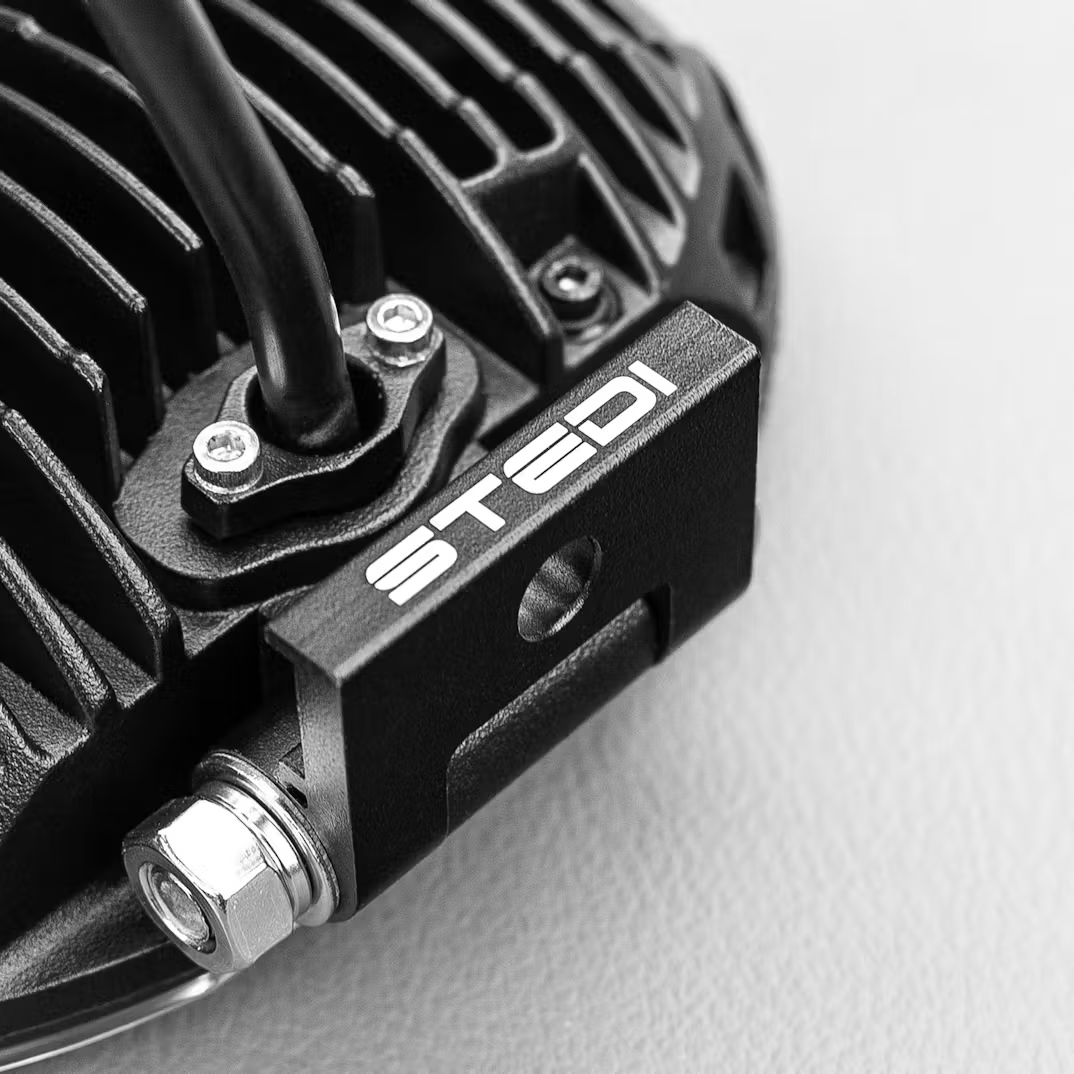

Die-cast mounting bracket – stronger than folded steel designs
-
Twice as bright as OEM John Deere LED offerings
🛠 Technical Specifications
| Specification |
Details |
| Power |
24 W |
| LED Type |
8 × 3 W Osram P7 LEDs |
| Current Draw |
2 A @ 12 V |
| Operating Voltage |
10 – 30 V DC |
| Lumens |
2,600 Lm |
| Ingress Protection |
IP68 |
| Colour Temperature |
5700 K (True White) |
| Beam Type |
Flood |
| Housing Material |
Die-Cast Aluminium |
| Lens Material |
UV-Stabilised Polycarbonate |
| Mounting Bracket |
Stainless Steel Universal U-Bracket |
| Weight |
0.42 kg |
| Operating Temperature |
–40 °C to +60 °C |
| Lifespan |
30,000 hours (LM-80) |
| Certifications |
CE, ROHS, E-Mark R10 |
| RFI Suppression |
CISPR25 Class 3 |
🔧 Direct Replacement For
Case IH Combine Models:
5088, 5130, 5140, 6088, 6140, 7010, 7088, 7120, 7130, 7140, 7230, 8010, 8120, 8230, 8240, 9120, 9230
Replaces OEM# 87001315, 87284332, 47682620, 87584890, 84479126
John Deere Combine Models:
S550, S650, S660, S670, S670HM, S680, S680HM, S690, S690HM, S760, S770, S780, S790, T550, T560, T660, T670, W540, W550, W650, W660, 9560, 9560 SH, 9560 STS, 9570 STS, 9660, 9660 CTS, 9660 STS, 9670 STS, 9760 STS, 9770 STS, 9870 STS
Replaces OEM# AH207788, AH205072, AXE16947, AXE40244
📦 What’s Included
🚜 Ideal Applications
-
OEM tractor and harvester replacements
-
Agricultural and farming machinery
-
Industrial and construction vehicles
-
Utility, marine, and heavy-equipment lighting
