High Beam. Boosted.

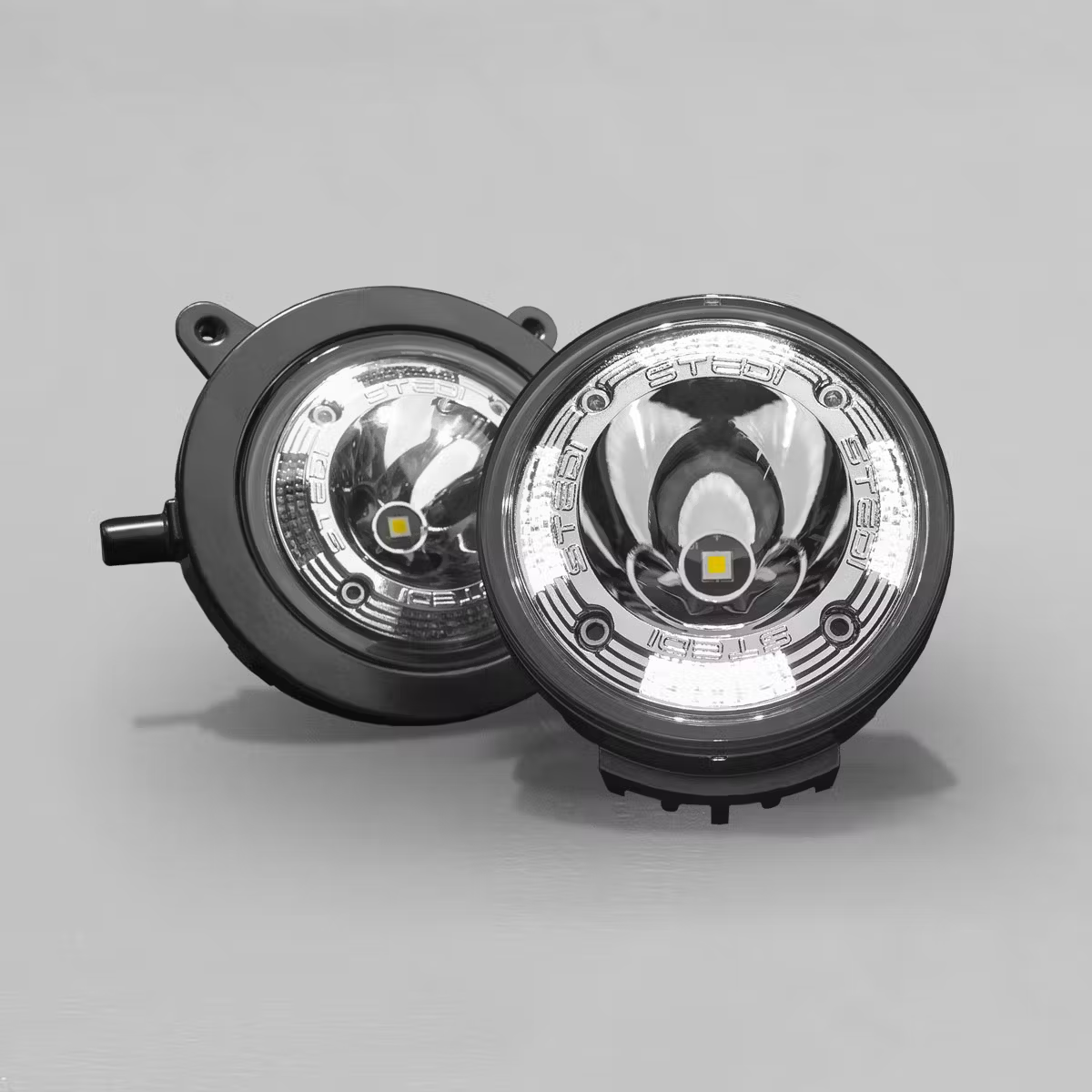

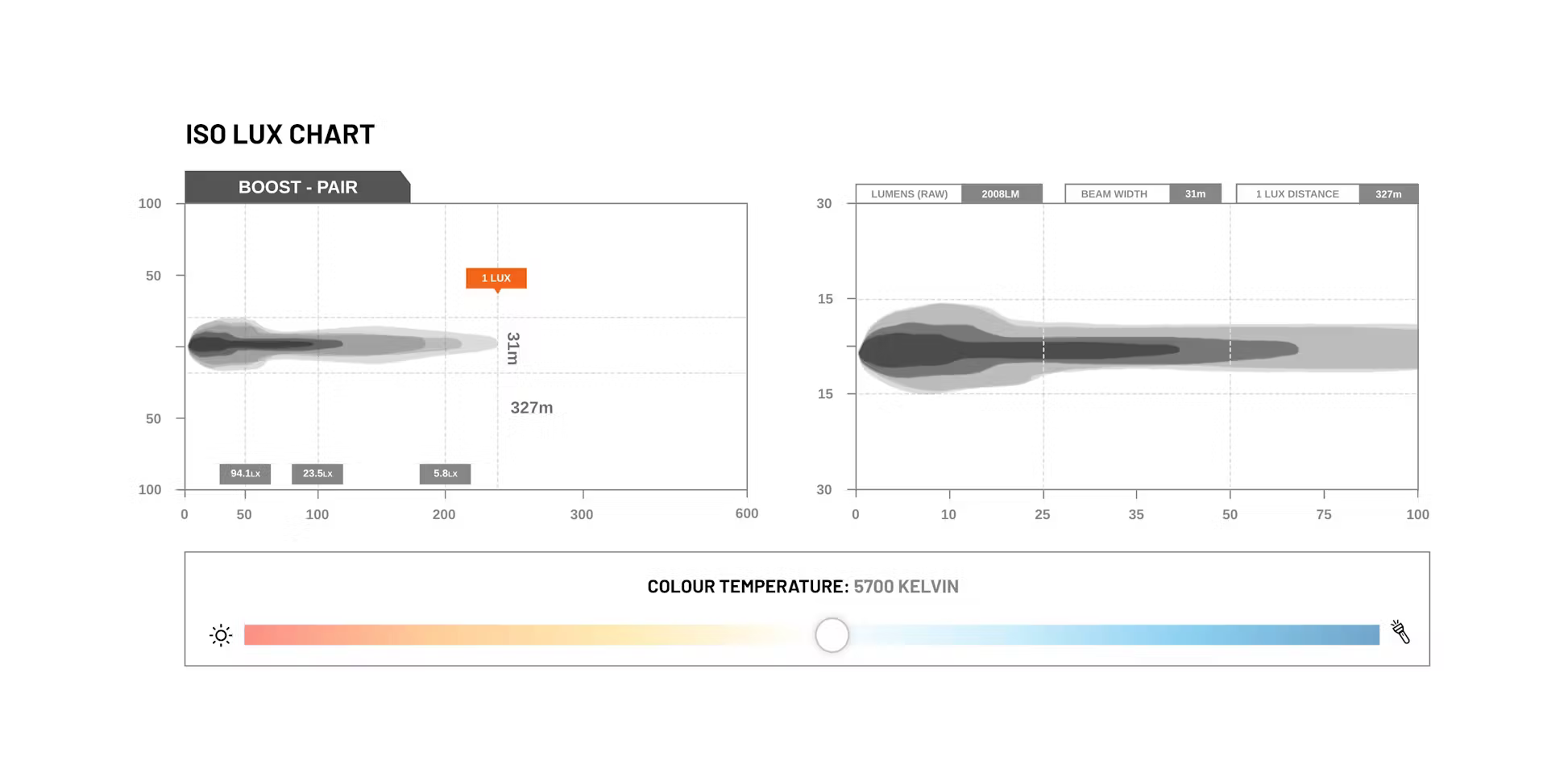

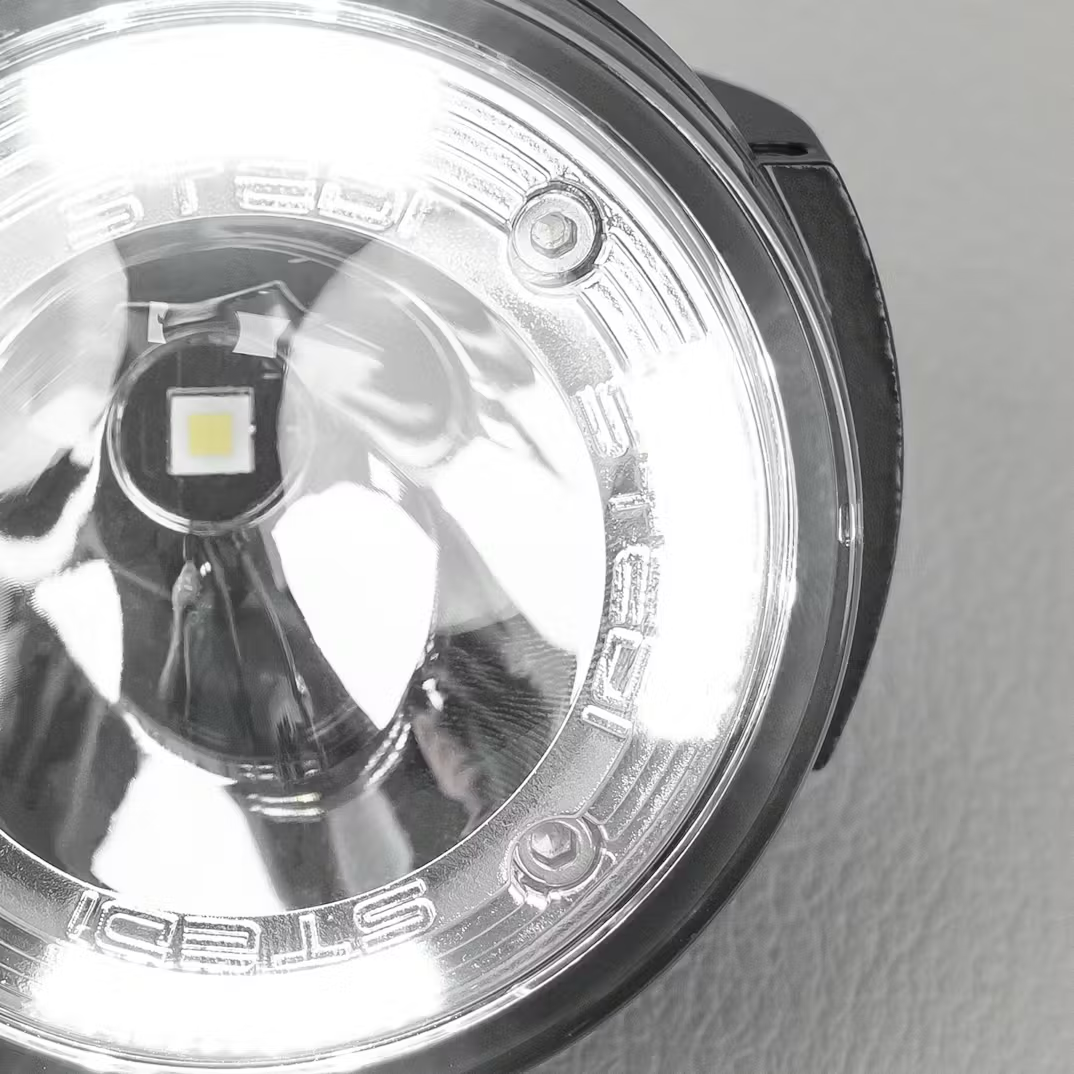

The STEDI™ Boost Integrated Driving Light is a purpose-built, high-performance lighting upgrade designed specifically for the ARB Deluxe Bull Bar. Powered by CREE™ XHP50 emitters, the Boost delivers a peak beam throw of 327 m @ 1 Lux and a verified 1,800 tested lumens — providing true driving beam performance rather than the wide fog pattern of factory-fitted lamps.
⚡ Day & Night Brilliance

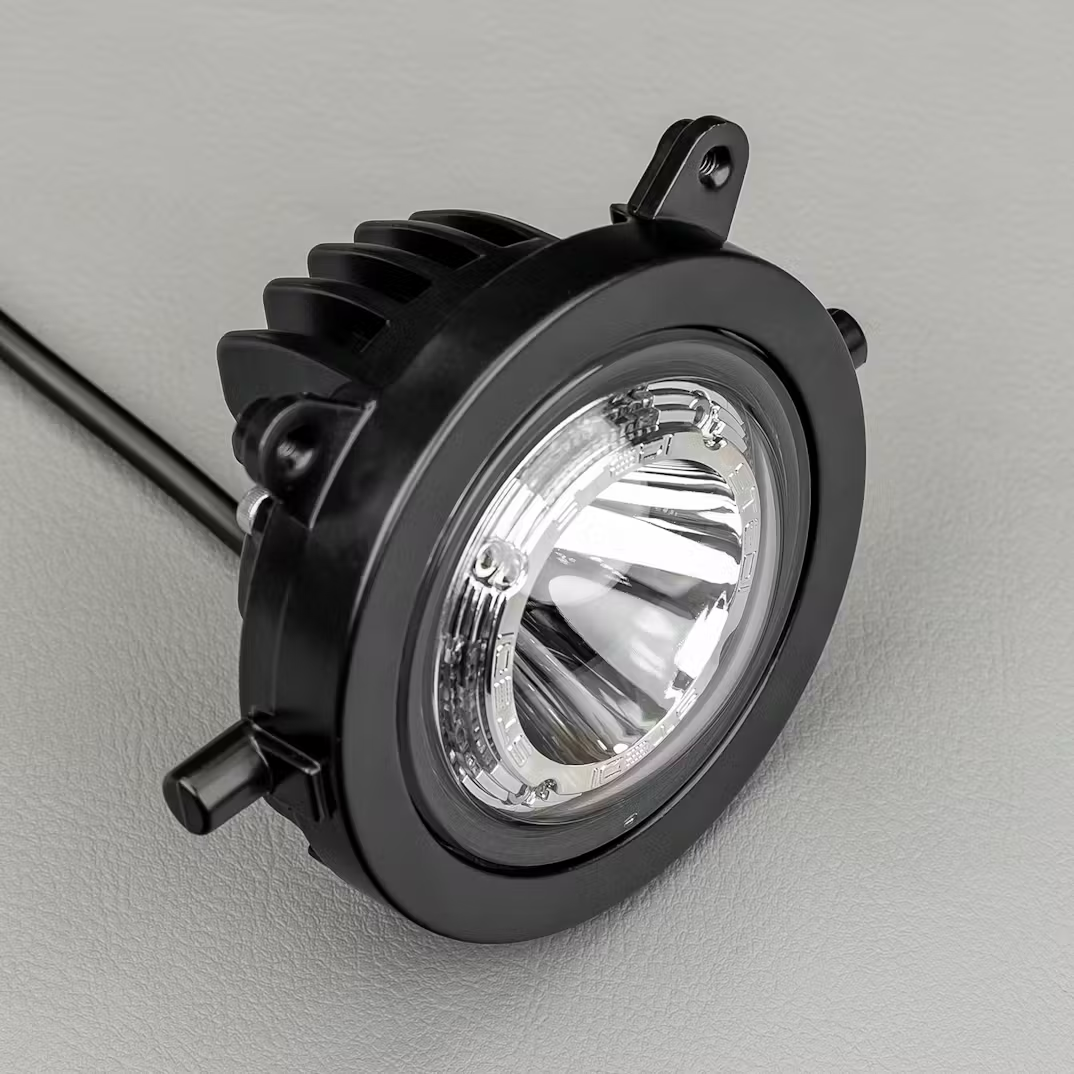

No matter the vehicle — from daily drivers to long-haul 4WD tourers — the Boost LED provides unmatched clarity and presence. Its modular design slots perfectly into your ARB Deluxe fog light housing, ensuring a seamless OEM fit.

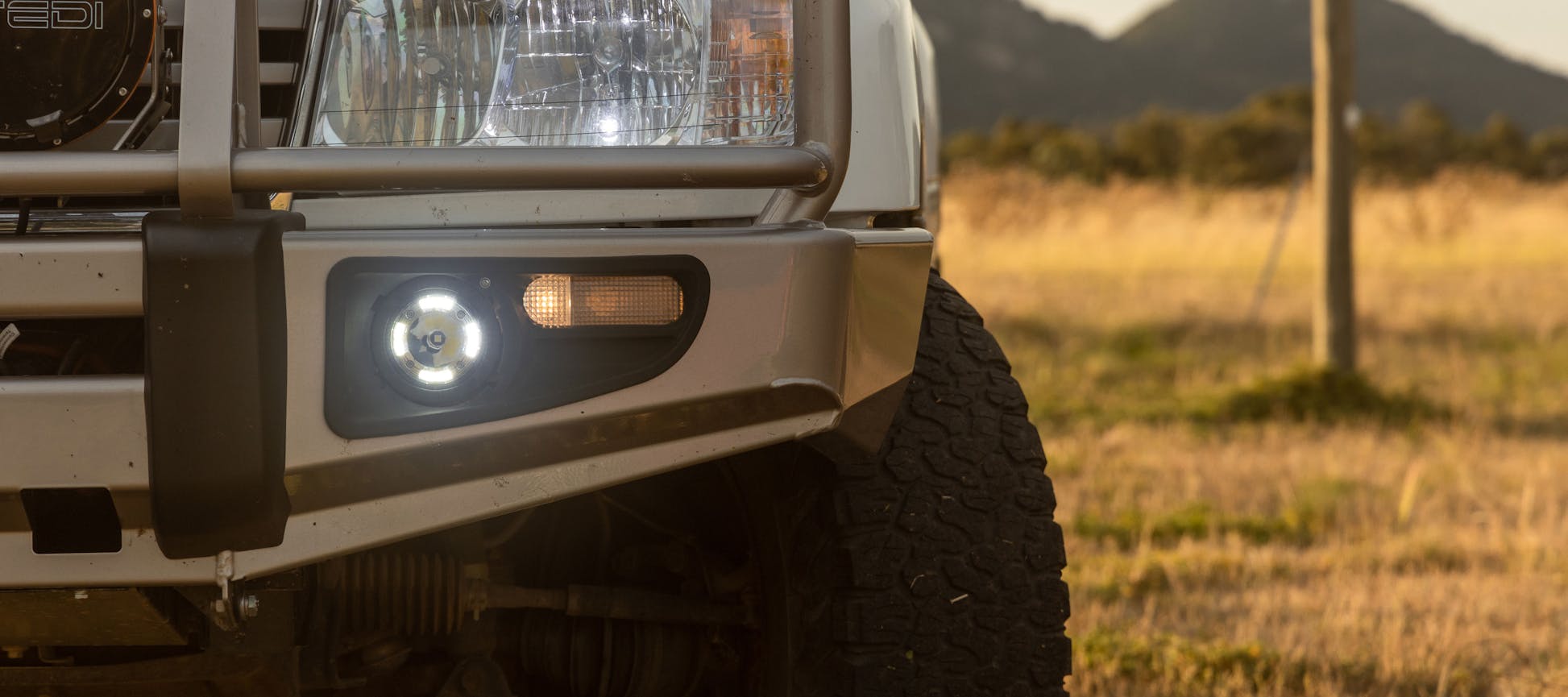

During the day, the built-in daytime running light (DRL) keeps you visible; at night, the main beam delivers powerful forward projection for safer driving.
🧭 Fog Lifted.

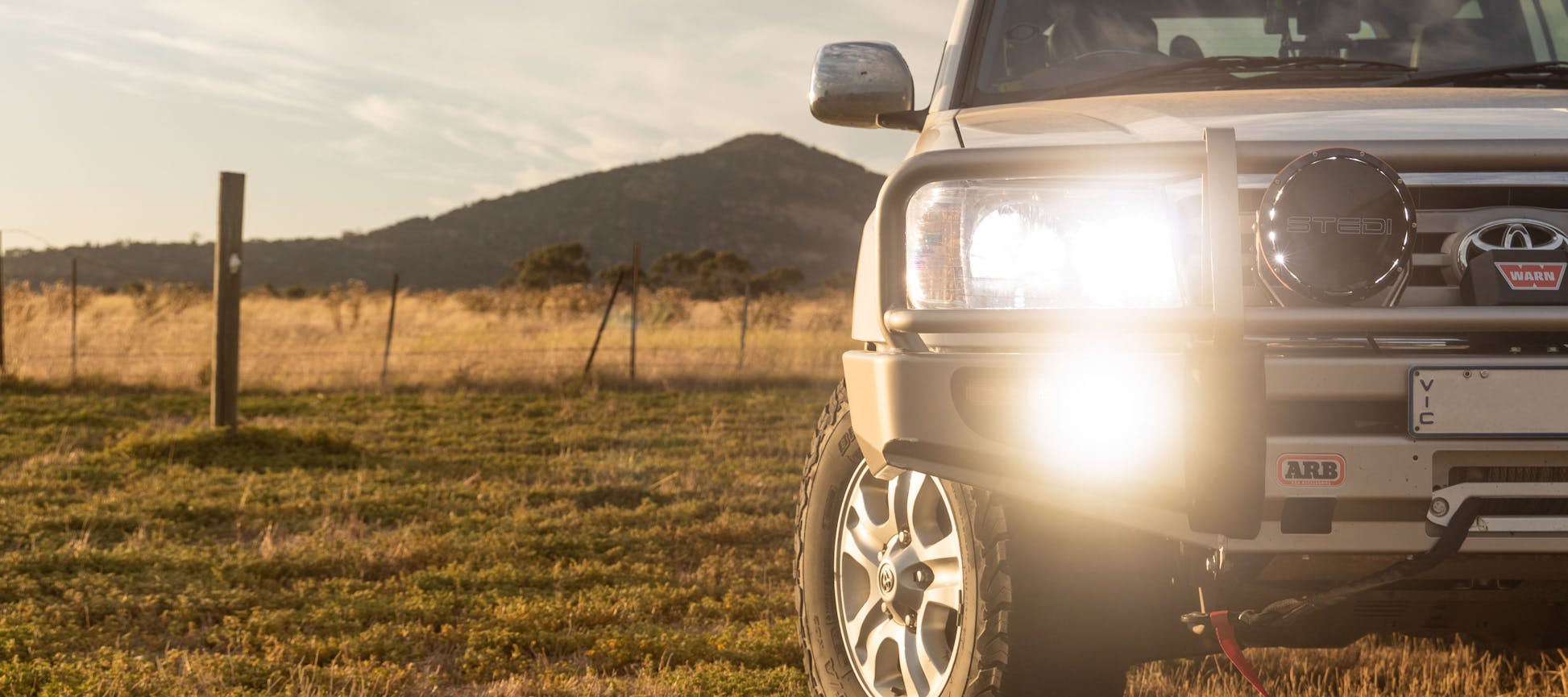

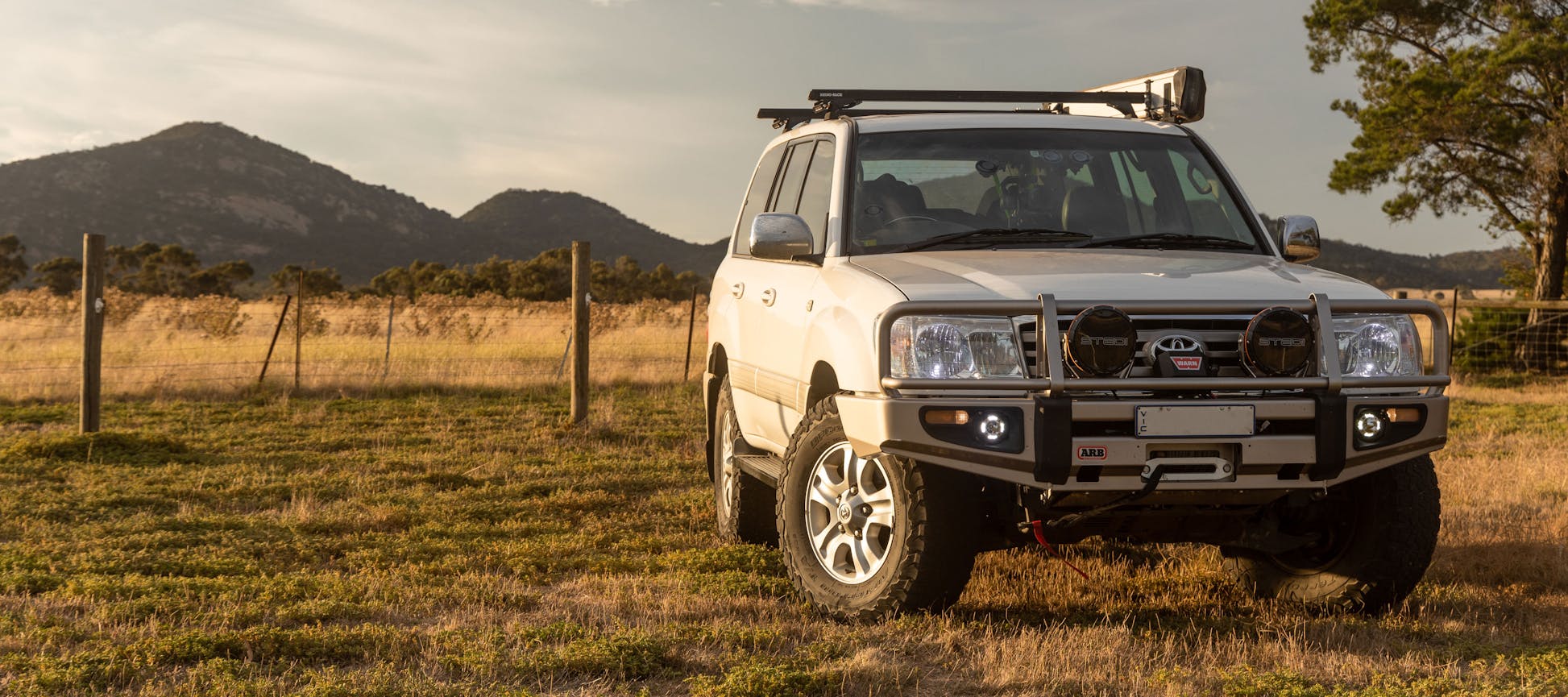

Unlike traditional fog lights, the Boost Integrated Driving Light is designed to activate with your high beam, giving you the long-range visibility needed for open-road adventures. Housed discreetly within your ARB Deluxe Bar, the Boost remains stealthy until you need it most — then unleashes impressive illumination at the flick of a switch.
🔩 Key Features
-
Built-in LED Daytime Running Light (DRL)
-
High-performance 18W CREE™ XHP50 LED
-
UV-stable automotive-grade polycarbonate lens with surface hardening
-

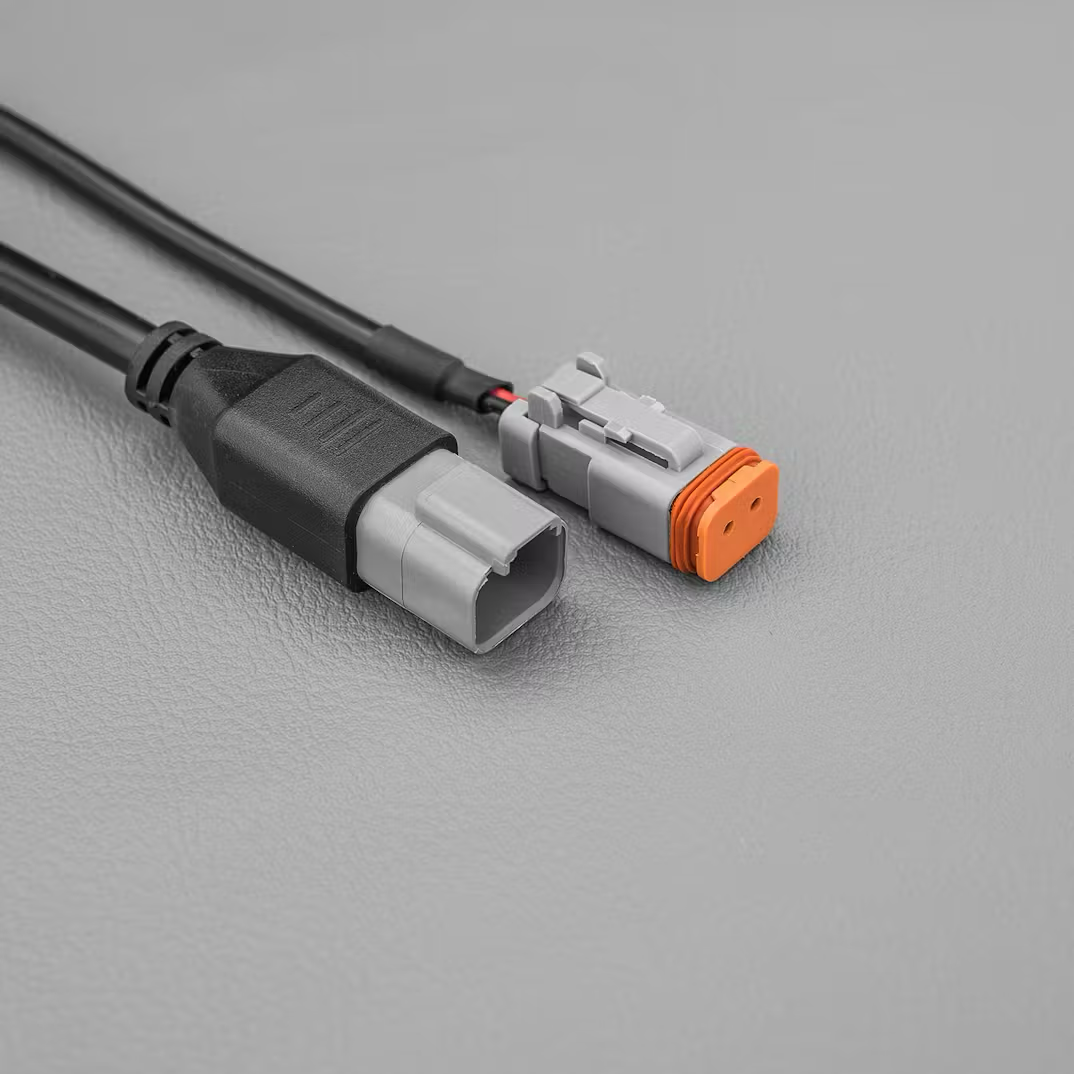

Environmentally sealed Deutsch DT connector
-

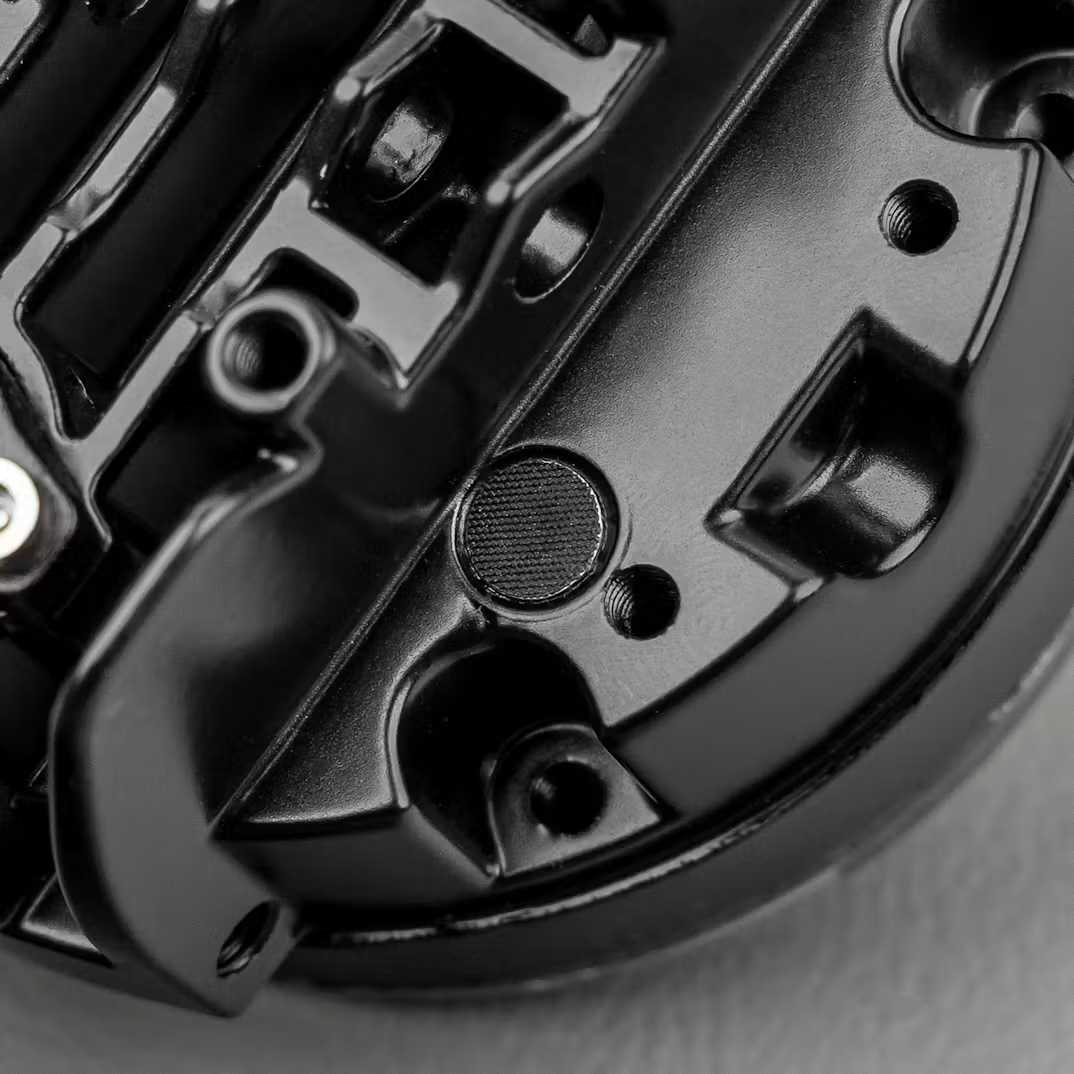

Pressure equalisation vent to eliminate condensation
-
IP68 waterproof rating – submersible up to 1 m
-

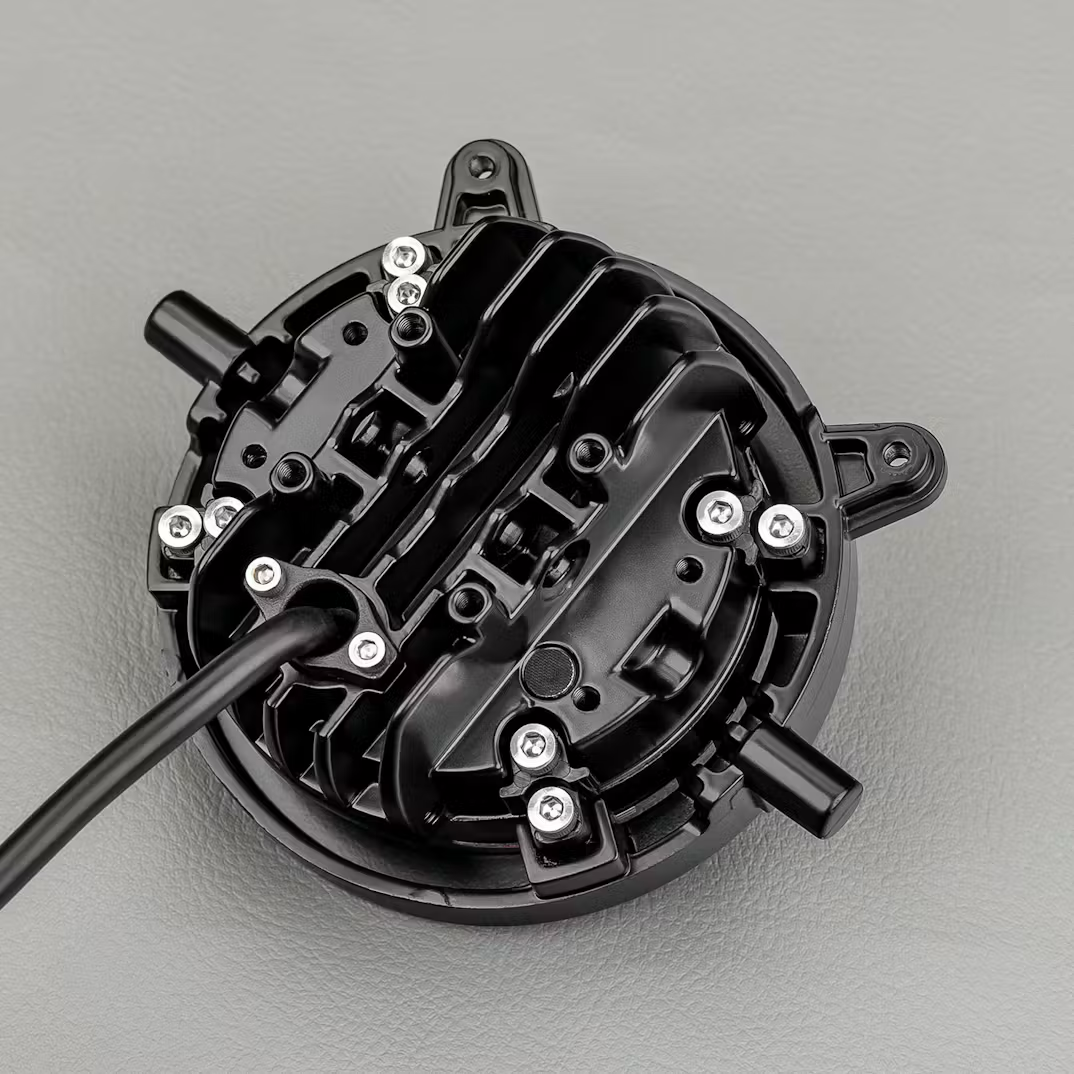

Alloy outer casing – robust and corrosion-resistant
-
RFI & EMI suppression circuitry – zero radio interference
-
5700 K CCT – crisp, pure white beam
-
50,000-hour lifespan
-
24-month warranty
-

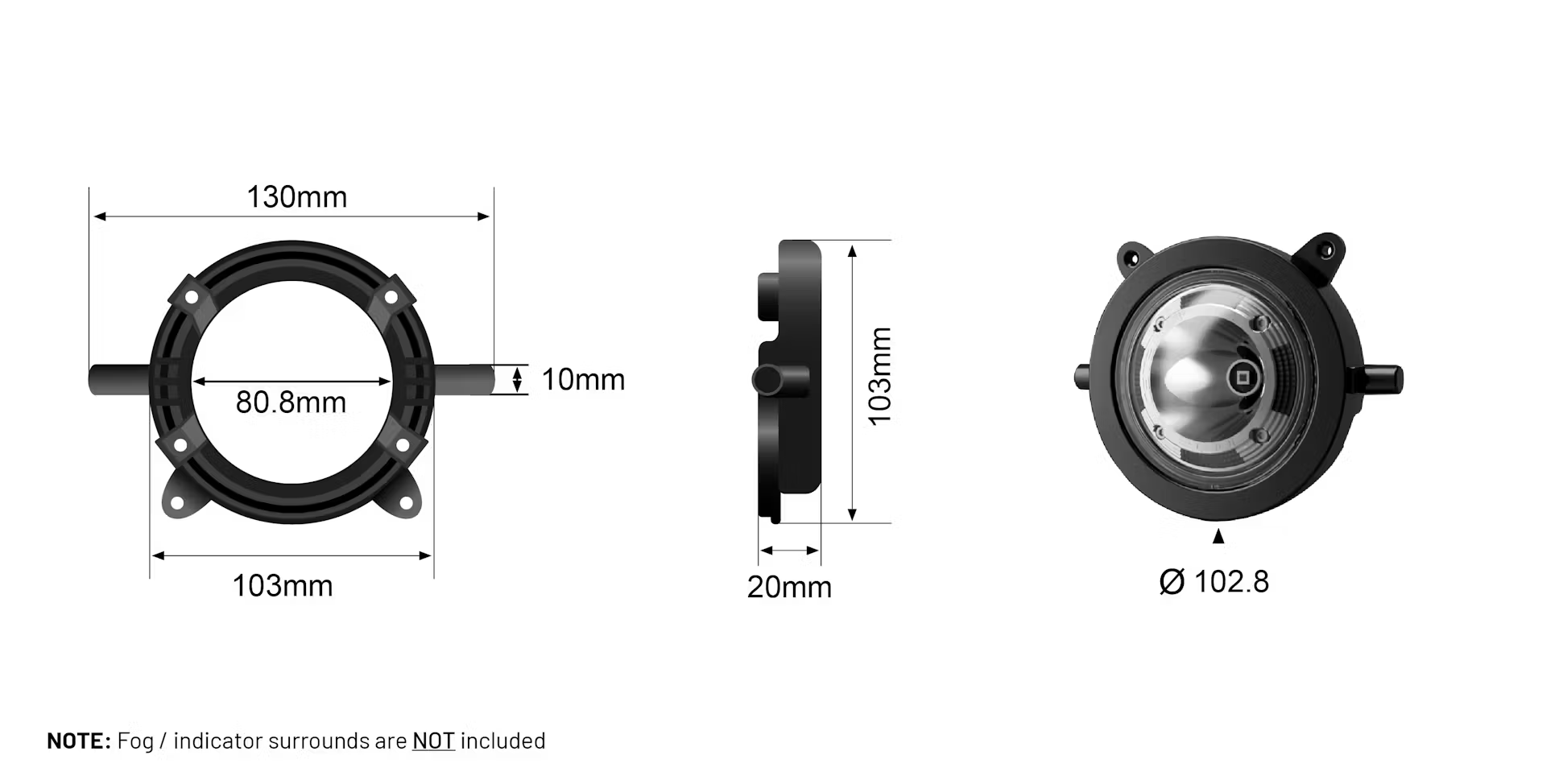

Includes all tilt-adjust hardware (spring and screw set)
-
Sold as a pair (lights + brackets)

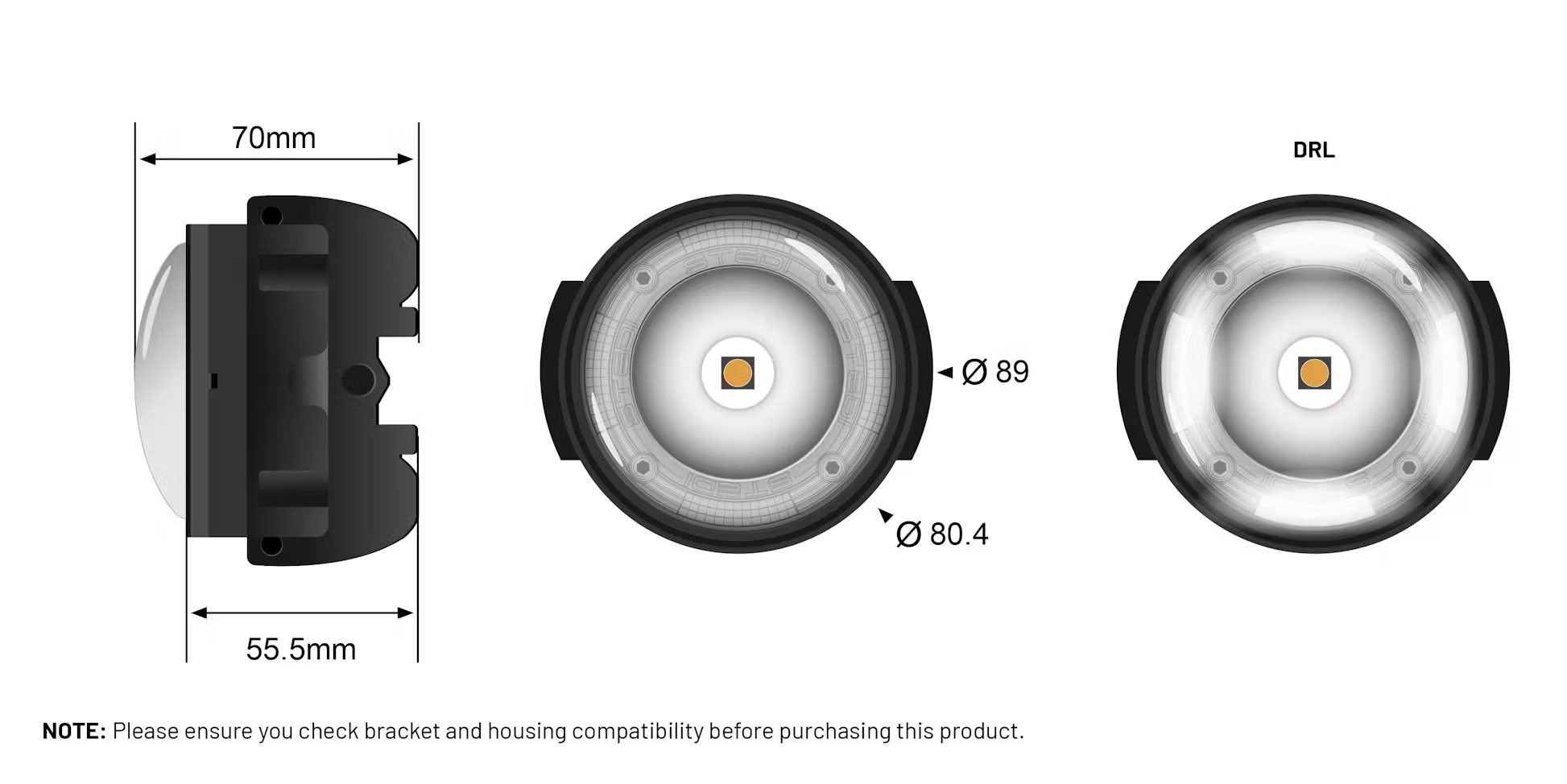

🛠 Technical Specifications
| Specification |
Details |
| LED Chip |
1 × 18W CREE™ XHP50 |
| Lens Material |
Polycarbonate with Surface Hardening |
| Raw Lumens |
2,080 Lm |
| Tested Lumens |
1,800 Lm |
| Beam Pattern |
Spot |
| Amp Draw |
1.25 A @ 12 V |
| Power |
17 W |
| DRL |
0.25 A @ 12 V / 3 W |
| Ingress Protection |
IP68 |
| Colour Temperature (CCT) |
5700 K |
| Operating Temperature |
–40 °C to +60 °C |
| Weight |
0.35 kg |
| Lifespan |
50,000 hours |
| Certification |
CISPR25 Class 3 |
📦 What’s Included
⚙️ Note: Boost Integrated Driving Lights require a high-beam-triggered wiring loom (available separately).
Not compatible with ARB IPF fog light bull bars.
🚙 Compatible Vehicles
🛠 Installation Notes
The STEDI™ Boost system is designed for plug-and-play integration into the ARB Deluxe fog housing. If you’re unsure of compatibility, contact us for expert guidance.
🏁 Designed & Manufactured by STEDI™
All product and company names are registered trademarks of their respective owners. Use of trade names is for compatibility and reference only — no association or endorsement is implied.
