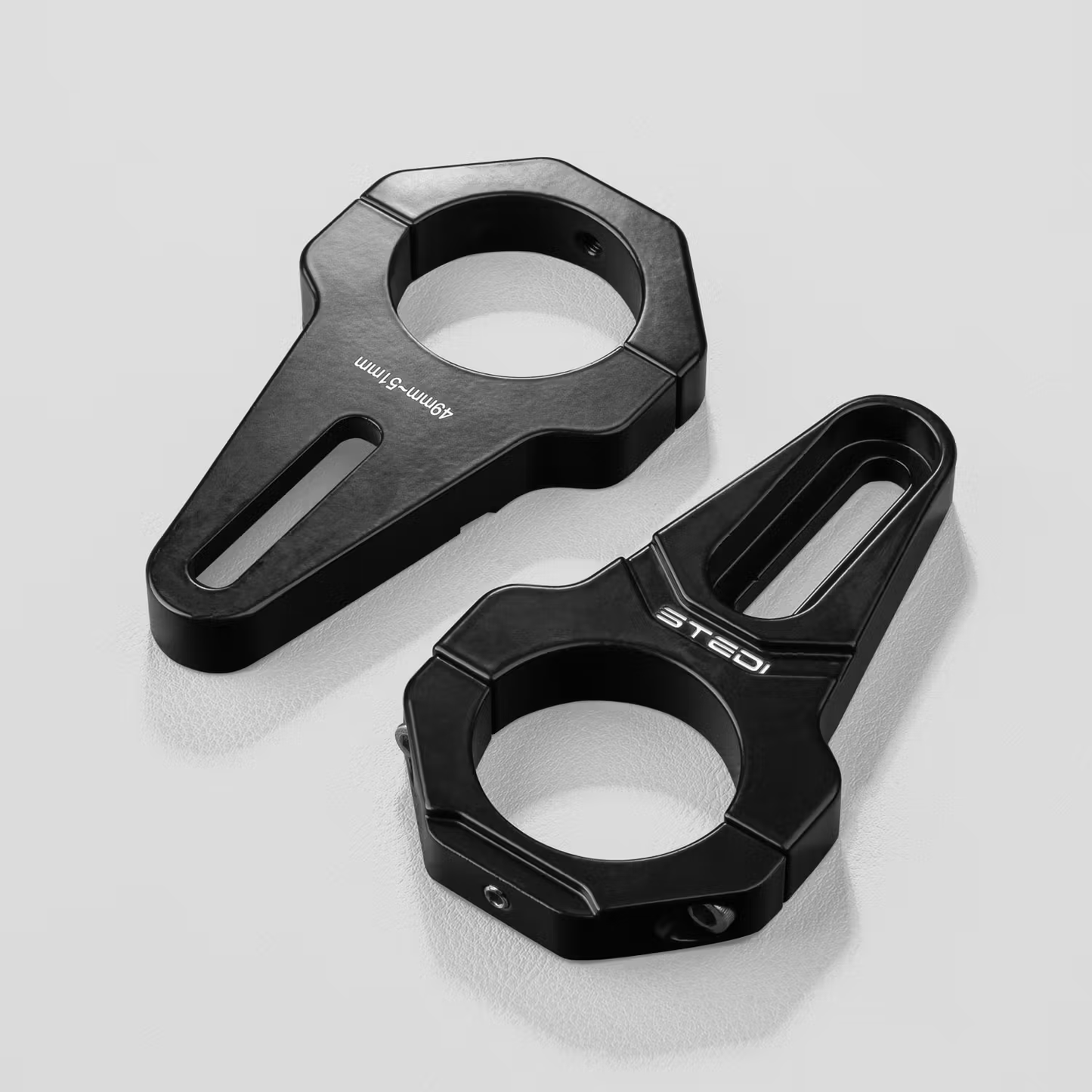

Vice Bull Bar Tube Clamps (Large) - Stedi BRKUNIV-OPT

Diverse Application.

Engineered for strength, precision, and versatility, the STEDI™ Vice Clamp Bull Bar Brackets (Large) deliver the ultimate mounting solution for LED Light Bars and Work Lights. Designed for side-mounted and lower-mounted lighting configurations, these clamps combine robust performance with refined aesthetics — a hallmark of STEDI’s innovation.

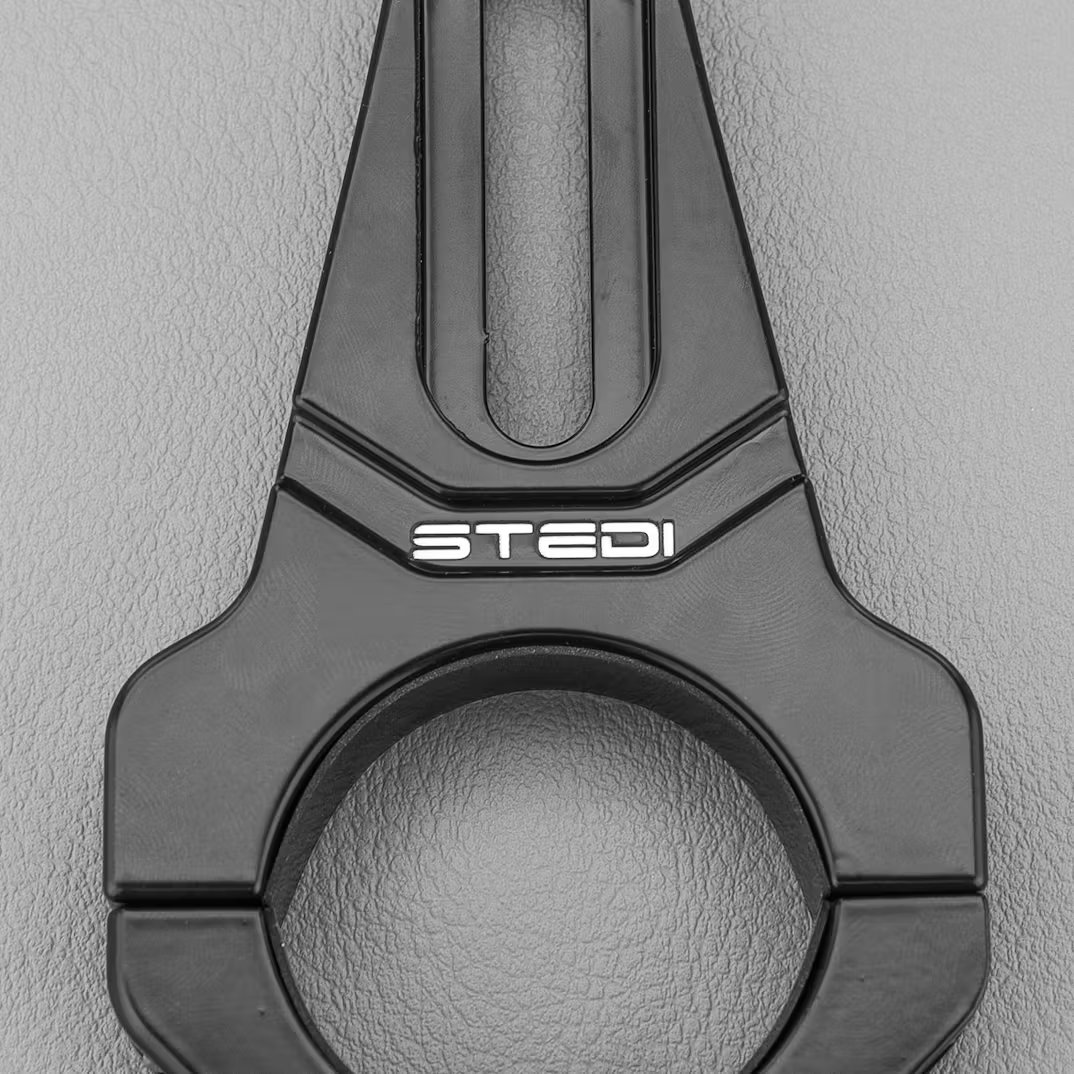

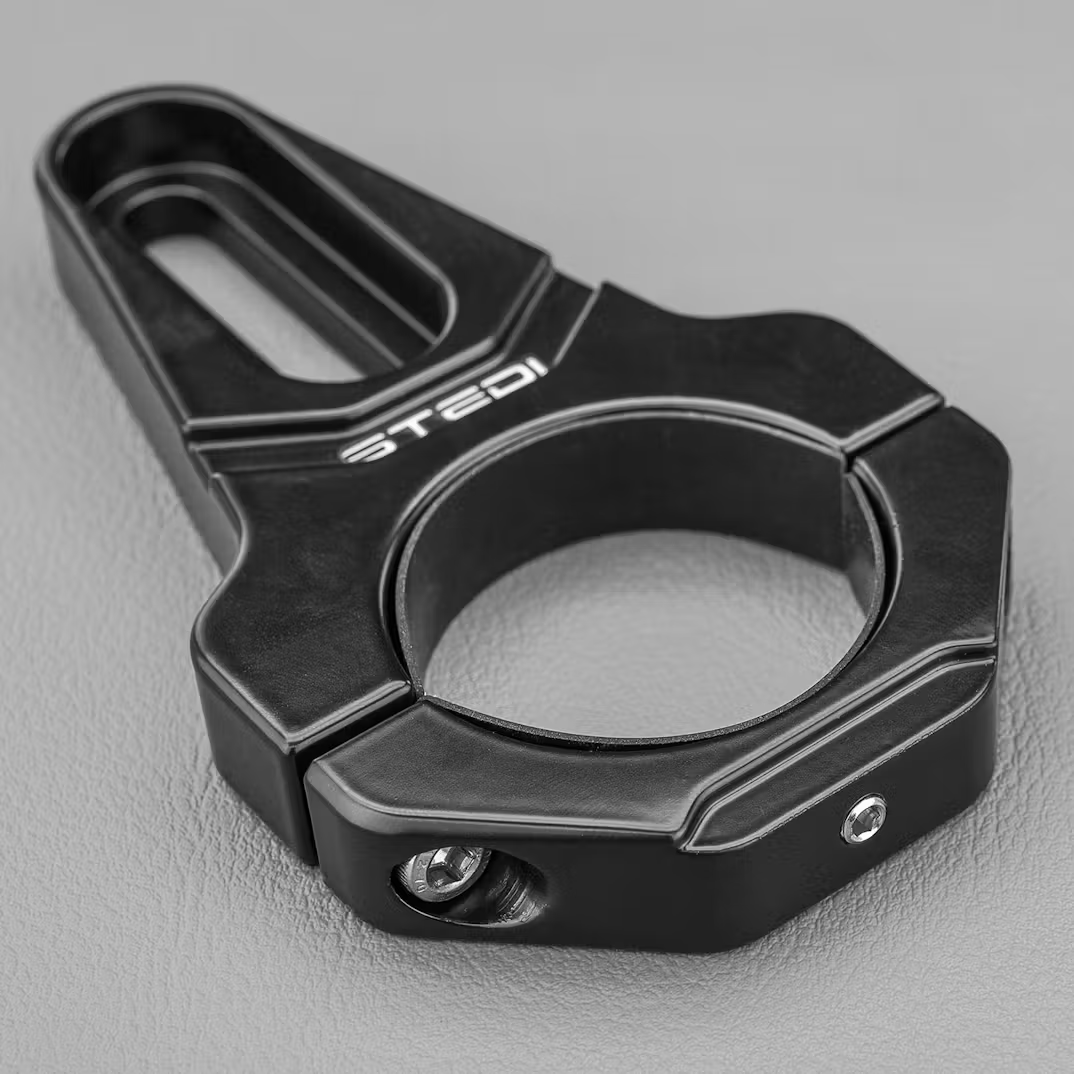

Constructed from cast aluminium and paired with stainless steel fasteners, these clamps are both lightweight and exceptionally durable. The UV-stable polyester powder coat ensures long-lasting resistance against the elements, maintaining a clean, professional finish for years to come.

⚙️ Unmatched Versatility

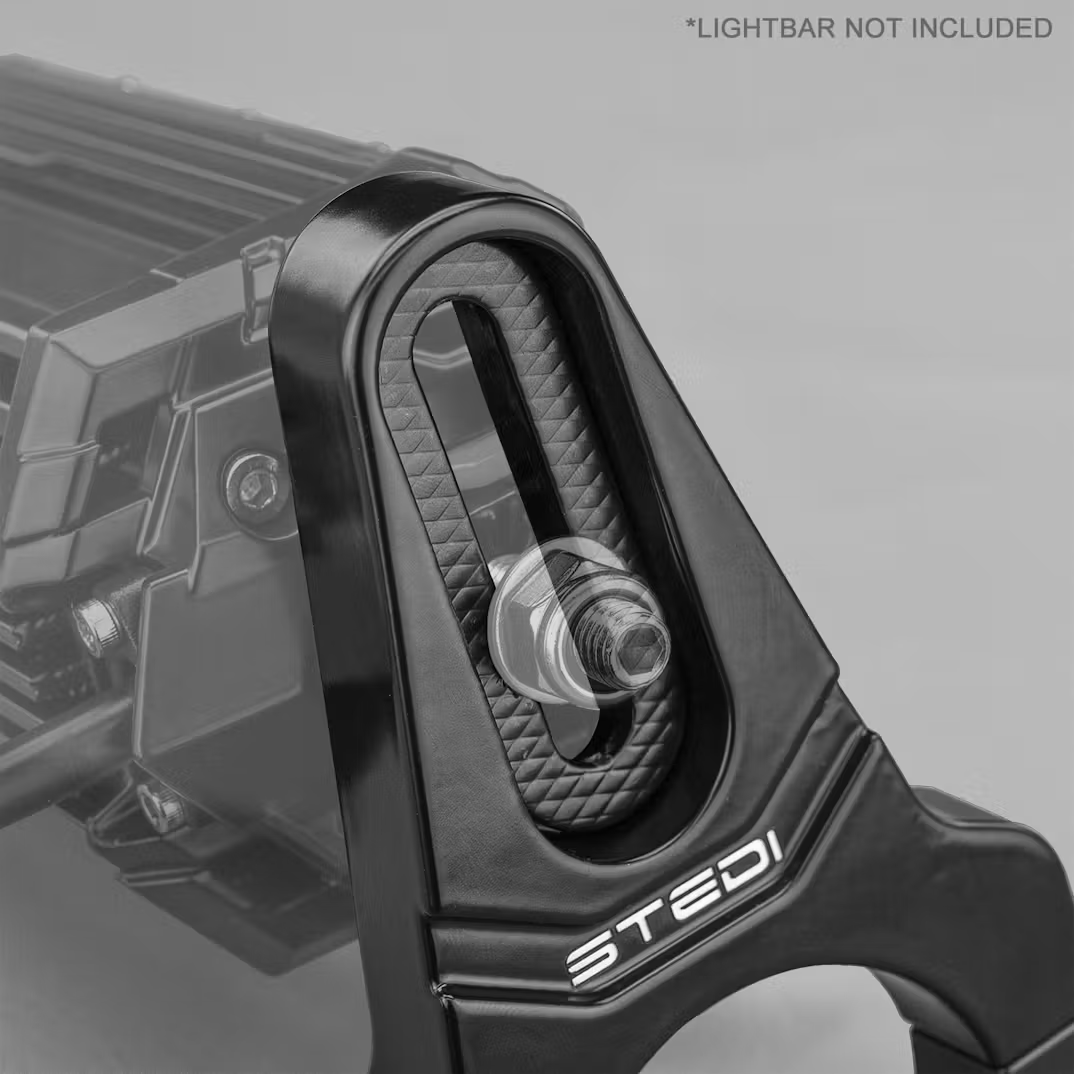

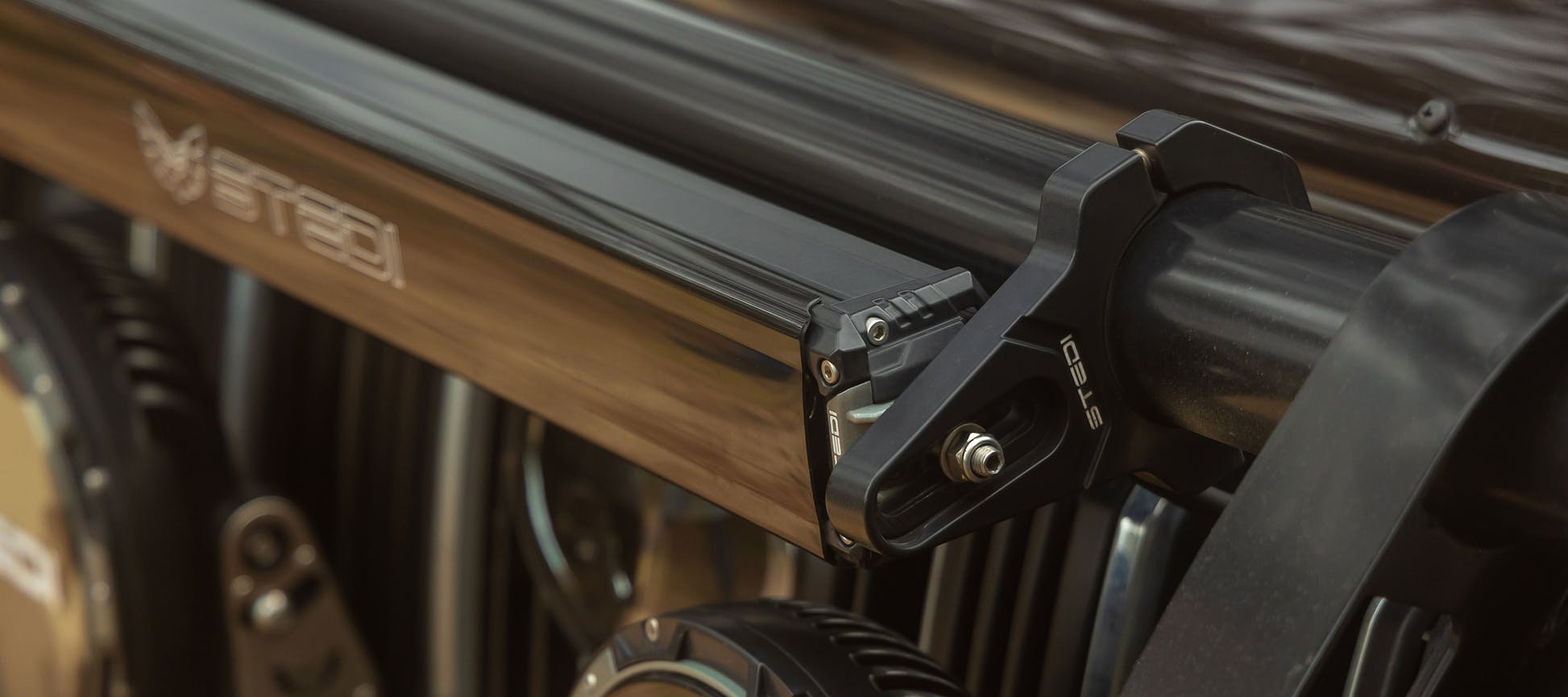

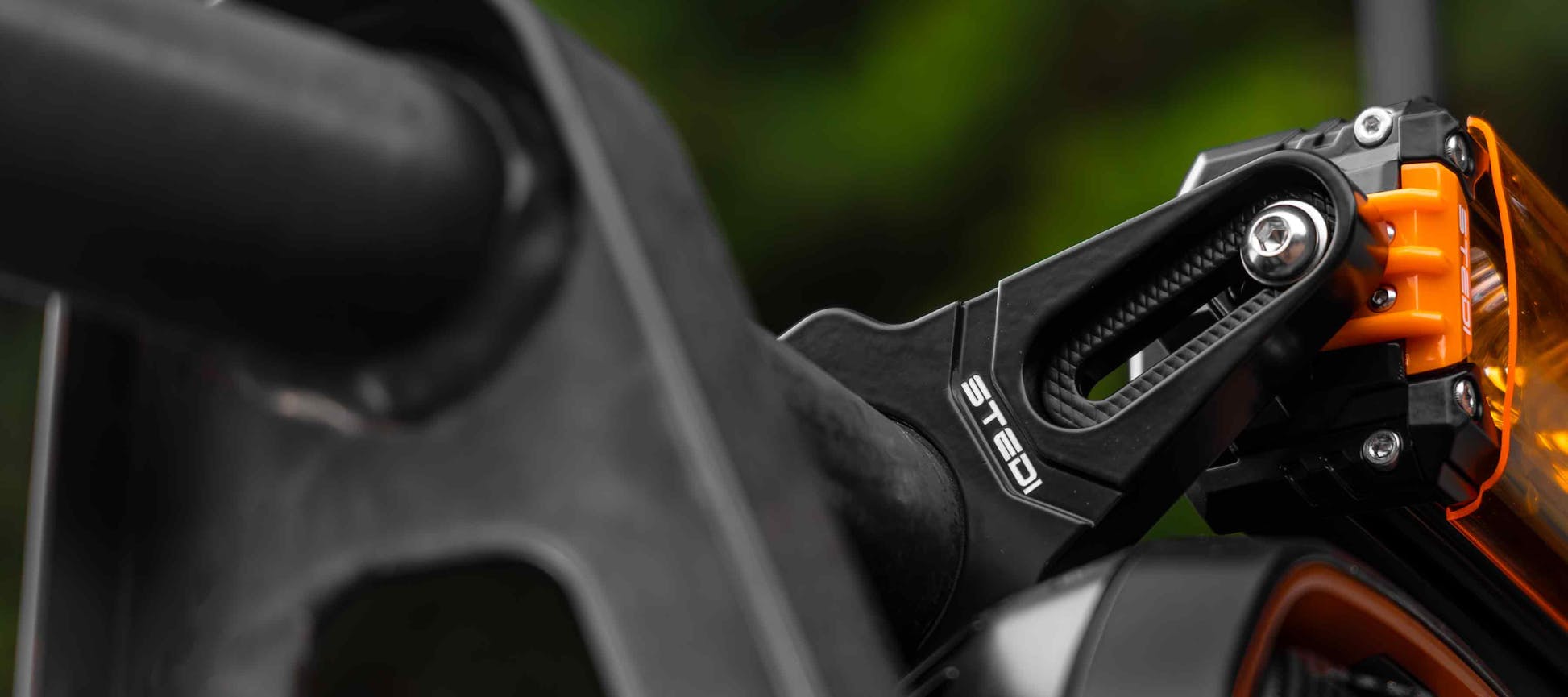

With the ability to rotate freely around the tube, and 360° rotation capability for your light bar, the Vice Clamps provide unlimited mounting possibilities. Whether installed on vertical or horizontal bars, they deliver a secure, vibration-free fit — allowing precise light alignment without compromise.

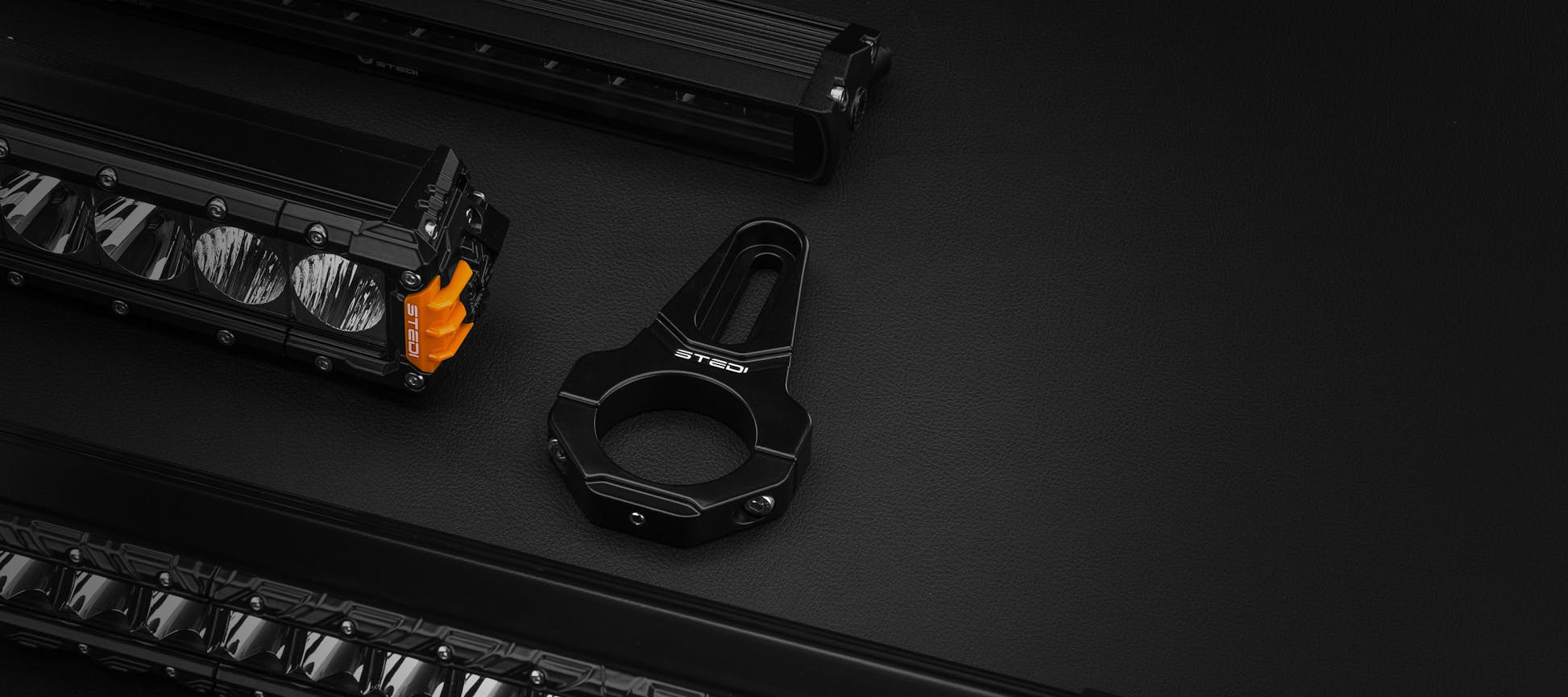

Compatible with STEDI™ Work Lights and Light Bars from as small as the 10W Mini to as large as the 60W Mining Spec, these clamps open up a new world of modular lighting configurations for off-road, industrial, or marine applications.

💡 Signature Compatibility

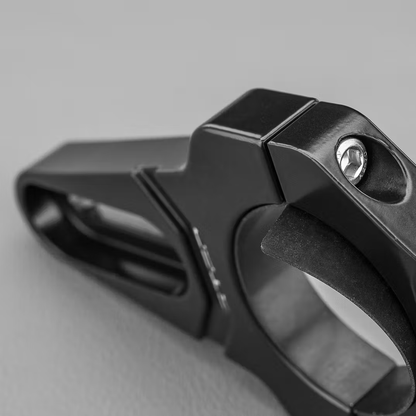

Designed to fit a variety of tube diameters, the Vice Bull Bar Tube Clamps® (Large) are available in five sizes to suit virtually any bull bar, roll cage, or tubular frame. Each set includes rubber inserts to protect your mounting surface and eliminate vibration, while the 4 mm set screw ensures a rock-solid, non-slip hold.

🔩 Key Features

• Universal mounting for side-mounted and lower-mounted LED Light Bars & Work Lights

• Precision-cast aluminium construction – lightweight, strong, and corrosion-resistant

• Stainless steel fasteners – ensures durability in all weather conditions

• Polyester UV-stable powder coat – prevents colour fade and surface wear

• 4 mm anti-slip set screw – locks the bracket firmly in place

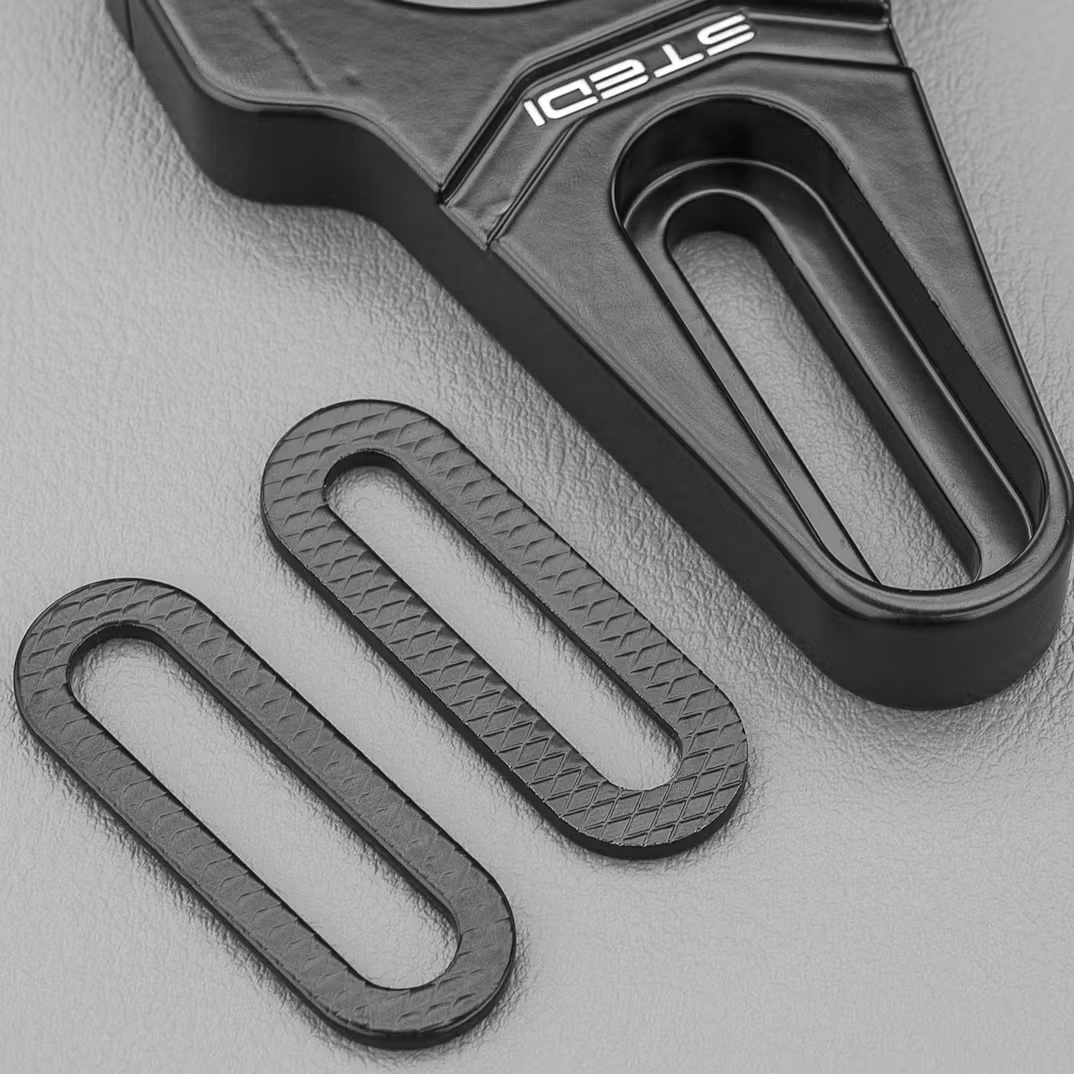

• Rubber inserts included – anti-vibration and surface protection

• Full 360° adjustability – rotate both the clamp and light for optimal beam positioning

• Registered Design No. 201811269

🧮 Available Sizes

Choose from the following clamp diameters for a perfect fit:

• 35–40 mm

• 44.5–48 mm

• 49–51 mm

• 60–63.5 mm

• 75–77 mm

💡 Need to check your bar size?
Measure the circumference (in mm) of your tube and divide by 3.14 to find your diameter.
Example: 157 mm ÷ 3.14 = 50 mm diameter → choose 49–51 mm clamps.

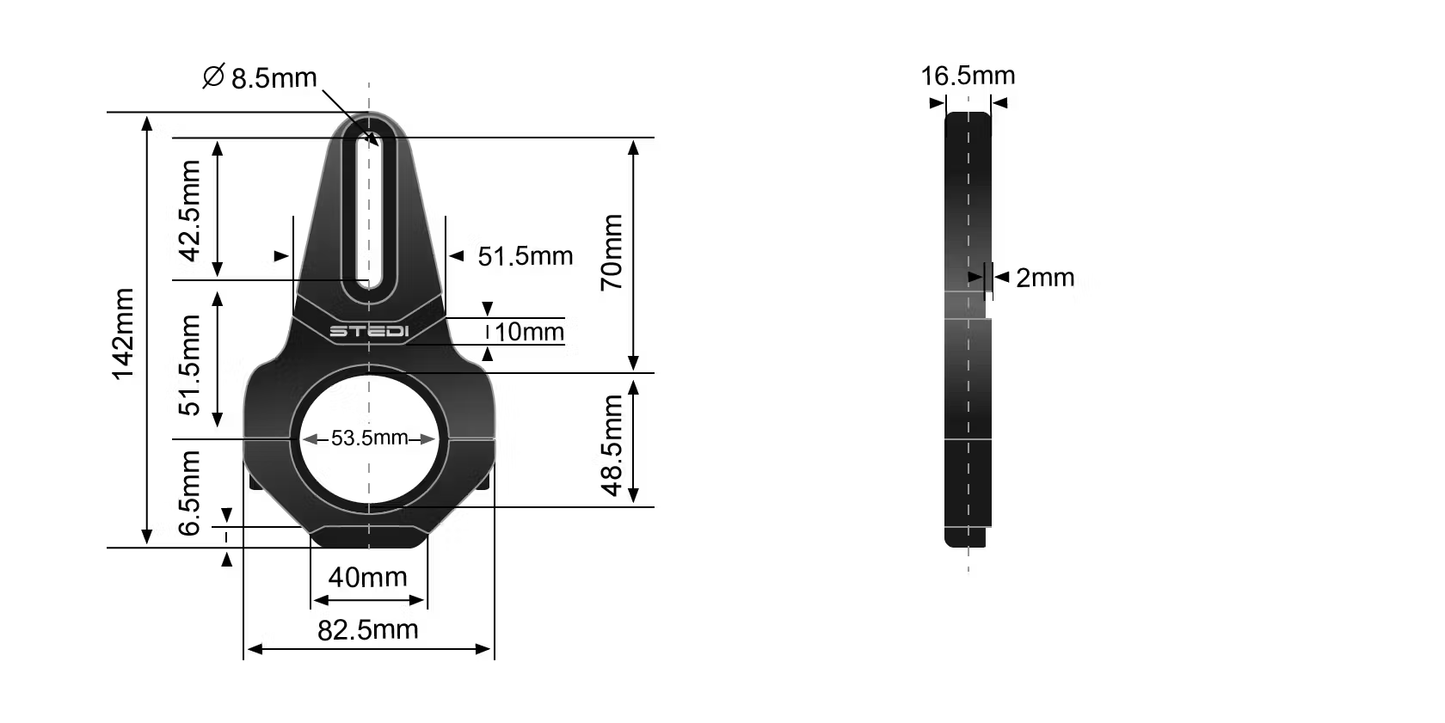

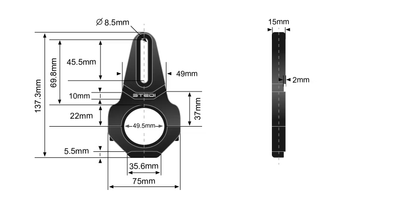

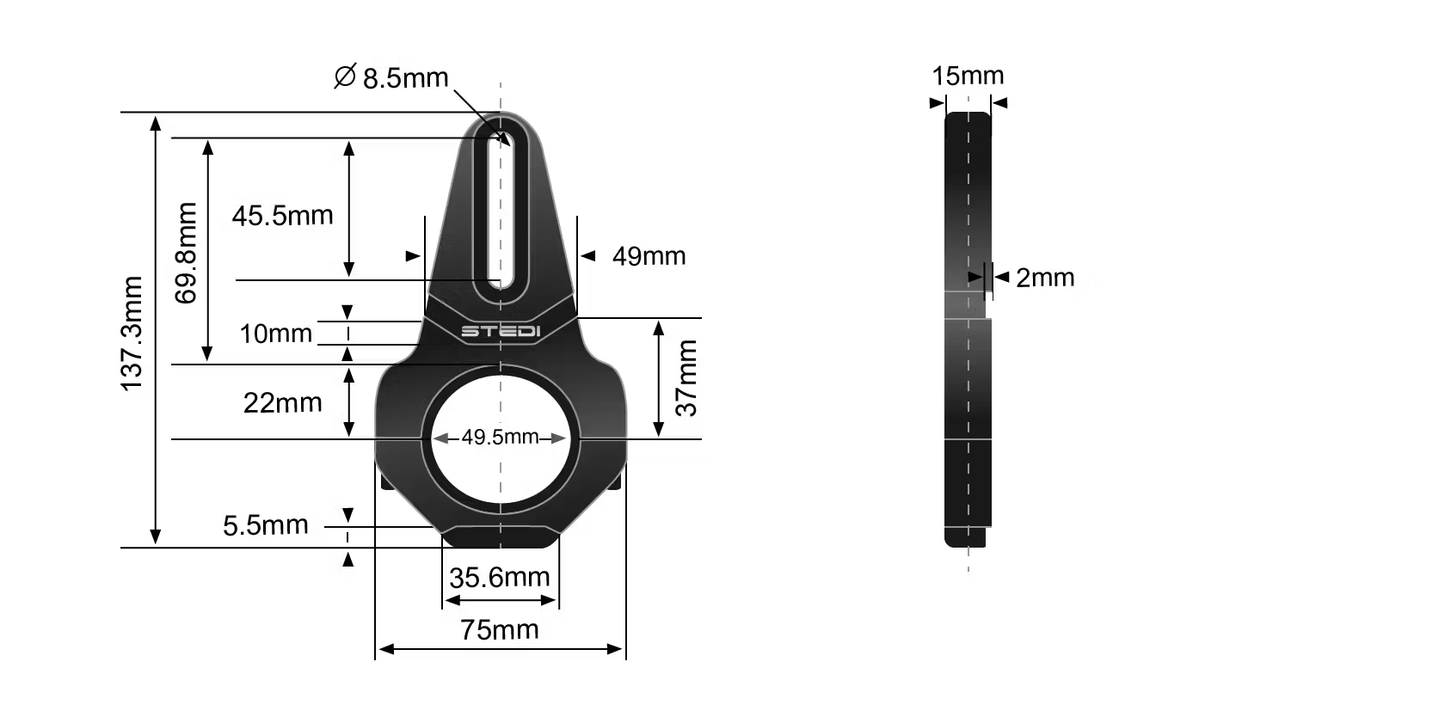

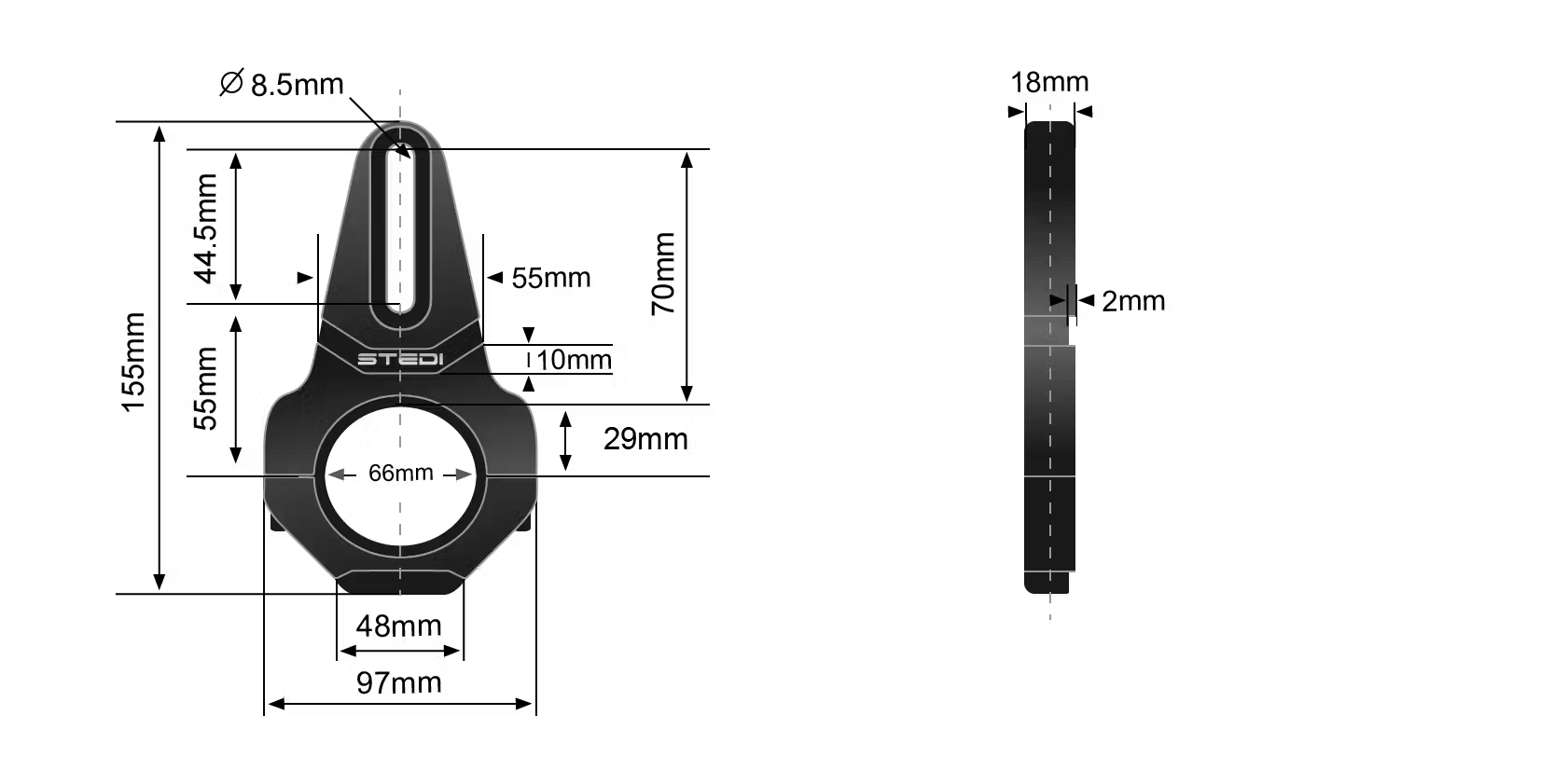

🛠 Technical Specifications

📦 What’s Included

• 2 × Vice Bull Bar Aluminium Universal Light Mount Brackets

• 4 × Rubber Inserts

• 2 × M8 Set Screws

• 2 × M6 Set Screws

• 2 × Grub Screws

• 4 × Stainless 6 mm Bolts

• 2 × Allen Wrenches

🚙 Ideal Applications

• Bull Bars & Nudge Bars

• Roof Racks & Sports Bars

• ATVs, UTVs, and Motorcycles

• Marine, Industrial, and Mining Equipment

• Work Lights and Auxiliary Lighting Systems
