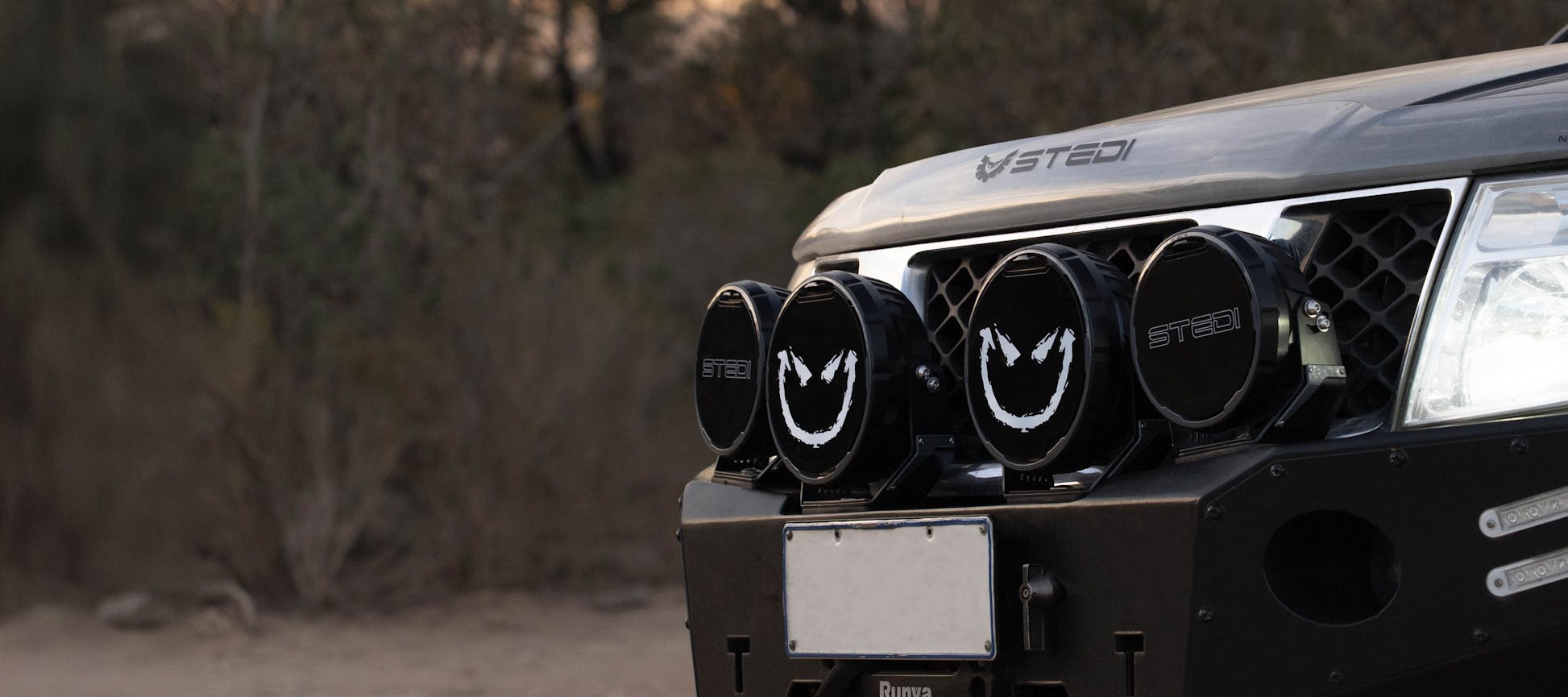

The STEDI™ Type-X Sport Plus is the evolution of a timeless classic—bringing cutting-edge performance, durability, and style to one of the most cost-effective driving lights on the market.
Engineered with premium OSRAM® and CREE® LEDs, advanced reflector technology, and STEDI™’s signature design refinement, the Sport Plus delivers unmatched optical performance, whether on rally stages, remote outback tracks, or challenging seasonal conditions.
Available in 8.5-inch and 7-inch sizes, these lights combine spot and flood reflectors for optimal beam spread and distance, giving you clarity, confidence, and safety in all environments.
Key Features
✅ High Output Performance – Up to 24,770 tested lumens (pair) for maximum visibility

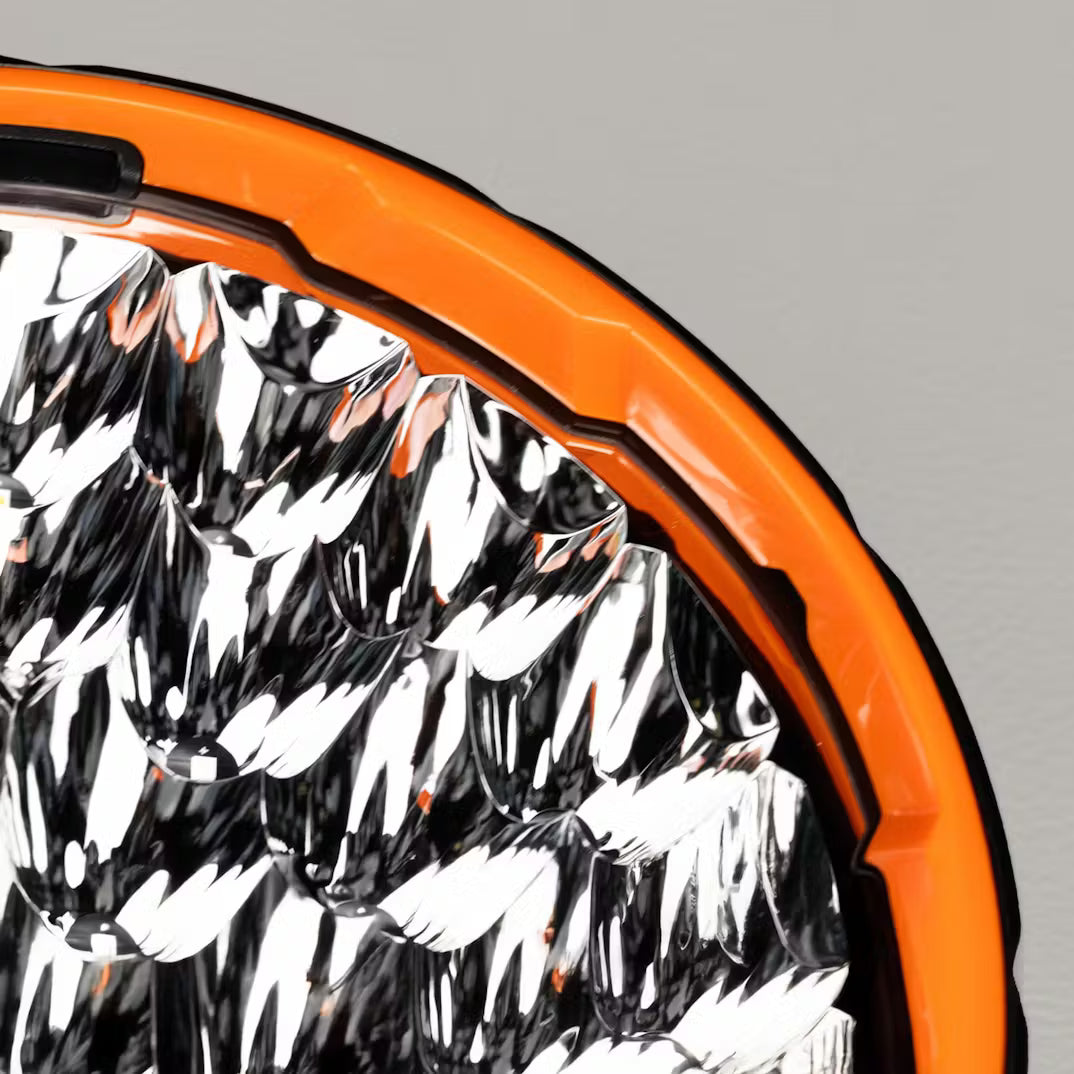

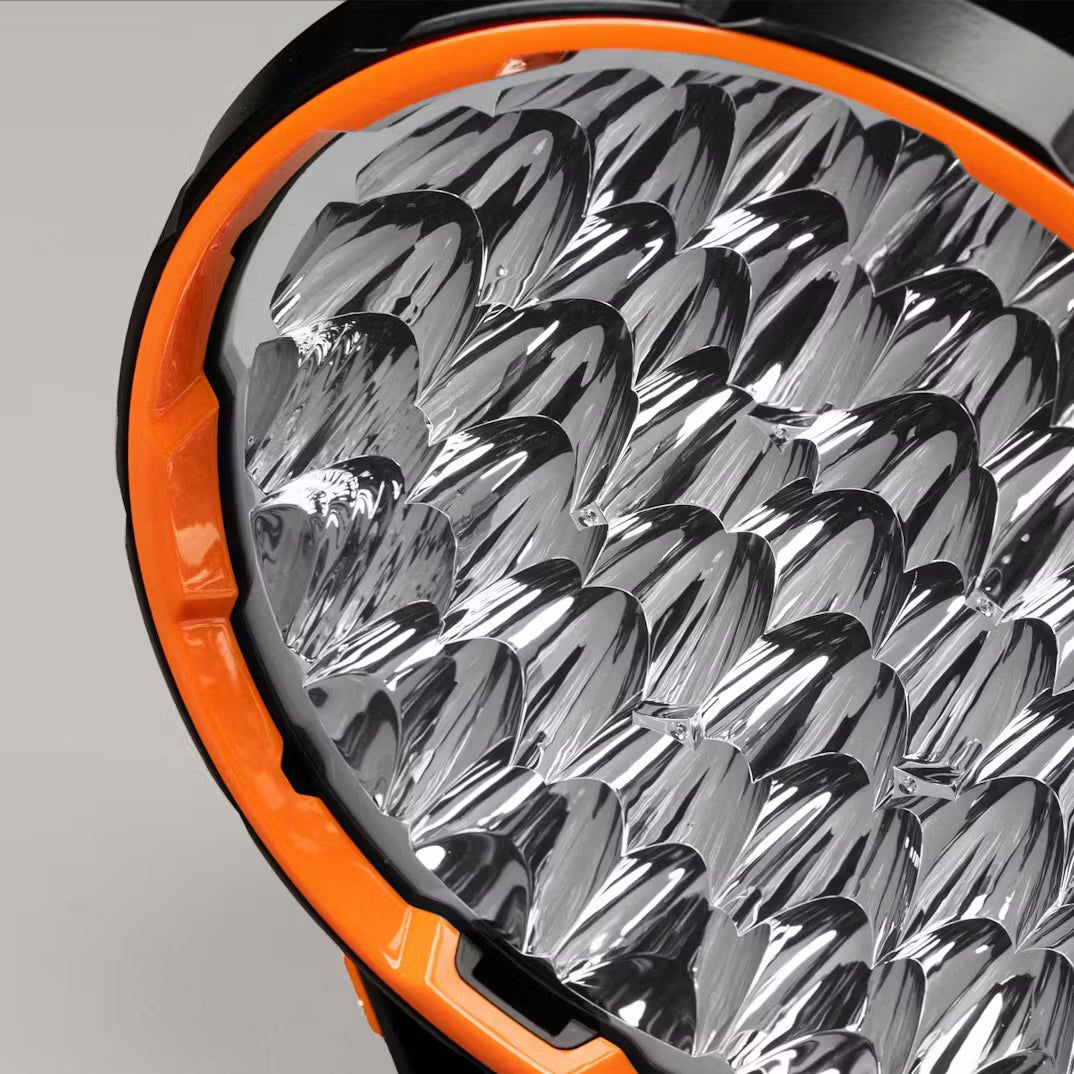

✅ Advanced Beam Pattern – Optimized spot/flood combo for distance & spread
✅ Durability Built In – IP68 waterproof (submersible 3 m), dust-tight & impact-resistant
✅ 5000K True White Output – Ideal clarity and reduced eye fatigue

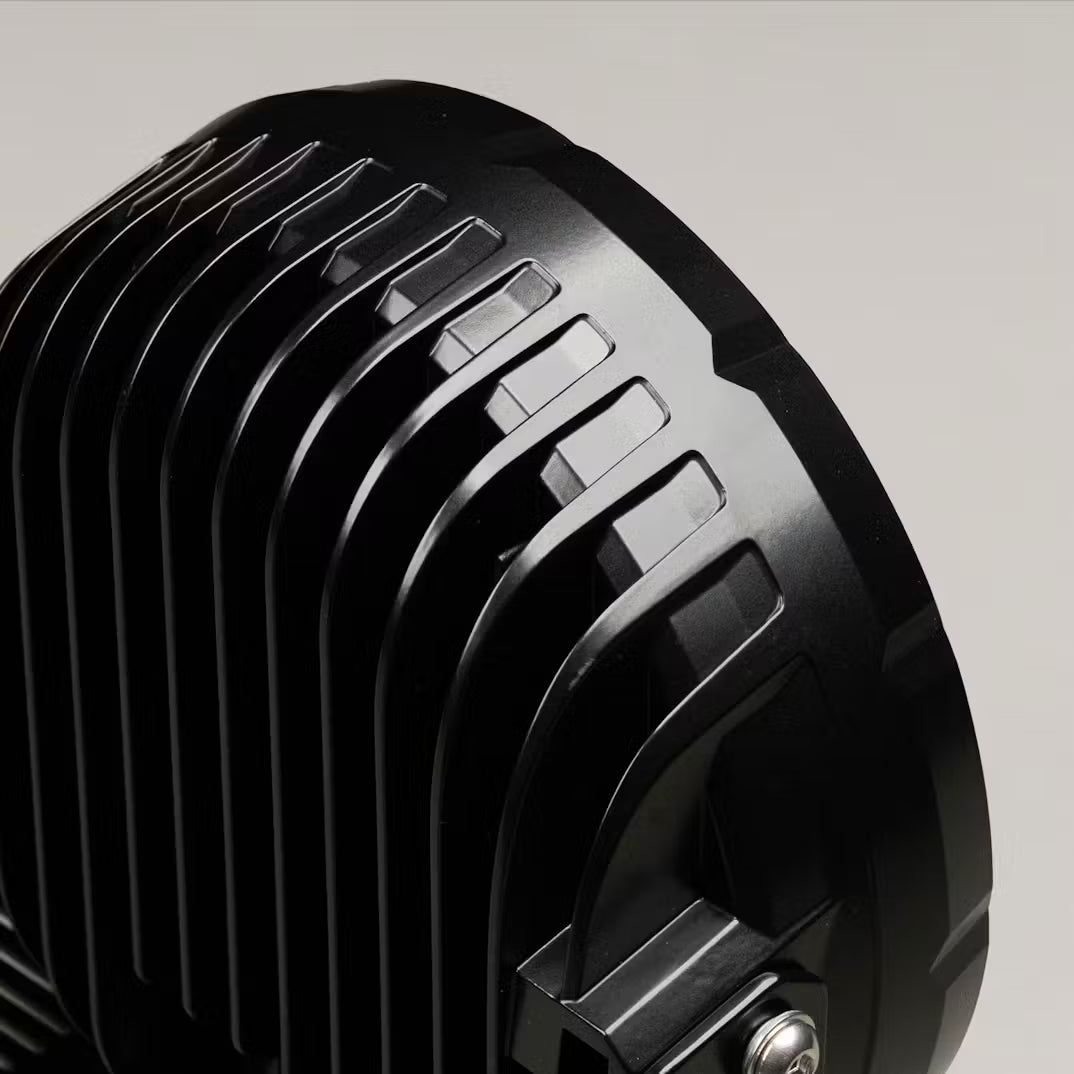

✅ Thermal Management – Engineered for consistent lumen maintenance (LM-80 tested 50,000 hrs)

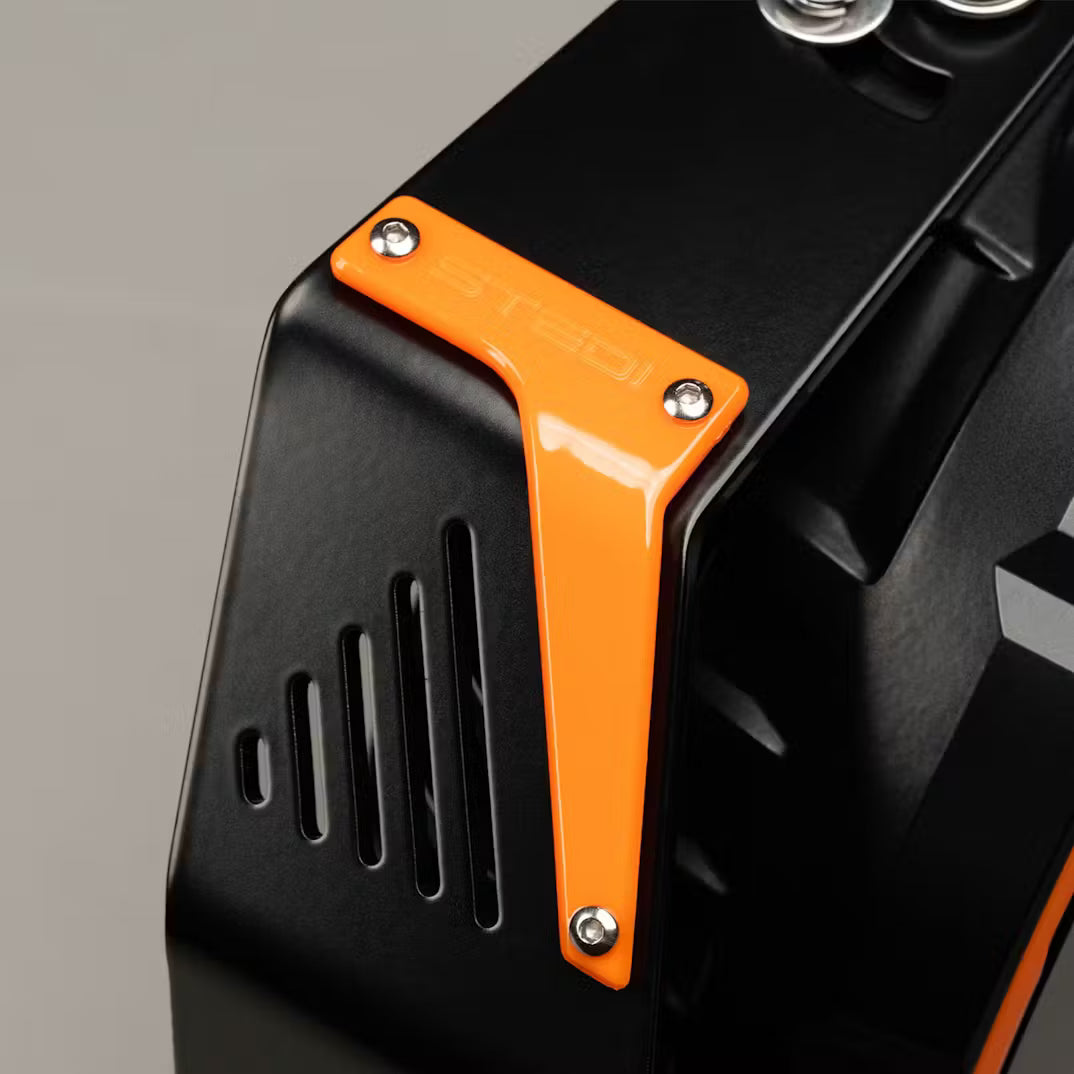

✅ Rally-Proven Design – Stainless steel brackets, shock dampeners, and customizable fascias
✅ Smart Wiring Harness – Easy plug & play installation with modern vehicles
Technical Specifications

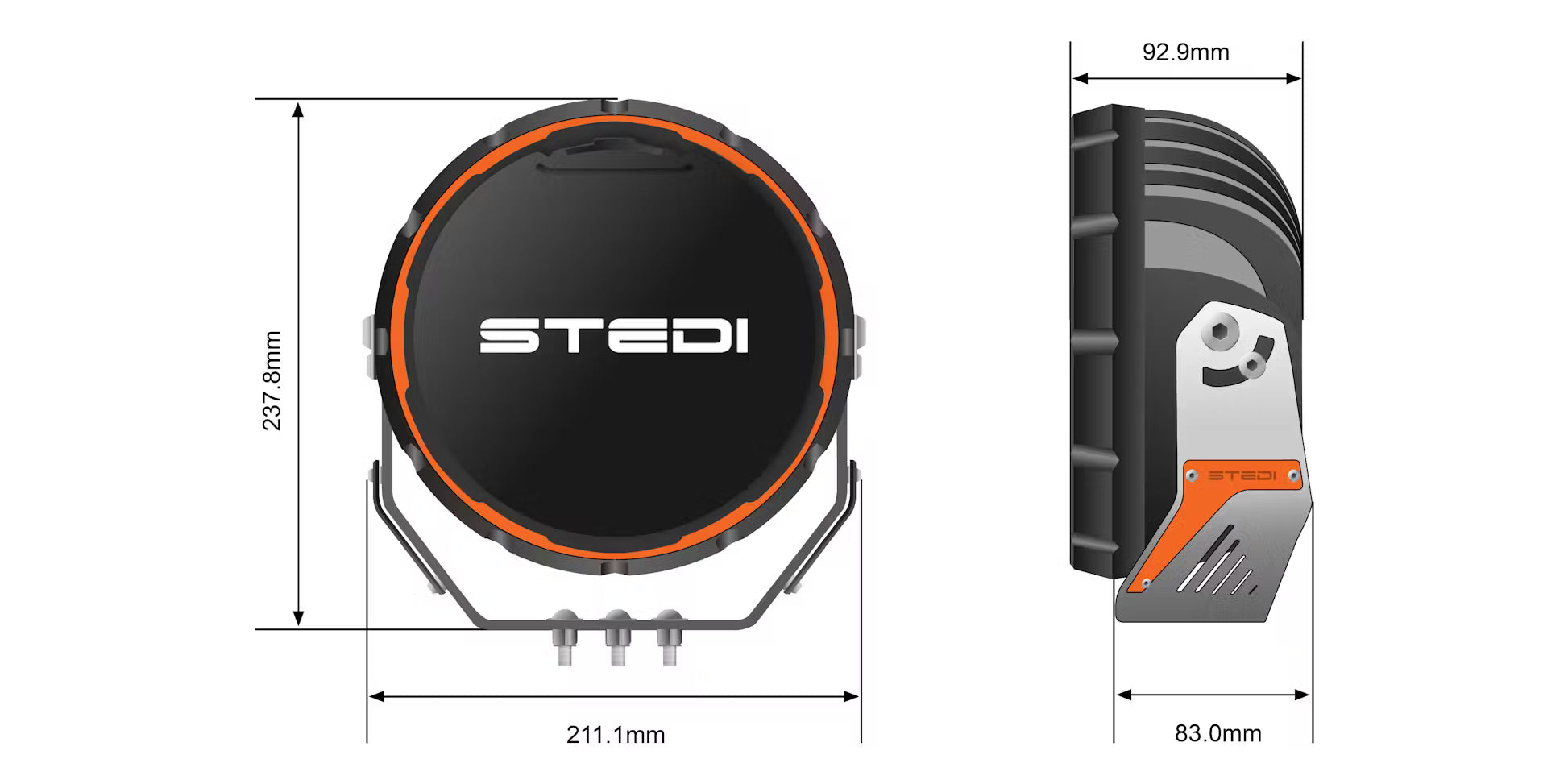

Type-X Sport Plus 8.5"
-
LEDs: 30 × OSRAM® P8 + 6 × CREE® XP20
-
Raw Lumens: 19,020 Lm
-
Tested Lumens: 12,385 Lm (each) | 24,770 Lm (pair)
-
Power Draw: 108 W (each)
-
Current Draw: 4.5 A @ 24 V (each)
-
Candela: 1,202,928 cd (pair)
-
Beam Pattern: Combo (32 Spot + 4 Flood)
-
IP Rating: IP68 (submersible 3 m)
-
CCT: 5000 K
-
Operating Voltage: 10–30 V DC
-
Weight: 3.35 kg (each)
-
Operating Temp: -40 °C to +60 °C
-
Photometric Data:
-
770 m (1 lux single)
-
1,088 m (1 lux pair)

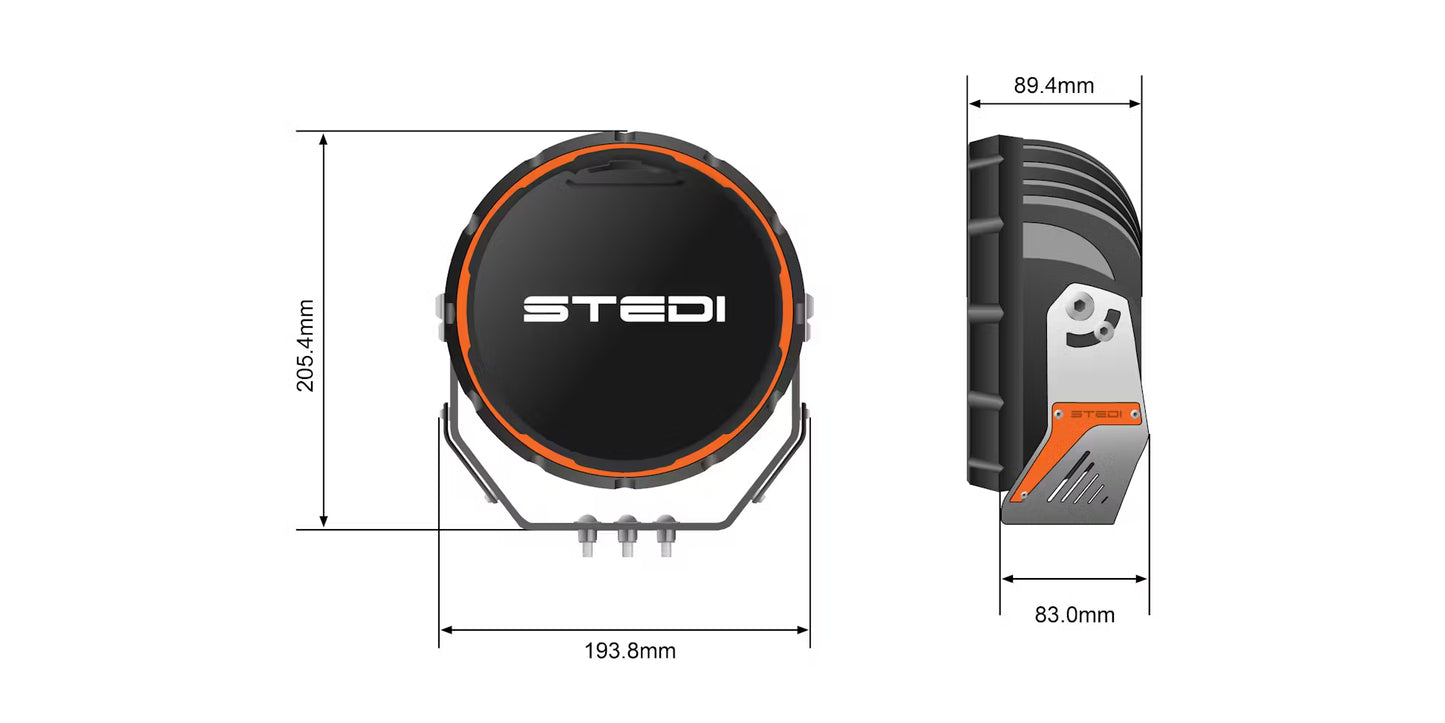

Type-X Sport Plus 7"
-
LEDs: 30 × OSRAM® + 7 × CREE®
-
Raw Lumens: 14,000 Lm (each)
-
Tested Lumens: 11,660 Lm (each) | 23,320 Lm (pair)
-
Power Draw: 108 W (each)
-
Current Draw: 9.0 A @ 12 V (each)
-
Candela: 1,067,828 cd (pair)
-
Beam Pattern: Combo (33 Spot + 4 Flood)
-
IP Rating: IP68 (submersible 3 m)
-
CCT: 5000 K
-
Operating Voltage: 10–30 V DC
-
Weight: 2.24 kg (each)
-
Operating Temp: -40 °C to +60 °C
-
Photometric Data:
-
730 m (1 lux single)
-
1,050 m (1 lux pair)
What’s Included
Sport Plus 8.5"
-
2 × STEDI™ 8.5" Type-X Sport Plus LED Driving Lights
-

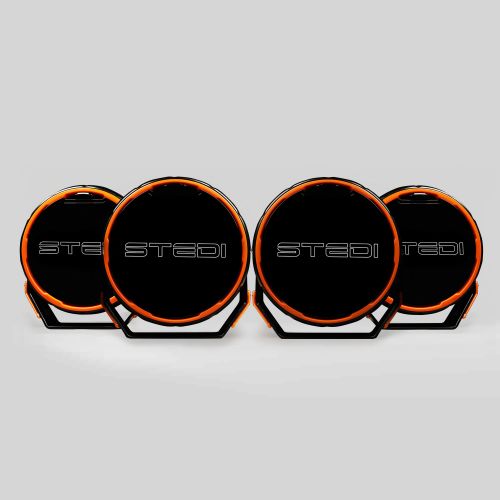

2 × Protective blackout covers
-
2 × Orange fascias
-
2 × Grey fascias
-
2 × Orange shoulder trims
-
2 × Grey shoulder trims
-
1 × Fascia key tool
-
1 × STEDI™ Smart High Beam Wiring Harness
-

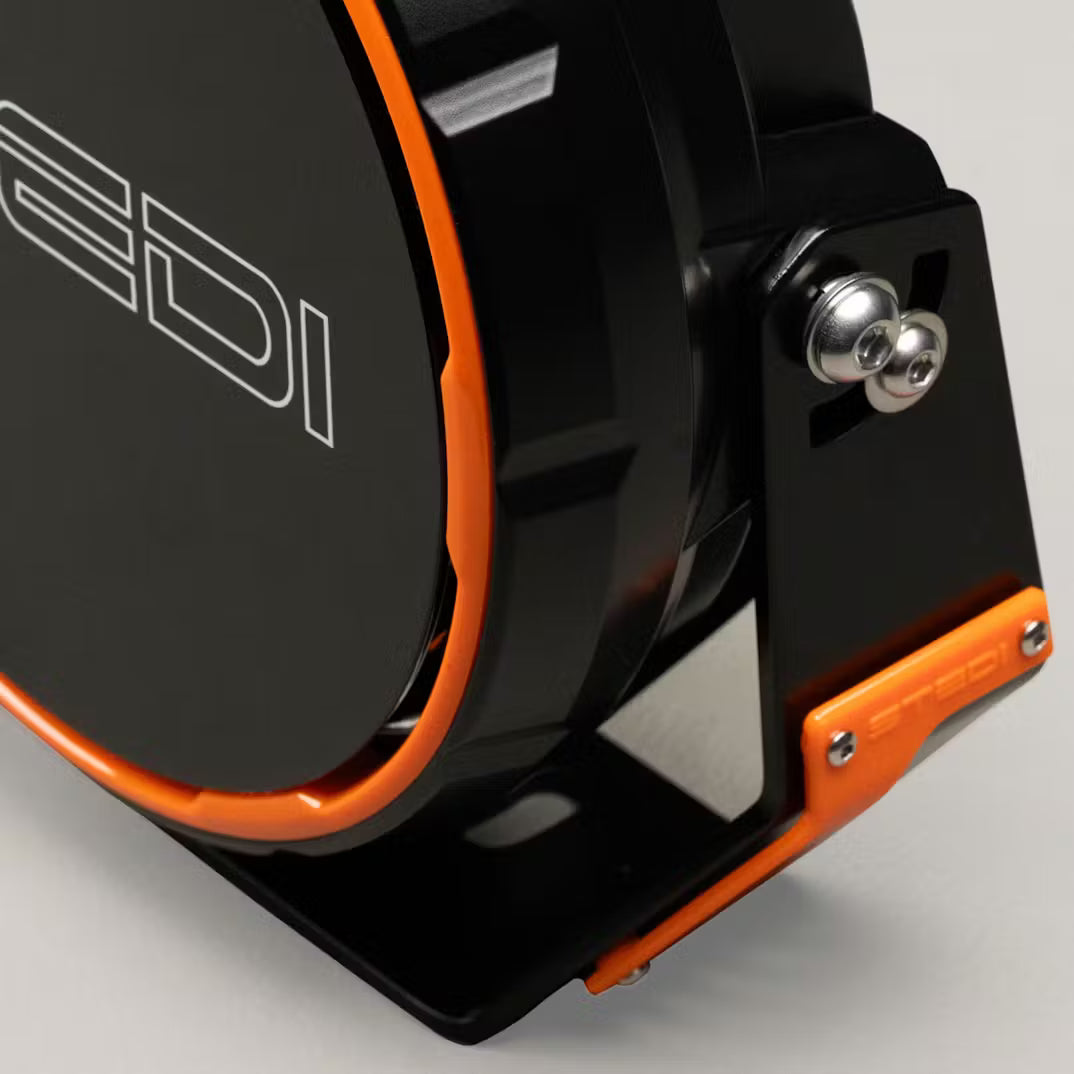

2 × Stainless steel mounting brackets
-
2 × Complete hardware sets
-
2 × Bracket shock dampeners
-
1 × Wiring & fitting instructions
Sport Plus 7"
-
2 × STEDI™ 7" Type-X Sport Plus LED Driving Lights
-
2 × Protective blackout covers
-
2 × Orange fascias
-
2 × Grey fascias
-
2 × Orange shoulder trims
-
2 × Grey shoulder trims
-
1 × Fascia key tool
-
1 × STEDI™ Smart High Beam Wiring Harness
-
2 × Stainless steel mounting brackets
-
2 × Complete hardware sets
-
2 × Bracket shock dampeners
-
1 × Wiring & fitting instructions
Why Choose the Type-X Sport Plus?
🌙 Unmatched lumen performance & beam distance
🌧️ Fully waterproof, dustproof & built for extreme conditions
🔧 Plug & play installation with included harness
🎨 Customizable look with interchangeable fascias & trims
🛡️ Backed by STEDI™ 5-year warranty
