Compact Design. Mega Performance.
Small doesn’t mean less powerful. The STEDI™ QUAD PRO brings explosive performance to the compact LED driving-light category — a segment long overdue for innovation. Combining a bold design with genuine high-end performance, the QUAD PRO delivers exceptional illumination in a versatile, space-saving form.
Sharing the same high-calibre DNA as the Type-X PRO and ST3303 PRO, these compact powerhouses use identical LED and reflector technology to achieve legendary output — all in a housing that fits where larger lights can’t.
🔑 Key Features
✅ Compact & Powerful: Massive performance in a sleek, space-efficient housing
💡 Legendary Bloodline: Powered by the same LEDs and reflectors as the Type-X PRO

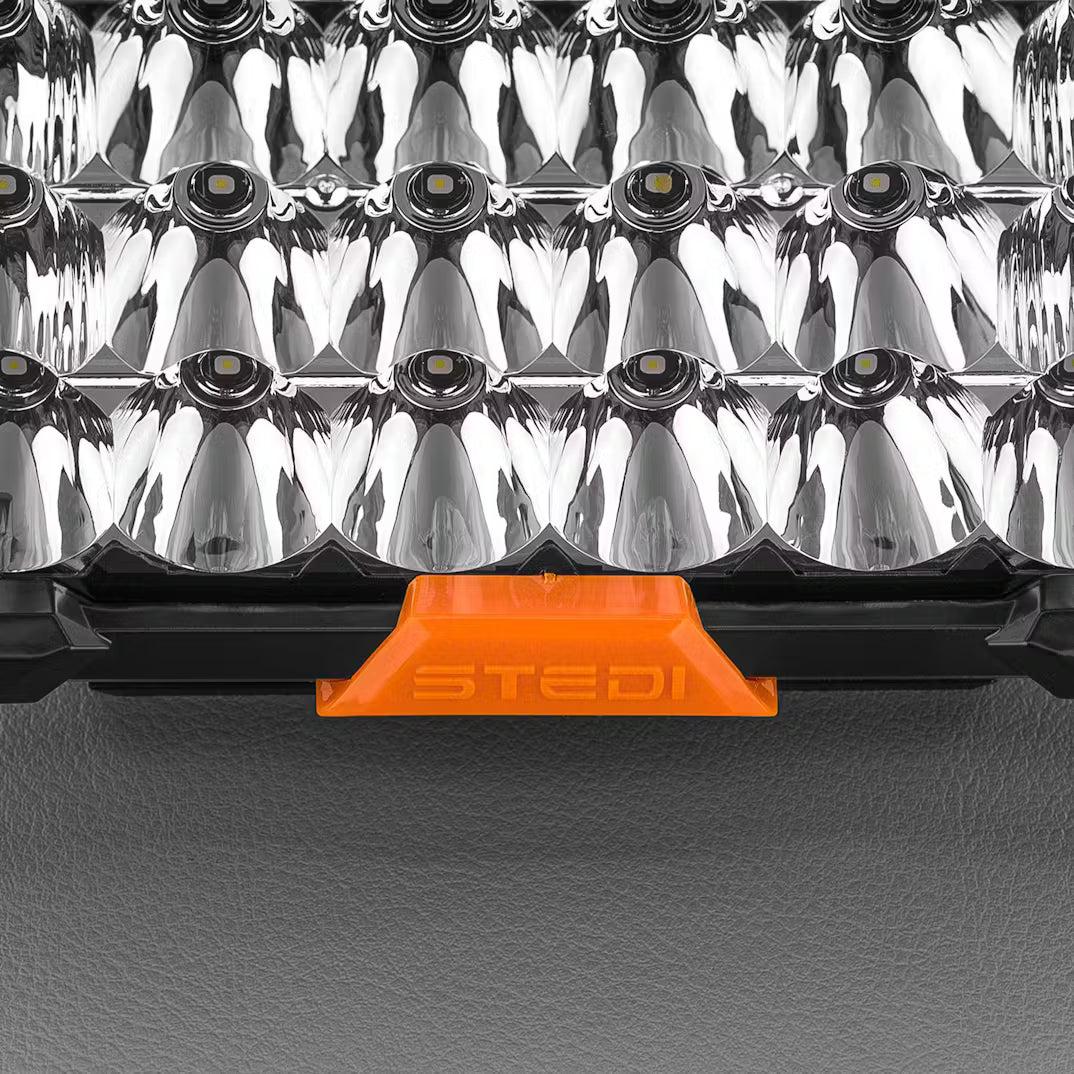

🌈 Customisable Style: Includes orange & grey caps + black-out covers (additional colour kits sold separately)
💧 IP68 Rated: Fully dustproof & waterproof – submersible up to 3 m

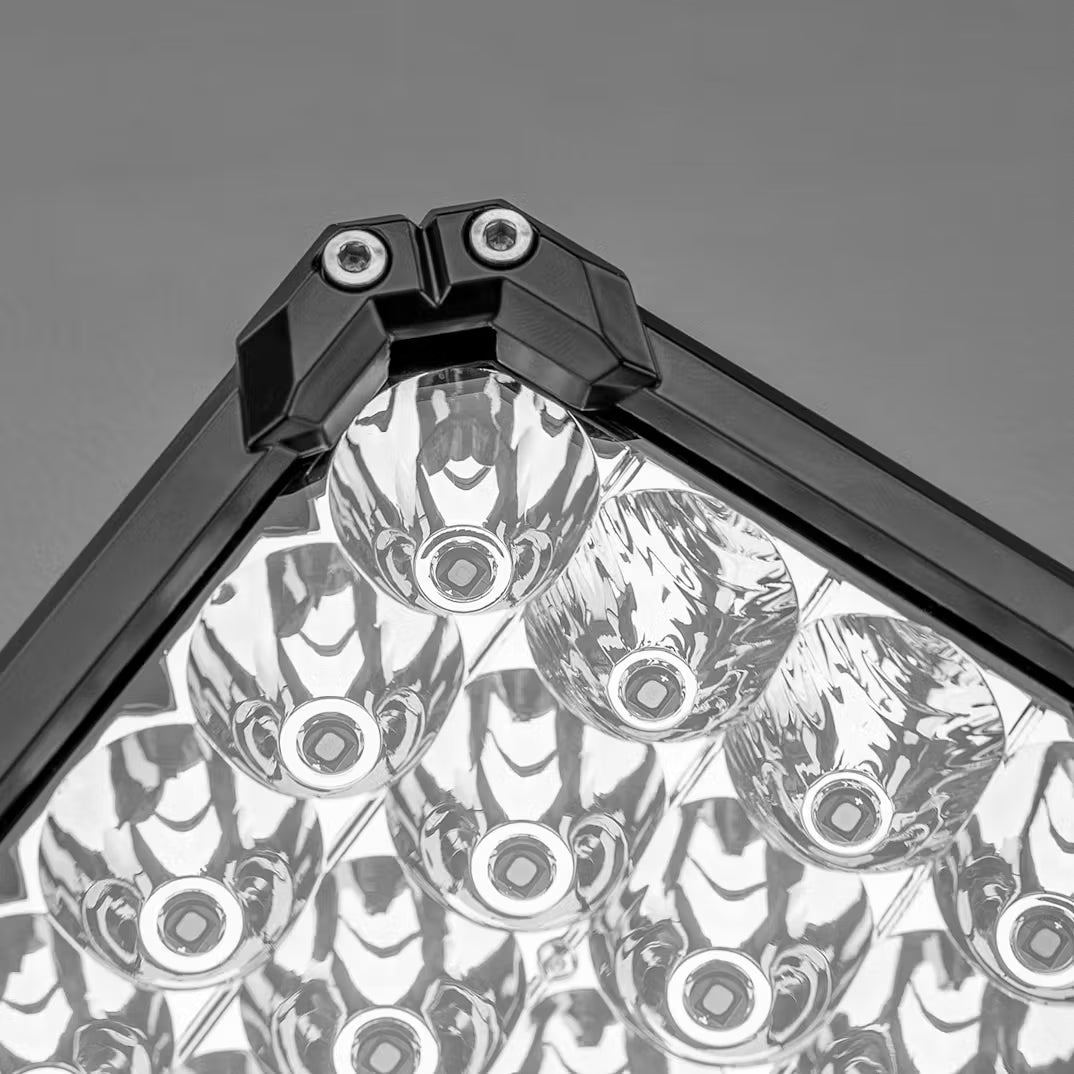

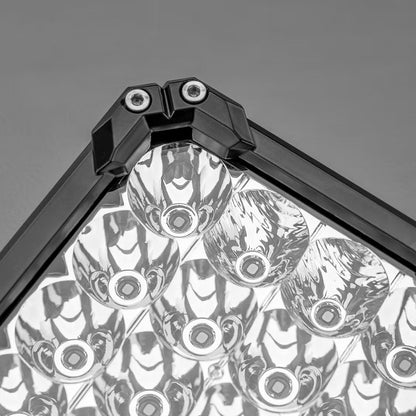

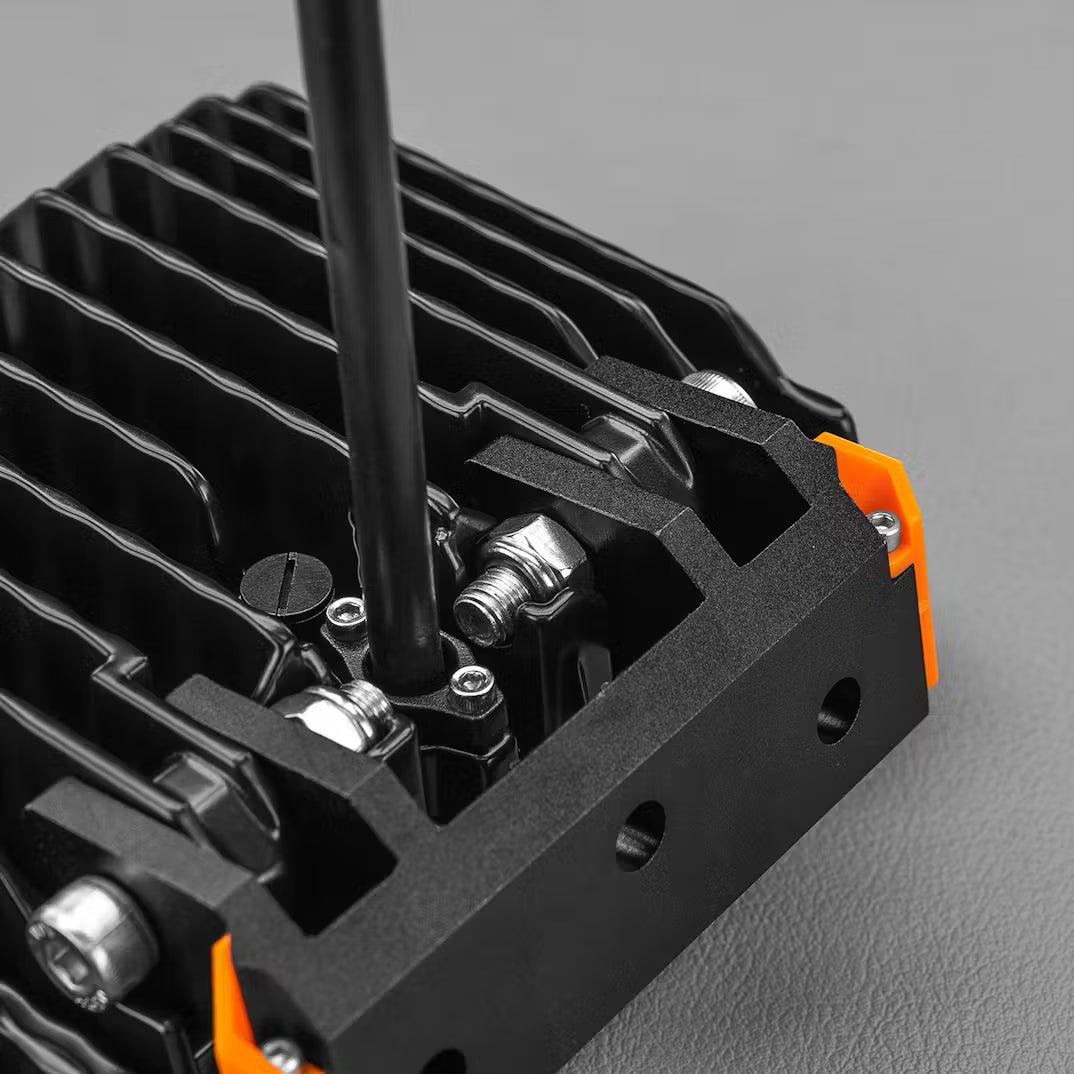

⚙️ High-Pressure Die-Cast Bracket: Built for maximum strength and durability
🔩 Plug-and-Play Wiring Harness: Easy-fit installation with H4 & HB3 adapters
🌡️ True-White Clarity: 5700 K CCT cuts through fog, dust & rain for perfect definition
🧊 RFI & EMI Suppression: No interference with radio or communication systems

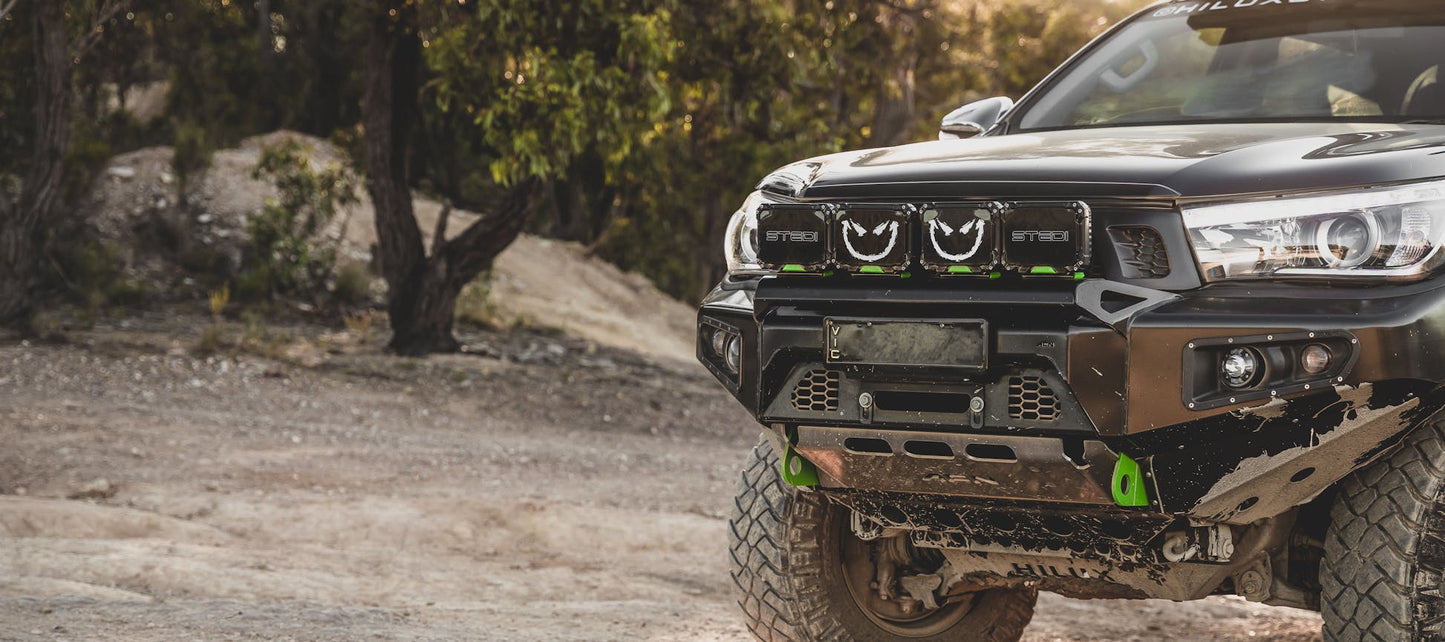

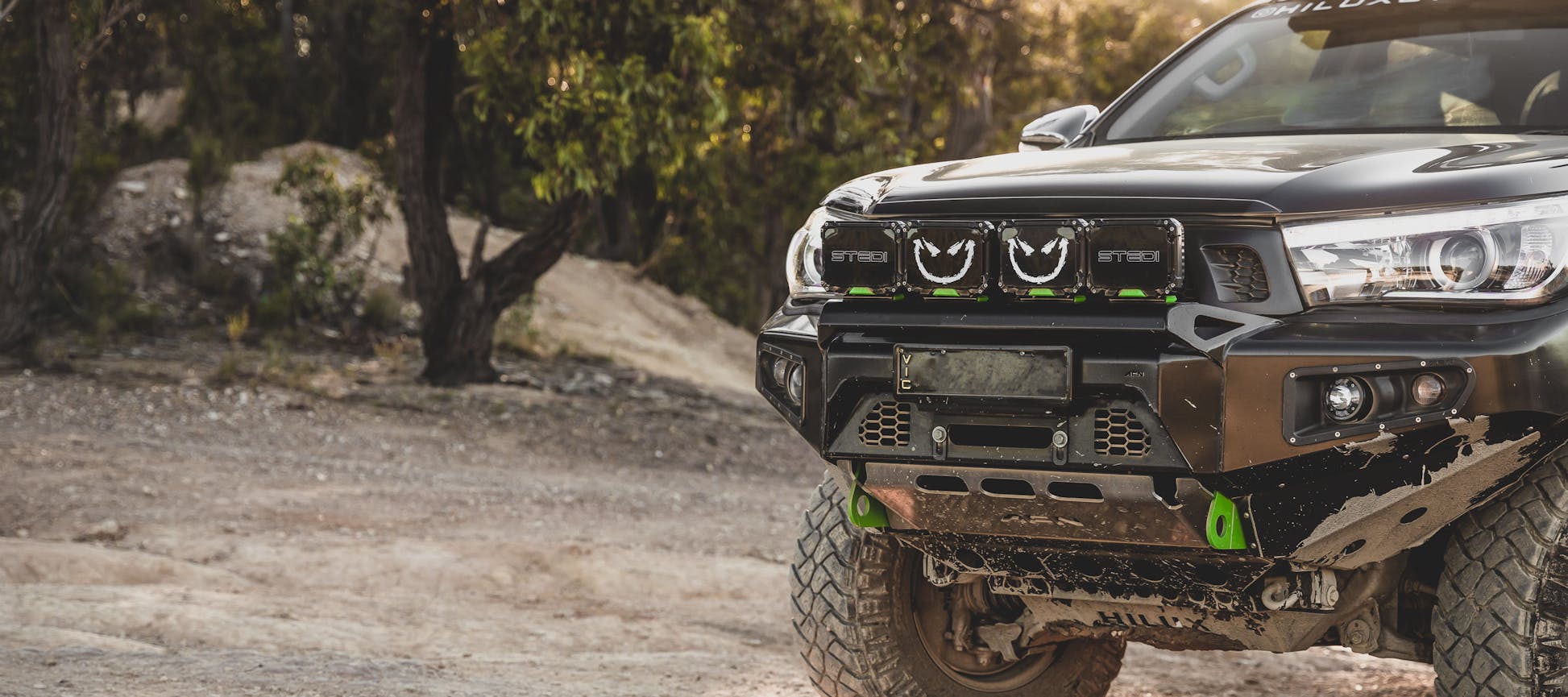

🧰 Versatile Mounting: Ideal for roof racks, bull bars & tight clearance installs
⏳ Long Life: 50,000 hr LM-80 LED rating for enduring performance
💥 Performance Highlights
-
Balanced combo beam – spot + spread reflectors built-in
-

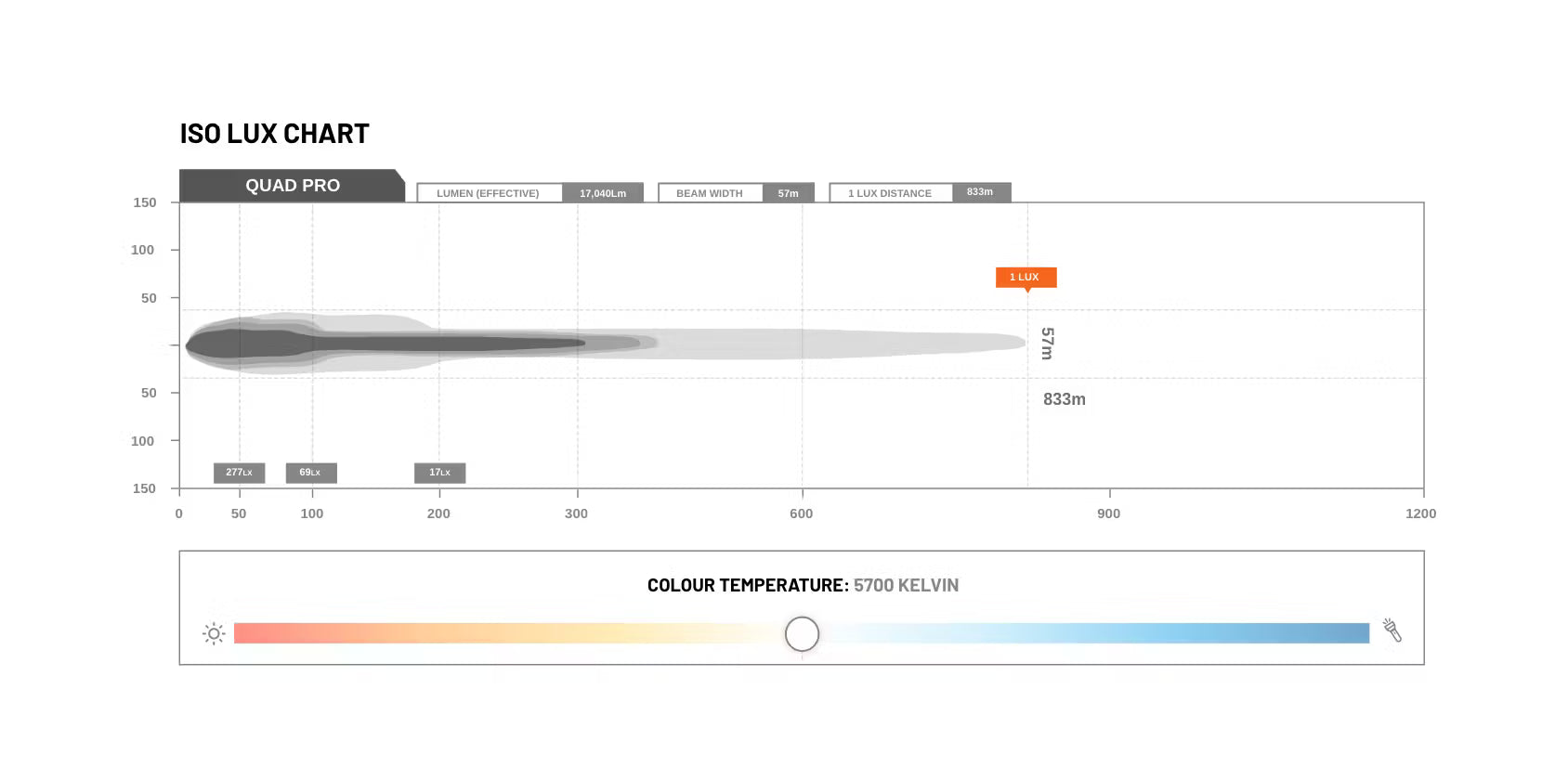

1 lux @ 833 m beam distance (pair tested)
-
Seamless integration with any vehicle mounting location
-
Premium build quality for off-road abuse
-
Custom colour options to match your vehicle’s aesthetic

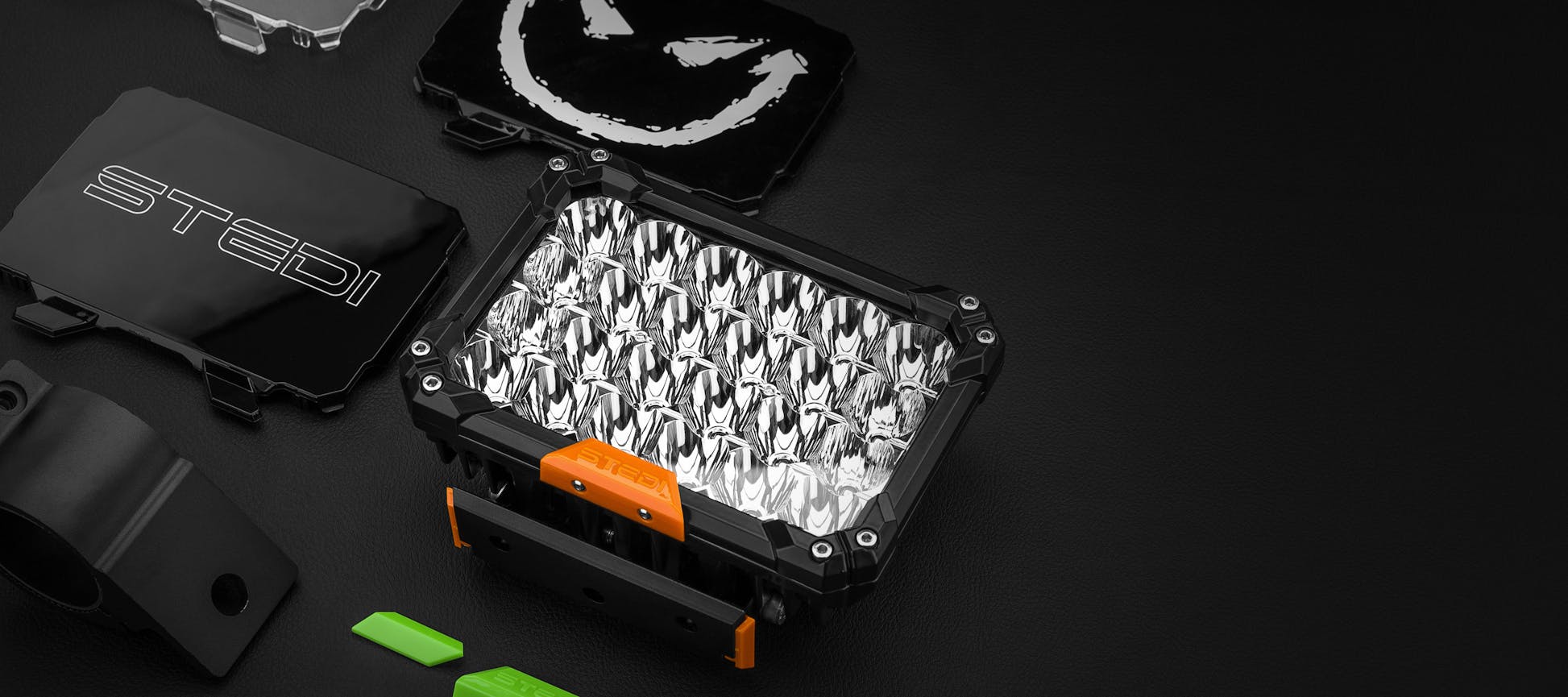

📦 What’s Included
-
2 × STEDI™ QUAD PRO LED Driving Lights
-

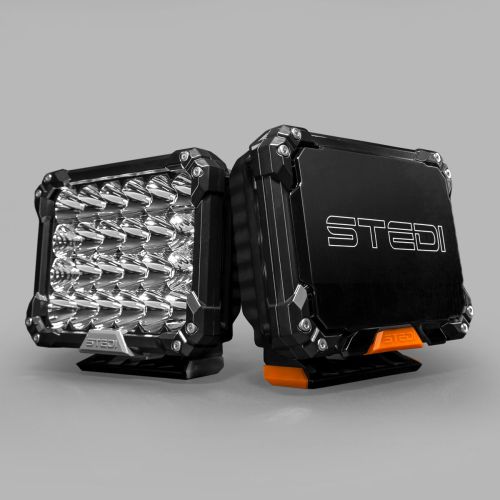

2 × STEDI™ Black-Out Protective Covers
-
1 × Set of Orange Colour Caps (fitted)
-
1 × Set of Grey Colour Caps
-

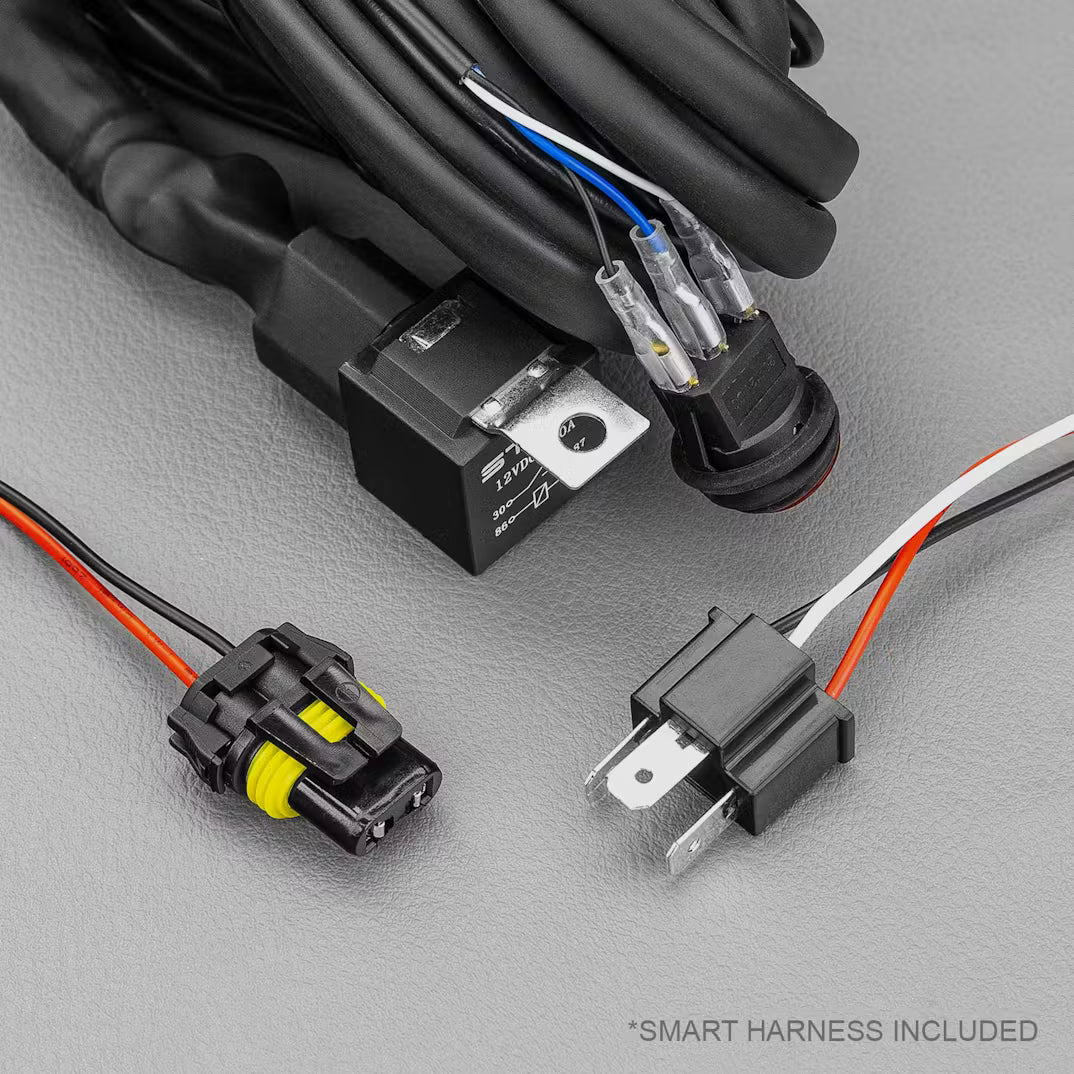

1 × Easy-Fit High Beam Wiring Harness
-
Installation Manual
-
Complete Stainless-Steel Fitting Hardware
⚙️ Technical Specifications
| Specification |
Details |
| LEDs |
24 × Oslon High-Flux LEDs |
| Raw Lumens |
17,040 lm (pair) |
| Tested Lumens |
11,360 lm (pair) |
| Amp Draw |
7.4 A @ 13.2 V (each) |
| Power Draw |
97 W (each) |
| Candela |
693,889 cd (pair) |
| 1 Lux Distance |
833 m (pair) |
| Beam Pattern |
4 × Spread / 20 × Spot Beam |
| Ingress Protection |
IP68 – Submersible up to 3 m |
| Colour Temperature (CCT) |
5700 K |
| Voltage Compatibility |
12 V & 24 V DC |
| Lumen Maintenance |
50,000 hr LM-80 rated |
| Weight |
1.4 kg (each, including cover) |
| Operating Temperature |
–40 °C to +60 °C |
🛡️ Why Choose the STEDI™ QUAD PRO?
📦 Fast worldwide shipping
💳 Flexible payment options
🧰 Plug-and-Play installation kit included
🛡️ Backed by a 5-Year STEDI™ Replacement Warranty
