High Performance. Compact Power. Timeless Design.
Meet the STEDI™ TYPE-X™ SPORT 7" — the compact evolution of a STEDI™ classic. Designed with precision, balance, and versatility in mind, the Type-X™ Sport brings premium illumination and engineering within reach.

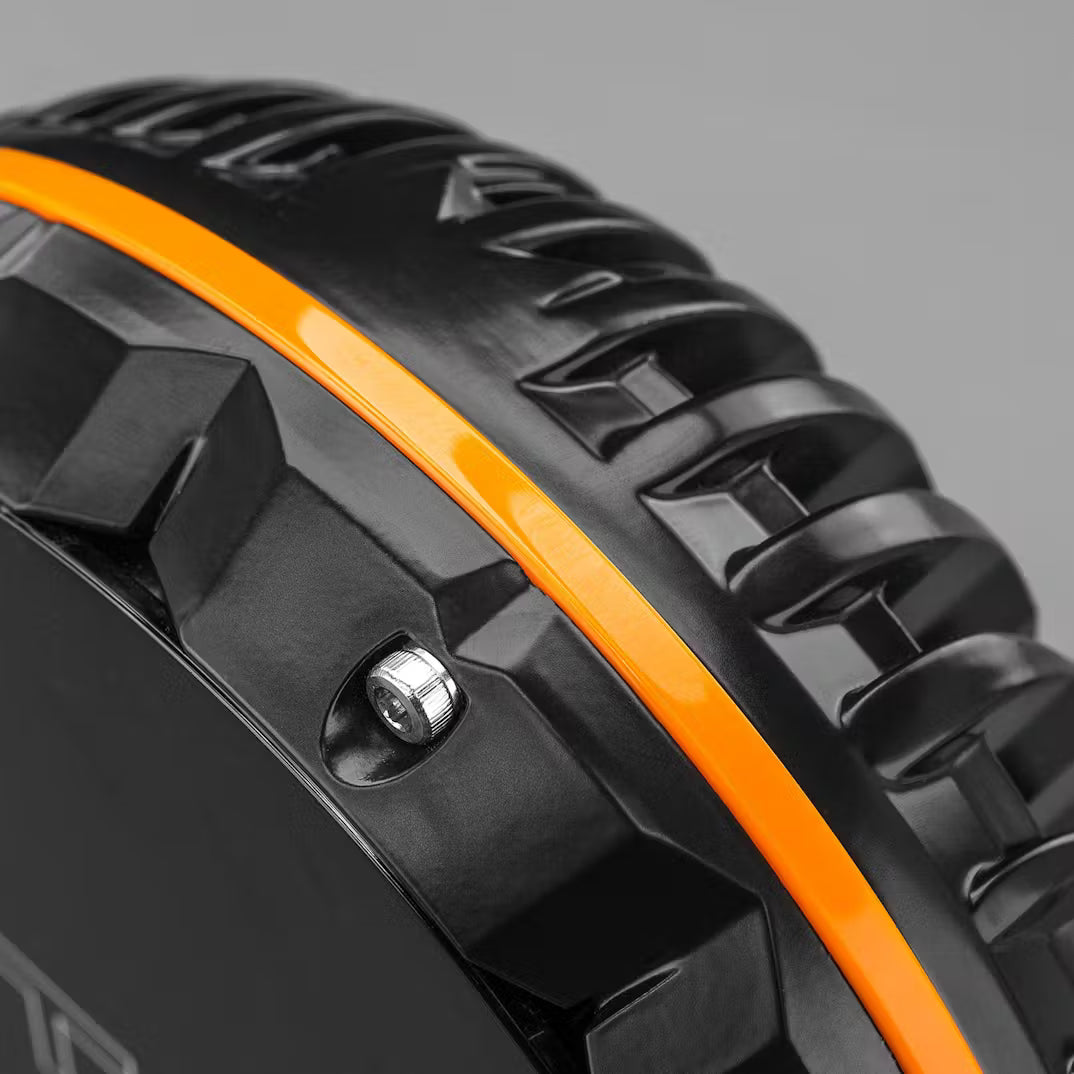

Every curve, edge, and detail of this 7" luminaire has been refined to perfection. From its laser-cut stainless bracketry to the bold orange accent ring, every aspect exudes STEDI™ design language — minimal, muscular, and unmistakably modern.
With a beam distance of 895 m (pair tested) and 32 high-output OSRAM LEDs, the TYPE-X™ SPORT 7" delivers powerful, even illumination while maintaining a compact footprint ideal for a wide range of setups.
🔑 Key Features
✅ Balanced Performance: 895 m beam throw (pair tested) with a perfect width-to-distance ratio

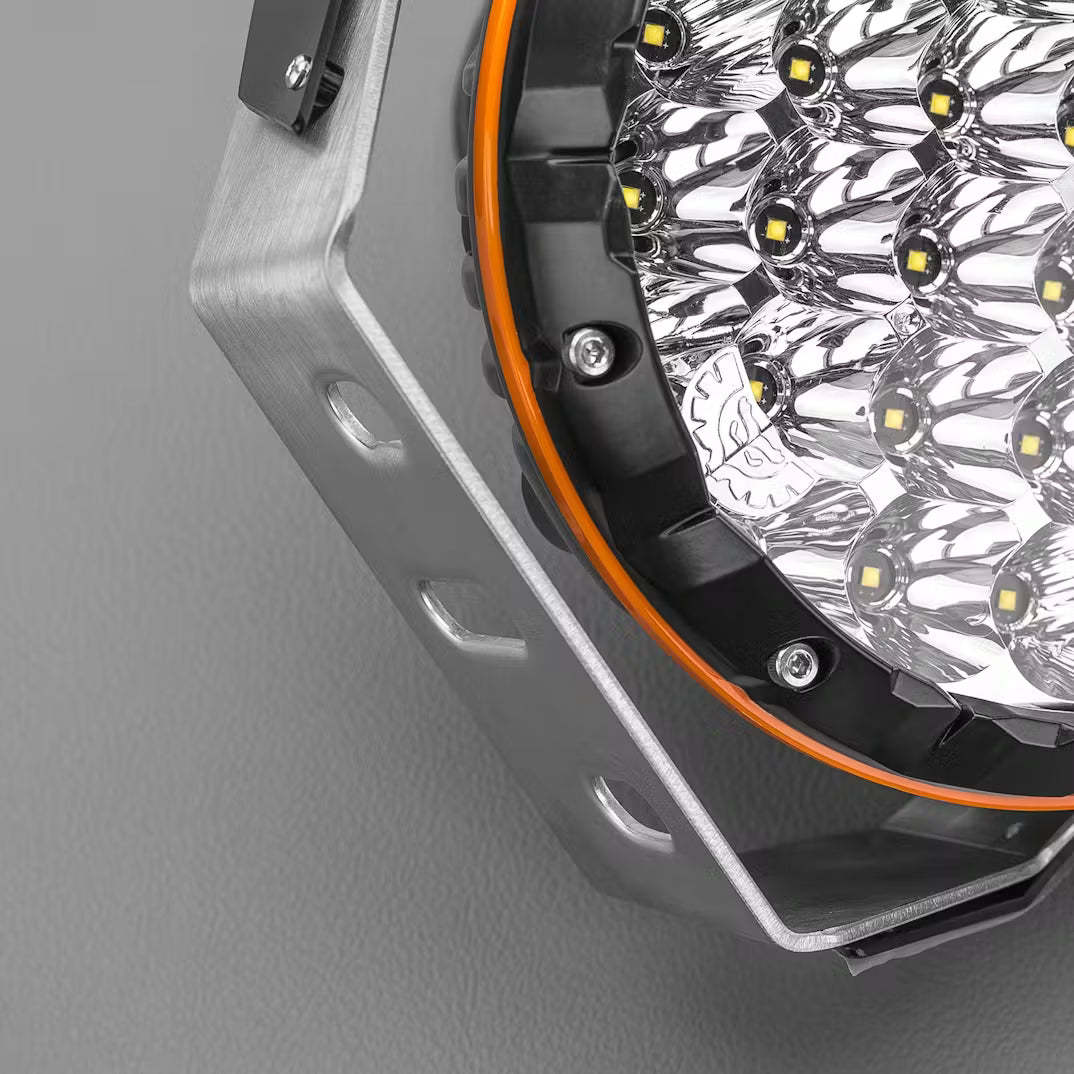

💡 32 × OSRAM Oslon LEDs: High luminous flux with superb optical control
🌈 Integrated Flood Optics: 4 wide-beam reflectors for enhanced peripheral visibility
💧 IP68 Rated: Fully dustproof & waterproof – submersible up to 3 m

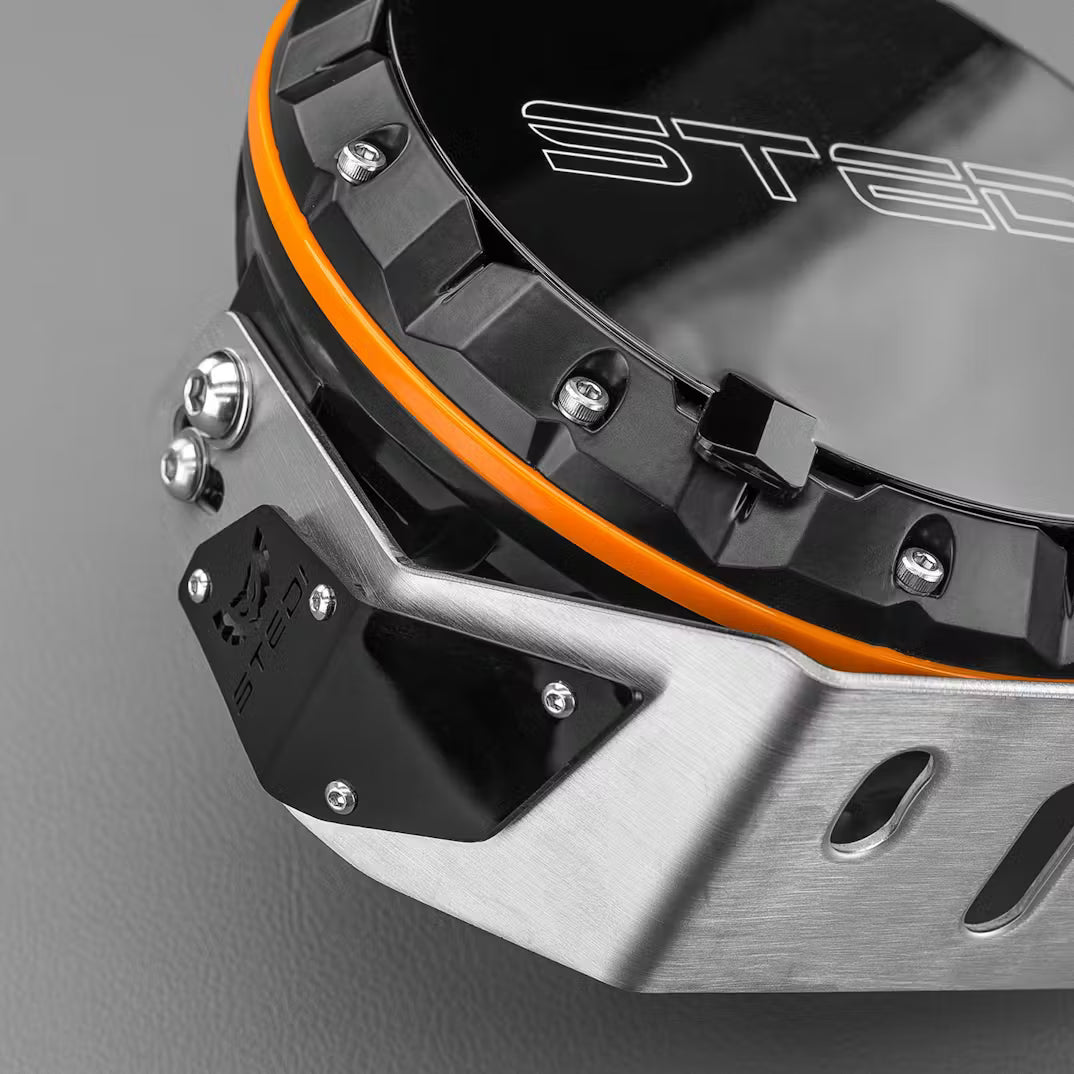

⚙️ Heavy-Duty Build: 4 mm stainless steel bracket with rubber dampener for durability
🔩 Premium Lens: 3 mm GE Lexan, virtually unbreakable & scratch-resistant
🧊 UV-Resistant Coating: 100% polyester powder coat for long-term corrosion resistance
🌡️ Colour Temperature: 5700 K True White – clarity without eye fatigue

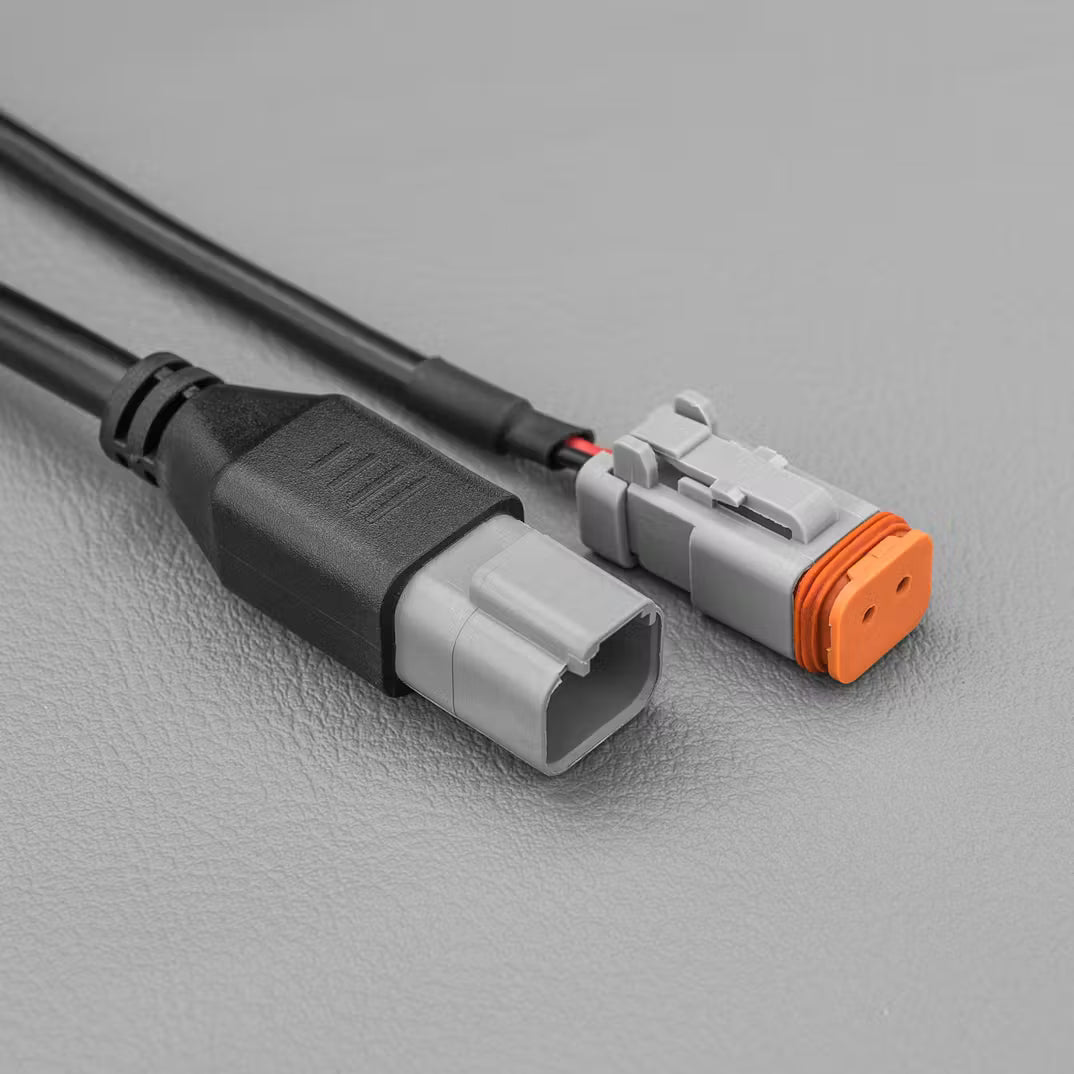

🔌 Plug & Play Ready: Compatible with STEDI™ Single Connector Wiring Harness (sold separately)

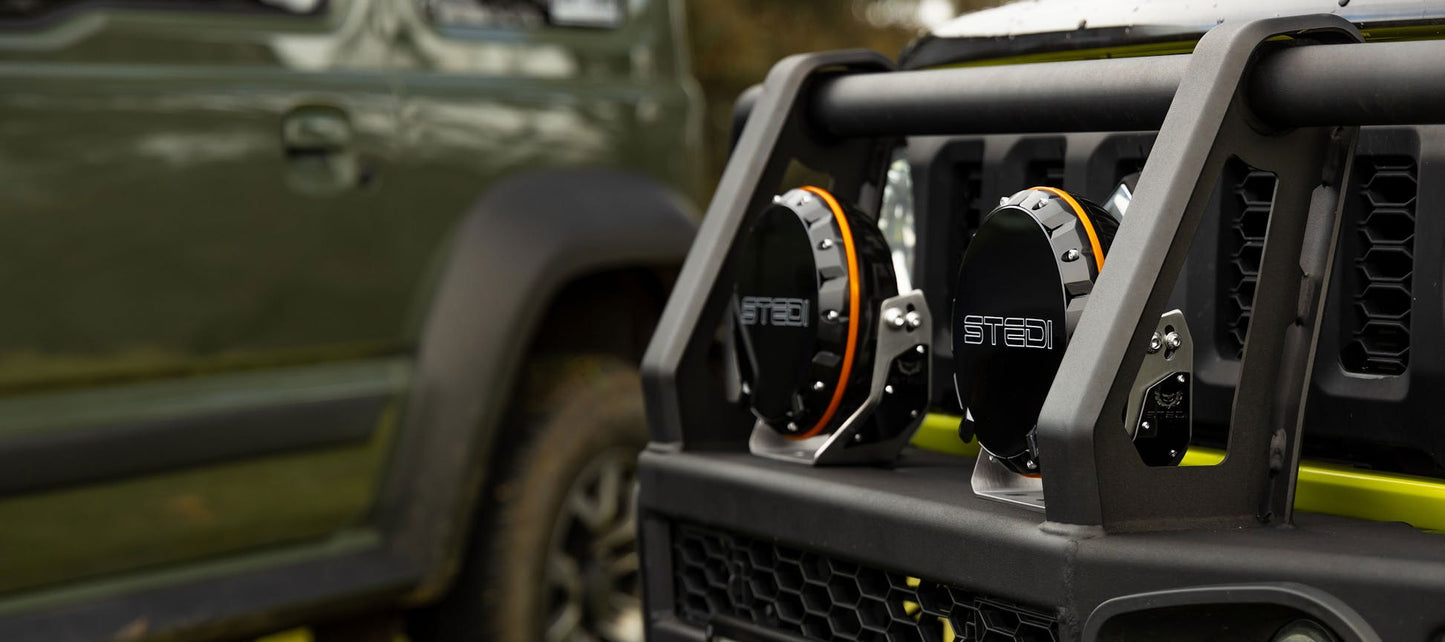

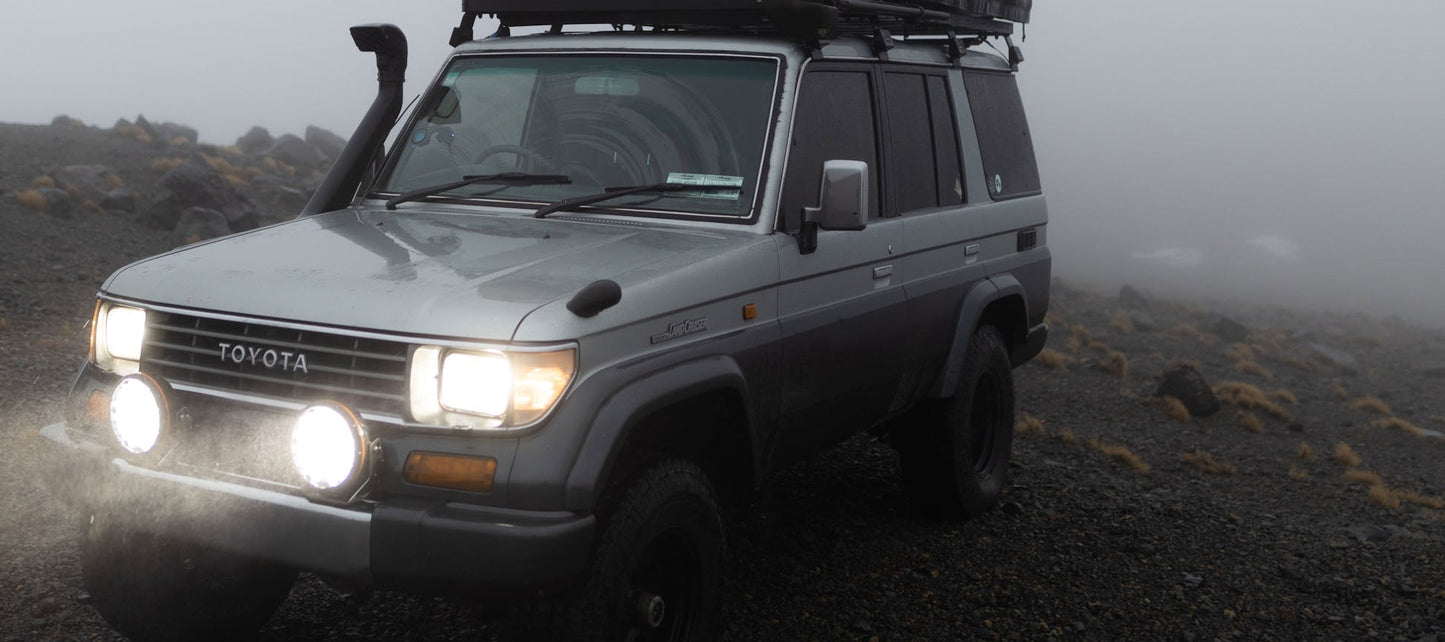

🧰 Universal Fit: Perfect for bull bars, roof racks, and compact mounting points
💥 Benefits
-
Delivers high-end lighting performance in a smaller, more adaptable size
-
Sleek, rugged, and modern — perfectly complements any vehicle aesthetic
-
High-performance illumination at an unbeatable price point
-

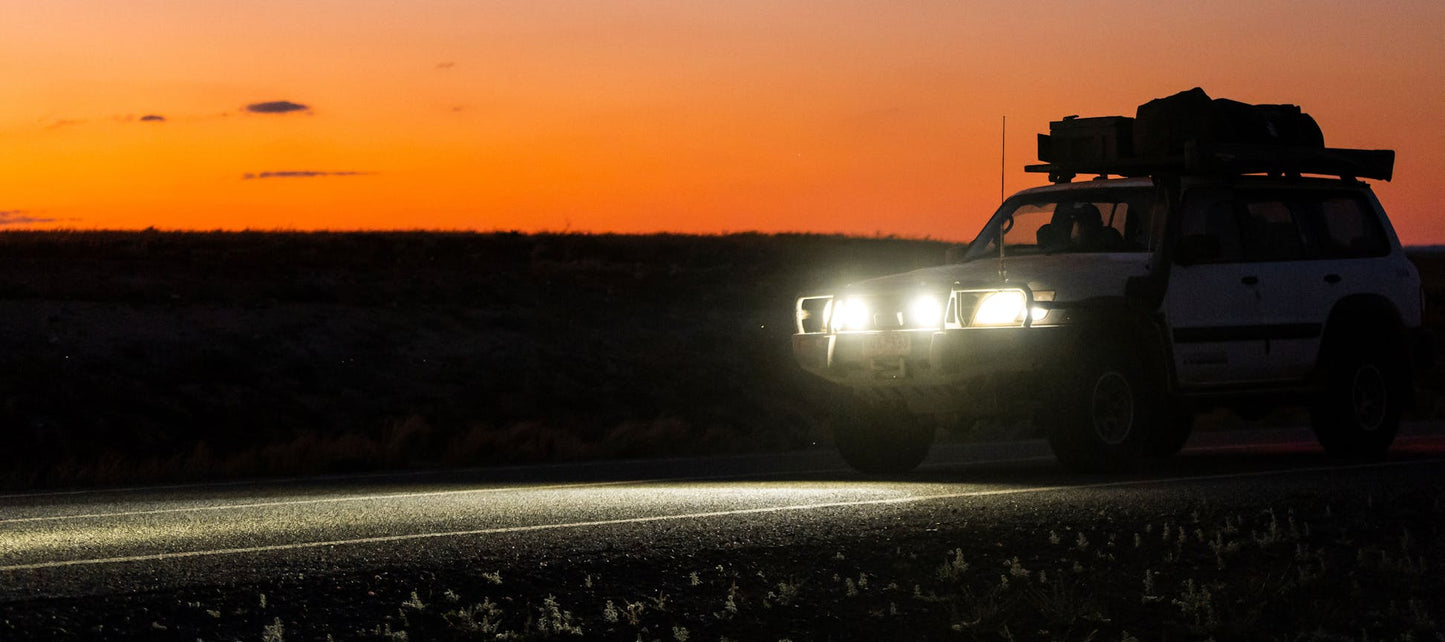

Built tough for harsh off-road and touring environments
-
Premium design and craftsmanship that STEDI™ is known for
📦 What’s Included
-

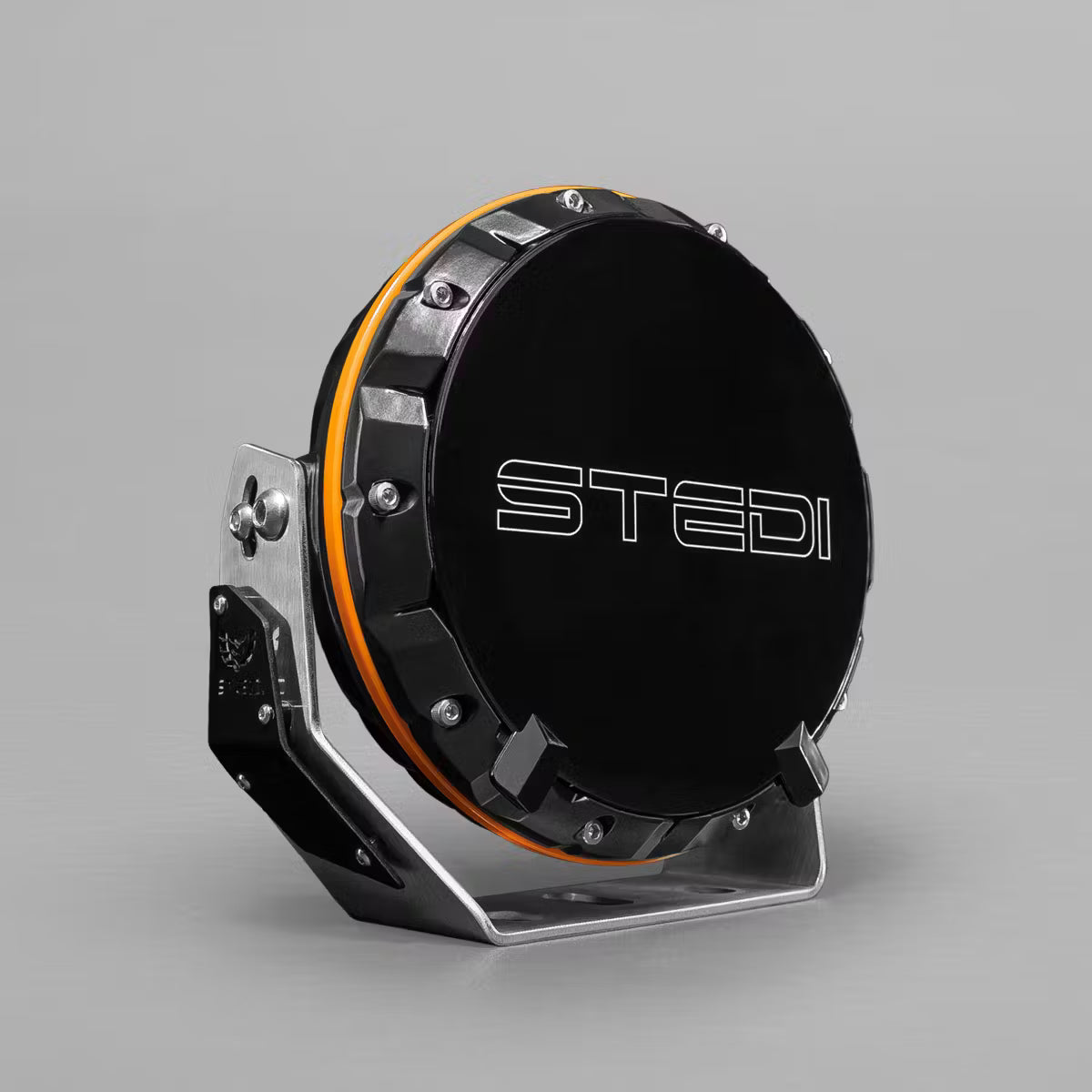

1 × STEDI™ 7" TYPE-X™ SPORT LED Driving Light
-
1 × STEDI™ Black-Out Protective Cover
-
Complete 3-Series Stainless-Steel Fastener Kit
-
Rubber Shock Dampener
Note: Wiring harness not included.
We recommend the STEDI™ Single Connector Plug & Play High Beam Driving Light Wiring Kit (sold separately).
⚙️ Technical Specifications
| Specification |
Details |
| LEDs |
32 × OSRAM Oslon SSL LEDs |
| Raw Lumens |
8,320 lm (single) |
| Tested Lumens |
6,410 lm (single) |
| Amp Draw |
6.4 A @ 13.2 V |
| Power Draw |
85 W |
| Candela |
409,600 cd (single) |

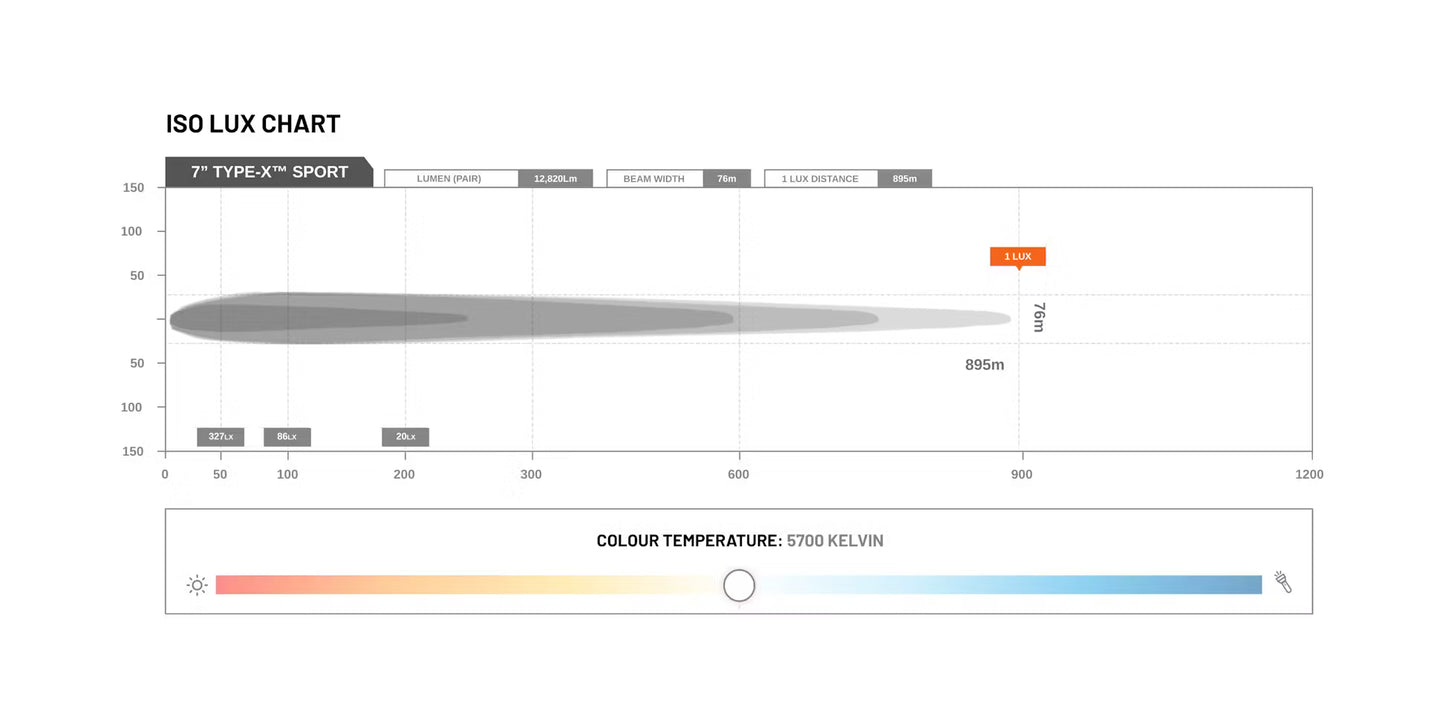

| 1 Lux Distance |
895 m (pair tested) |
| Beam Pattern |
4 × Spread / 28 × Spot Beam |
| Ingress Protection |
IP68 – Submersible up to 3 m |
| Colour Temperature (CCT) |
5700 K |
| Voltage Compatibility |
12 V & 24 V DC |
| Lumen Maintenance |
50,000 hr LM-80 rated |
| Weight |
2.25 kg (each) |
| Operating Temperature |
–40 °C to +60 °C |
🛡️ Why Choose the STEDI™ TYPE-X™ SPORT 7"?
📦 Fast global shipping
💳 Flexible financing options
🧰 Easy setup with STEDI™ wiring compatibility
🛡️ Protected by a 5-Year STEDI™ Replacement Warranty
