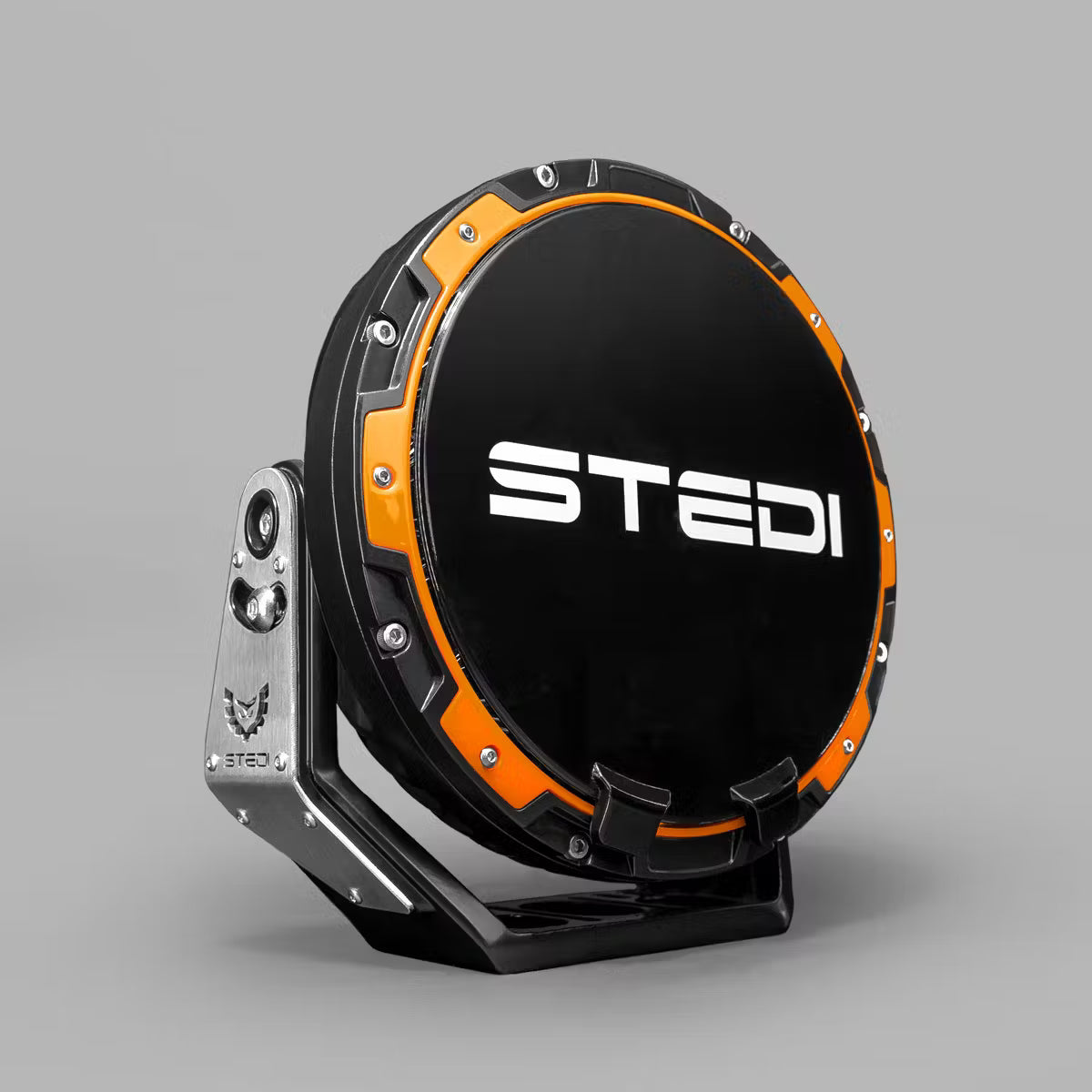

Triple Threat. One Light, Endless Power.
The STEDI™ TYPE-X™ PRO Single Light gives you the freedom to expand, replace, or fine-tune your lighting setup with precision. Inspired by the custom combinations built by Type-X™ enthusiasts, this standalone option lets you take your configuration to the next level — or replace a damaged or missing unit without compromise.
Engineered to deliver category-leading performance, the TYPE-X™ PRO embodies our obsession with pushing the limits of lighting technology. With 37 Oslon High-Flux LEDs and world-class optics, this driving light projects a 1.15 km beam distance, offering precision, intensity, and reliability that outshines the competition.
🔑 Key Features
✅ Extreme Range: 1,155 m beam throw (pair tested, combo beam)
💡 High-Output LEDs: 37 × Oslon High-Flux LEDs — the highest lumen density per mm² available

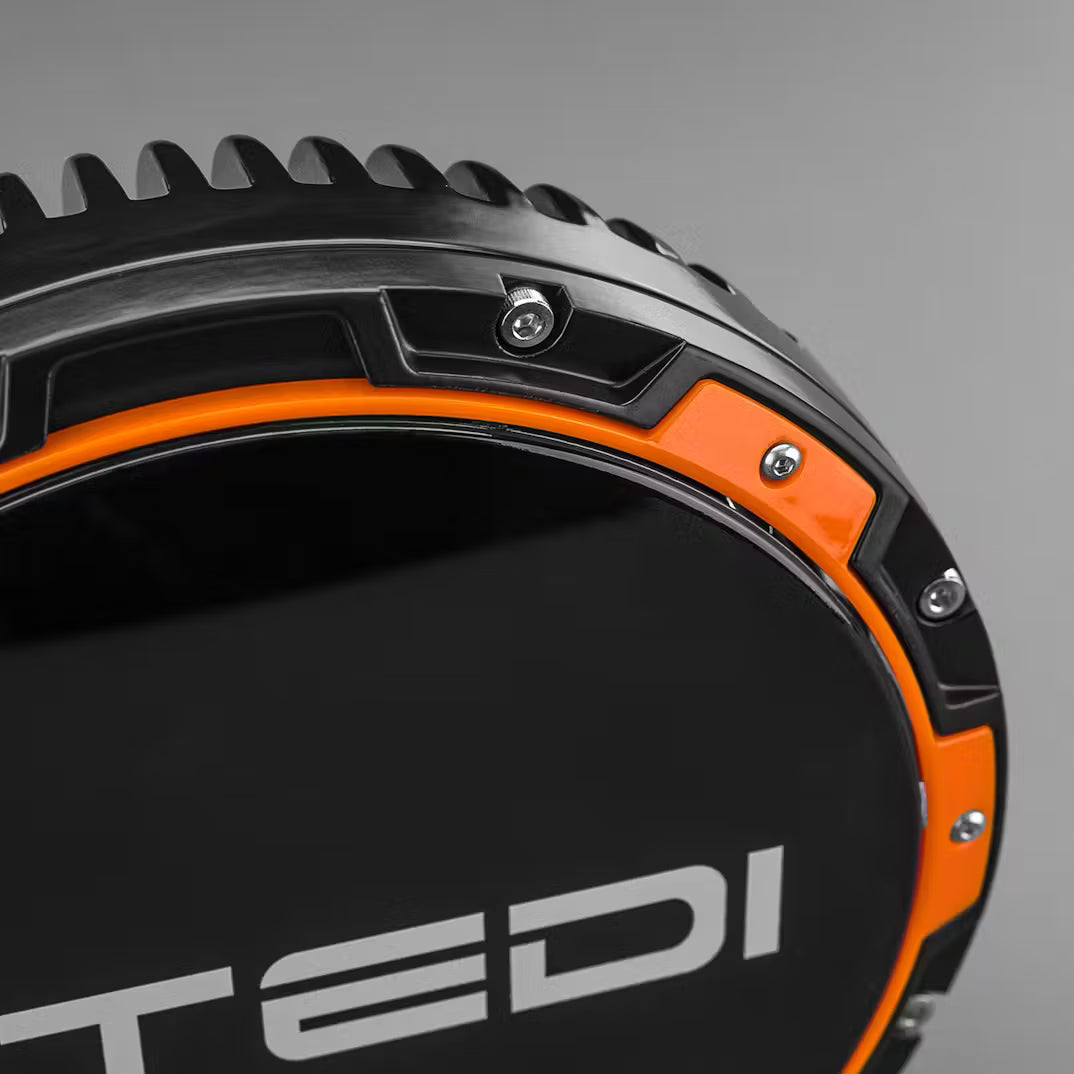

🌈 Customisable Look: Includes orange and grey colour rings
💧 IP68 Rating: Fully dustproof and waterproof – submersible up to 3 m
🧊 Ballistic-Grade Lens: Hard-coated optical-grade lens built for impact resistance
⚙️ Voltage Compatibility: 12 V & 24 V systems

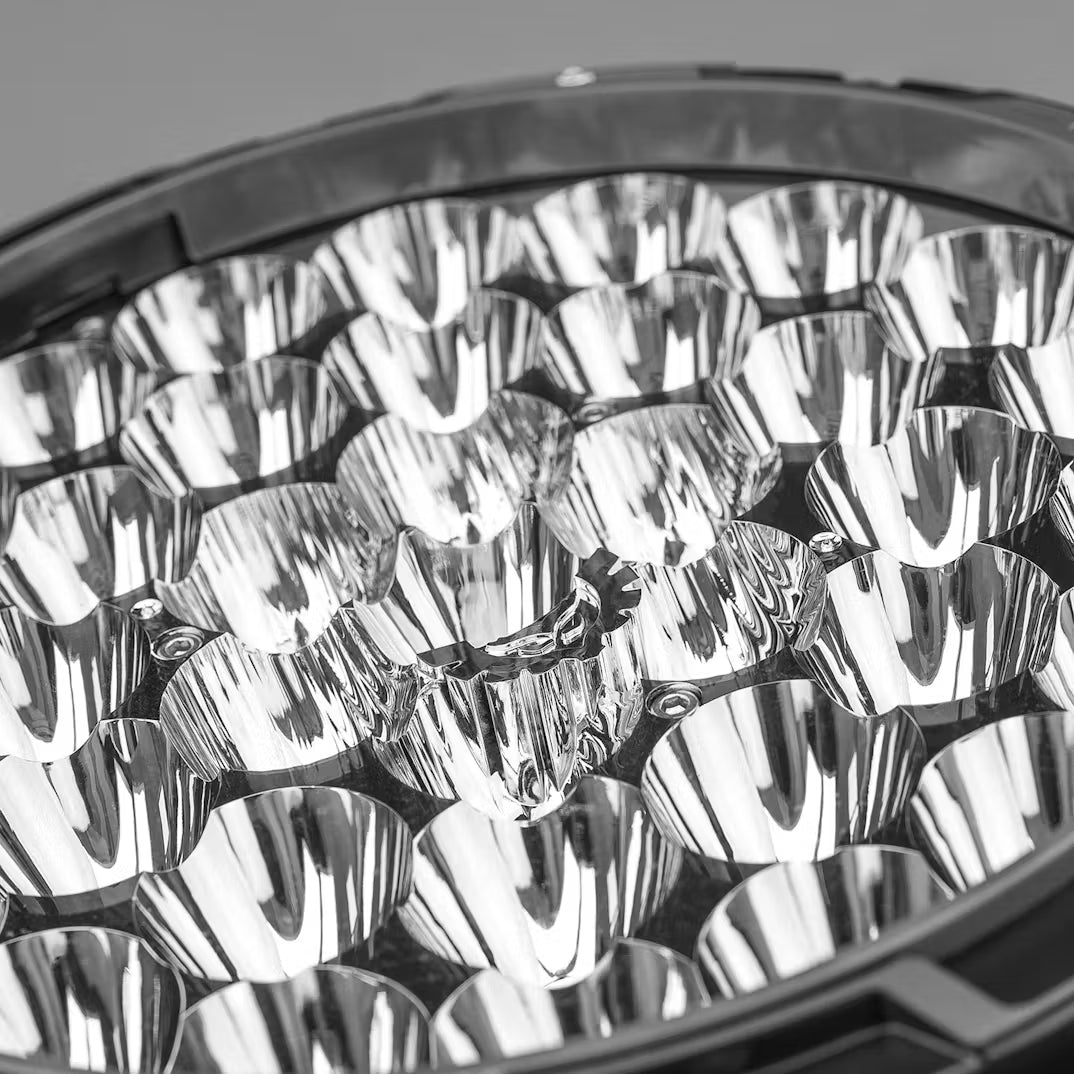

🔩 Precision Optics: 6 × spread + 31 × spot reflectors for balanced beam distribution

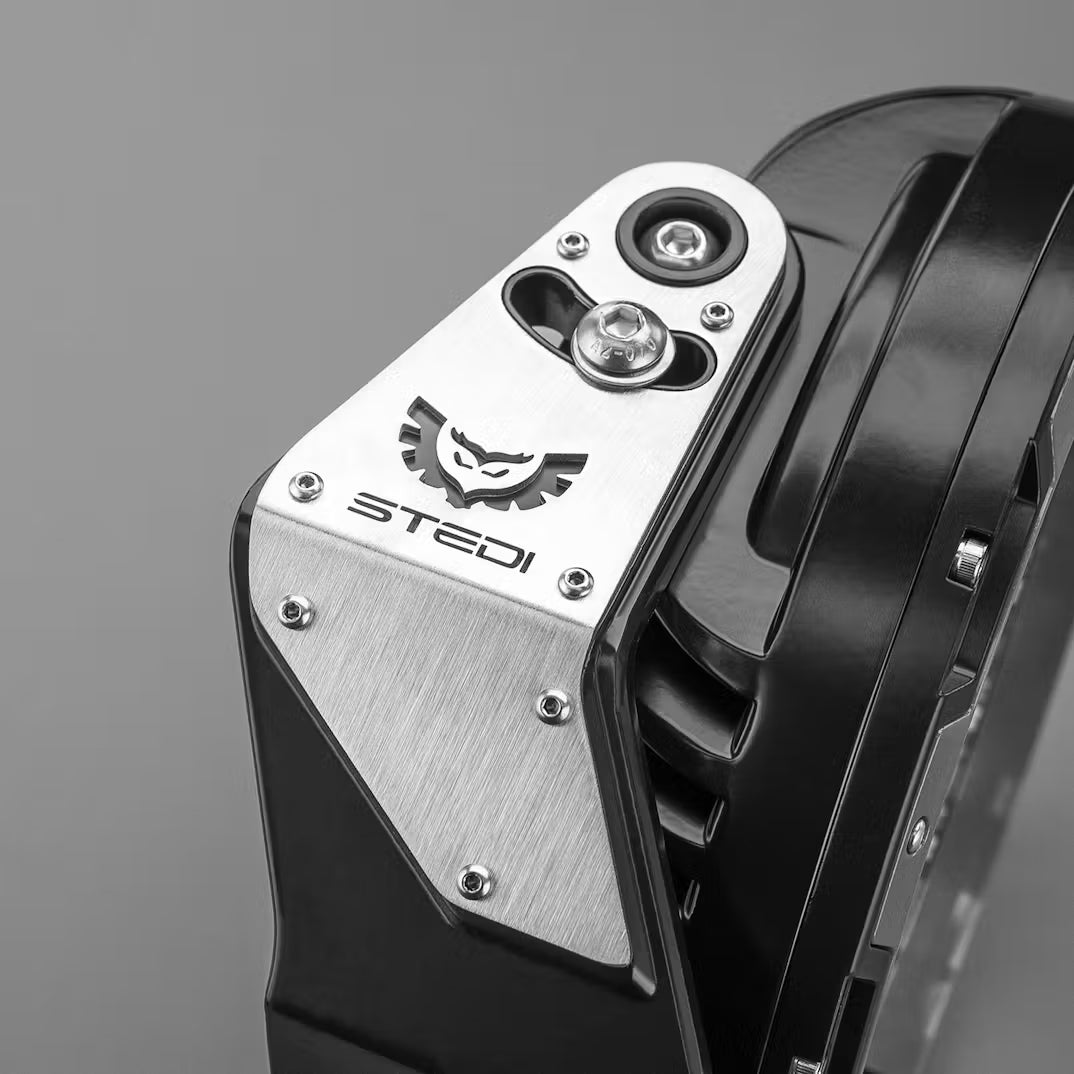

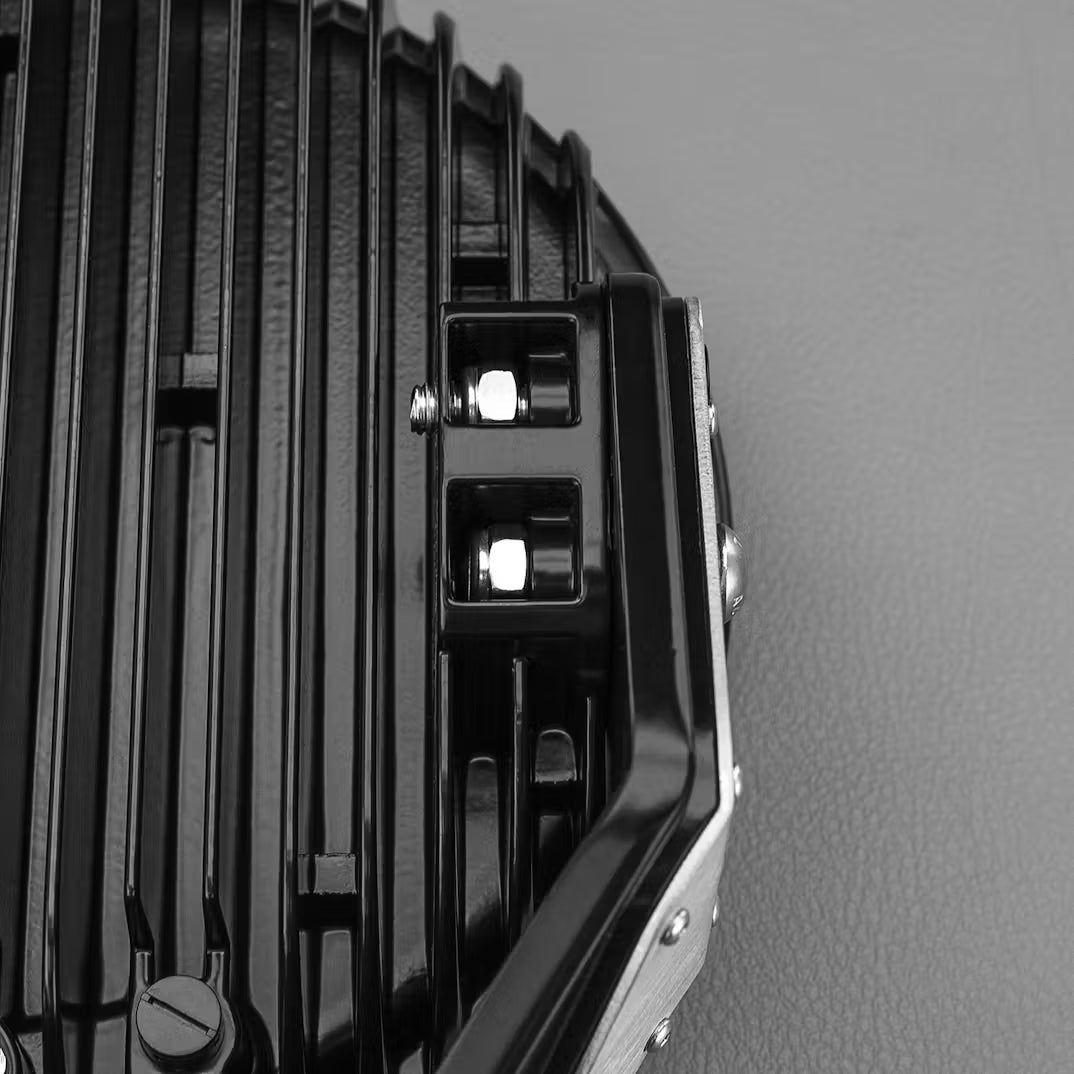

🛠️ Durable Build: 10 mm die-cast aluminium bracket designed for prolonged corrugations
🌡️ Colour Temperature: 5700 K – ideal clarity with minimal glare
⏳ Longevity: 50,000+ hour LM-80 LED lifespan
⚡ Plug & Play Ready: Compatible with STEDI™ single connector wiring harness (sold separately)
💥 Performance Highlights
-
Homogeneous beam pattern with smooth transition and minimal shadowing
-
Optimised reflector geometry for superior driver visibility and comfort
-
Built-in flood reflectors for wider shoulder coverage
-
No need for external covers or filters that reduce light transmission
-
Tested and proven in the harshest off-road conditions
📦 What’s Included
-
1 × STEDI™ TYPE-X™ PRO LED Driving Light
-

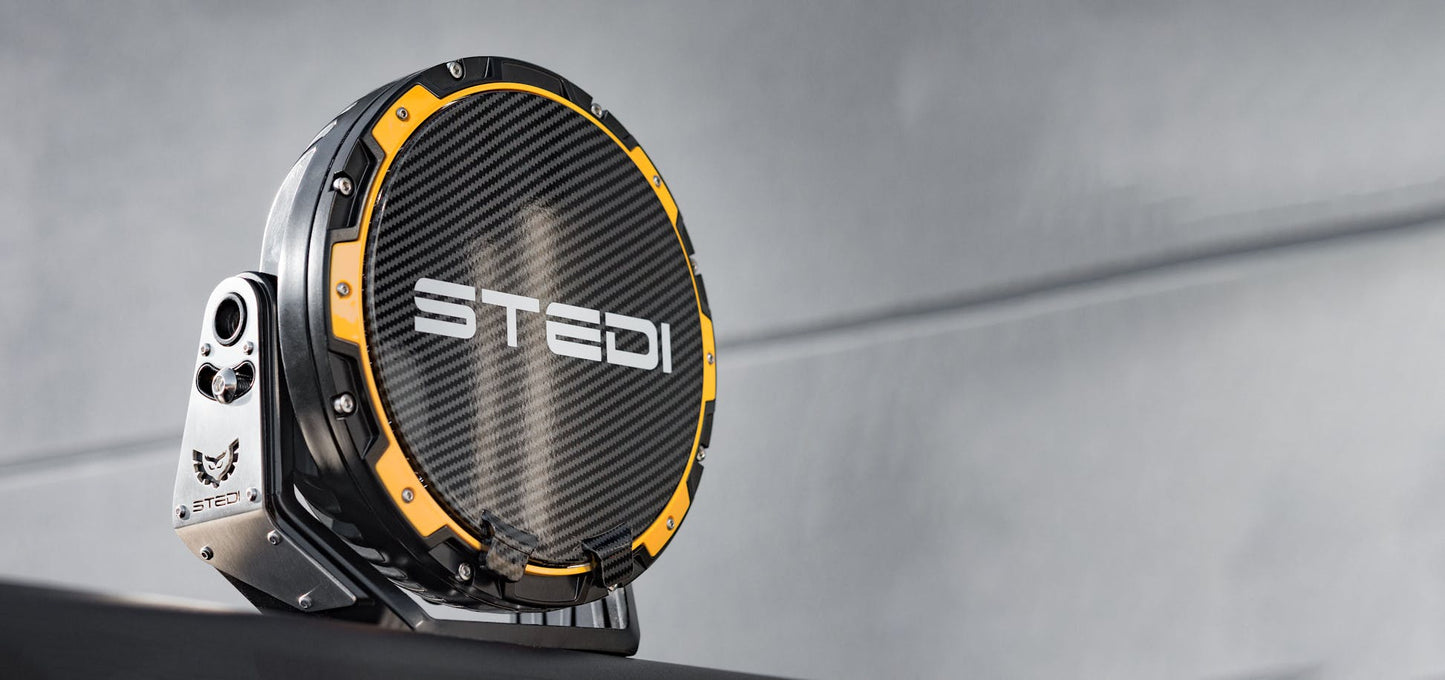

1 × Protective STEDI™ Black-Out Cover
-
1 × Grey Colour Ring
-
1 × Orange Colour Ring
-
Complete Stainless-Steel Fastener Kit
-
Fitting Instructions
Note: Wiring harness not included.

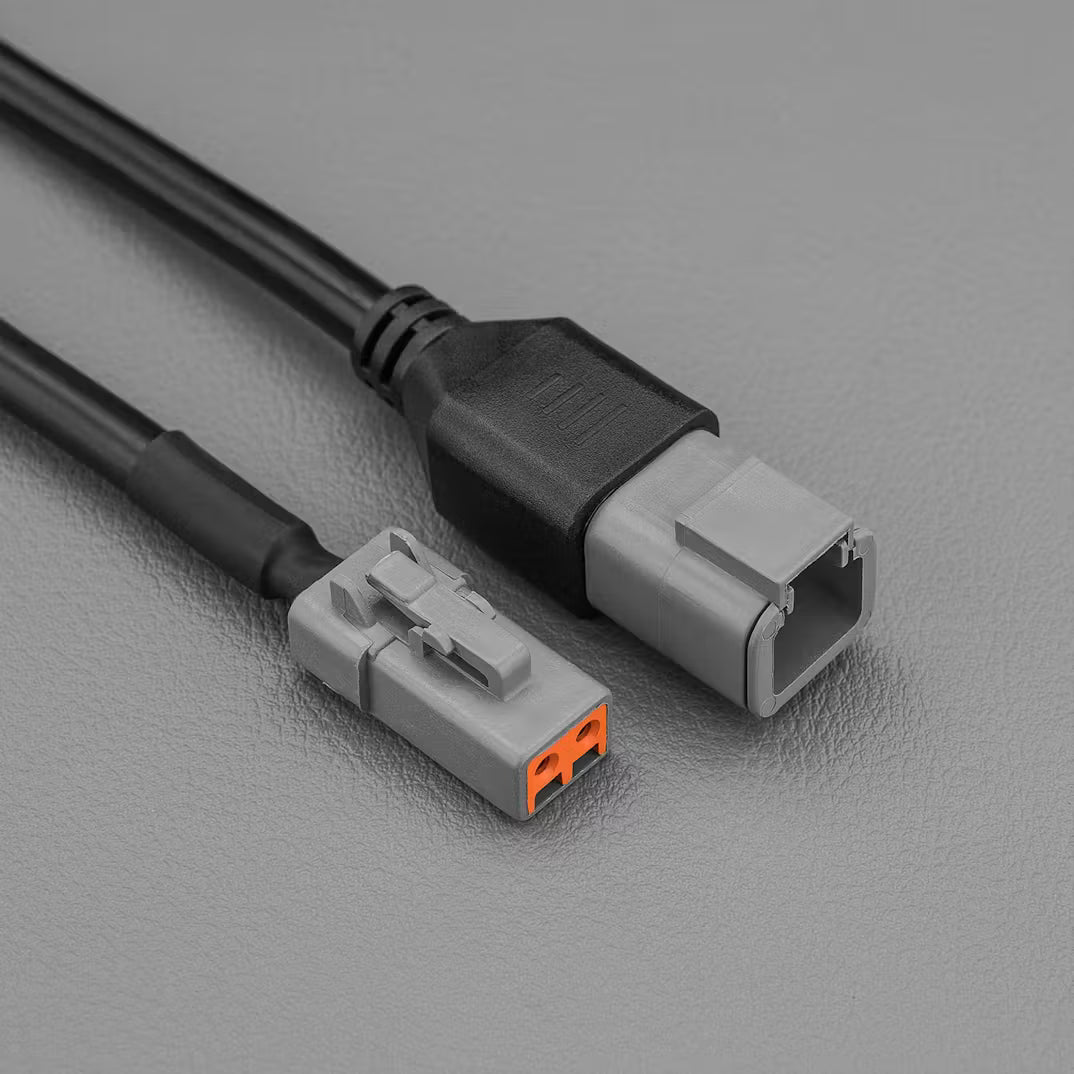

We recommend the STEDI™ Single Connector Plug & Play High Beam Driving Light Wiring Kit (sold separately).
⚙️ Technical Specifications
| Specification |
Details |
| LEDs |
37 × Oslon High-Flux LEDs |
| Raw Lumens |
13,135 lm |
| Tested Lumens |
7,935 lm |
| Amp Draw |
10.4 A @ 13.2 V |
| Power Draw |
137 W |
| Candela |
667,012 cd |
| 1 Lux Distance |
836 m (single) |
| Beam Pattern |
6 × Spread / 31 × Spot Beam |
| Ingress Protection |
IP68 – Submersible up to 3 m |
| Colour Temperature (CCT) |
5700 K |
| Voltage Compatibility |
12 V & 24 V DC |
| Lumen Maintenance |
50,000 hr LM-80 rated |
| Weight |
2.86 kg (each) |
| Operating Temperature |
–40 °C to +60 °C |
🛡️ Why Choose the STEDI™ TYPE-X™ PRO Single?
📦 Fast international shipping
💳 Flexible payment options
🧰 Compatible with all Type-X™ PRO setups
🛡️ Backed by a 5-Year STEDI™ Replacement Warranty
