Diverse Applications.

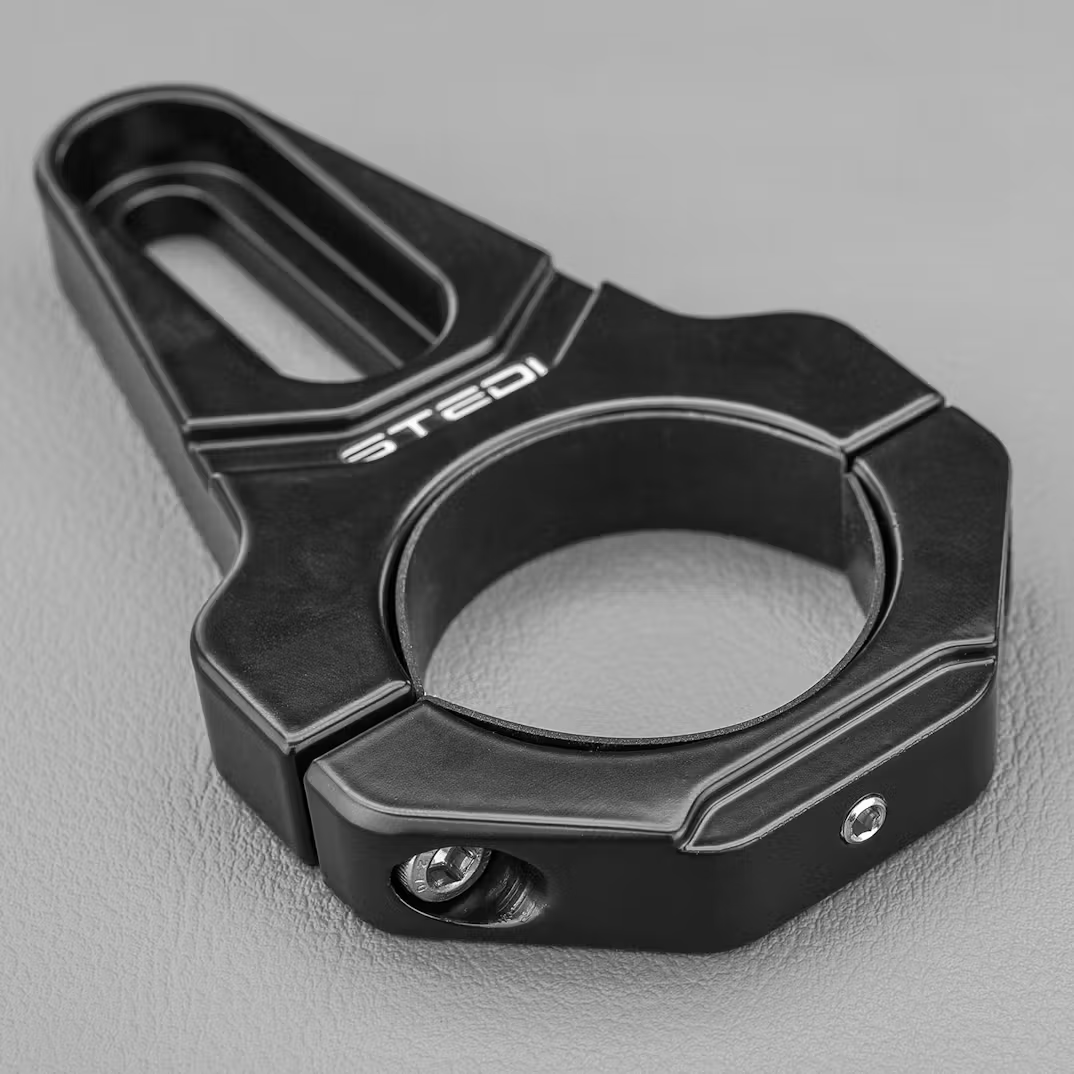

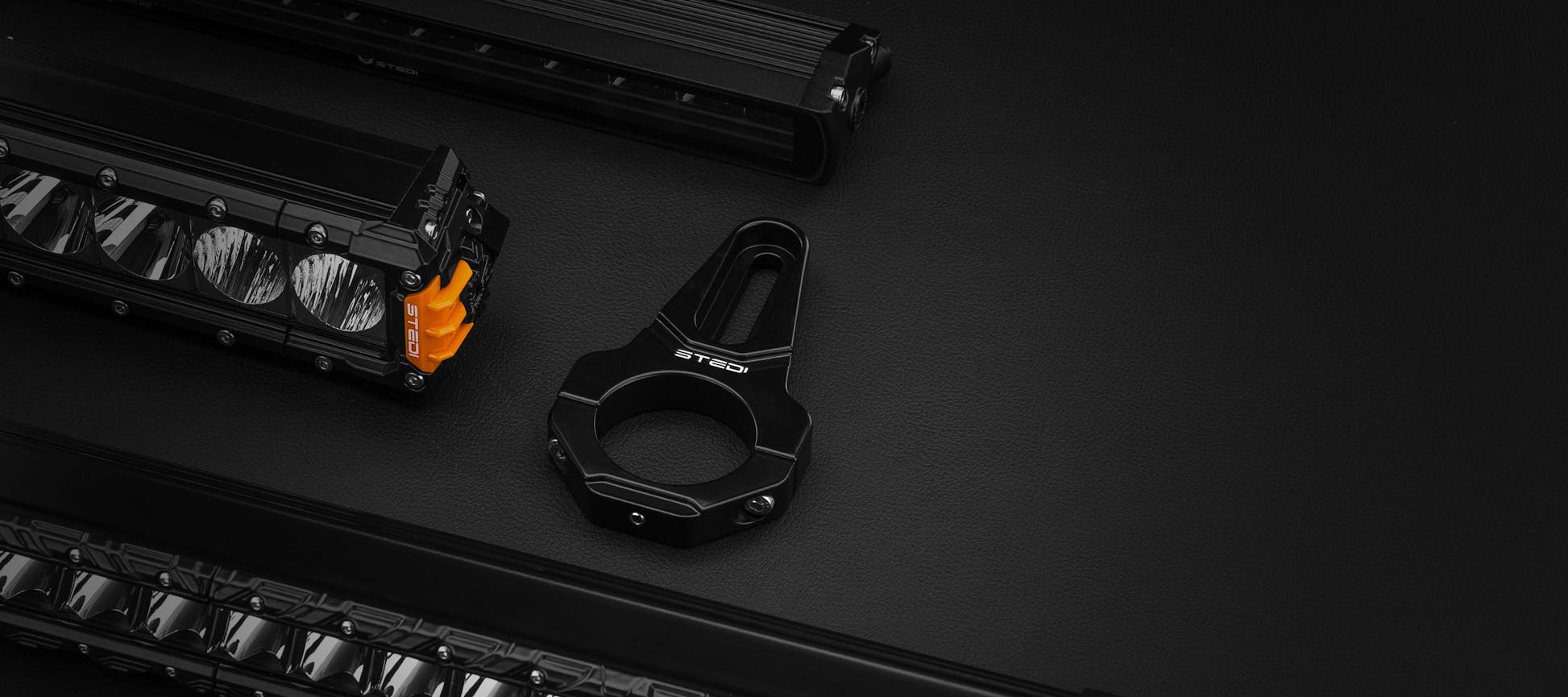

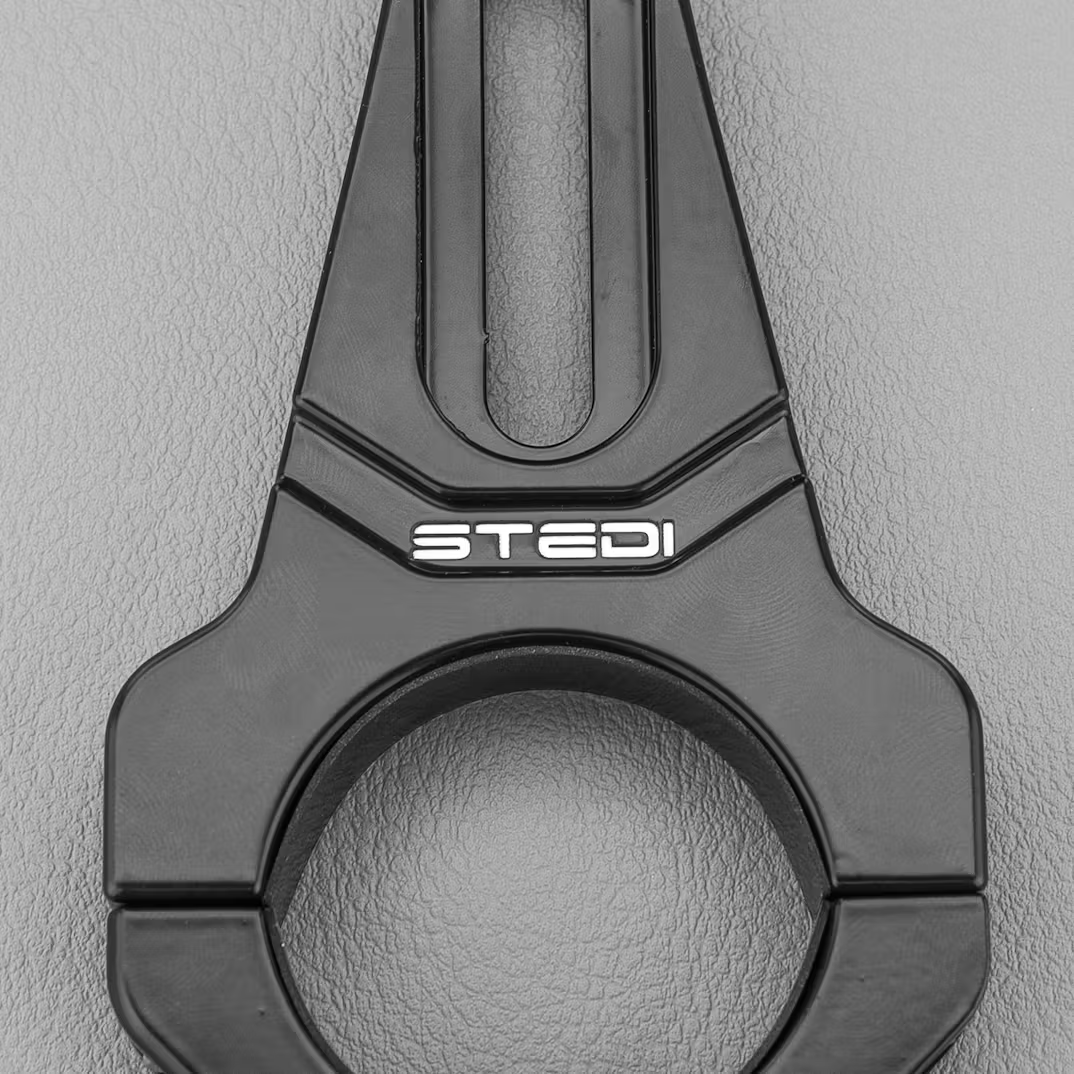

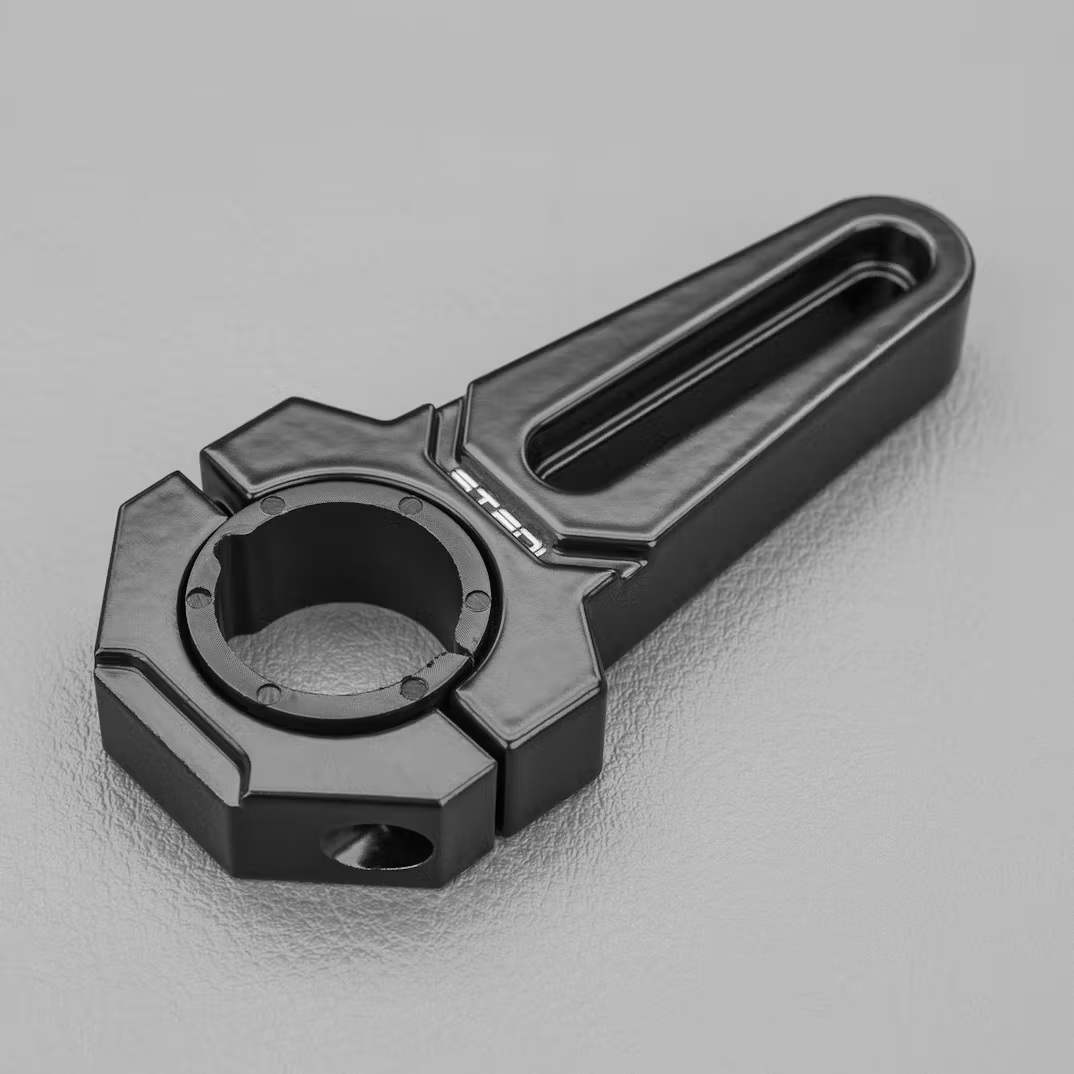

The STEDI™ Vice Clamp Bull Bar Brackets are the ultimate universal mounting solution for LED Light Bars and Work Lights. Designed with versatility in mind, these clamps offer secure, adjustable mounting for both side-mounted and lower-mounted lights. Constructed from cast aluminium and paired with stainless steel fasteners, the Vice Clamps provide strength, reliability, and longevity — all in a lightweight form. A UV-stable polyester powder coat finish ensures durability and resistance to harsh environmental conditions.
⚙️ Unmatched Versatility
The innovative design of the Vice Clamps® allows for full rotation on the bar, while the light itself can rotate 360°, giving you complete control over beam positioning. Whether you’re aiming for side-mounted flood coverage or a front-facing spot configuration, this system opens endless possibilities for light alignment.
You can even mount vertically — perfect for fitting STEDI™ LED Work Lights from as compact as the 10W Mini to as powerful as the 60W Mining Spec.
💡 Signature Compatibility

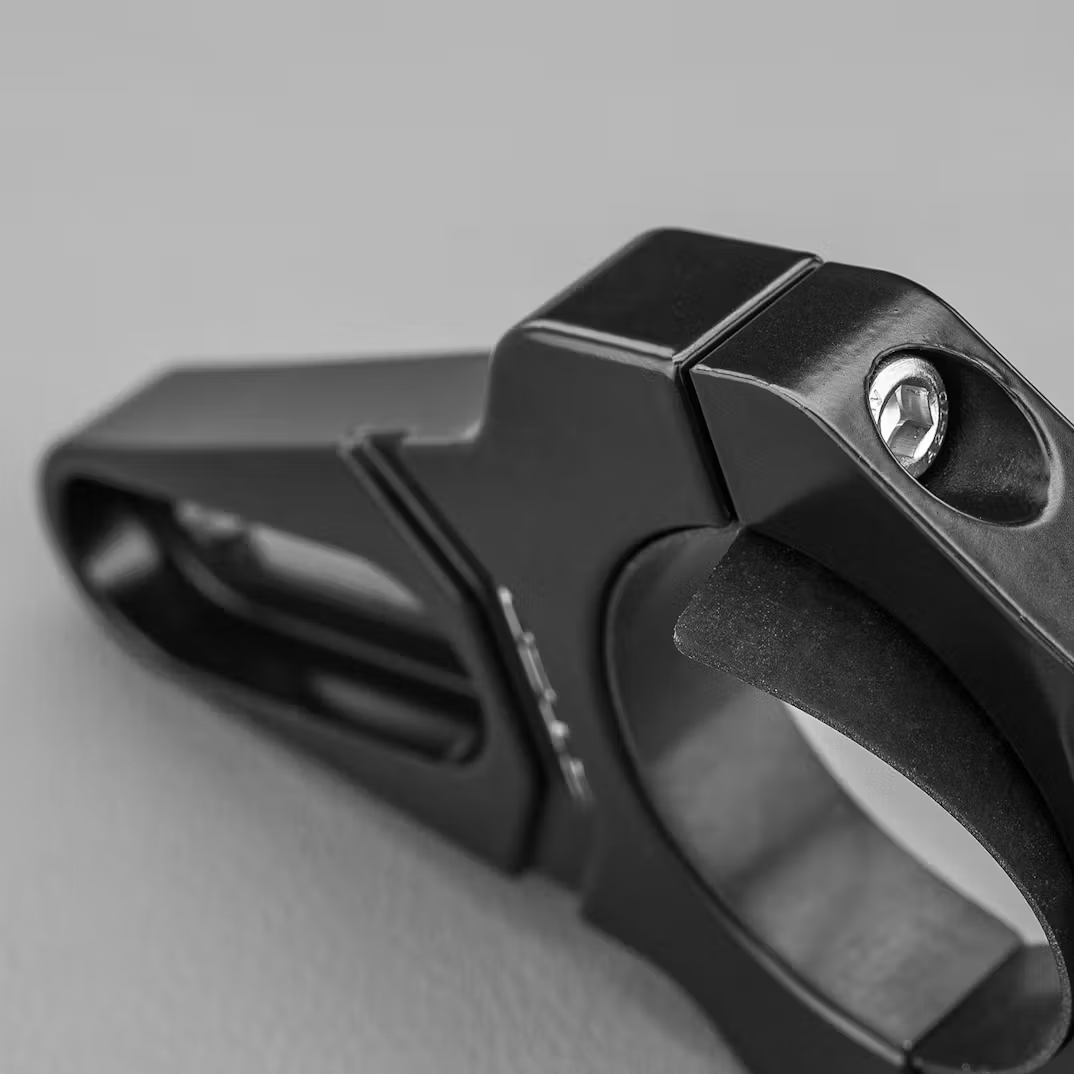

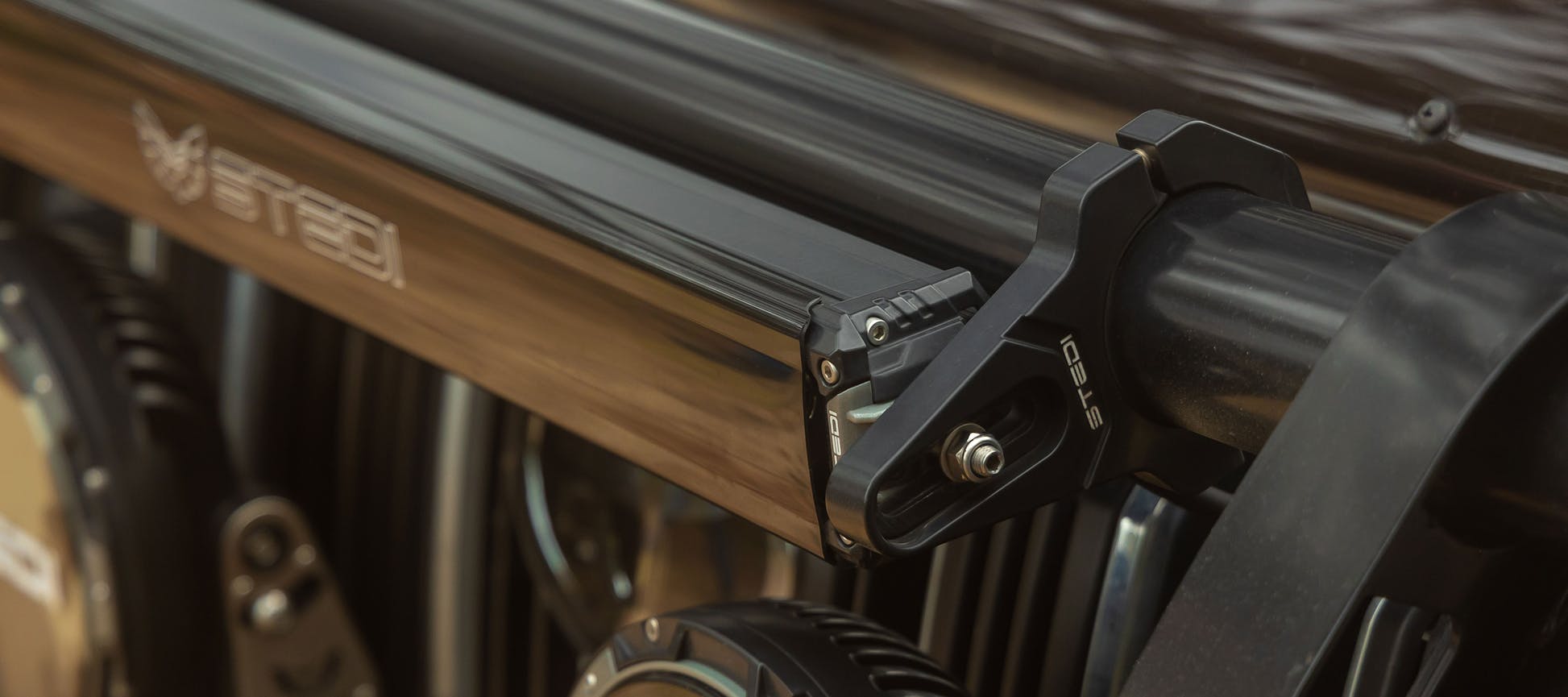

Our Vice Bull Bar Tube Clamps® deliver a clean, integrated finish — no bulky hardware or unsightly fittings. The internal rubber inserts prevent vibration and protect the bar surface, while the 4 mm set screw ensures zero slippage. Once installed, your lights remain locked in position — no movement, no rattle, just pure performance.
🔩 Key Features
-
Universal fitment – ideal for side-mounted and lower-mounted LED Light Bars
-

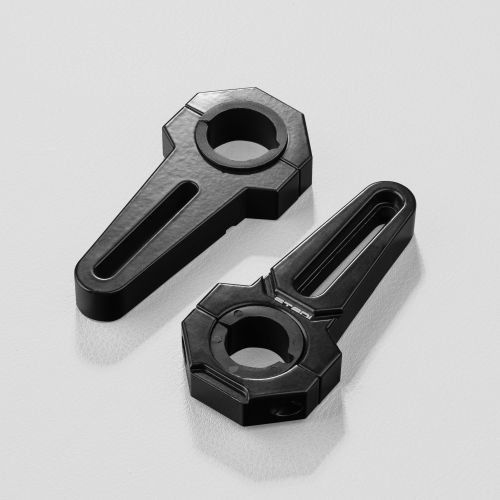

Fits 22–30 mm and 35–40 mm tube diameters (inserts included)
-
Cast aluminium construction – lightweight yet strong
-
Stainless steel fasteners – rust and corrosion resistant
-
UV-stable polyester powder coat – long-lasting finish
-

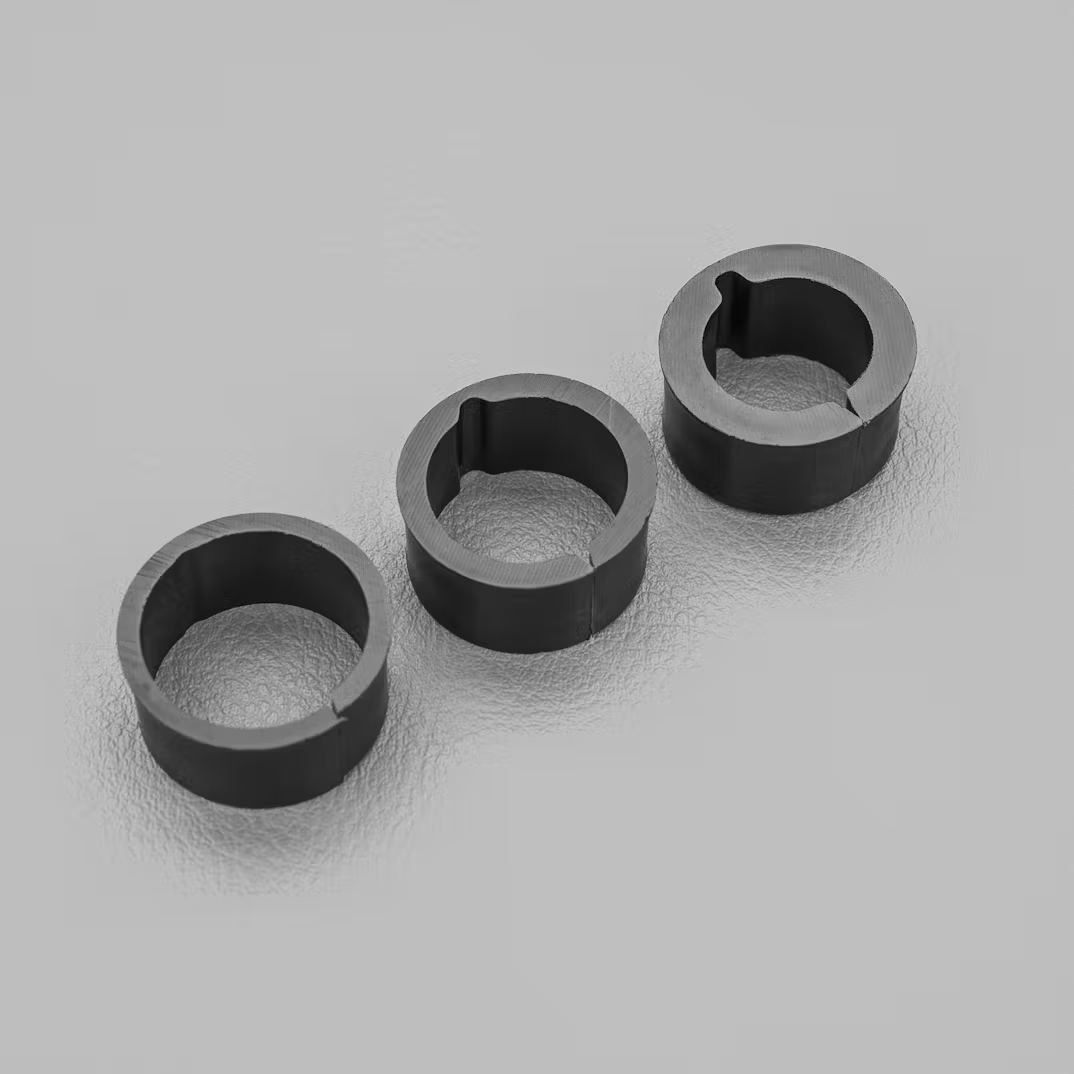

Rubber inserts included – anti-slip and anti-vibration
-
4 mm set screw – eliminates slipping under load
-
360° rotation for ultimate adjustability
-
Registered Design No. 201811269

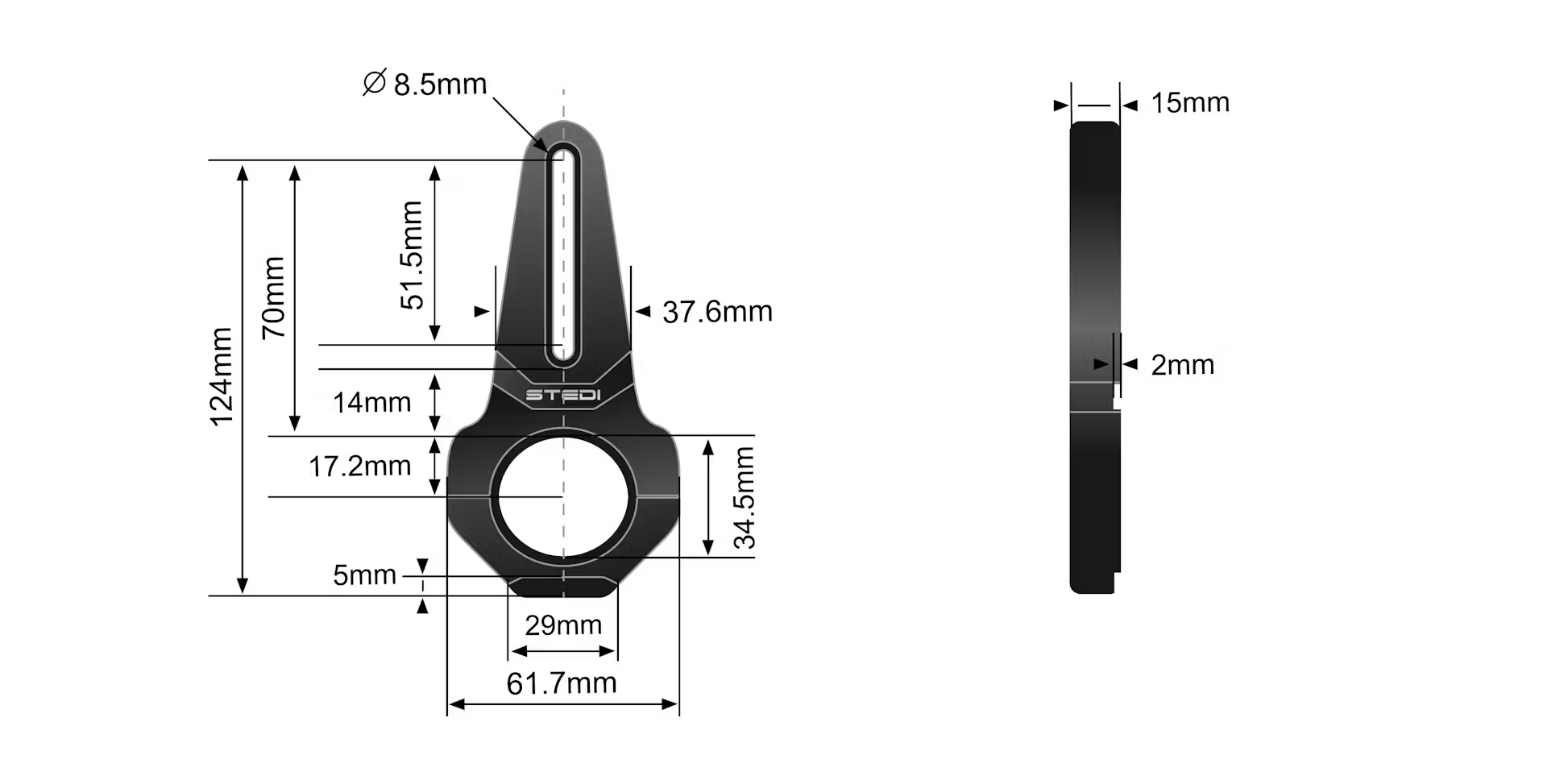

🛠 Technical Specifications
| Specification |
Details |
| Material |
Cast Aluminium |
| Finish |
Polyester UV-Stable Powder Coat |

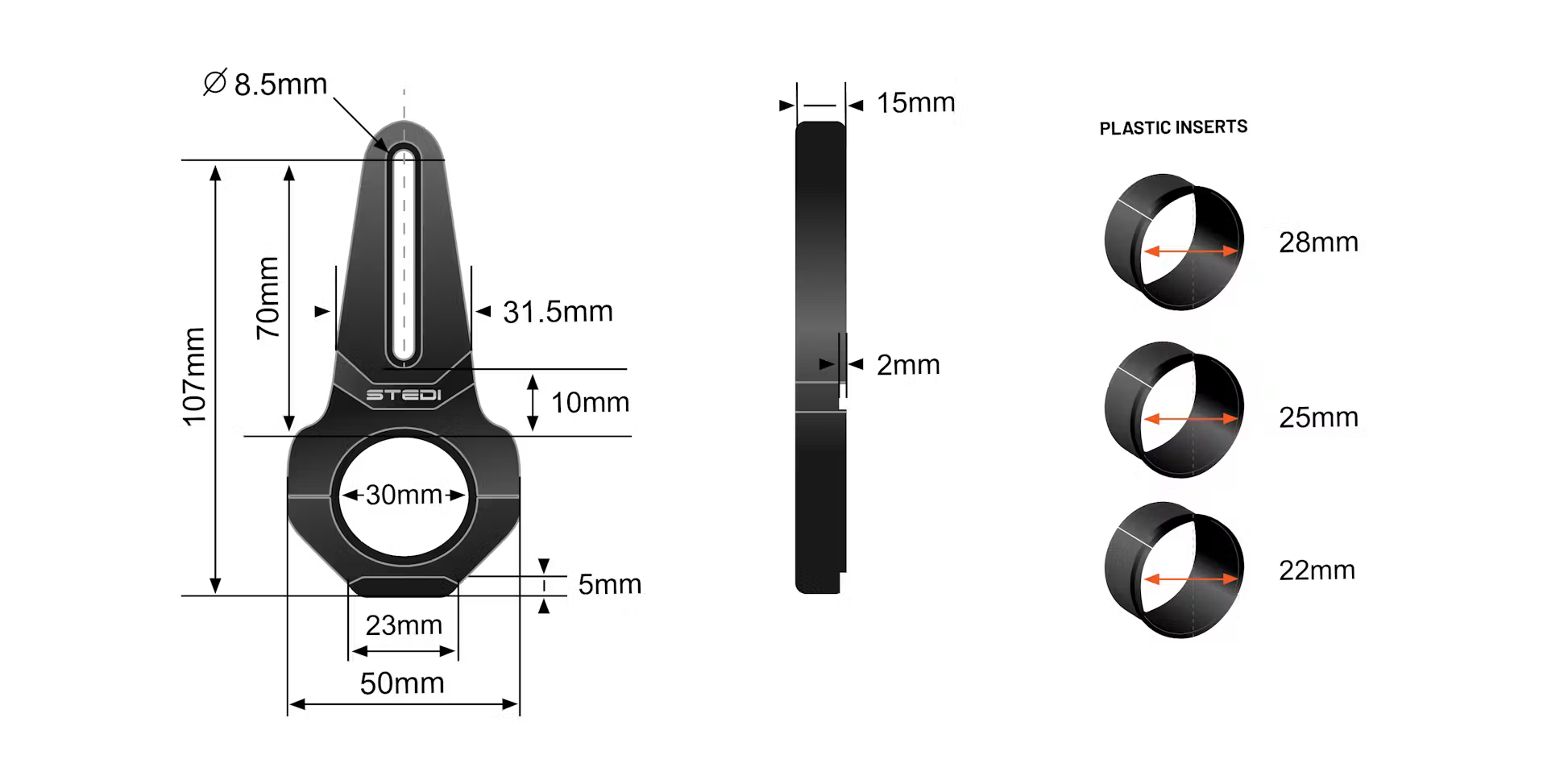

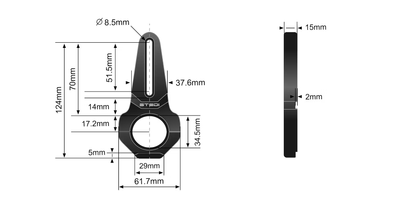

| Suitable Diameters |
22–30 mm / 35–40 mm |
| Included Inserts |
Rubber (Anti-Slip and Vibration Dampening) |
| Fasteners |
Stainless Steel |
| Design Registration |
201811269 |
| Bolt Compatibility |
22–30 mm Clamps: M6 / 35–40 mm Clamps: M8 |
| Mounting Style |
Tube Clamp (Universal Fitment) |
| Compatibility |
Most side-mounted LED Light Bars and Work Lights |
📦 What’s Included
For 22–30 mm Clamps:
For 35–40 mm Clamps:
🧭 Fitment Guide
To determine your correct clamp size:
-
Measure the circumference of your bull bar (in mm).
-
Apply the formula:
Diameter (mm) = Circumference (mm) ÷ 3.14
Example: Circumference of 110 mm ÷ 3.14 = 35 mm diameter → select 35–40 mm clamps.
🚙 Ideal Applications
-
Bull Bars & Nudge Bars
-
Roof Racks & Tubular Frames
-

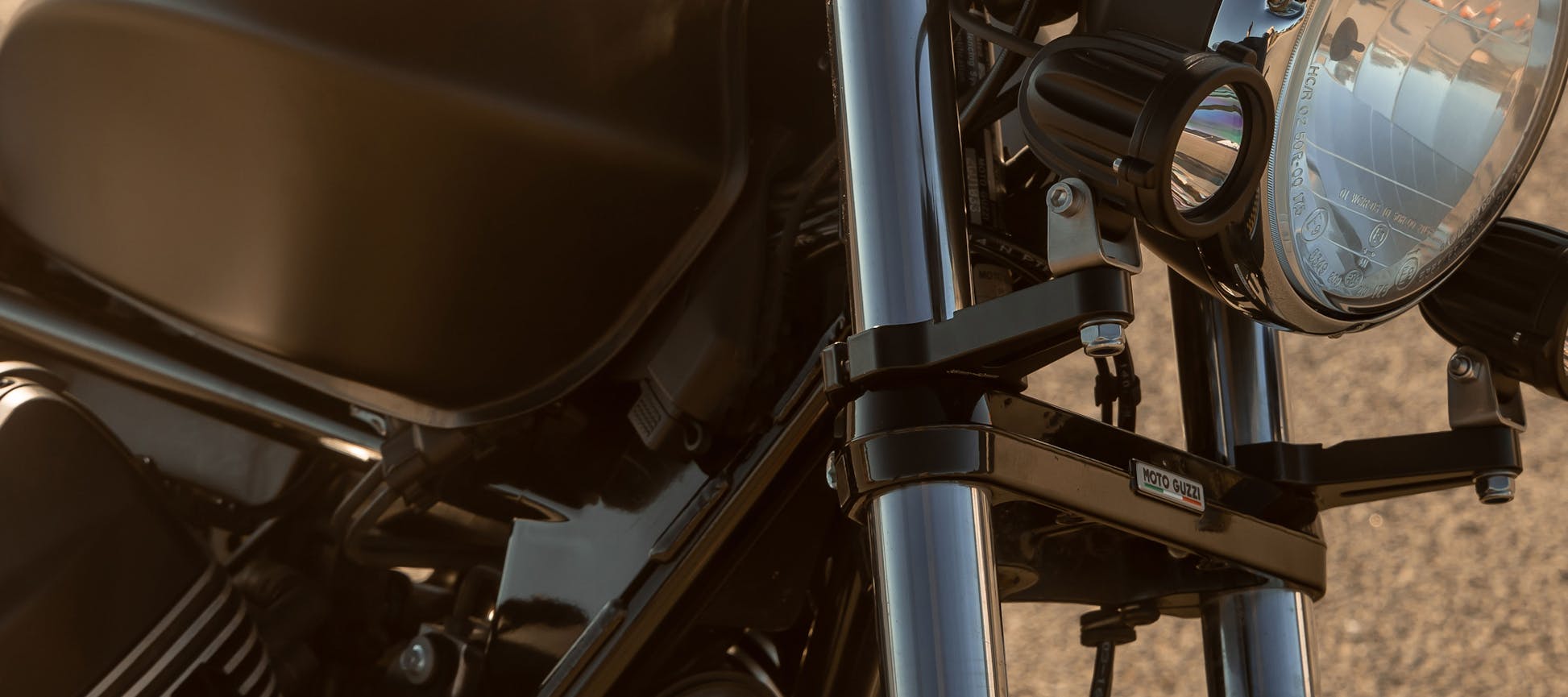

UTVs, ATVs, and Motorcycles
-
Off-Road, Mining, and Worksite Lighting
