Micro Size. Macro Performance.

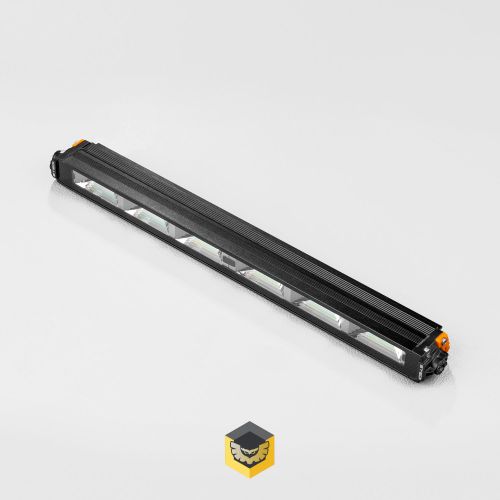

The STEDI™ Micro V2 13.9" Amber LED Light Bar takes our fan-favorite Micro series to the next level. Emitting a stunning 2700 K amber beam, this ultra-compact powerhouse cuts through dust, fog, and darkness like no other. Built for those who demand both performance and a low-profile design, the Micro V2 delivers exceptional output without compromise.
⚡ Lightweight Powerhouse
Measuring only 353 mm in length and 25 mm in height, and weighing just 0.5 kg, the Micro V2 Amber is the definition of compact strength. Despite its minimal footprint, it delivers an impressive 2,600 effective lumens, producing a wide and smooth flood beam that enhances visibility and depth perception in challenging conditions.
🧭 Versatile, Low-Profile Mounting
The Micro V2 series integrates seamlessly into tight spaces — perfect for bumpers, canopies, roof racks, and awning setups. Its IP68-rated construction ensures protection against dust and complete water submersion up to 1.5 m, while the CISPR25 certification guarantees zero interference with radios or communications gear.
🔩 Key Features
-
24 × OSRAM GW PSLR32 LEDs for premium brightness and reliability
-
2700 K amber light ideal for dusty or foggy environments
-

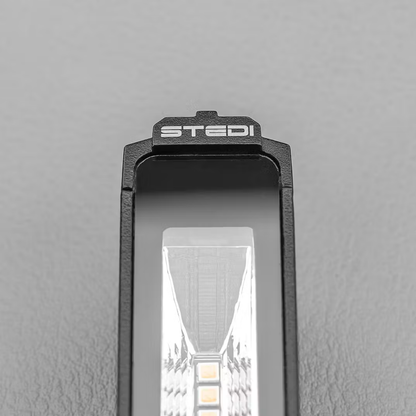

Ultra-slim 26 mm profile for discreet, factory-style installations
-
IP68 waterproof & dustproof (submersible up to 1.5 m for 30 minutes)
-

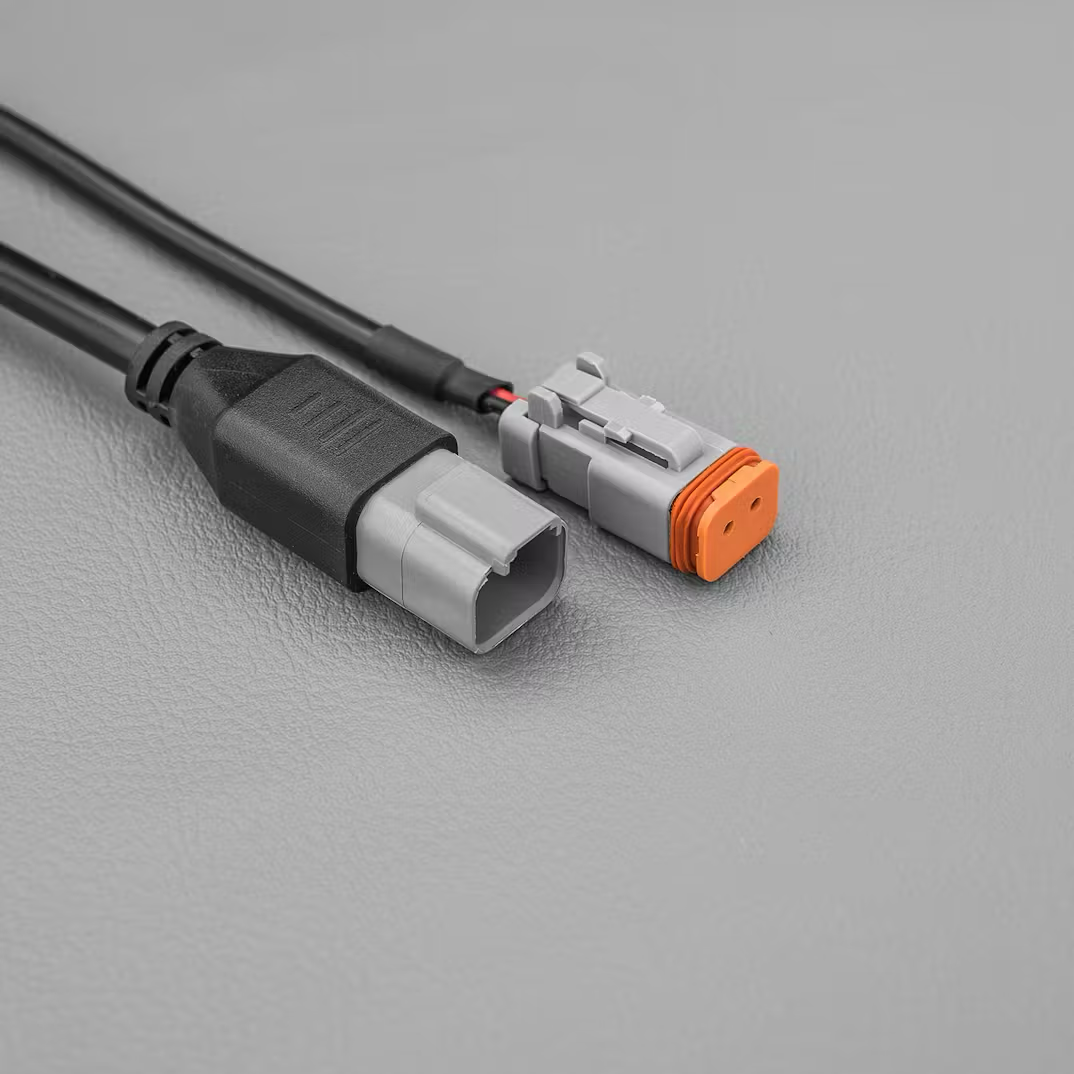

Deutsch DT connectors included for easy plug-and-play setup
-

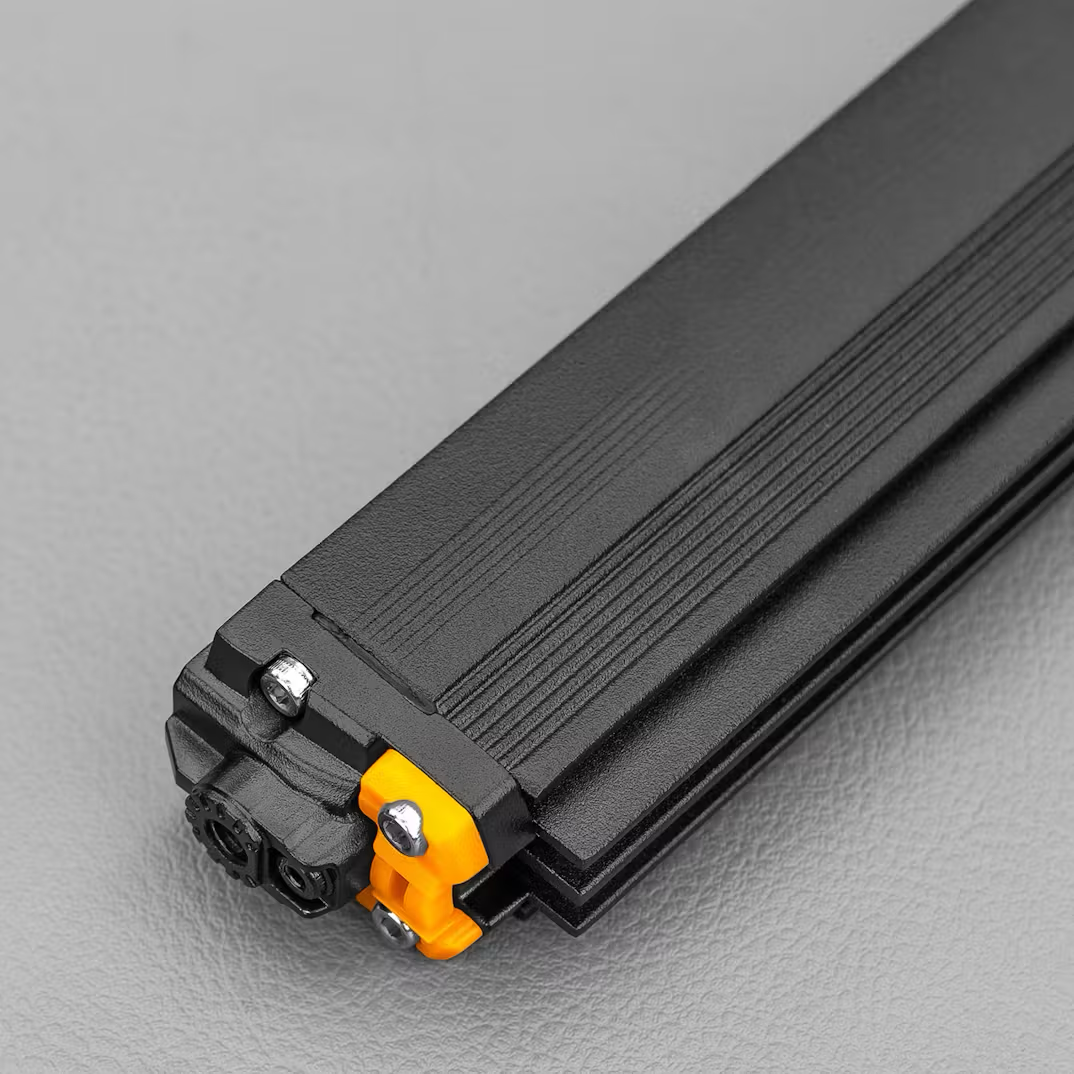

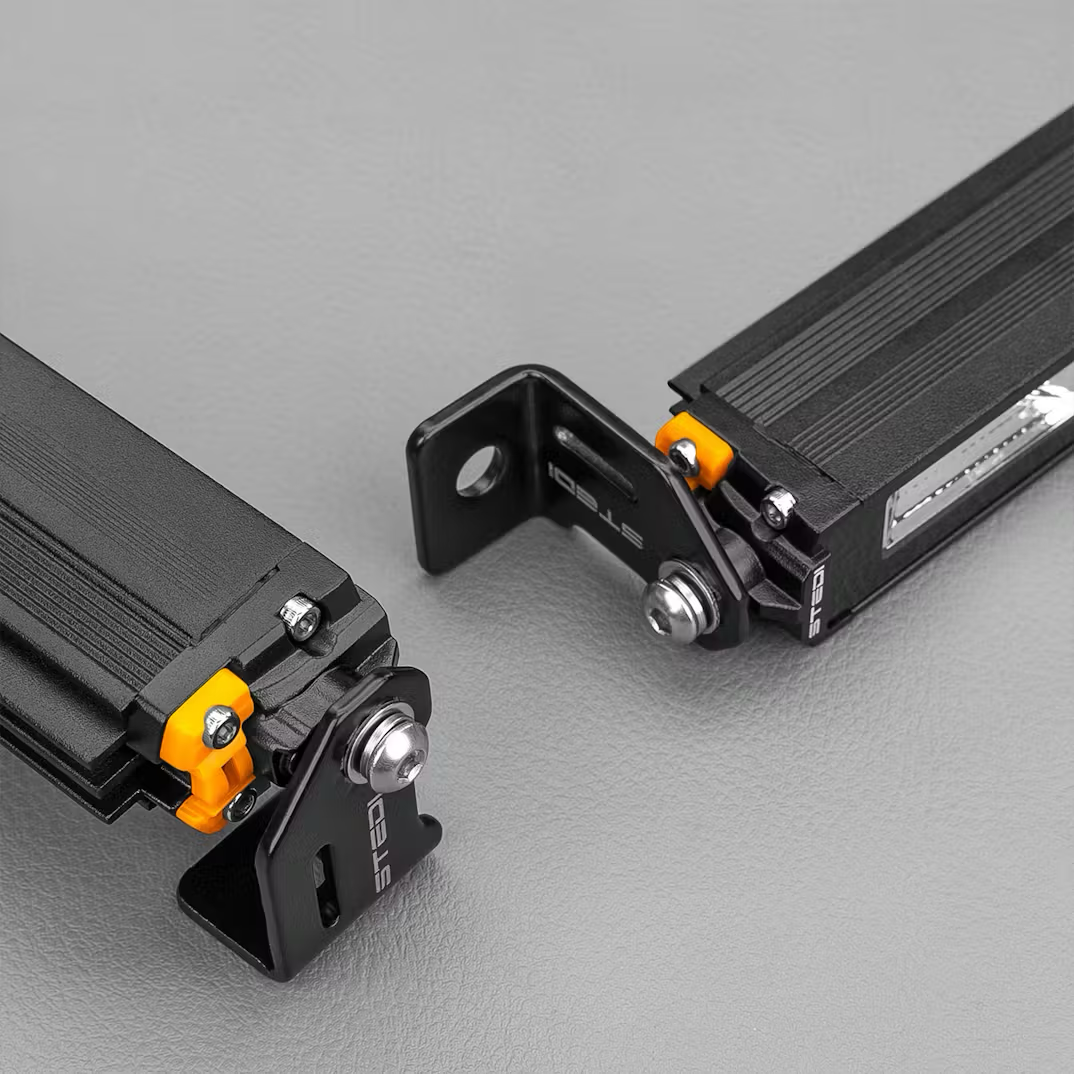

304 stainless-steel brackets & extruded aluminium housing
-
CISPR25-certified for interference-free operation
🛠 Technical Specifications
| Specification |
Details |
| Operating Voltage |
DC 10 – 28 V |
| Power Consumption |
24 W |
| Current Draw |
2.7 A @ 12 V / 1.35 A @ 24 V |
| LED Type |
24 × OSRAM GW PSLR 32. PM DRUISS |
| Effective Lumens |
2,600 Lm |

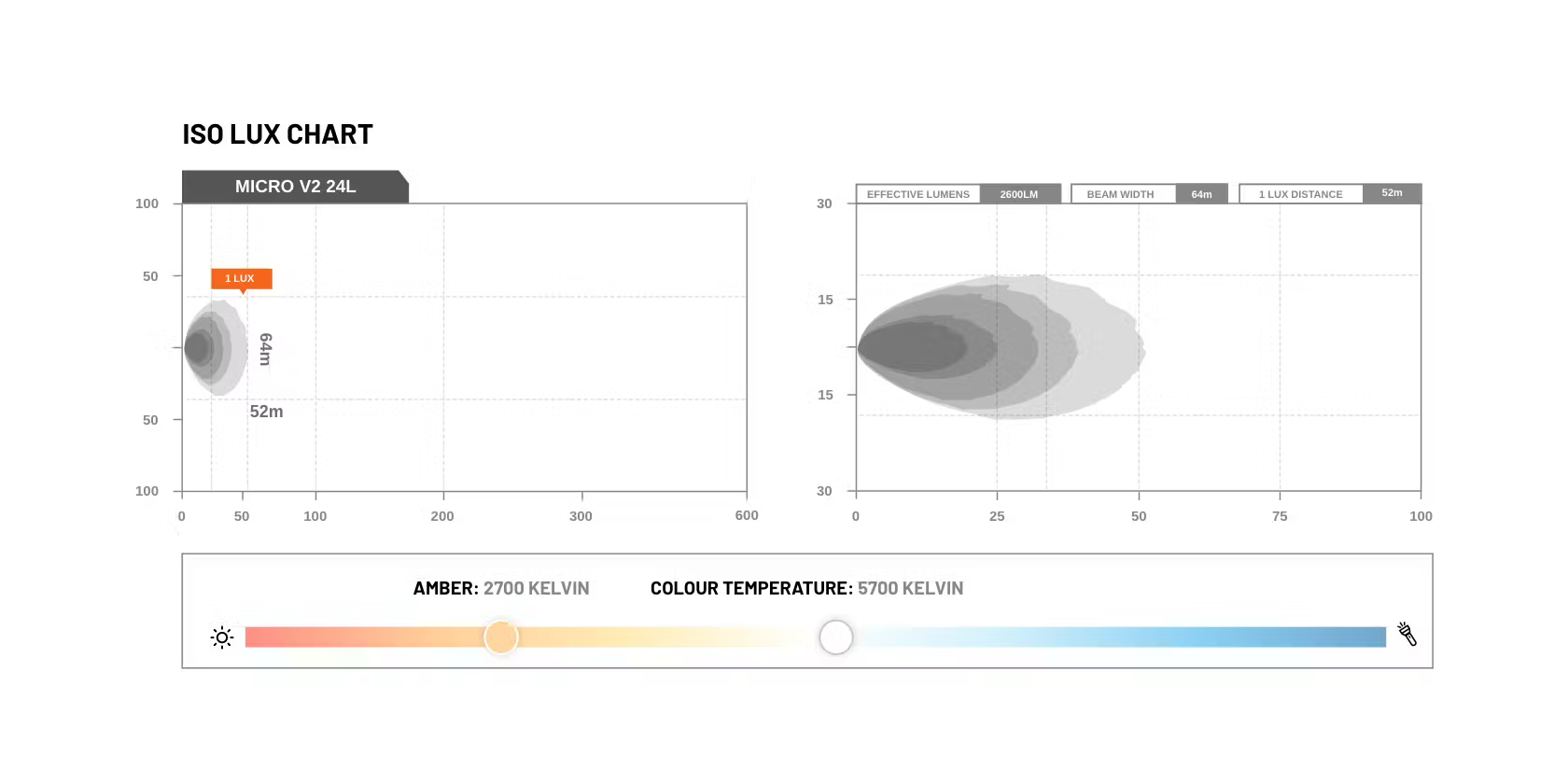

| Beam Pattern |
Flood |
| Beam Angle |
Height: 30° × Width: 120° |
| Colour Temperature |
2700 K (Amber) |
| Ingress Protection |
IP68 |
| Lens Material |
Polycarbonate with Surface Hardening |
| Housing Material |
Extruded Aluminium |
| Mounting Bracket |
304 Stainless Steel |
| Cable Length |
400 mm |
| Weight |
0.5 kg |
| Operating Temperature |
–40 °C to +60 °C |
| Lifespan |
30,000 hours |
| Certification |
CISPR25 |

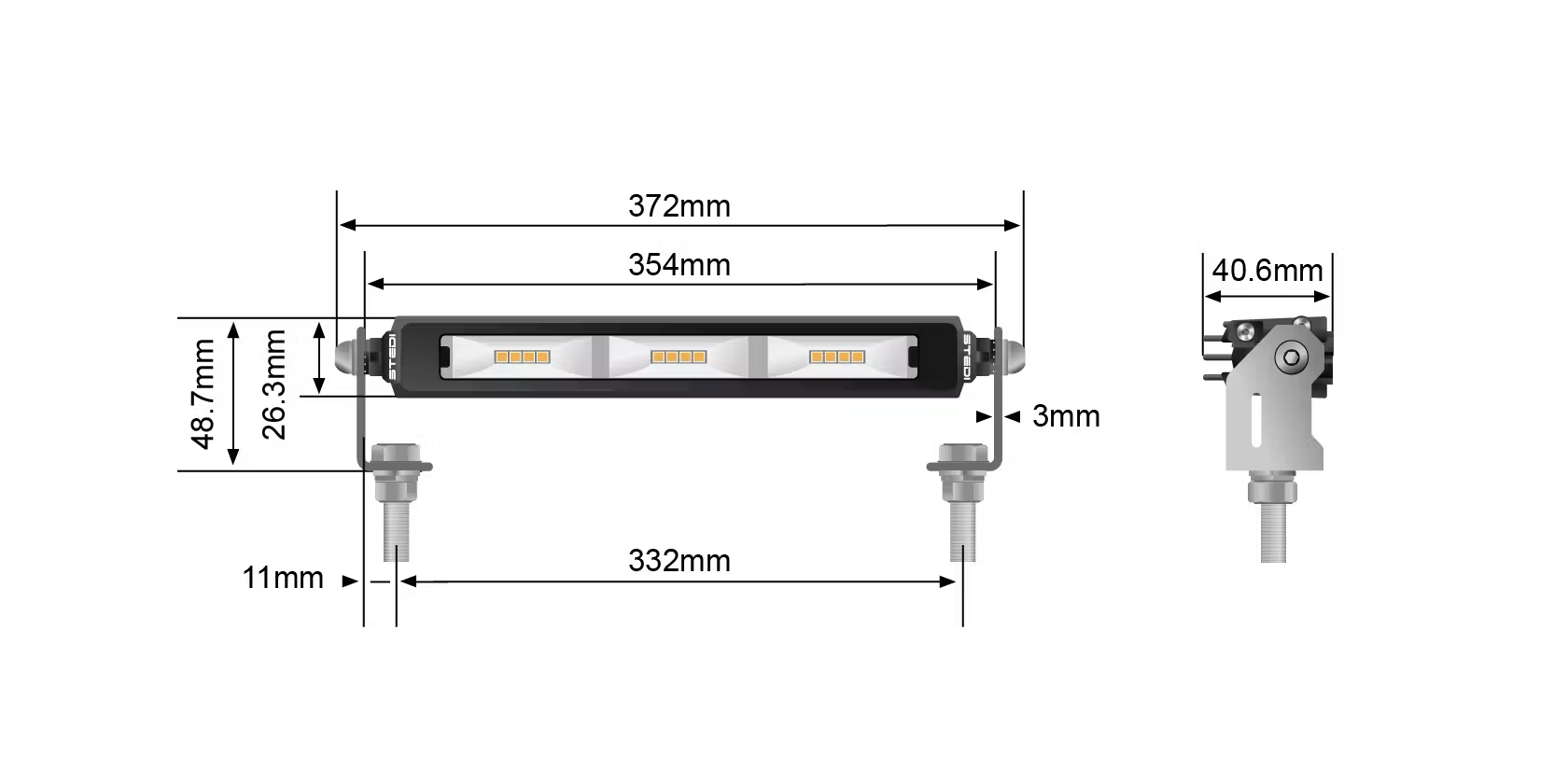

| Dimensions (mm) |
353 × 25 × 40.6 |
📦 What’s Included
🚙 Ideal Applications
-

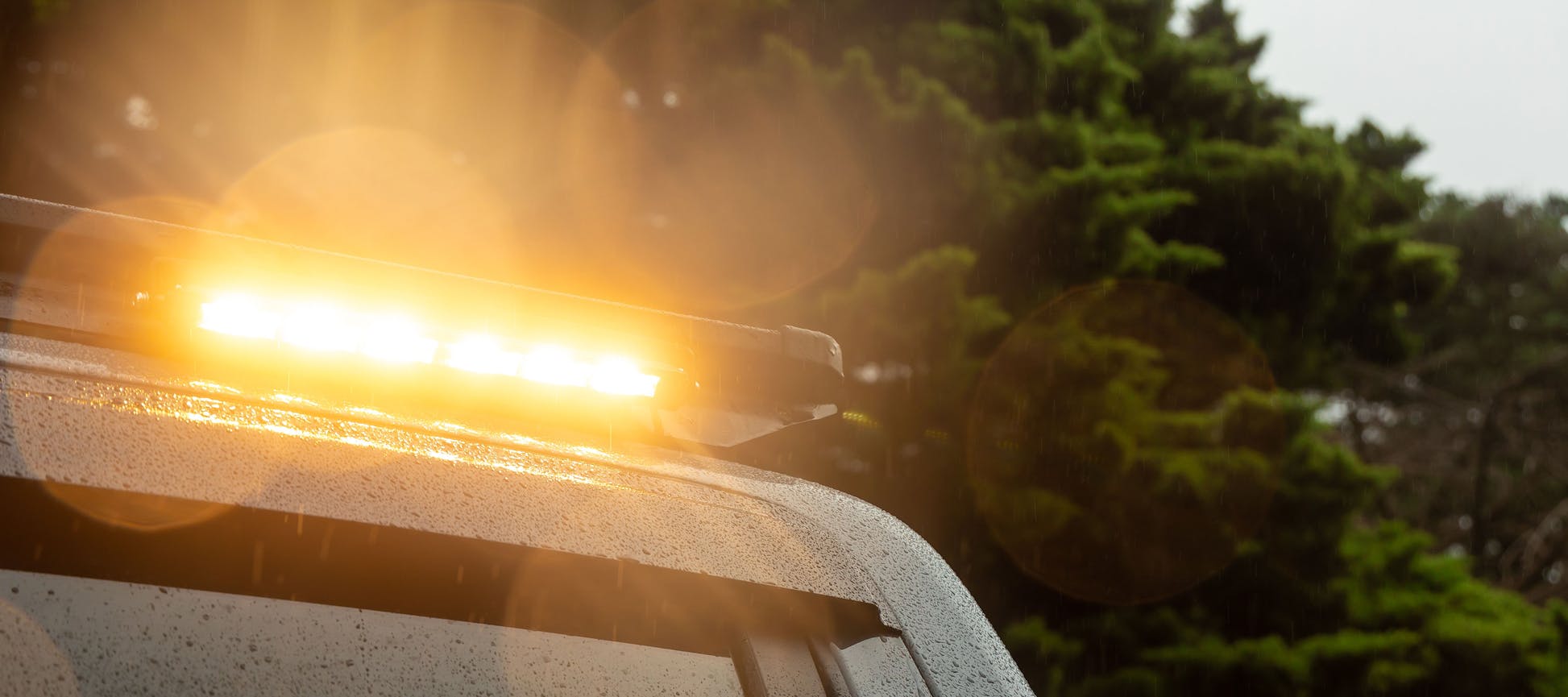

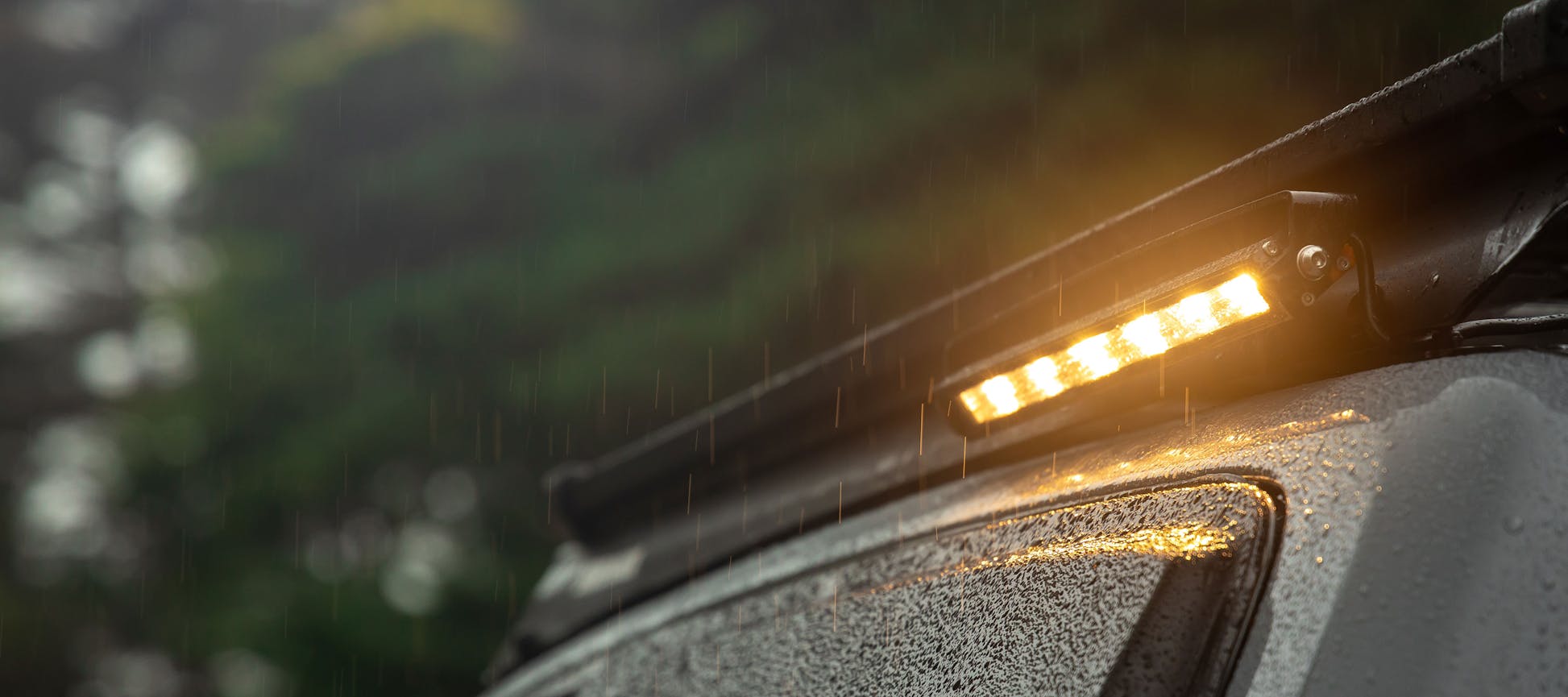

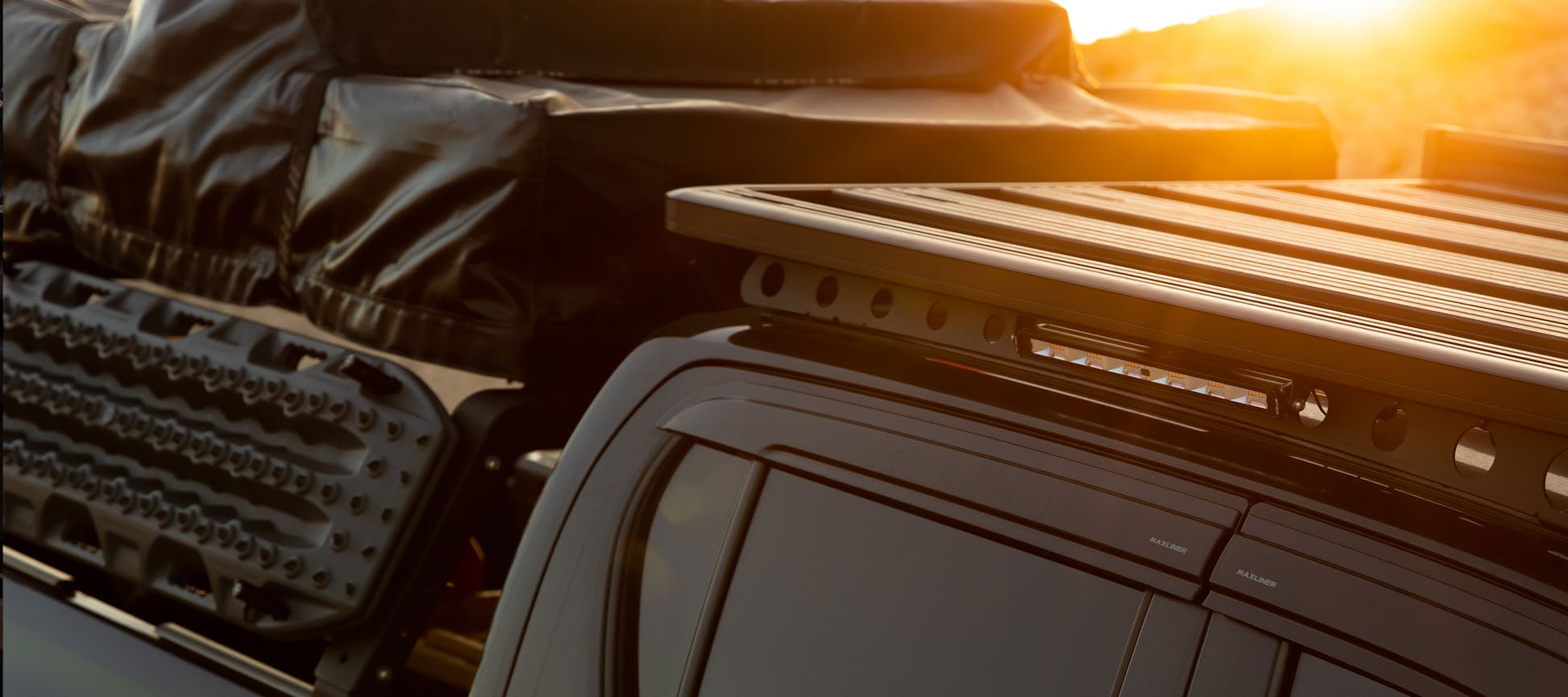

Roof-rack and awning lighting
-
Reverse and canopy setups
-
Off-road auxiliary lighting
-
Worksite and camp illumination
-
Low-profile, factory-style installs
