Beam Long. Ride Strong.

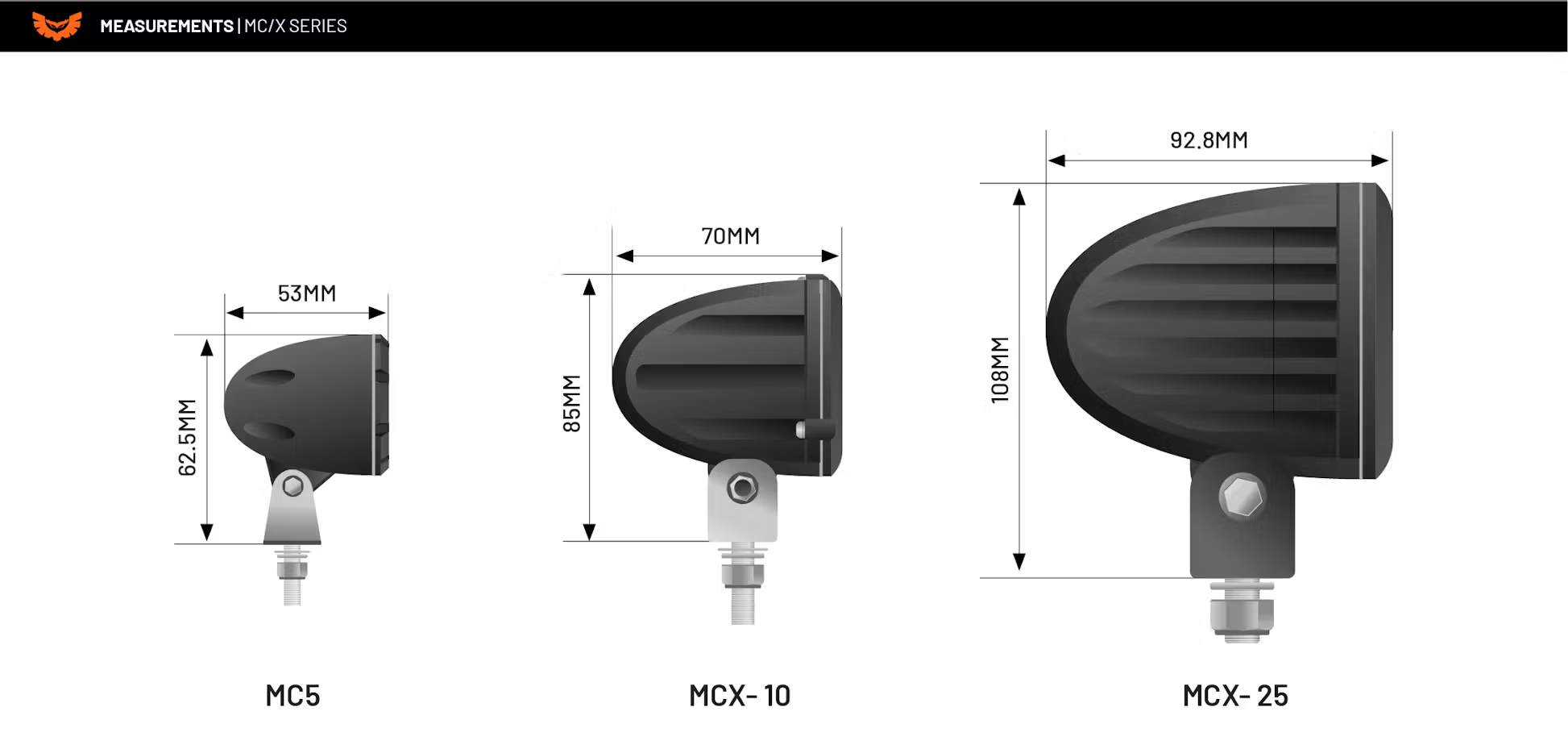

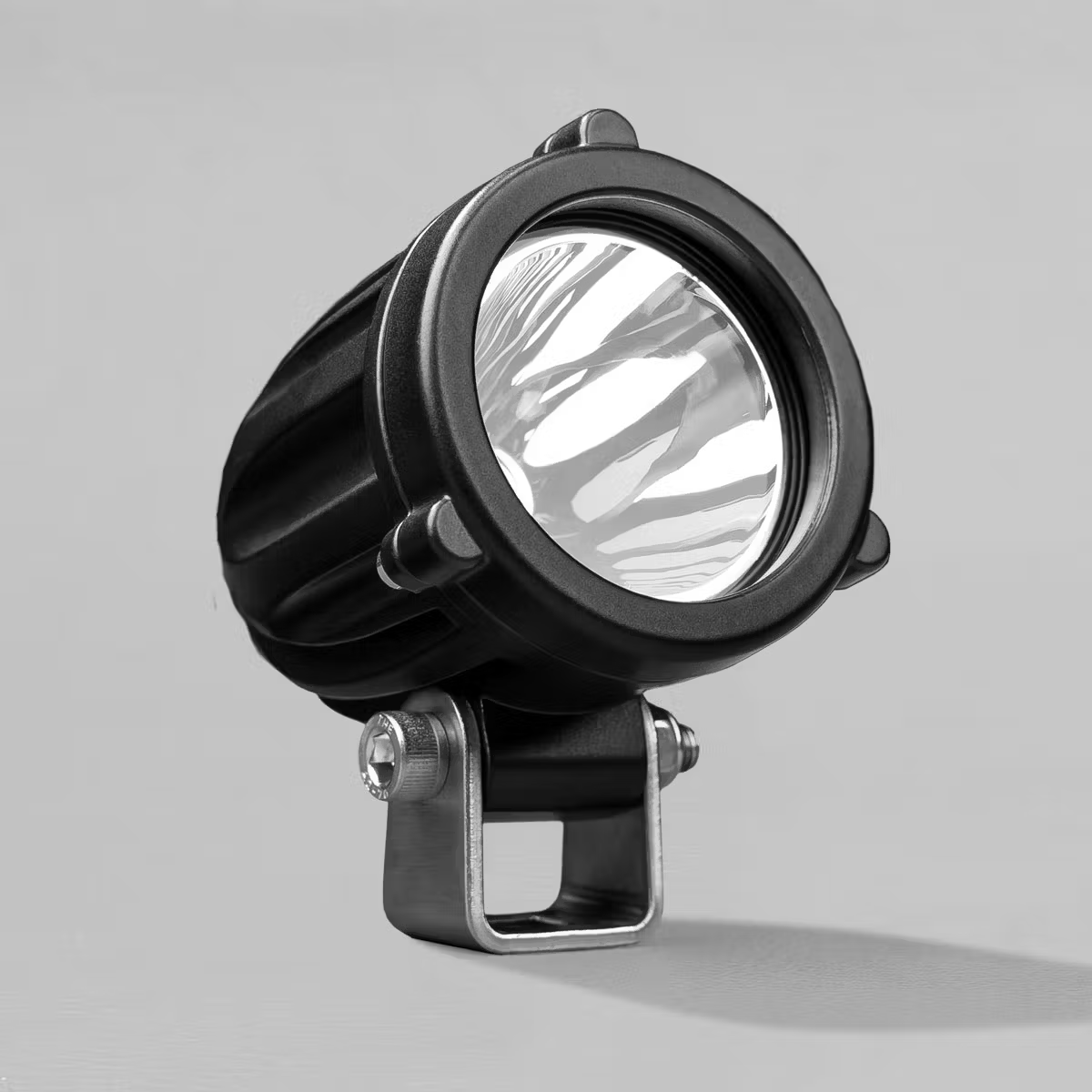

Expanding the STEDI™ range of motorcycle auxiliary lighting, the MCX10 Spot Beam is the ultimate compact driving light for riders demanding maximum distance and pinpoint precision. Sitting perfectly between our larger MCX25 and compact MC5 DRL, the MCX10 delivers exceptional beam control and long-range performance — all in a lightweight, rugged housing.
⚡ High-Performance Spot Beam
Built for high-speed motorcycle applications, the MCX10 utilizes a CREE™ USA LED emitter to project a tight 10° spot beam with subtle near-field spill — ideal for long-distance illumination without overpowering the rider’s immediate field of vision. Expect up to 3× the beam distance of your factory high beam, transforming your night rides with incredible reach and clarity.
🧭 Engineered to Perform

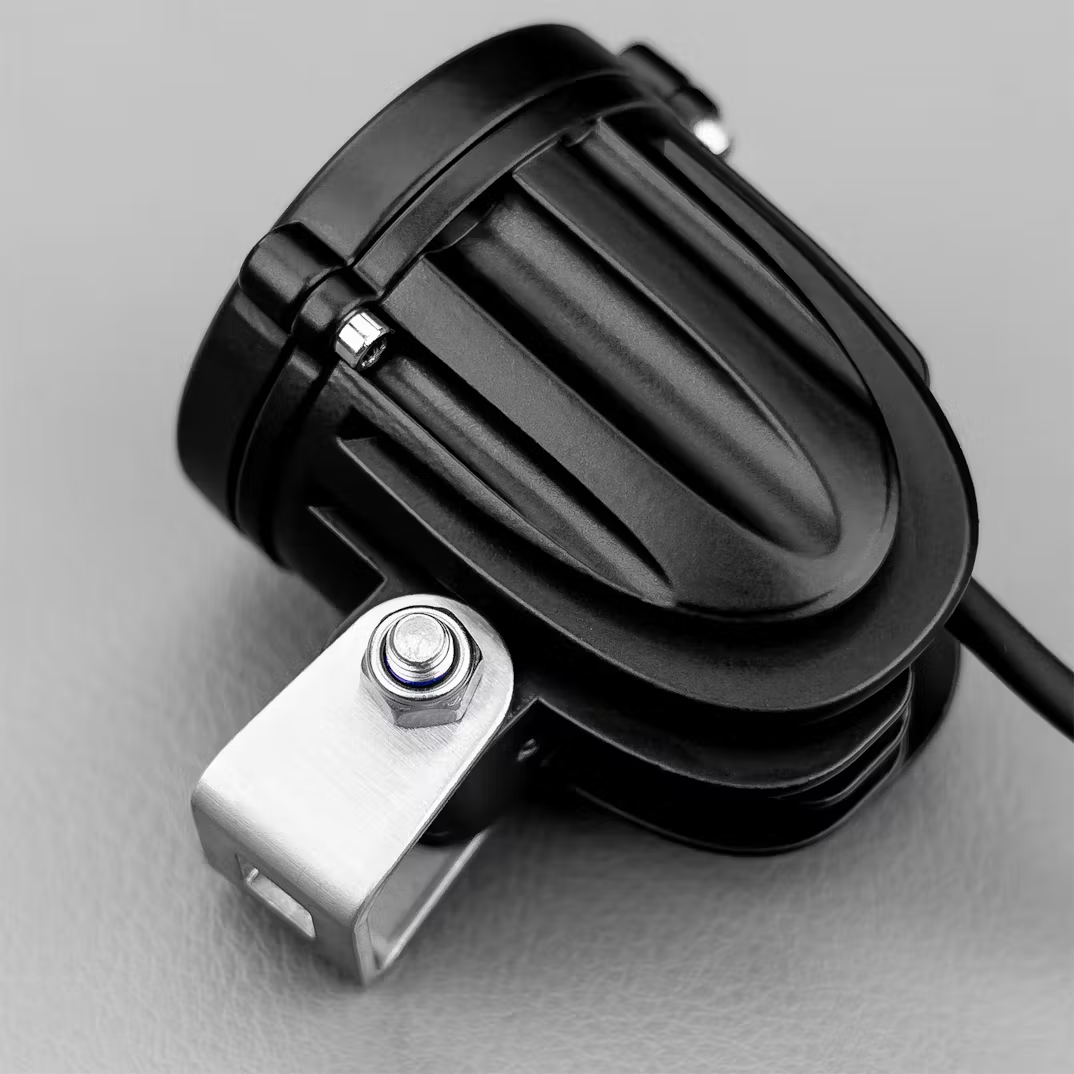

The die-cast aluminium housing sits securely on a 3 mm stainless steel U-bracket, ensuring durability and stability under vibration. Its PMMA optical lens is virtually unbreakable and impact-resistant, while the polyester powder coat finish is UV-stabilized for long-term protection. With a waterproof rating of IP68, the MCX10 is ready to take on any terrain, weather, or condition — from asphalt to adventure trails.
🔩 Key Features
-

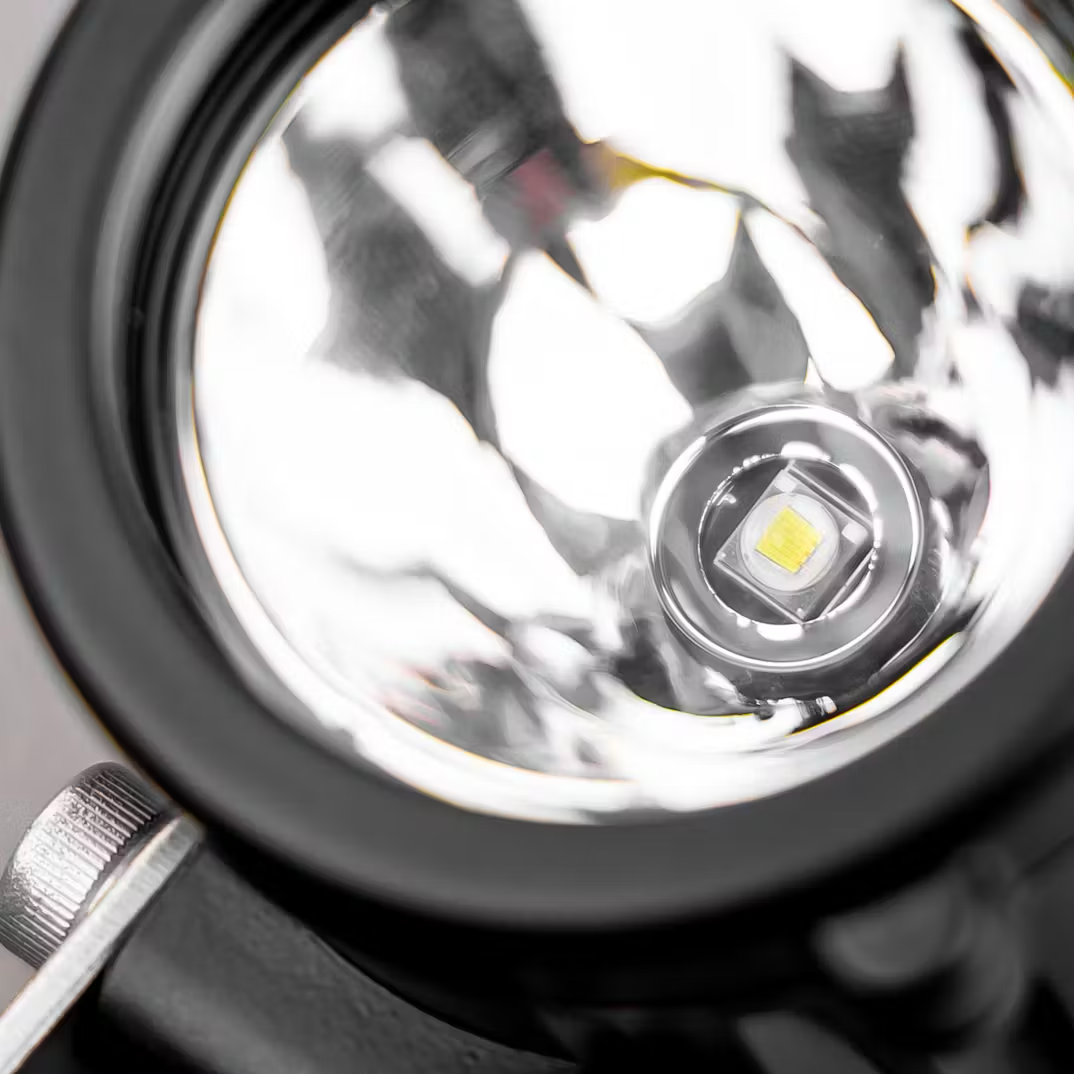

CREE™ USA XML-2 LED chip – high output with incredible efficiency
-
10° narrow spot beam for long-distance visibility
-
Ingress Protection IP68 – submersible up to 3 m
-
Virtually unbreakable PMMA lens
-

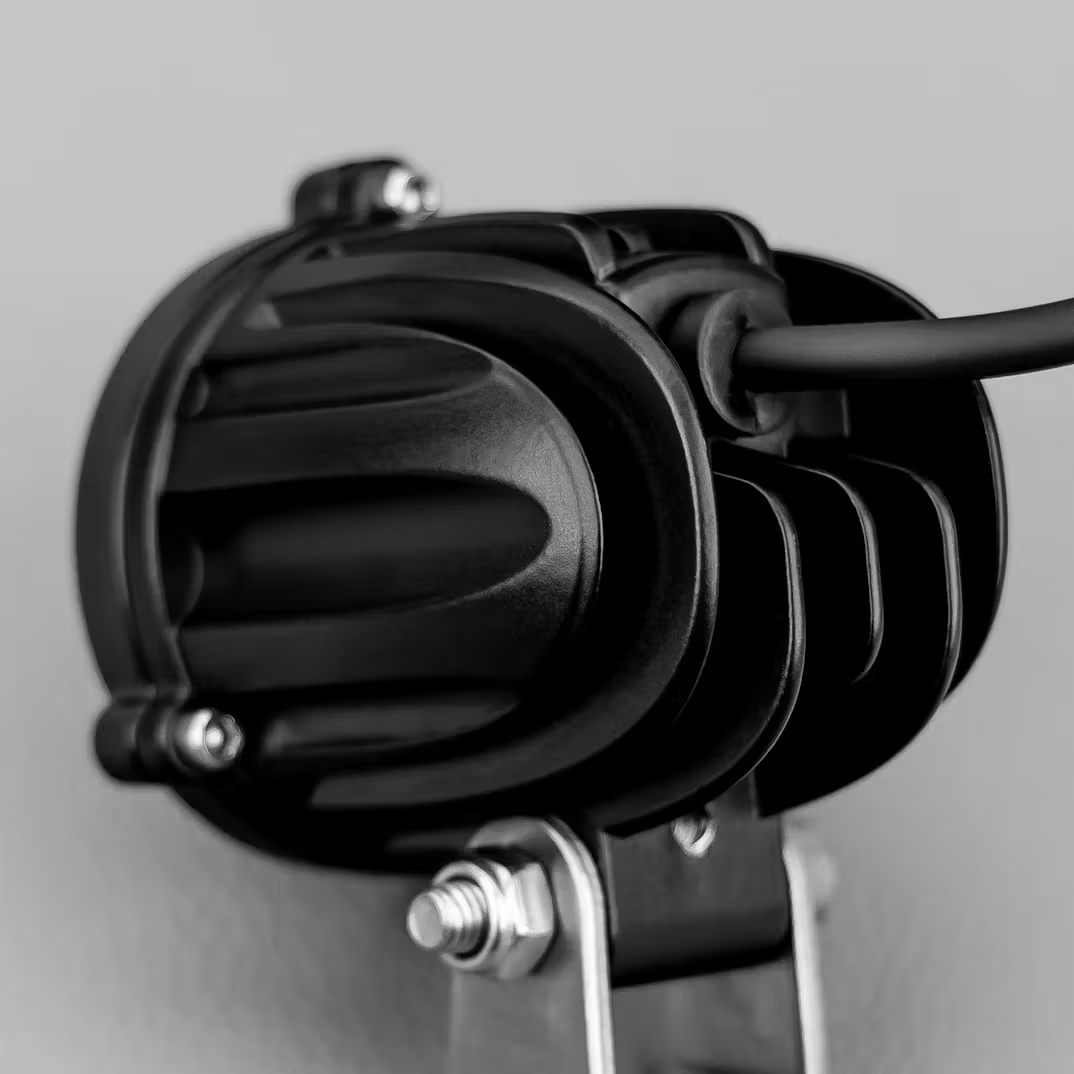

Die-cast aluminium housing – lightweight and strong
-

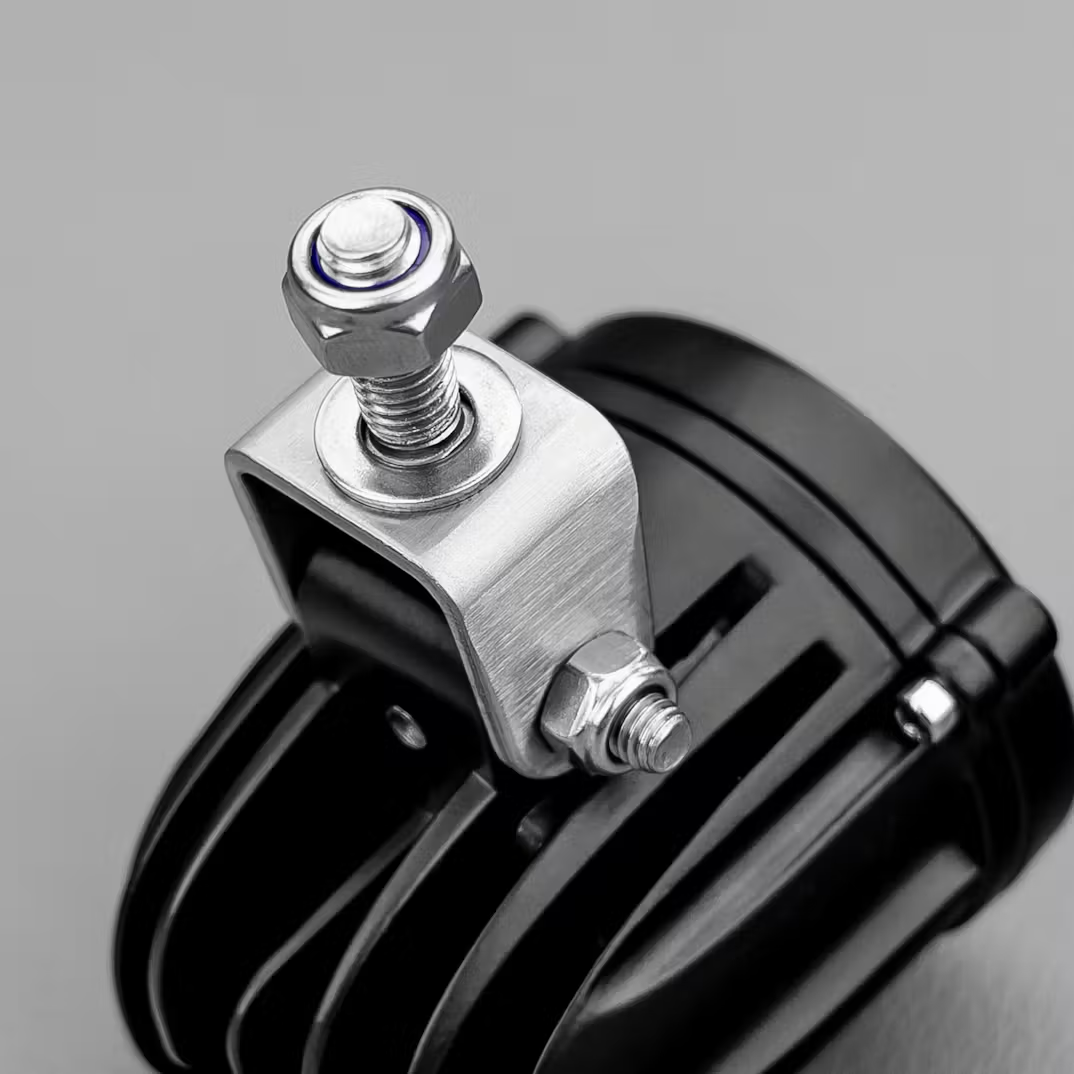

3 mm stainless steel U-bracket for secure mounting
-
5700 K colour temperature – bright, natural white light
-
Certified CE, RoHS & FCC
-
50,000-hour lifespan
🛠 Technical Specifications
| Specification |
Details |
| Input Voltage |
DC 10 – 30 V |
| Power Consumption |
10 W |
| Amp Draw |
0.9 A @ 12 V / 0.4 A @ 24 V |
| Luminous Flux |
1,052 Lm |
| LED Type |
CREE™ XML-2 |
| Beam Angle |
10° Spot |
| Colour Temperature |
5700 K |
| Housing Material |
Die-Cast Aluminium |
| Lens Material |
PMMA (Virtually Unbreakable) |
| Mounting Bracket |
3 mm Stainless Steel |
| Ingress Protection |
IP68 |
| Operating Humidity |
10% – 98% |
| Operating Temperature |
–40 °C to +60 °C |
| Lifespan |
50,000 Hours |
| Certifications |
CE, RoHS & FCC |

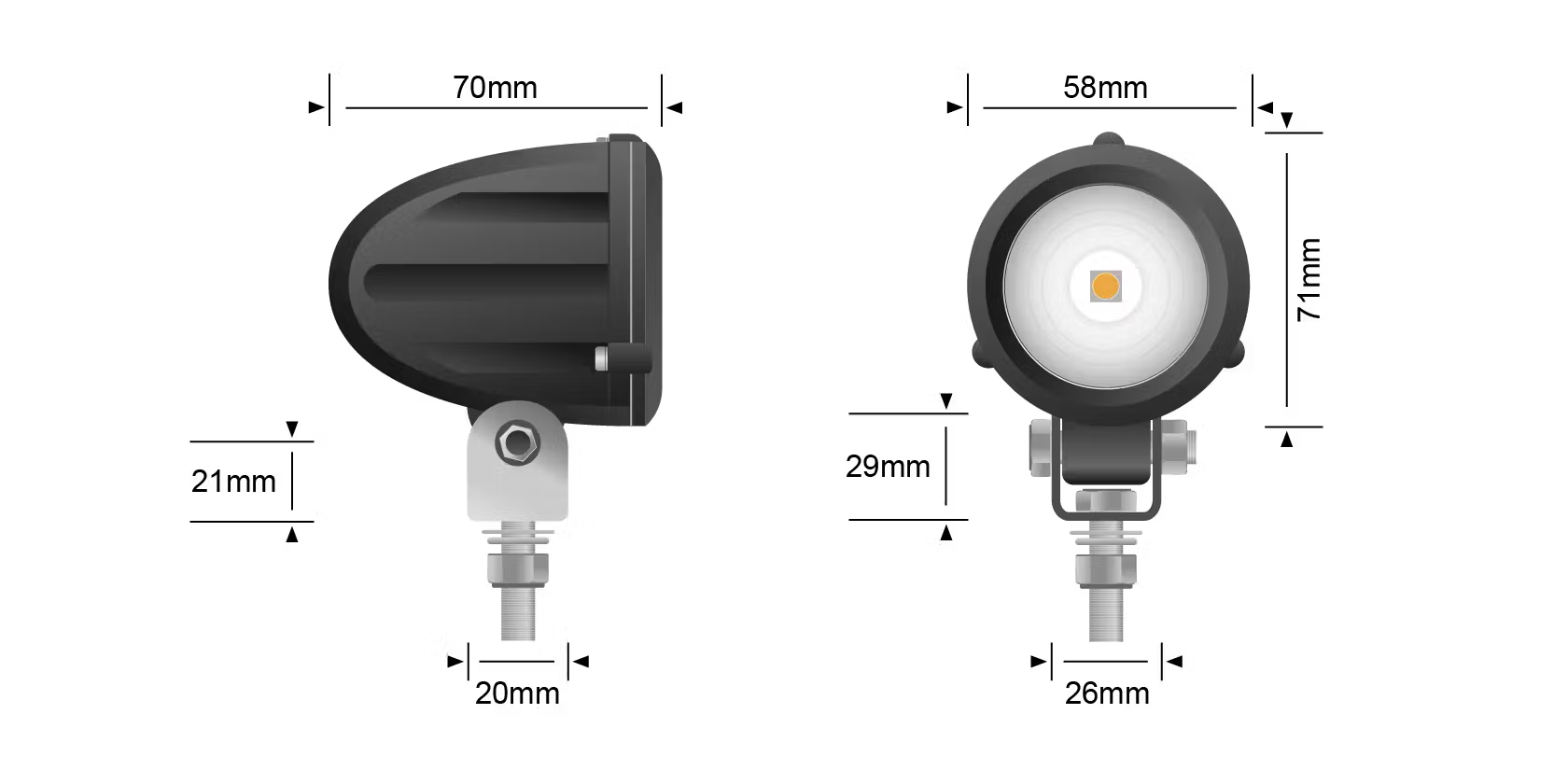

| Dimensions (D × W × H) |
51.2 × 61 × 66.7 mm |
| Weight |
0.205 kg |
📦 What’s Included
🏍 Ideal Applications
-
Motorcycle and scooter auxiliary lighting
-
Quad and ATV lighting setups
-
Adventure and dirt bike long-range visibility
-
Compact off-road driving lights
-
Auxiliary spot lighting for custom builds
