Engineered for the Harshest Conditions.
Developed to withstand the punishing demands of the mining, civil, and heavy industrial sectors, the STEDI™ SHOCK 6 Flood Light delivers unrelenting performance and durability. Built from the ground up for 24/7 operation in extreme conditions, it’s the ultimate solution for operators who demand lighting that simply won’t quit.
⚙️ Built to Survive. Designed to Perform.
Every component of the SHOCK 6 has been precision-engineered to endure constant vibration, temperature extremes, and environmental hazards.
With die-cast aluminium construction, a Lexan™ polycarbonate lens, and anodized powder-coat finish, this flood light is built for decades of service.
Tested to MIL-STD-810G 514.6 vibration standards, the SHOCK 6 operates flawlessly after hours of vertical and lateral shock exposure.
Impact resistance has also been proven through stringent housing and lens drop-weight testing — ensuring every light remains intact and operational after severe abuse.
⚡ Unstoppable Electrical Integrity
The SHOCK 6 is armed with a Dynamic Thermal Management Regulator, enabling continuous 24/7 operation without overheating or degradation.
Additional protections include:
✅ Reverse polarity and surge protection
✅ RFI/EMC suppression (CISPR25 Class 4 certified — no radio interference)
✅ Waterproof, shockproof, and UV-shielded electronics
💡 Exceptional Light Output

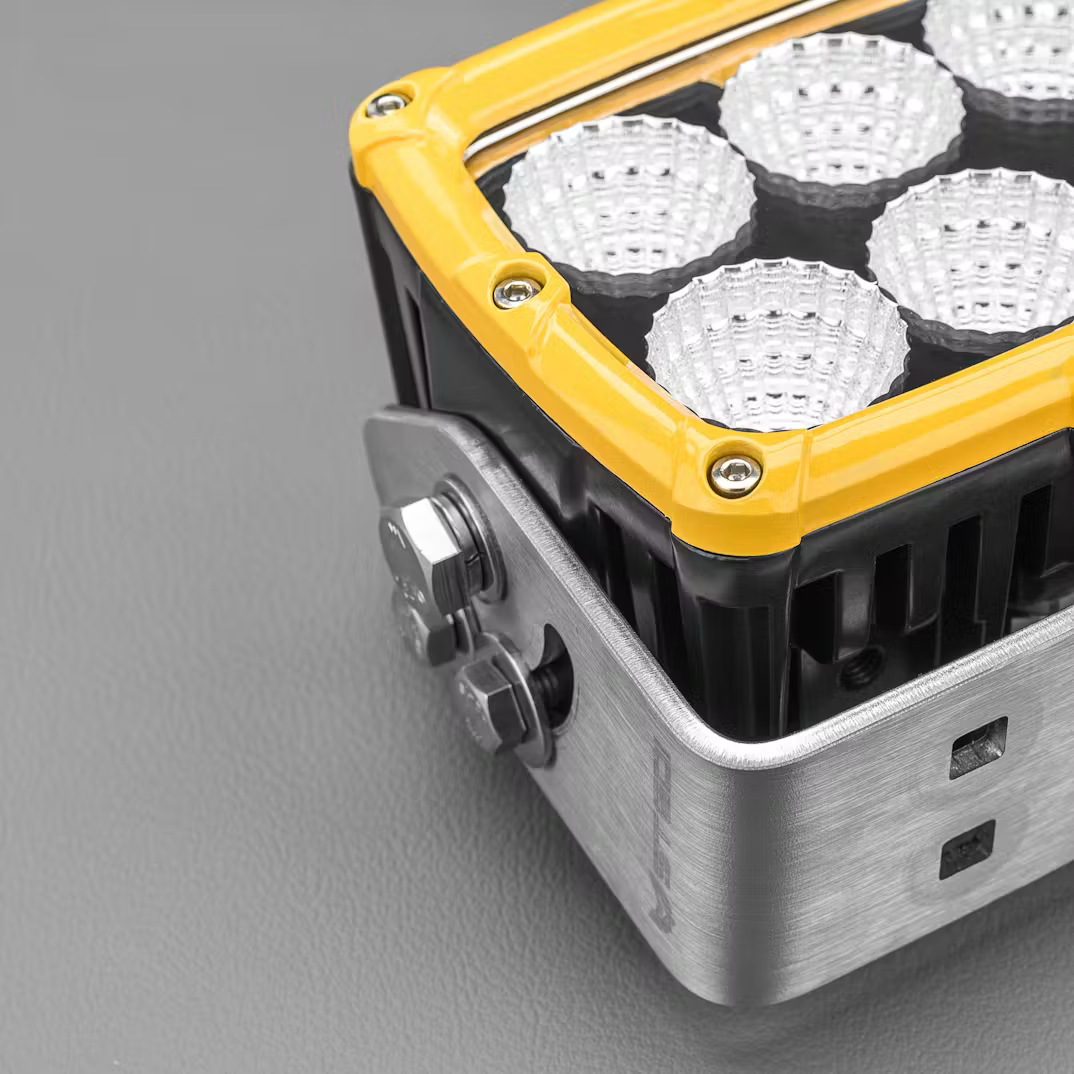

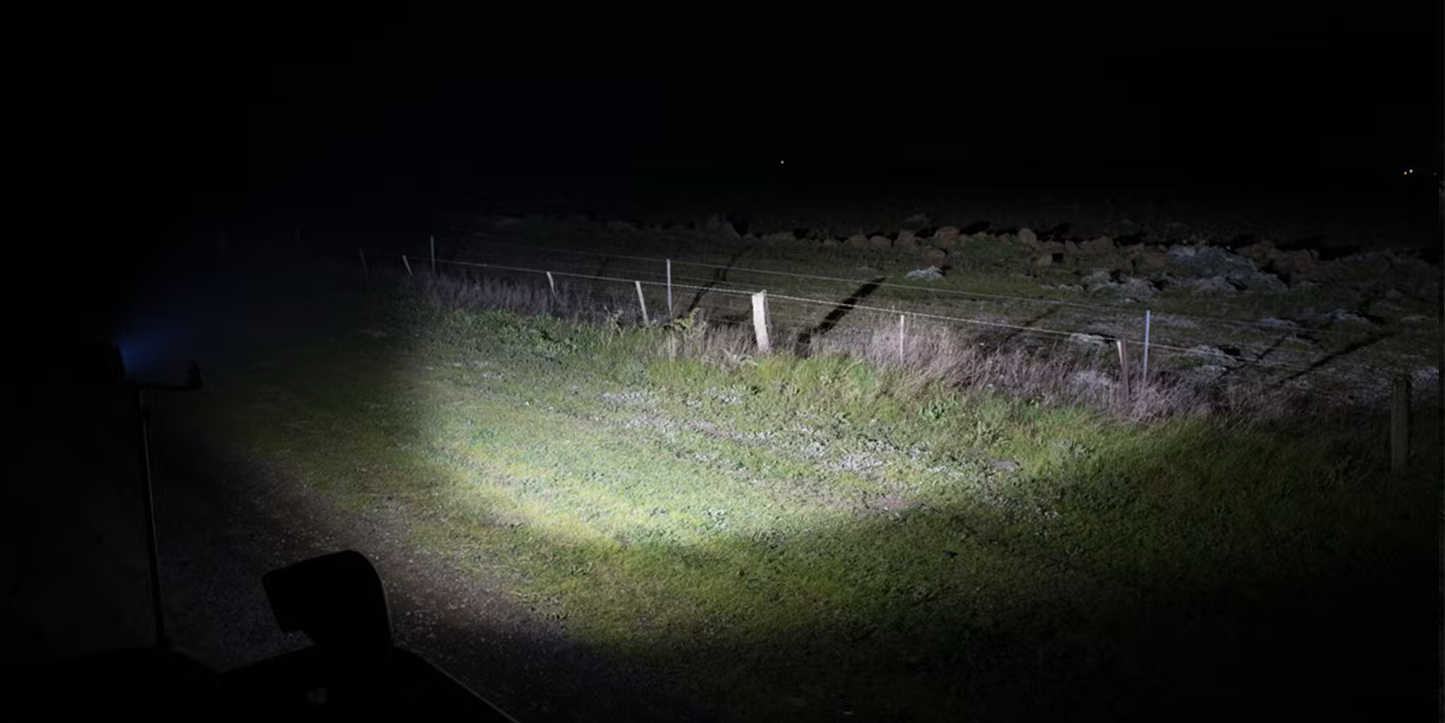

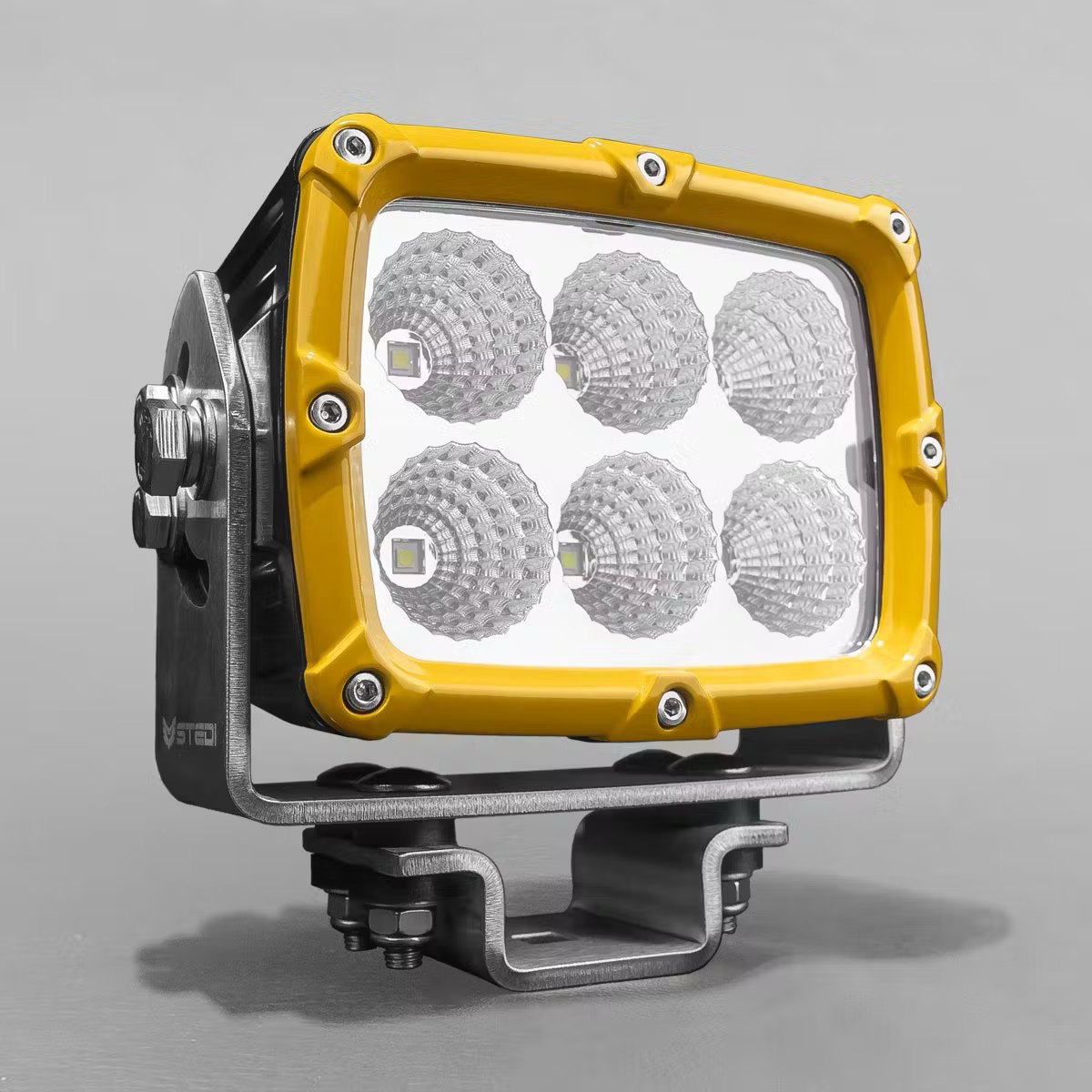

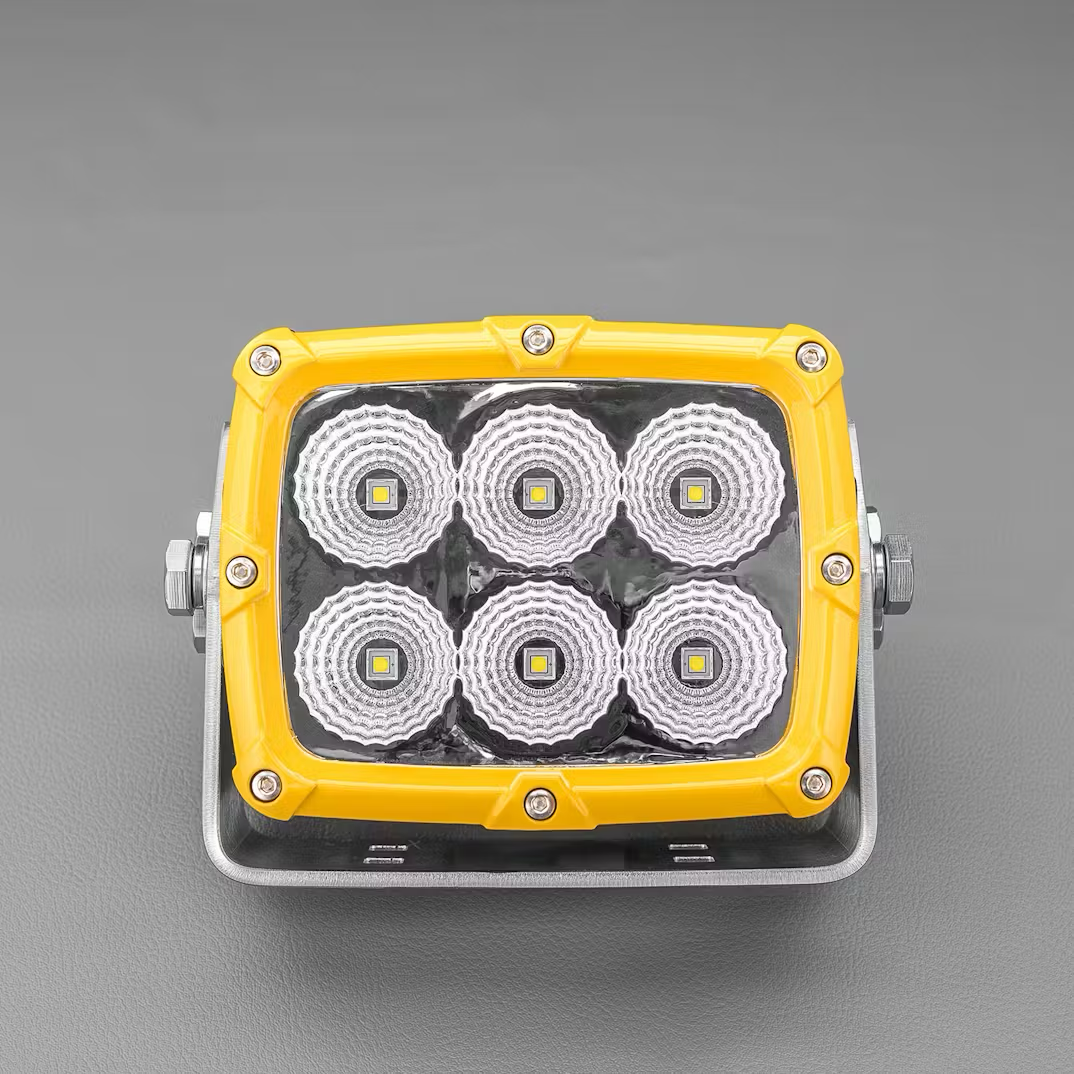

Powered by 6 × 10 W CREE® XM-L2 LEDs, the SHOCK 6 projects a 60° flood beam with 5,400 lumens of clean 5000 K illumination.
Designed for clarity and safety, its even beam pattern enhances situational awareness while reducing glare and eye strain for operators.
🧱 Key Features
-
Heavy-Duty 60 W Mining-Spec Flood Light
-
MIL-STD-810G Certified Shock & Vibration Resistance
-
Dynamic Thermal Regulation for Continuous 24/7 Operation
-
CREE® XM-L2 LEDs | 5,400 Lumens | 5000 K Colour Temperature
-
Waterproof & Dustproof (IP68 Rated)
-

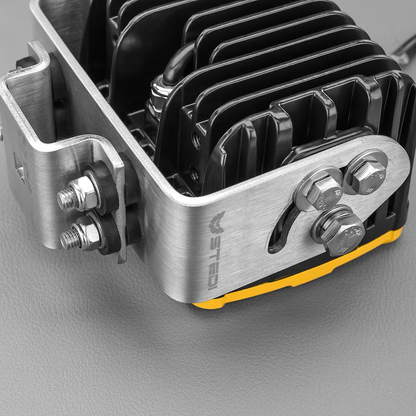

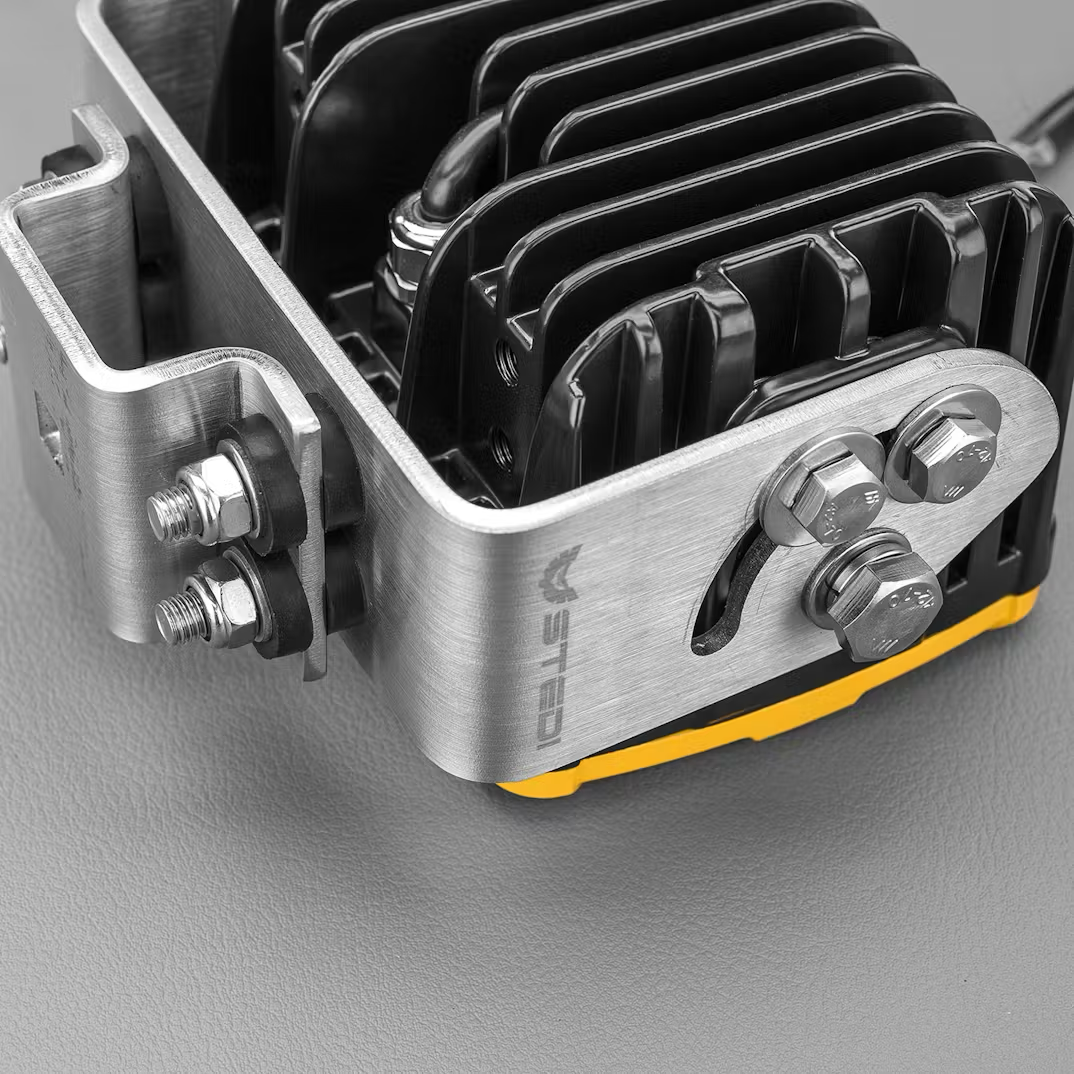

Anodized Aluminium Heat Sink with Secondary Shock Mount
-
Lexan™ Polycarbonate Front Lens – Virtually Unbreakable
-

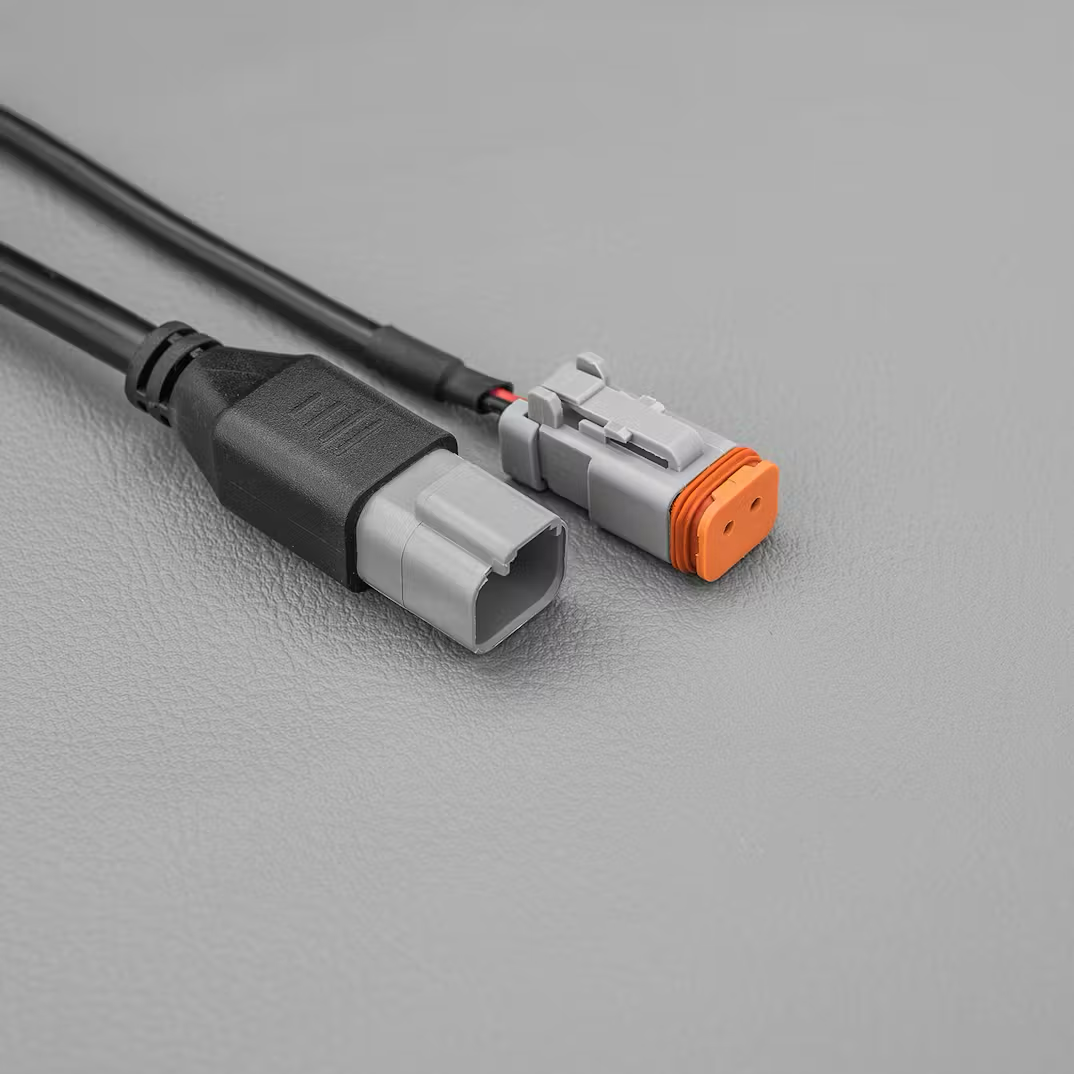

Deutsch DT04-2 Connector – Fully Sealed and Durable
-
CISPR25 Class 4 Certified – Zero Radio/EMC Interference
-
OEM & ODM Design Capability Available
🛠 Technical Specifications
| Specification |
Details |
| Power Output |
60 W |
| LED Type |
6 × 10 W CREE® XM-L2 |
| Voltage Range |
9 – 36 V DC |
| Current Draw |
5.3 A @ 12 V / 2.3 A @ 24 V |
| Raw Lumens |
5,400 Lm |
| Beam Type |
60° Flood |
| Colour Temperature (CCT) |
5000 K |

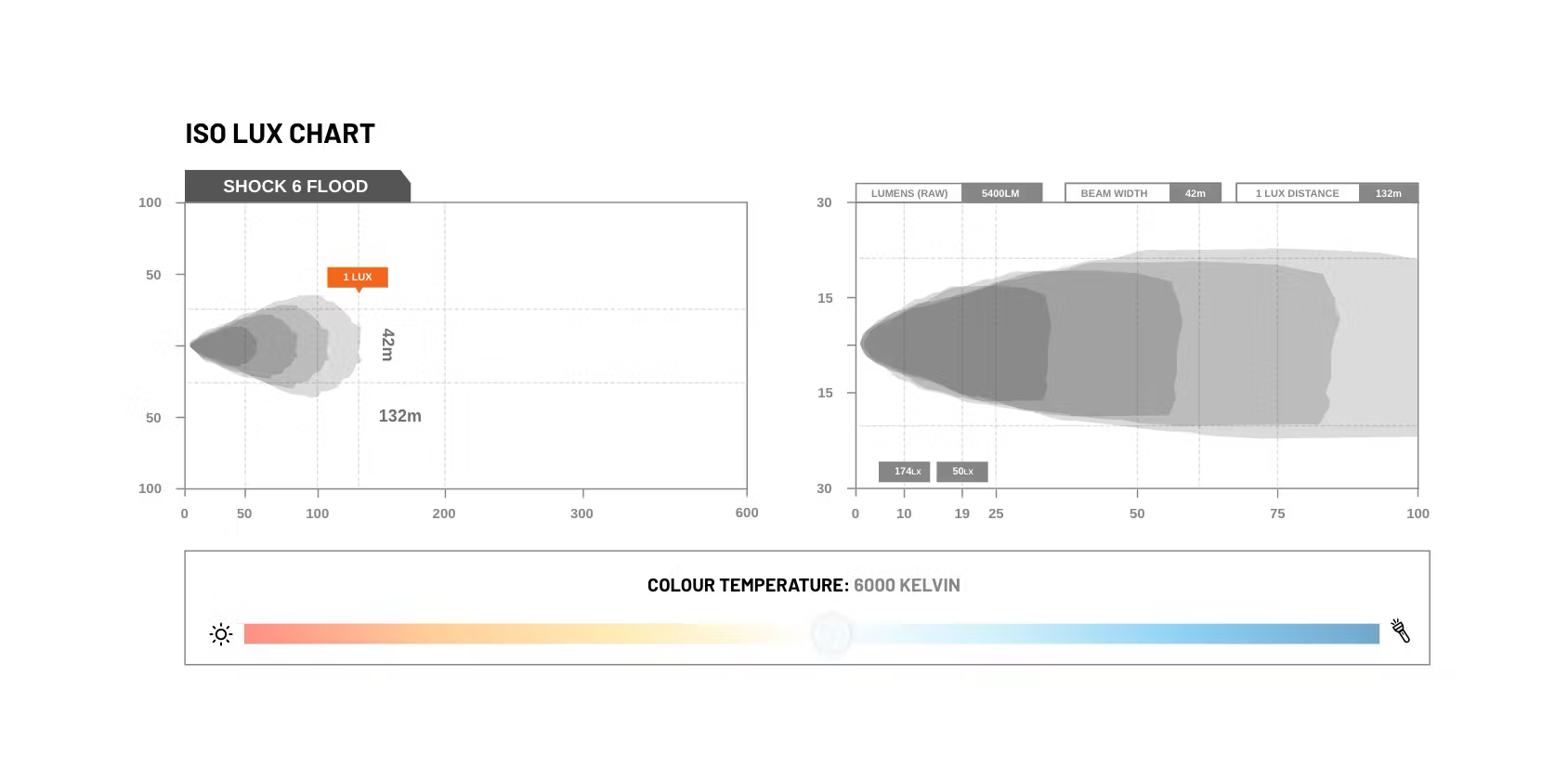

| Peak Beam Distance (1 Lux) |
132 m |
| Ingress Protection |
IP68 |
| Operating Temperature |
–40 °C to +60 °C |
| Lifespan |
50,000 Hours (LM-80 Rated) |
| Lens Material |
Lexan™ Optical Polycarbonate |
| Housing Material |
Die-Cast Aluminium (ADC12) |
| Weight |
2.07 kg |
| Certifications |
CE, IP68, CISPR25 Class 4 |
| Connector Type |
Deutsch DT04-2P |
📦 What’s Included
-
1 × STEDI™ SHOCK 6 60 W Mining-Spec Flood Light (Yellow)
-

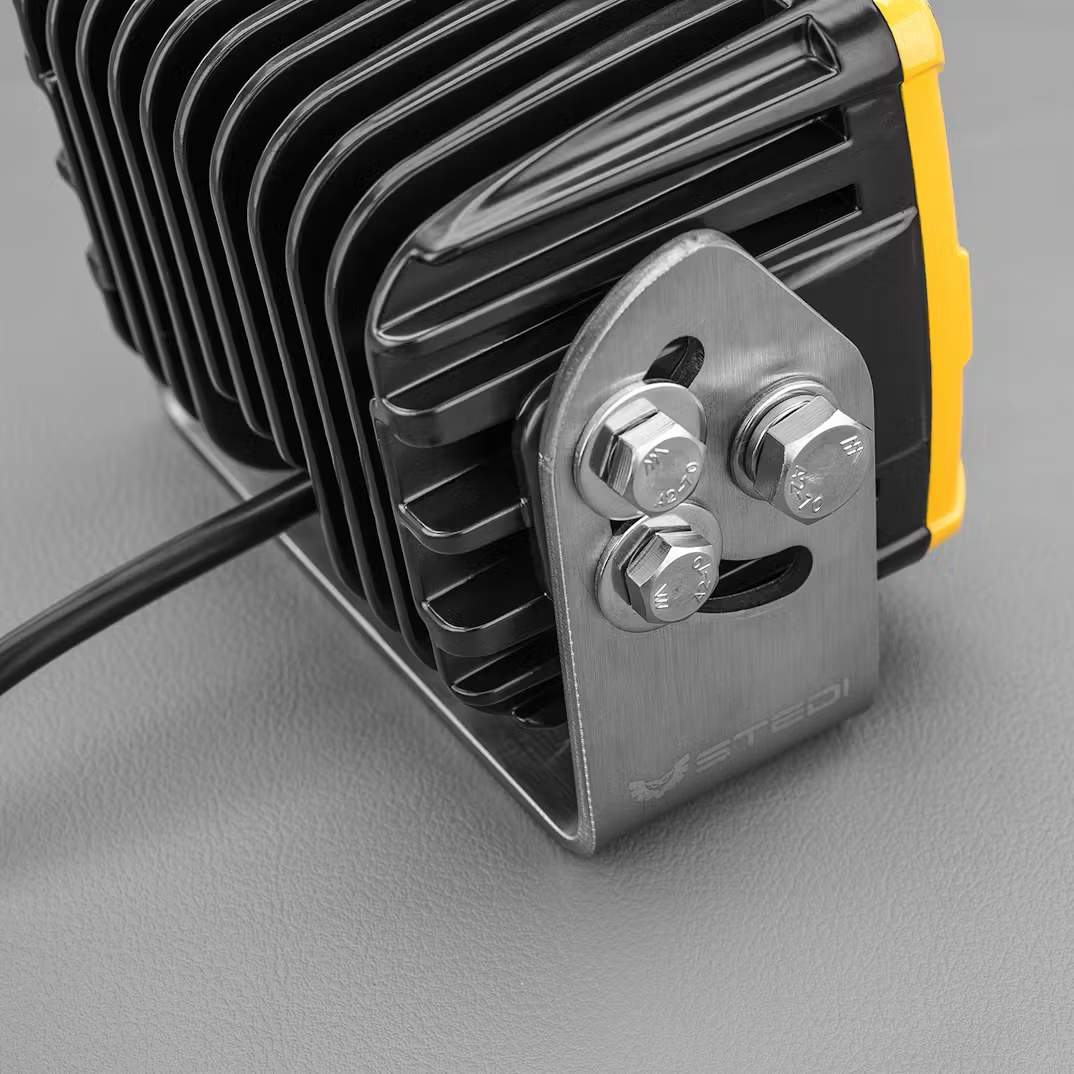

Stainless Steel U-Bracket
-
Secondary Shock-Dampening Mount
-
Mounting Pad
-
Stainless Steel Fasteners
⚙️ Ideal Applications
-
Mining & Resource Equipment
-
Construction Machinery & Civil Works
-
Agricultural & Earthmoving Vehicles
-
Heavy Haul & Industrial Fleet
-
OEM / ODM Engineering Projects
