Safety Meets Style.

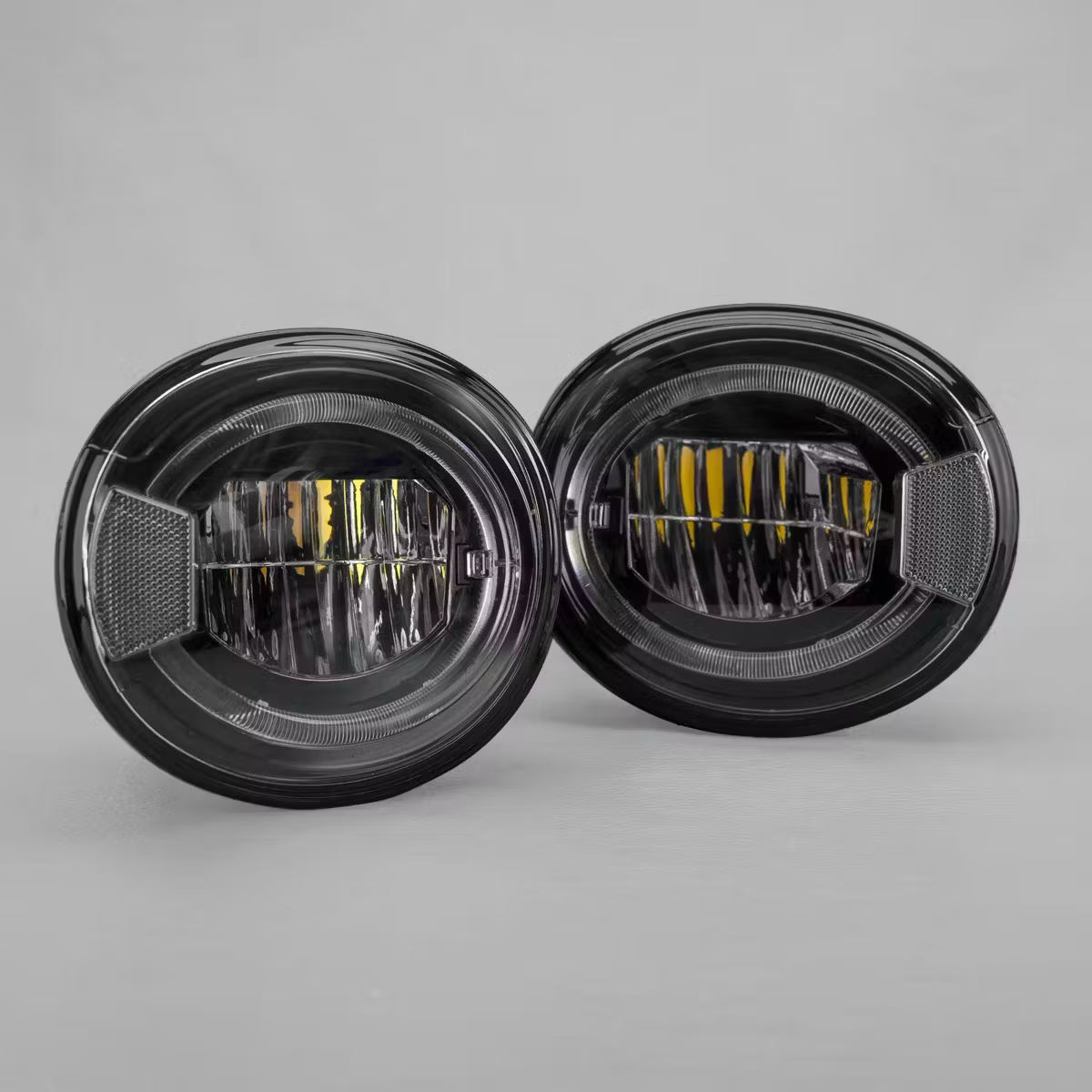

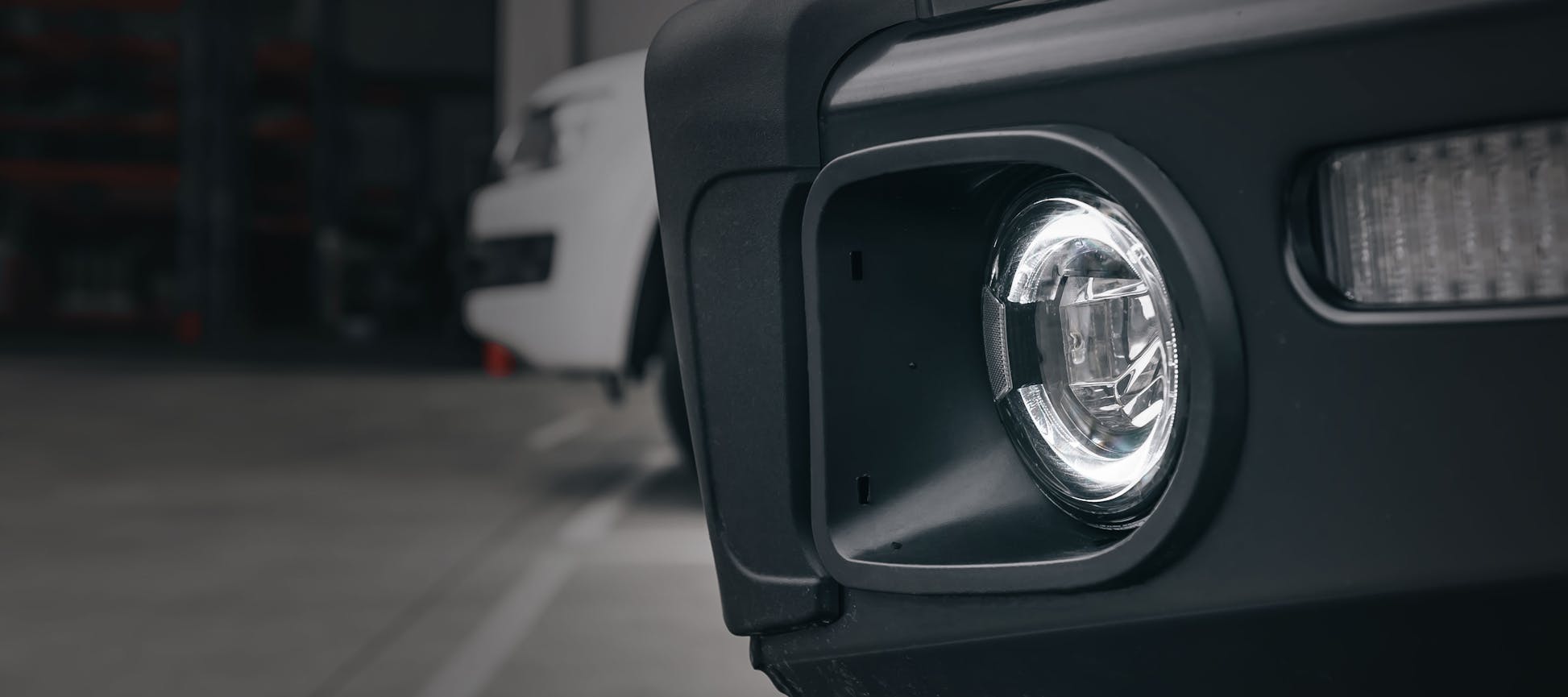

The STEDI™ Fog & DRL Upgrade for ARB Summit Bull Bars brings modern functionality and premium design together. Featuring integrated Daytime Running Lights (DRL) for increased visibility, this LED fog light kit ensures you’re seen on the road — day and night — while maintaining the clean, factory aesthetic of your ARB Summit bar.
⚡ Plug & Play Installation

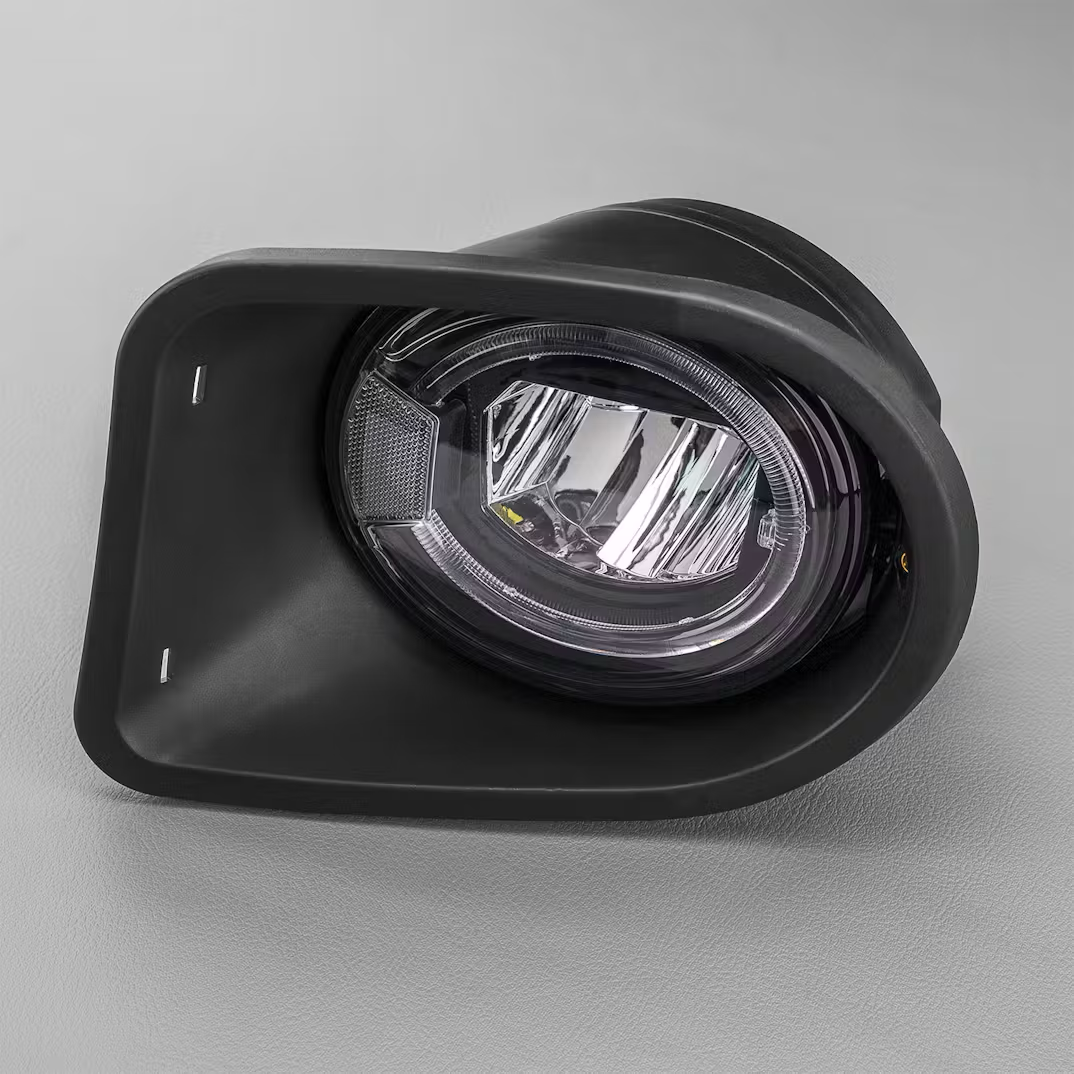

Installation couldn’t be easier. The STEDI™ Summit Fog & DRL Upgrade is engineered for direct bolt-in fitment with the ARB Summit Bull Bar housing — no cutting, soldering, or modification required. The matching HB4 connectors make installation truly plug and play, meaning you’ll be up and running in minutes with a seamless OEM-like connection.
💡 Beautifully Designed & Engineered

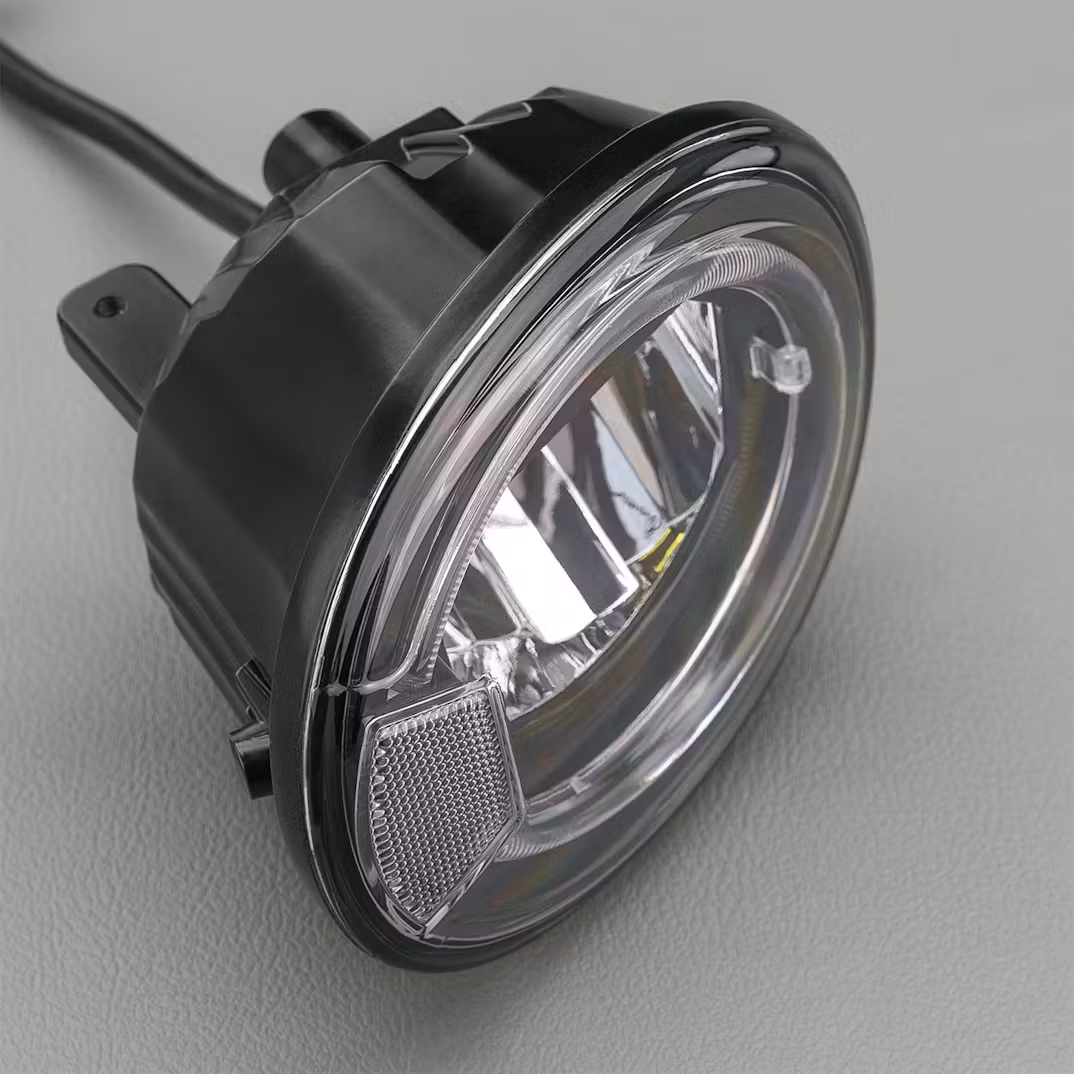

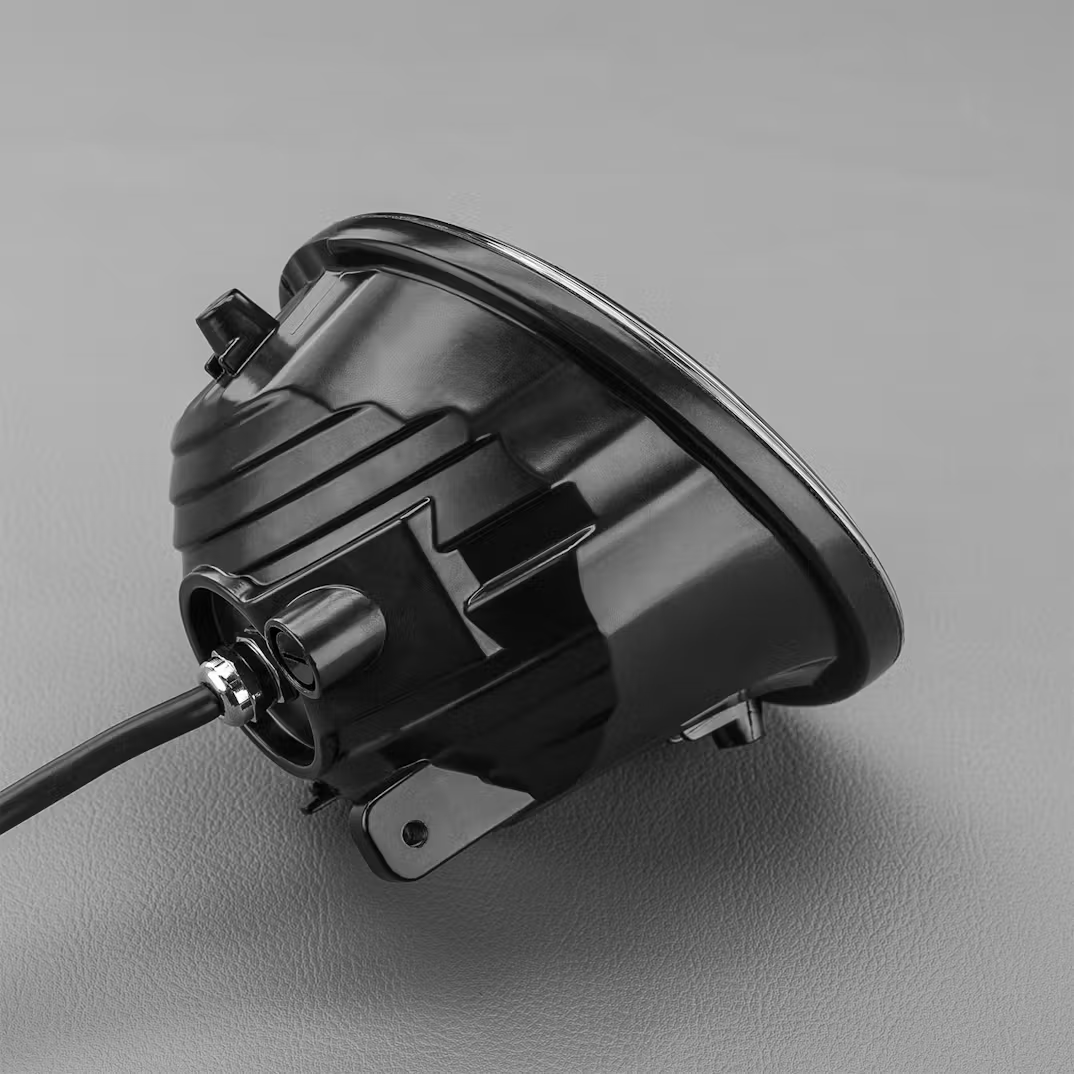

Built to outperform and outlast, the STEDI Summit LED fog light features an all-alloy casing for improved thermal efficiency and strength, unlike the factory plastic design. With Osram LED emitters, a UV-stable polycarbonate lens, and IP67 waterproof certification, this is the ultimate fusion of performance and durability.
🔩 Key Features
-
Built-in LED Daytime Running Light (DRL)
-
Two high-performance Osram LED emitters
-
UV-stable automotive-grade polycarbonate lens
-

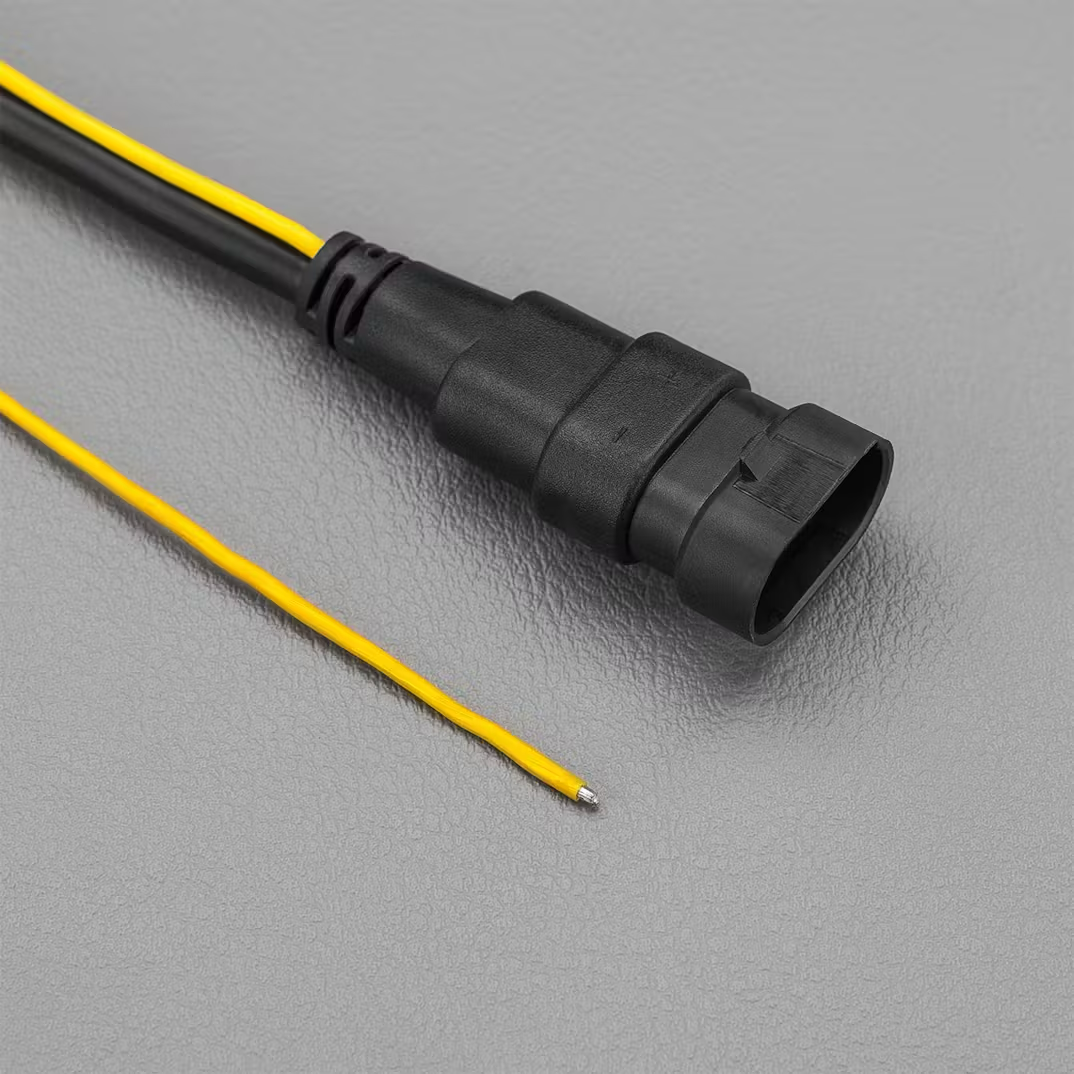

Environmentally sealed HB4 connector – true plug & play
-
Pressure equalisation vent – eliminates condensation buildup
-
IP67 waterproof rating – submersible up to 1 m
-
All-alloy outer casing – superior to factory plastic housings
-
RFI & EMI suppression circuitry – prevents radio interference
-
6000 K CCT – crisp, white illumination
-
50,000-hour lifespan
-
24-month warranty
-

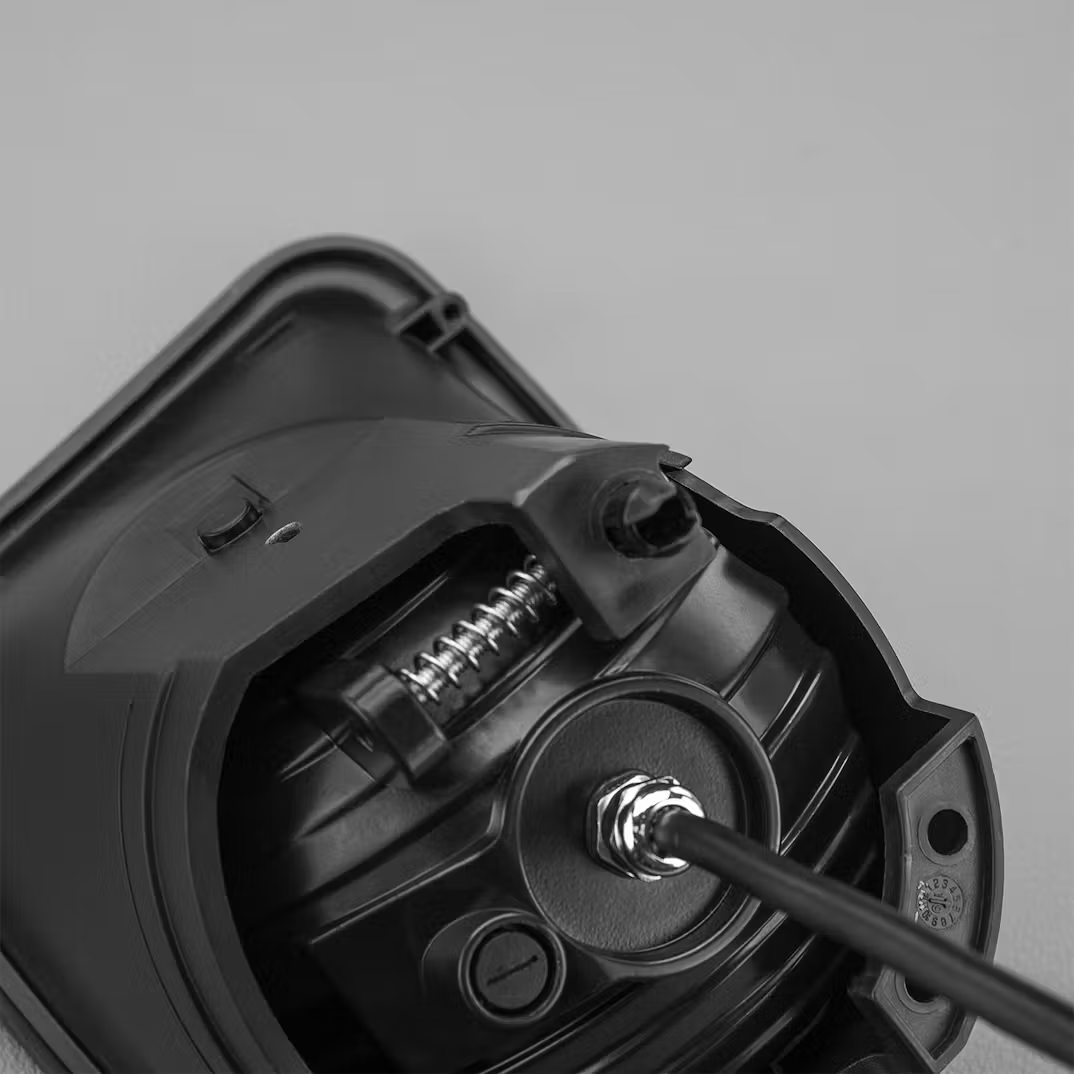

Includes all tilt adjustment springs and screws
-
Sold as a pair (ARB shroud not included)
🛠 Technical Specifications
| Specification |
Details |
| Fog LED / DRL LED |
12 W Fog & 1.2 W DRL |
| Input Voltage |
12 – 24 V DC |
| Fog Actual Lumens |
728 Lm (each) |
| DRL Actual Lumens |
38 Lm (each) |
| Fog Light Draw |
0.9 A @ 13.6 V |
| DRL Draw |
0.2 A @ 13.6 V |
| Colour Temperature (CCT) |
6000 K |
| Housing Material |
Die-Cast Alloy |
| Lens Material |
UV-Stable Polycarbonate |
| Ingress Protection |
IP67 |
| Connector Type |
Sealed HB4 |
| Operating Temperature |
–40 °C to +60 °C |
| Lifespan |
50,000 hours |
| Weight |
0.60 kg |
| Certifications |
IP67 |
📦 What’s Included
🚙 Compatibility
⚠️ Note: If you’re unsure whether your ARB bull bar is compatible, contact us for advice.
Not endorsed by or affiliated with ARB. All product names and trademarks belong to their respective owners and are used for compatibility reference only.
🏁 Designed & Manufactured by STEDI™
Precision-engineered for enthusiasts who demand reliability, performance, and seamless OEM integration — the STEDI™ Summit Fog & DRL Upgrade redefines what a factory-fit lighting system should be.
