The ST3K 31.5" Slim LED Light Bar is engineered for market-leading performance and reliability, designed to handle the harshest conditions of the Australian outback and beyond.
Featuring 30 OSRAM® OSLON® high-efficiency LEDs, this bar outputs a powerful 6,150 lumens with an optimal 6 Flood + 18 Spot + 6 Flood reflector distribution. The result: a 50° wide beam paired with a 5.8° spot beam, reaching an impressive 1 lux @ 601m for maximum distance and coverage.
Built tough with an IP68 waterproof/dustproof rating, polyester UV-resistant coating, and GE™ Lexan lens, this bar guarantees exceptional clarity, durability, and longevity.
Key Features
✅ High-Performance Optics – 30 OSRAM® OSLON® LEDs, 6,150 lumens output
✅ Optimized Beam Pattern – Flood + Spot combo: 50° flood + 5.8° spot, 1 lux @ 601m
✅ True White 5700K – Crisp color temperature for stunning clarity
✅ Pure-Drive™ Circuit Design – 97% of power delivered directly to LEDs
✅ Rugged Durability – UV & abrasion-resistant powder coat + stainless steel brackets
✅ Waterproof & Dustproof – IP68 certified, tested to 3 m submersion
✅ Plug & Play – Easy-Fit High Beam Wiring Harness (with H4 & HB3 adapters)
✅ Long Lifespan – 50,000 hours of reliable illumination
✅ 5-Year Replacement Warranty – peace of mind guaranteed
Technical Specifications
-
LEDs: 30 × OSRAM® Oslon White
-
Effective Lumens: 6,150 Lm
-
Peak Intensity: 364,800 cd
-
Operating Voltage: 10–30 V DC
-
IP Rating: IP68 (waterproof up to 3 m, dust tight)
-
Current Draw: 6.5 A @ 13.6 V
-
Color Temperature: 5,700 K (True White)
-
Housing: Aluminium extrusion & cast, polyester UV powder coat
-
Lens: GE™ Lexan
-

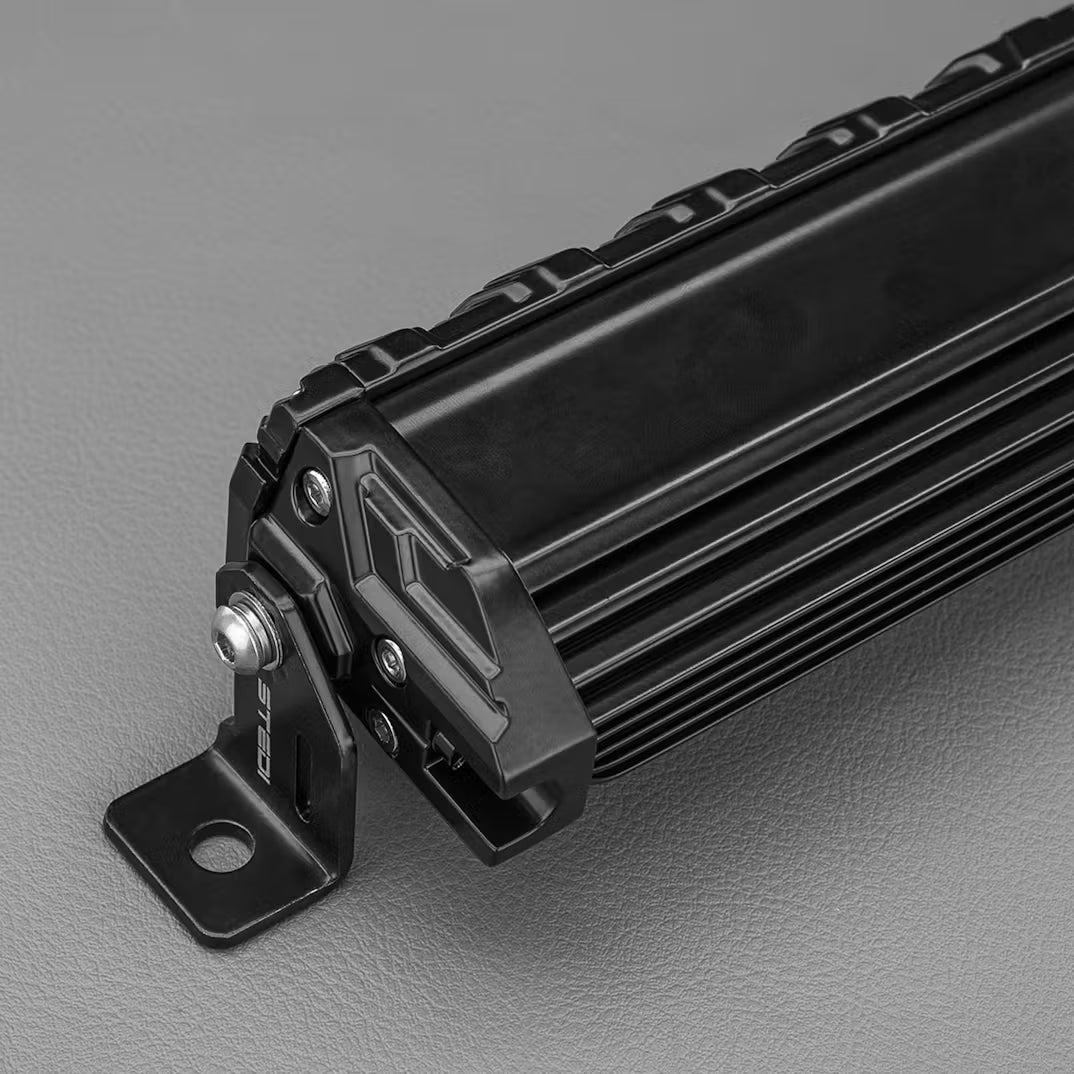

Mounting Bracket: 3 mm stainless steel (powder coated)
-
Bolts & Fittings: Stainless steel (3 series)
-
Beam Type: Flood/Spot combo
-
Lifespan: 50,000 hours
-
Weight: 2.64 kg
-
Operating Temp: -40 °C to +50 °C
Photometric Data:
-
10 m: 3,612 lx
-
50 m: 144 lx
-
100 m: 36 lx
-
200 m: 9 lx
-
601 m: 1 lx
What’s Included
-
1 × ST3K 31.5" Slim LED Light Bar
-
Stainless steel side mounting brackets + hardware
-

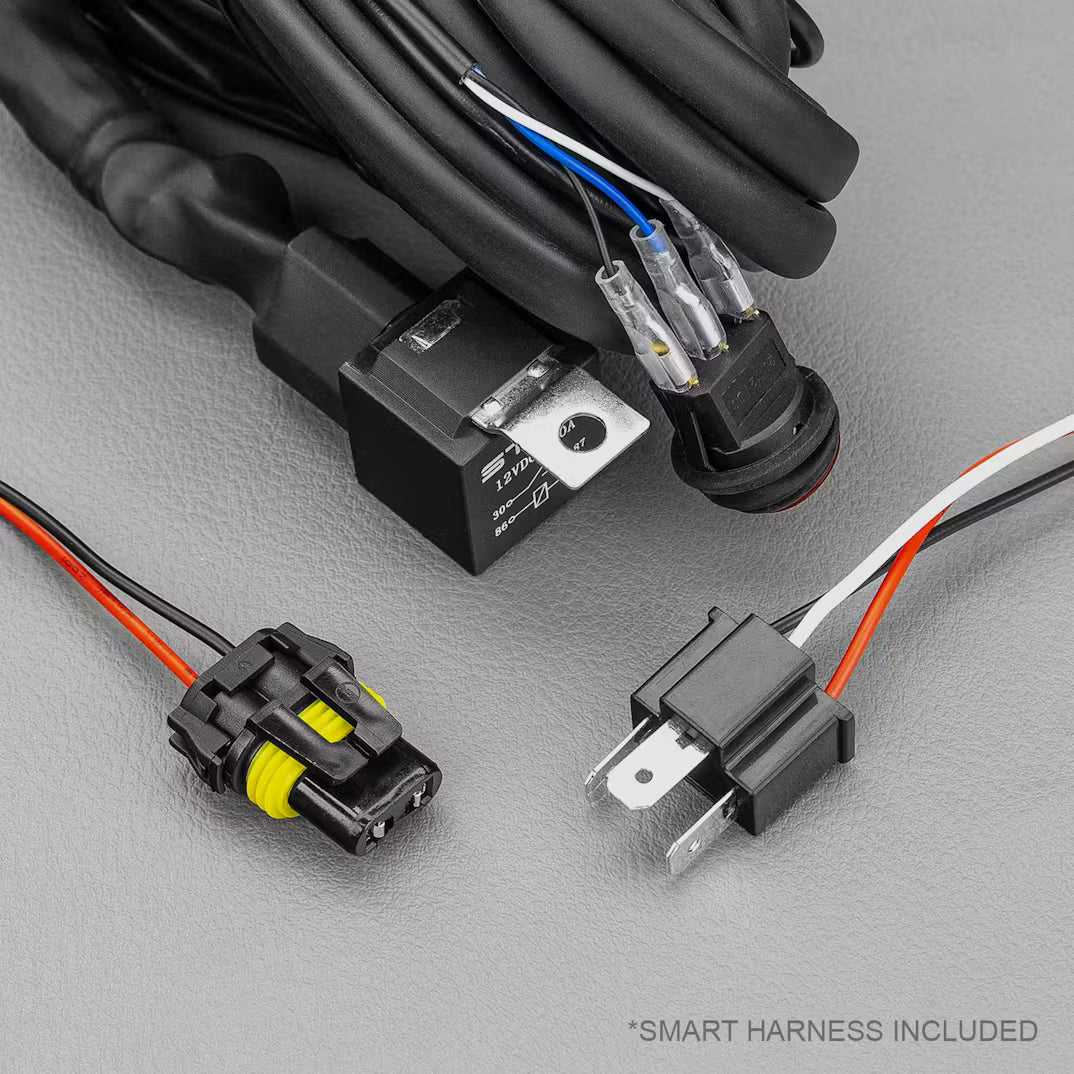

12 V Plug & Play wiring harness with relay & on/off switch
-
H4 and HB3 adapters
-
Stainless steel fasteners
-
Full wiring instructions
Why Choose the ST3K 31.5"?
🌙 Superior long-range & wide-beam visibility
🌧️ Weatherproof and dustproof for extreme environments
🔧 Easy installation with included wiring kit
💡 Crisp 5700K True White light output for clarity
🛡️ 5-year replacement warranty
⚡ Take your off-road lighting to the next level with the ST3K 31.5" Slim LED Light Bar—unmatched performance, uncompromising durability.
