Without a Shadow of a Doubt.

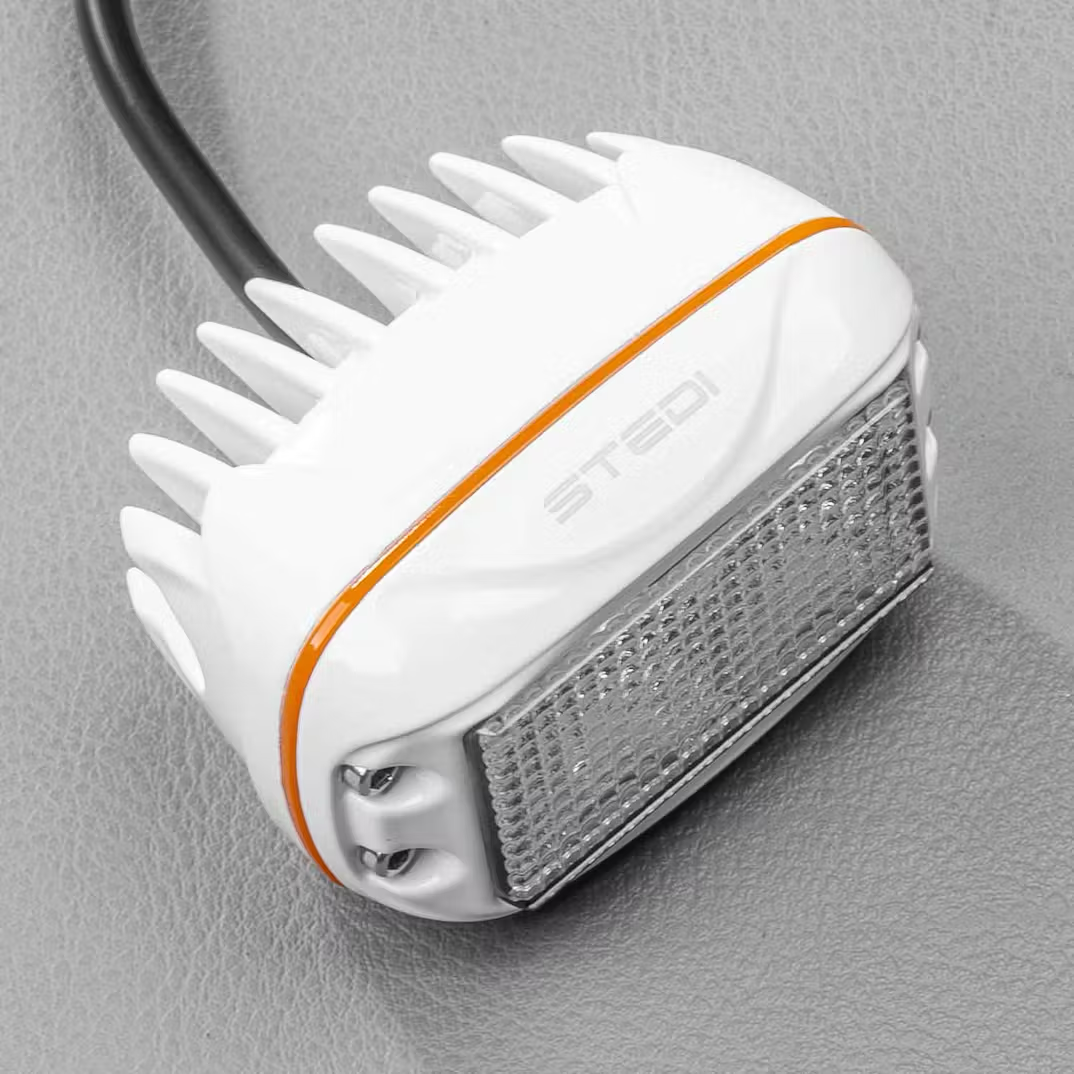

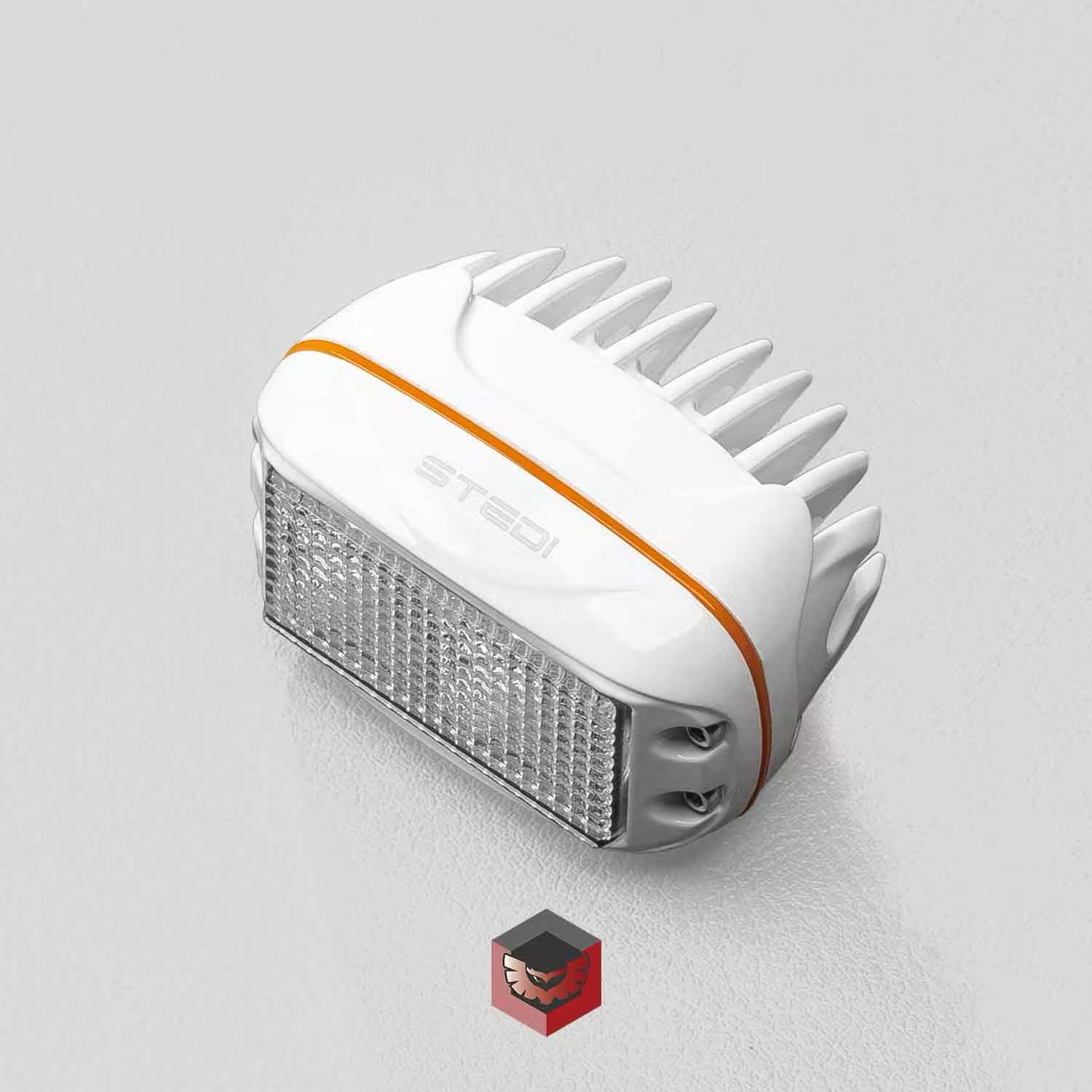

The STEDI™ 10W Mini V2 Marine Red LED Flood Light brings refined style and smart functionality to your vessel. Designed for seamless integration both inside and out, this marine-grade flood light enhances nighttime visibility without compromising your boat’s aesthetic.

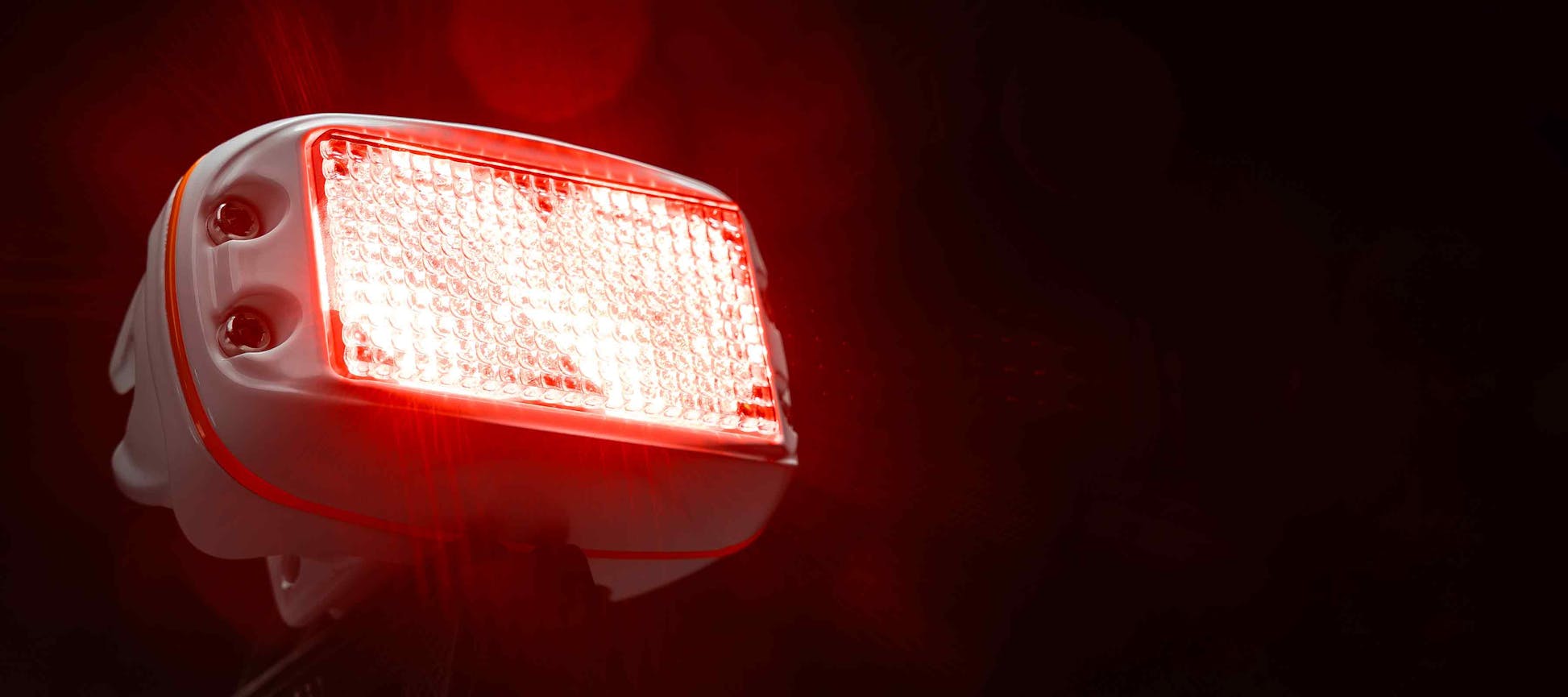

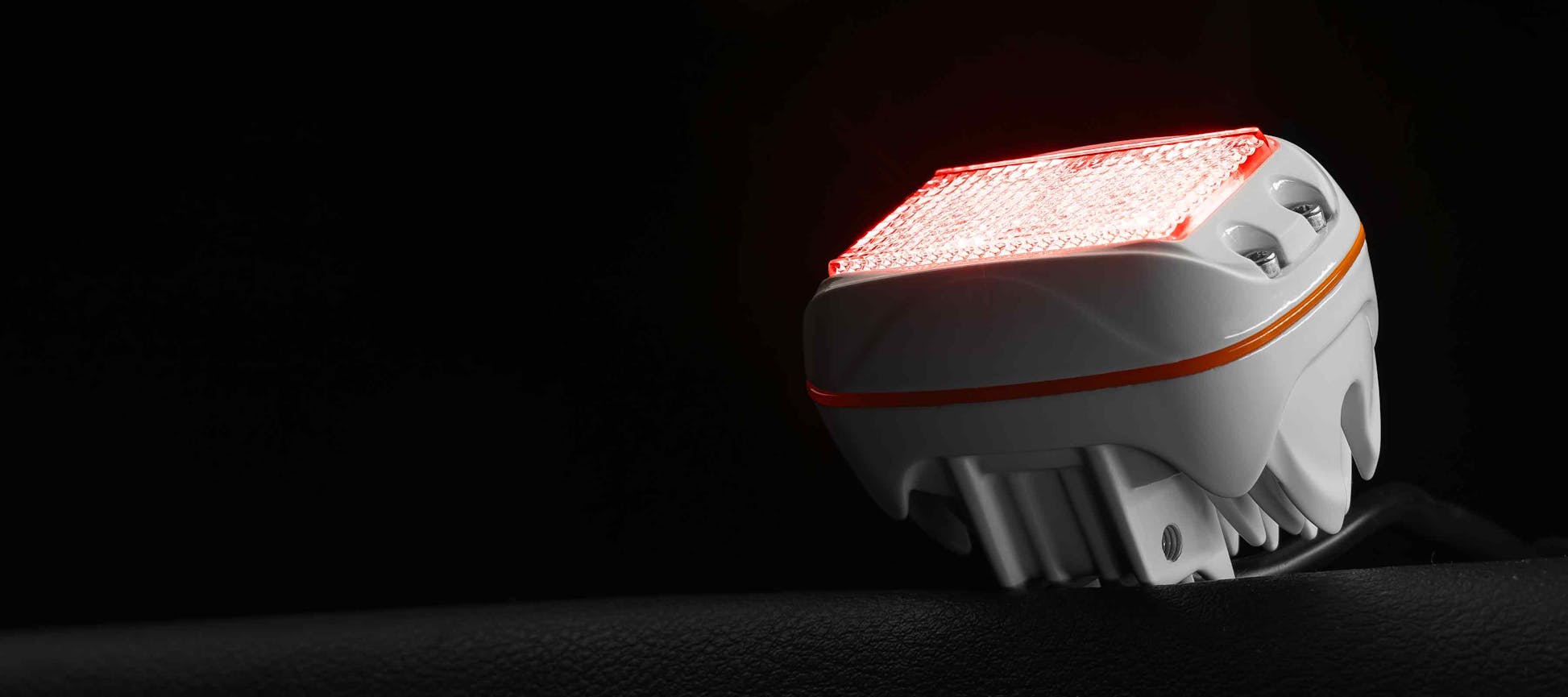

🌙 Seeing Red
We’ve chosen a 650 nm red wavelength specifically for its ability to preserve night vision while reducing eye strainand attracting fewer insects. This wavelength provides soft, comfortable illumination ideal for navigation, deck work, or cabin use — and increases your boat’s visibility to others after dark.
⚓ Built for the Marine Environment

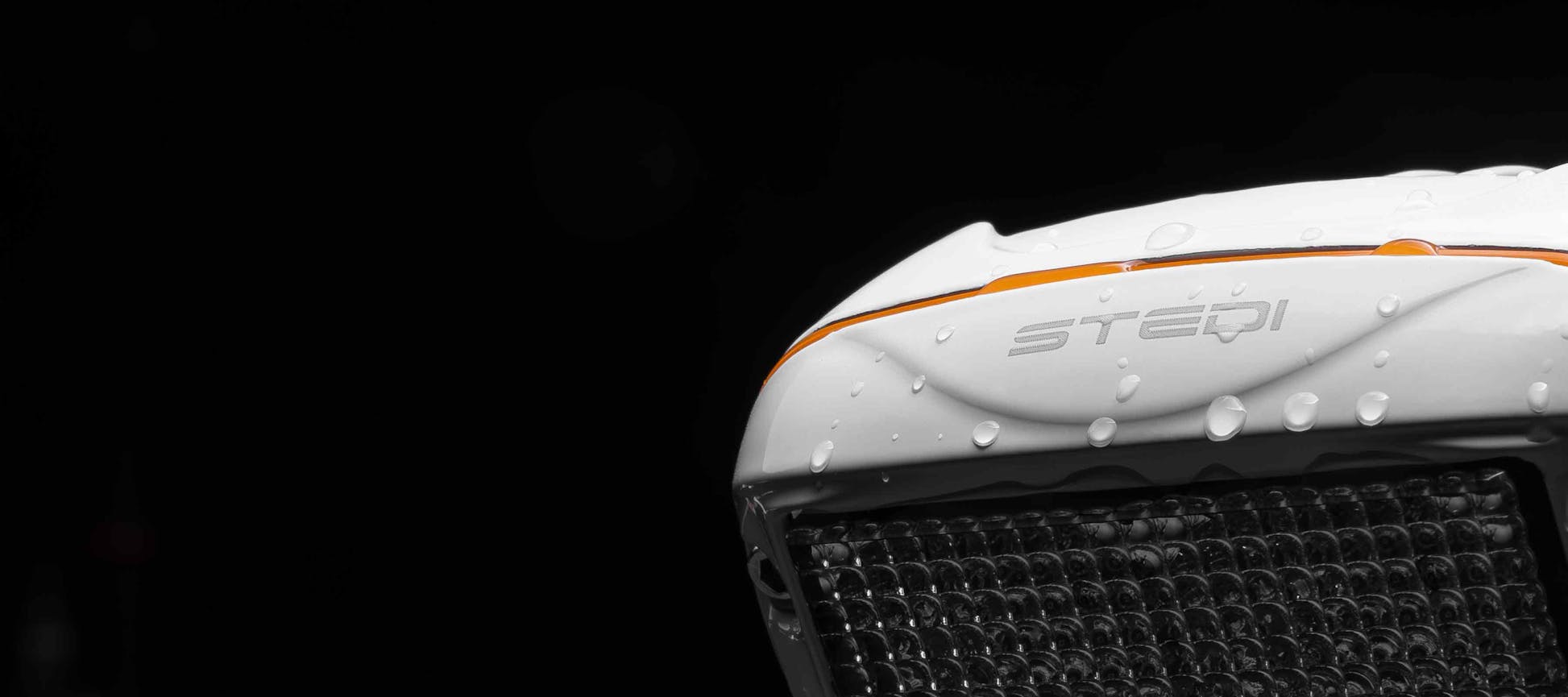

Engineered to perform in the harshest conditions, the Mini V2 Marine Red Diffused Light features a 316 stainless steel bracket, cast aluminum housing, and IP67 waterproof construction for total reliability at sea. Whether used as an interior ambient light or exterior flood, this compact 10W powerhouse ensures longevity and consistent performance in marine environments.
🔩 Key Features
-
650 nm red wavelength – maintains night vision and reduces glare
-
Diffused flood beam for soft, even illumination
-
12V & 24V compatible – ideal for all marine systems
-

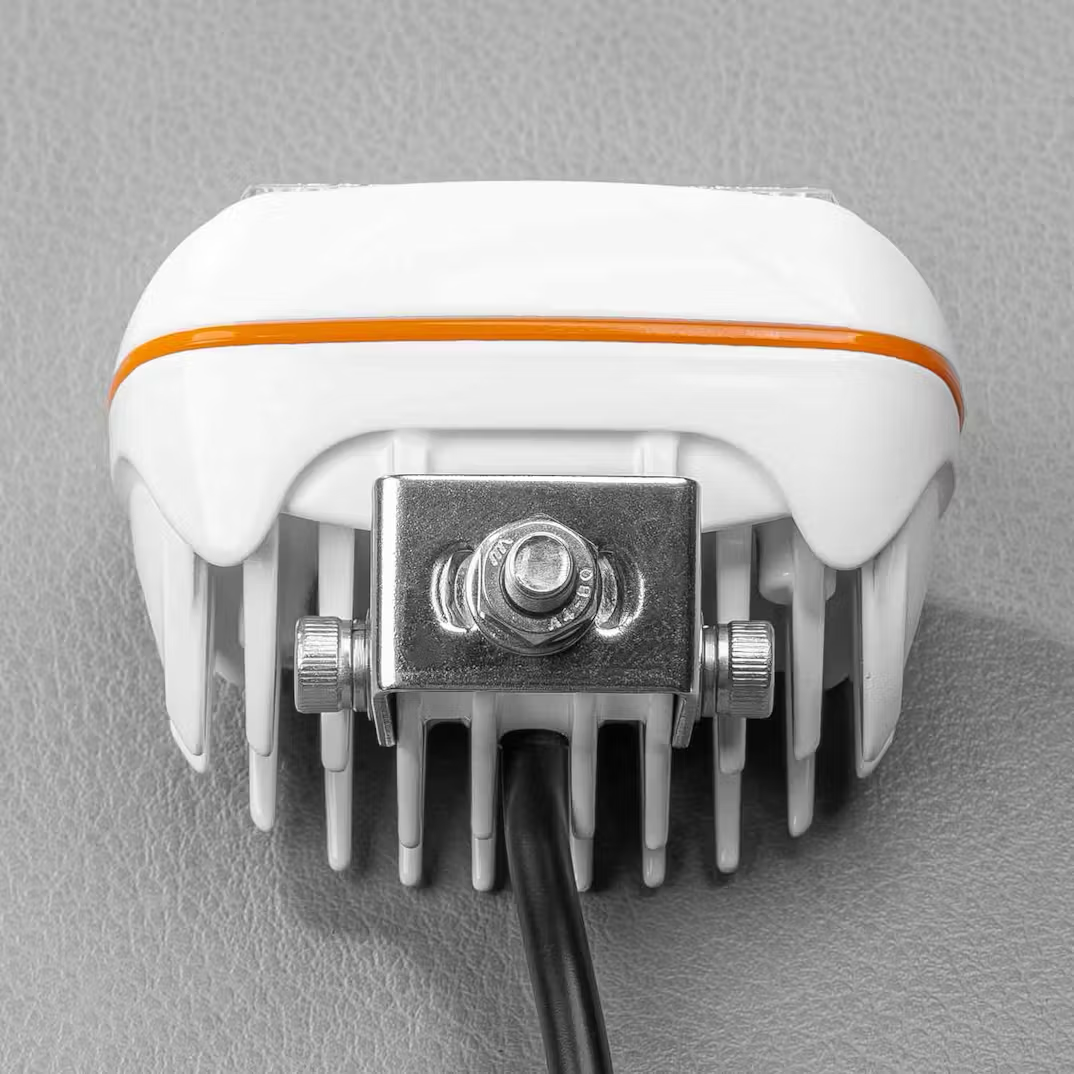

316 stainless steel fittings for superior corrosion resistance
-
IP67 waterproof rating – submersible up to 1 m for 30 minutes
-

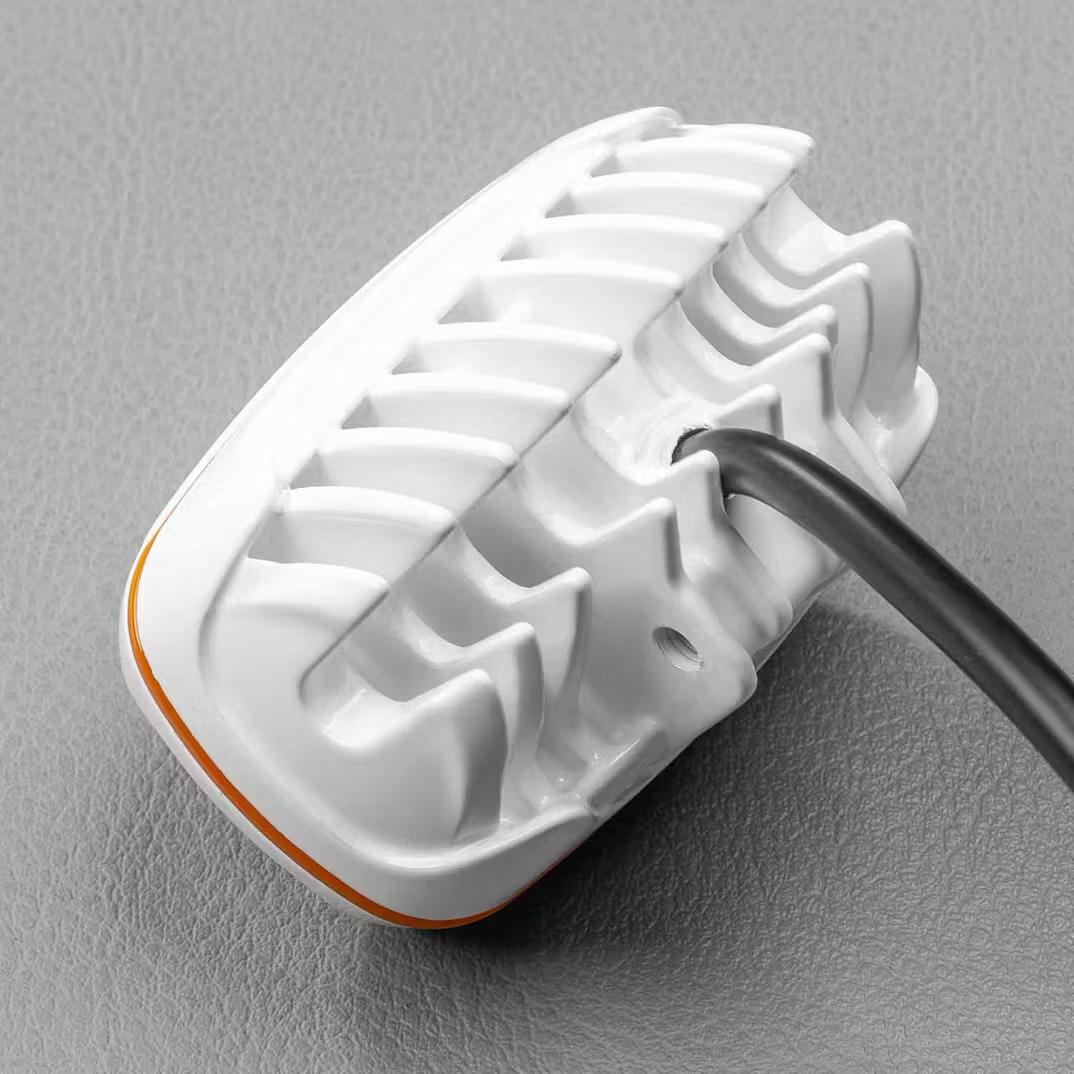

Cast aluminum housing for strength and thermal efficiency
-

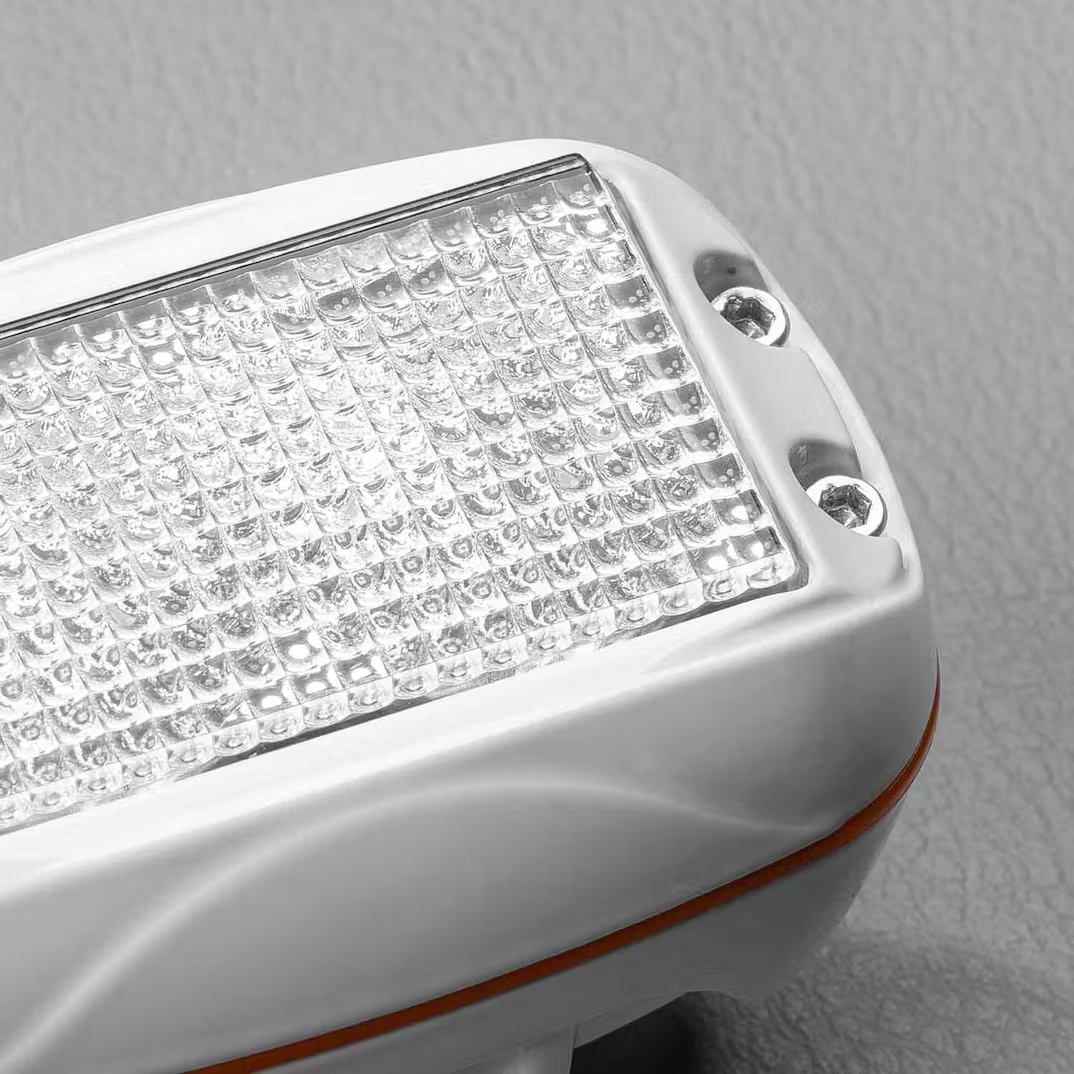

Optical PC lens – durable and UV-stable
-
Dustproof & anti-vibration design for reliability on rough seas
-
50,000+ hour lifespan
-
CE, RoHS & ECE certified
🛠 Technical Specifications
| Specification |
Details |
| LED Power |
10 W |
| Operating Voltage |
12 V & 24 V Compatible |
| LED Chips |
OSRAM (Red) |
| Wavelength |
650 nm |
| Operating Temperature |
–40 °C to +60 °C |
| Raw Lumens |
1,000 Lm |
| Current Draw |
N/A @ 13.8 V |
| Beam Pattern |
Diffused Flood |
| Waterproof Rating |
IP67 |
| Dustproof & Anti-Vibration |
Yes |
| Lens Material |
Optical Polycarbonate |
| Mounting Bracket |
316 Stainless Steel |
| Housing Material |
Cast Aluminium |
| Lifespan |
50,000+ Hours |

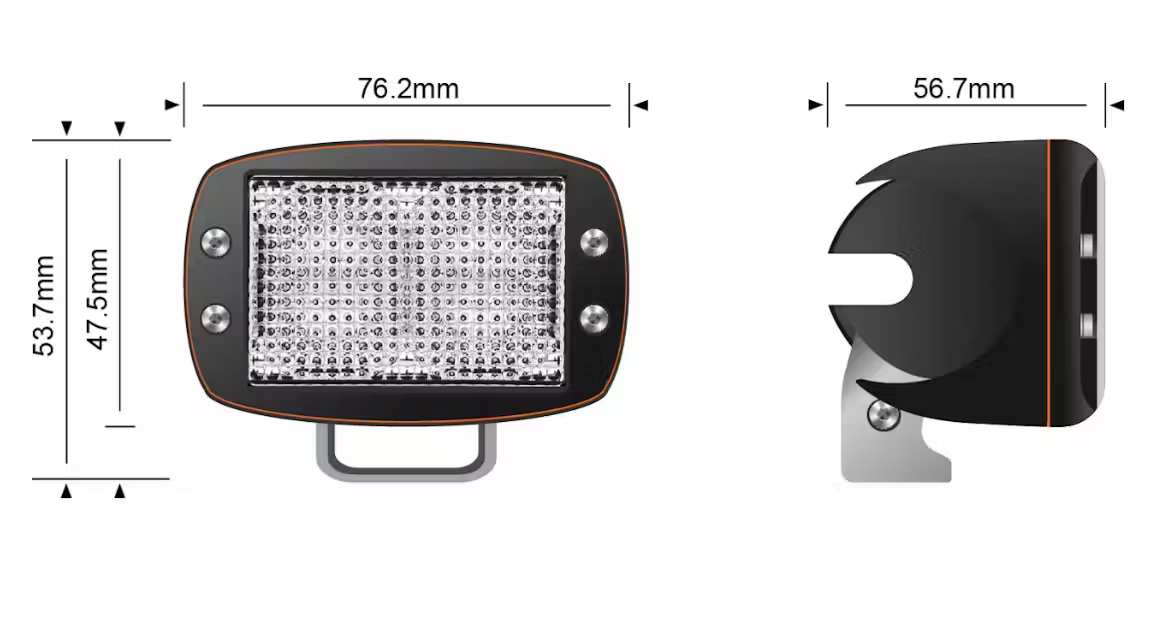

| Dimensions (W × H × D) |
77 × 48 × 55 mm |
| Certifications |
CE, RoHS & ECE |
| Weight |
0.3 kg |
📦 What’s Included
-
1 × STEDI™ 10W Mini V2 Marine LED Flood Light (650 nm)
-
2 × M6 Bolts
-
1 × Nylock Nut + 1 × Standard Nut
-
1 × Flat Washer + 1 × Lock Washer
-

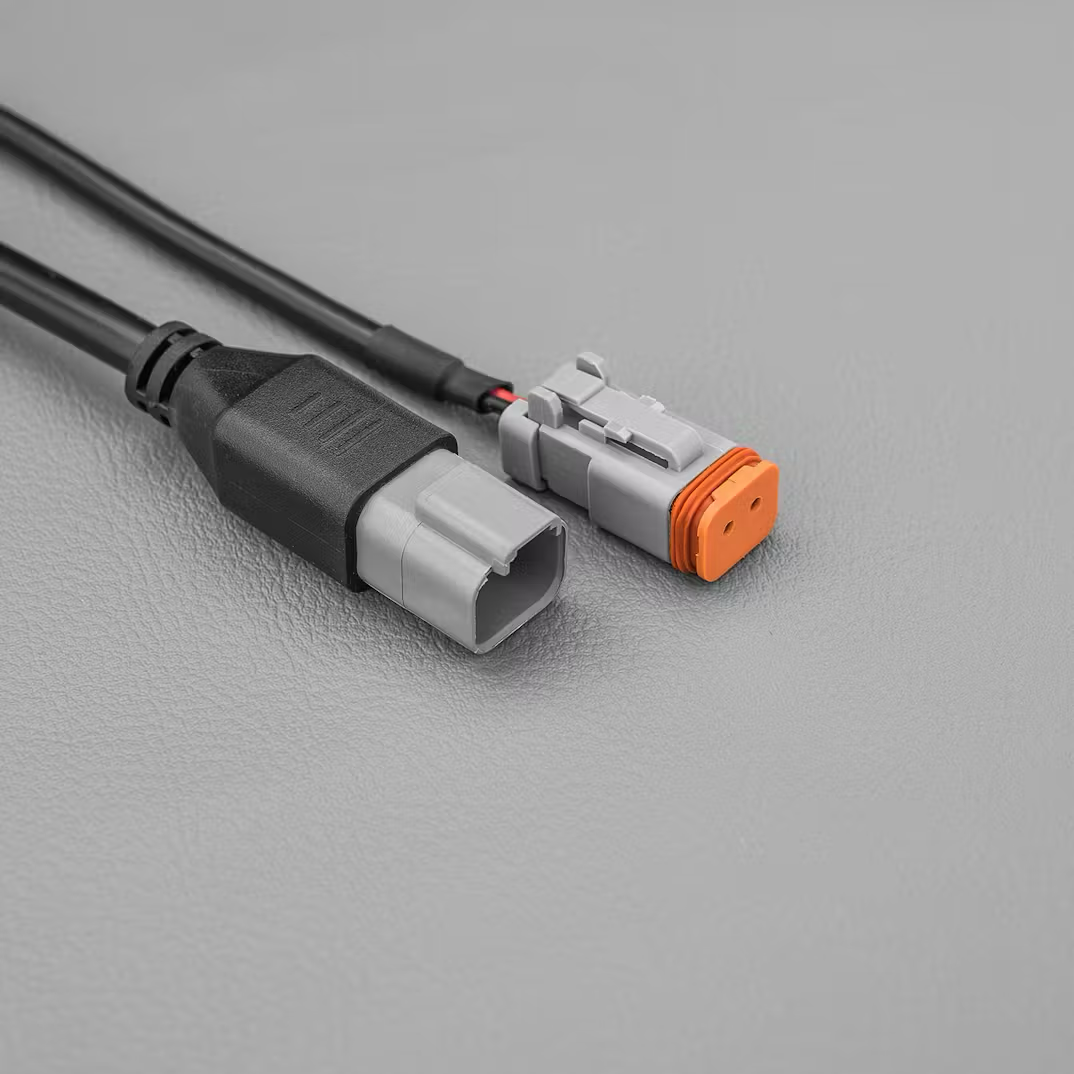

Male & Female Deutsch Connectors
🚤 Ideal Marine Applications
-
Deck and cockpit lighting
-
Cabin or under-gunwale ambient lighting
-
Night navigation and visibility enhancement
-
Trailer or dock illumination
-
Engine bay or utility lighting
