Without a Shadow of a Doubt.
Compact, powerful, and built to perform — the STEDI™ 10W Mini V2 Amber LED Flood Light delivers exceptional output in a compact 300 g housing. Now featuring upgraded fasteners and improved durability, the new Mini V2 continues to prove why it’s one of our most popular and versatile work lights.
⚡ Powerful Performance
Small in size, big on performance. The 10W Mini V2 runs 2 × 5W OSRAM LEDs, producing an impressive 1,000 lumens of amber light in a 40° flood pattern. The 1500K color temperature helps cut through fog, dust, and snow — providing excellent clarity in challenging visibility conditions. Drawing only 0.5A @ 13.8V, it offers incredible efficiency for its size.
🧭 Endless Applications

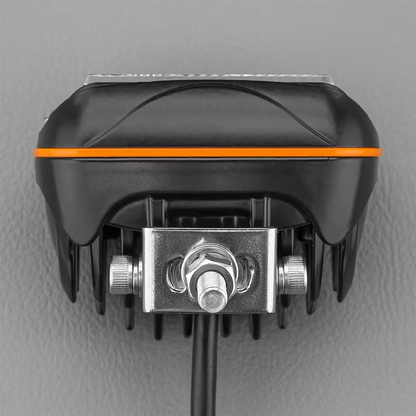

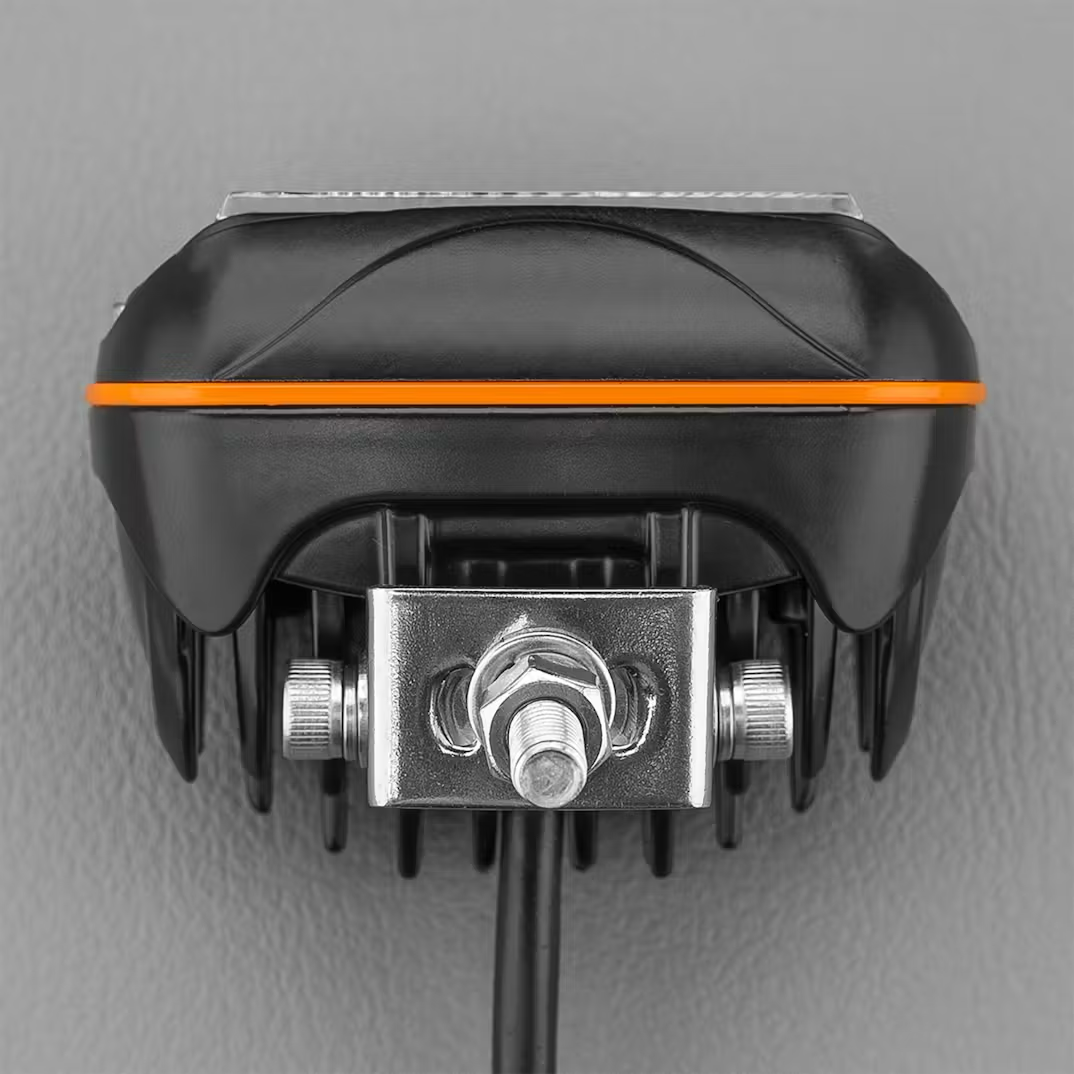

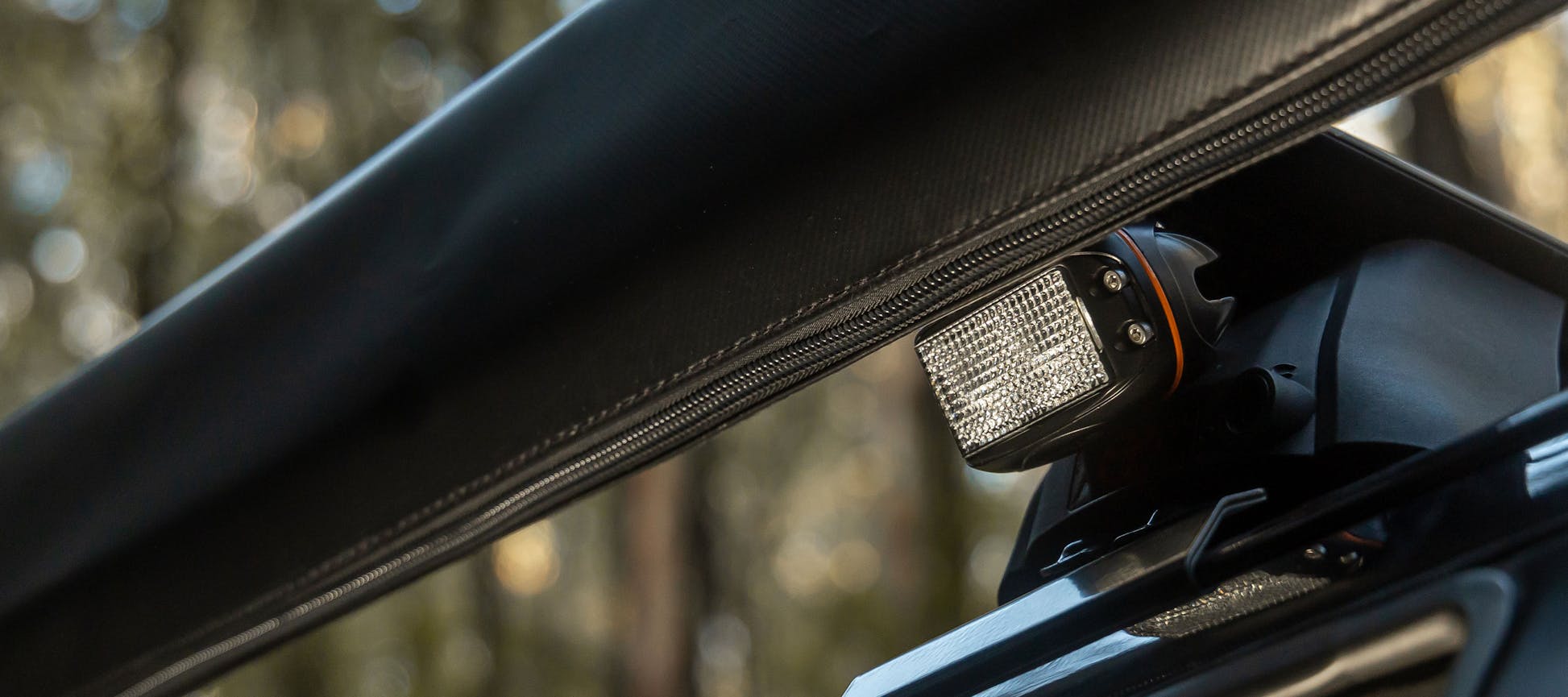

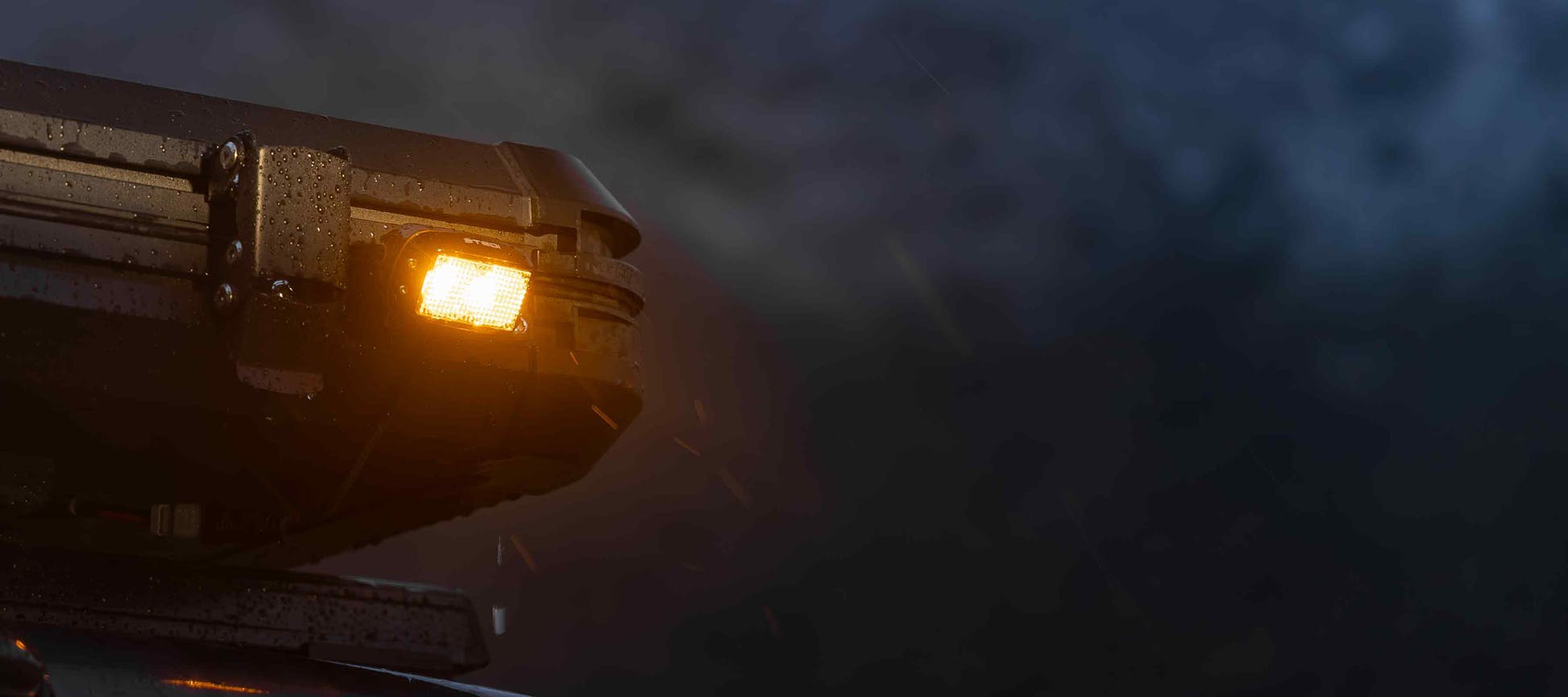

From off-road lighting and camp setups to reverse or utility lighting, the 10W Mini V2 Amber can do it all. Its U-bracket mounting system allows quick, secure installation in bumpers, roof racks, canopies, or work zones. For a seamless OEM look, a flush mount version is also available. Wherever you mount it, the Mini V2 is designed to perform without compromise.
🔩 Key Features
-
Amber 1500K flood beam for superior visibility in dust and fog
-
40° wide spread pattern for full area coverage
-
12V & 24V compatible for universal use
-

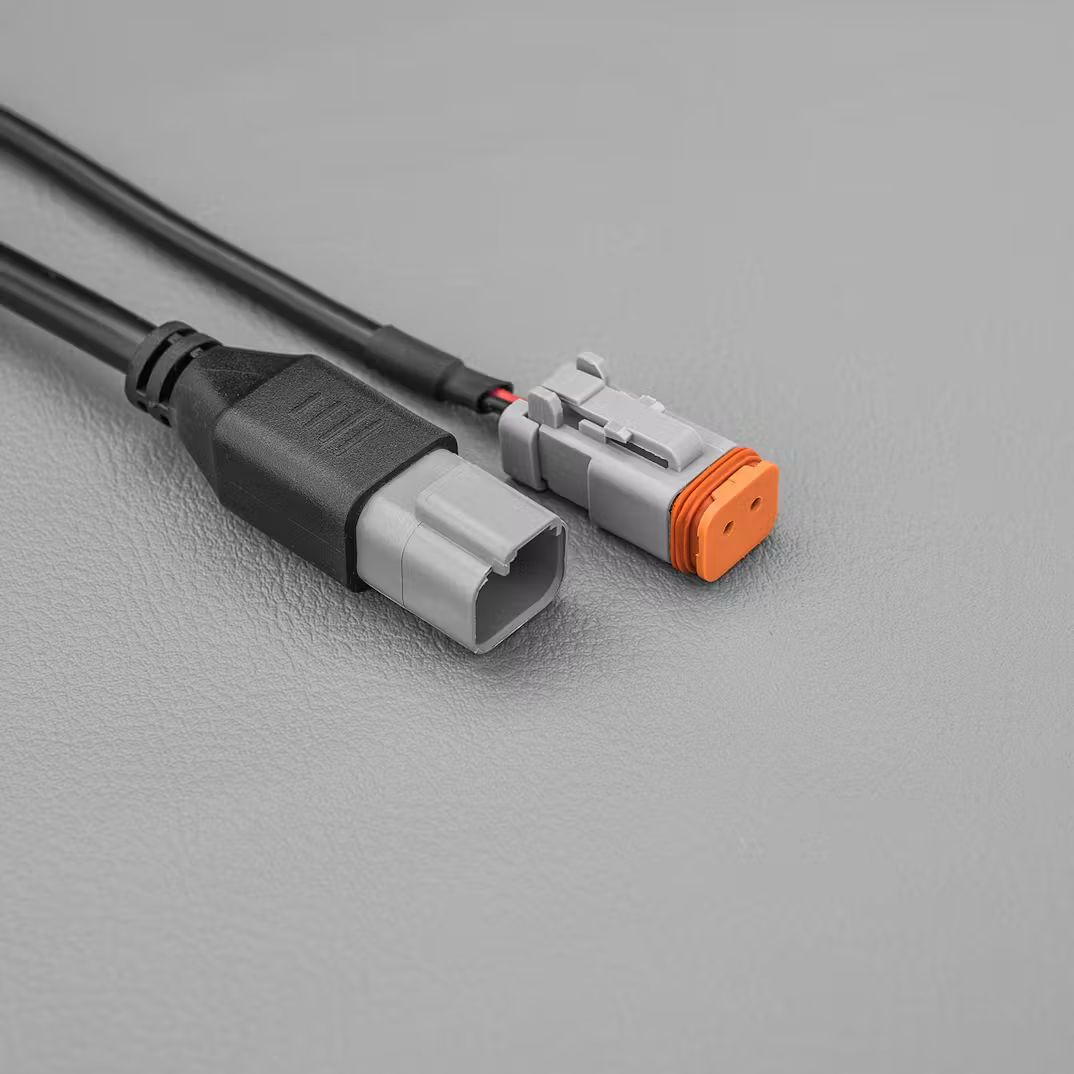

Waterproof Deutsch connectors (male & female included)
-
Stainless steel fittings – corrosion-resistant and marine-grade
-
IP67 waterproof rating – submersible up to 1 m for 30 minutes
-
OSRAM GmbH emitters for reliability and efficiency
-
CE, RoHS & ECE certified
🛠 Technical Specifications
| Specification |
Details |
| LED Power |
10 W |
| Operating Voltage |
12 V & 24 V Compatible |
| LED Chips |
2 × 5 W OSRAM LEDs |
| Colour Temperature |
1500 K (Amber) |
| Raw Lumens |
1,000 Lm |
| Current Draw |
0.5 A @ 13.8 V |
| Beam Pattern |
Flood (40° Spread) |
| Waterproof Rating |
IP67 |
| Dustproof & Anti-Vibration |
Yes |
| Lens Material |
Optical Polycarbonate |
| Mounting Bracket |
Stainless Steel |
| Housing Material |
Cast Aluminium |
| Lifespan |
50,000+ Hours |

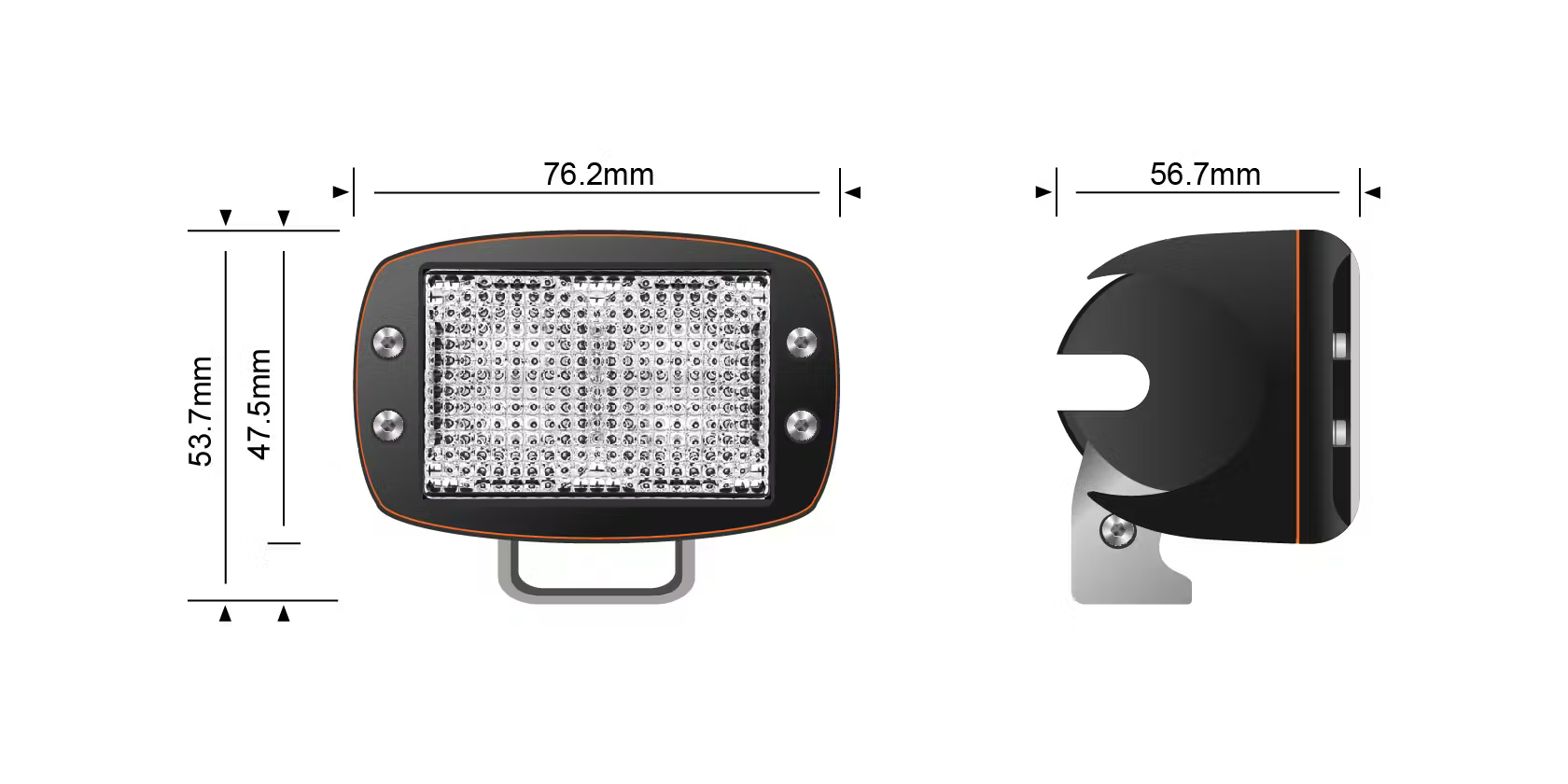

| Dimensions (W × H × D) |
77 × 48 × 55 mm |
| Certifications |
CE, RoHS & ECE |
| Weight |
0.3 kg |
📦 What’s Included
-
1 × STEDI™ 10W Mini V2 Amber LED Flood Light (1500K)
-
2 × M6 Bolts
-
1 × Nylock Nut + 1 × Standard Nut
-
1 × Flat Washer + 1 × Lock Washer
-
Male & Female Deutsch Connectors
🚙 Ideal Applications
-

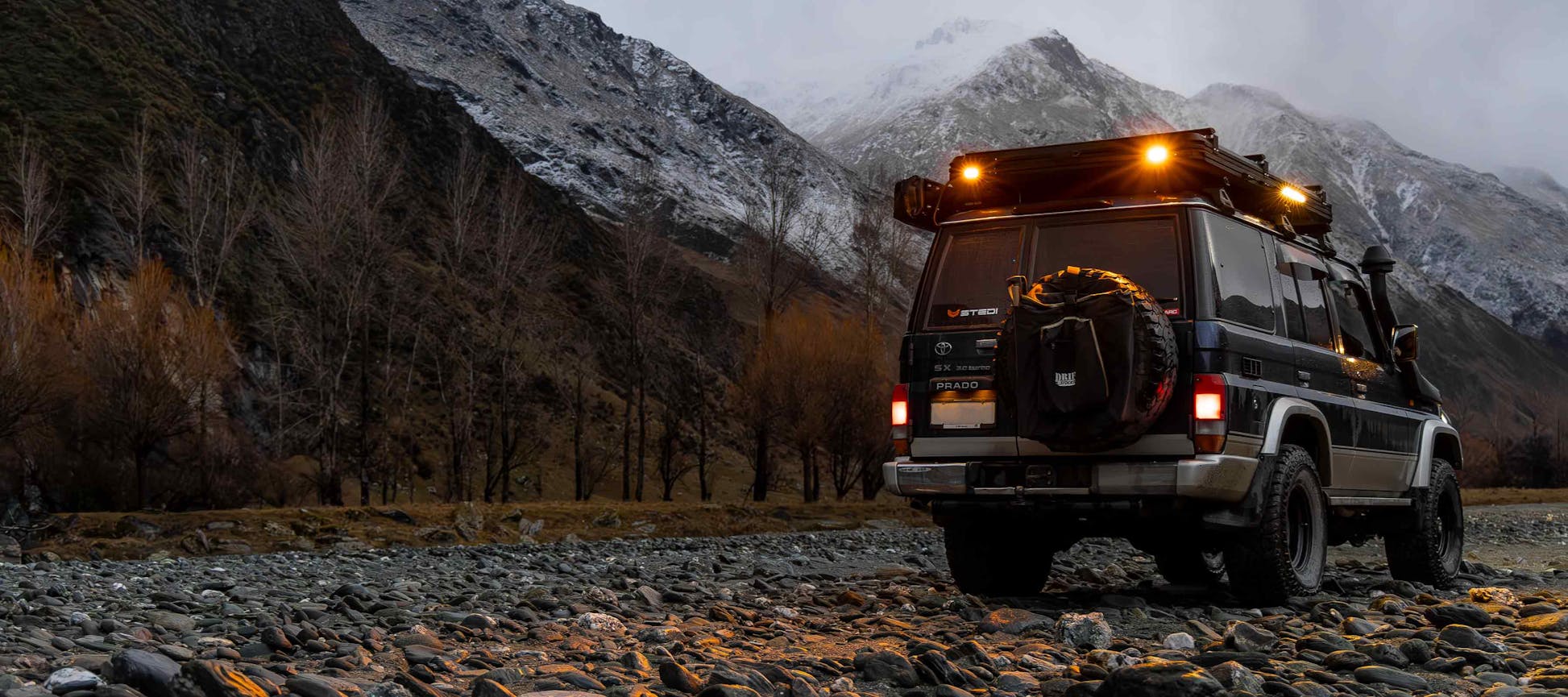

Off-road lighting and recovery setups
-
Reverse and canopy lighting
-
Construction or utility lighting
-
Camp lighting and auxiliary illumination
-
Harsh weather or dust-prone environments
