Factory Finish. Premium Performance.

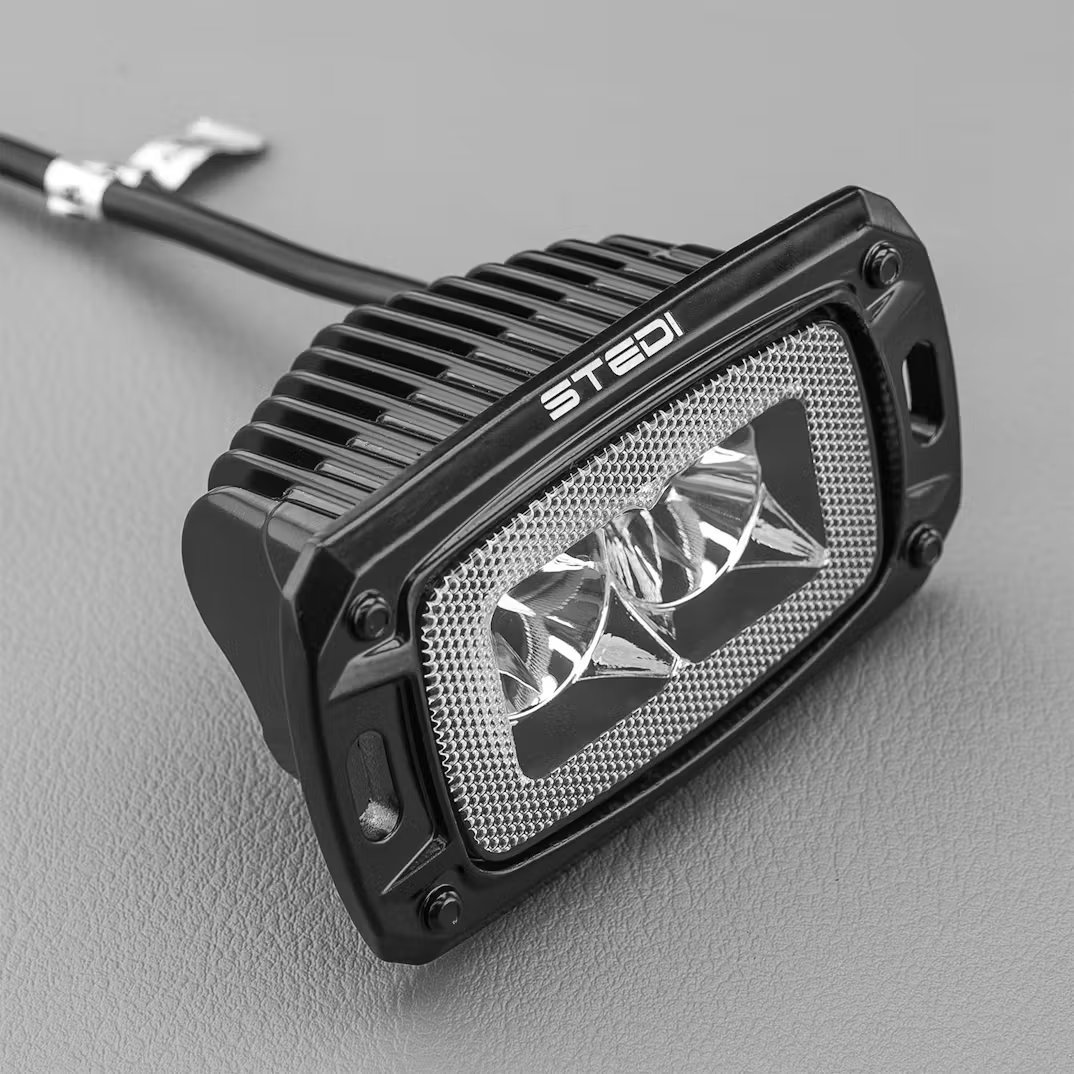

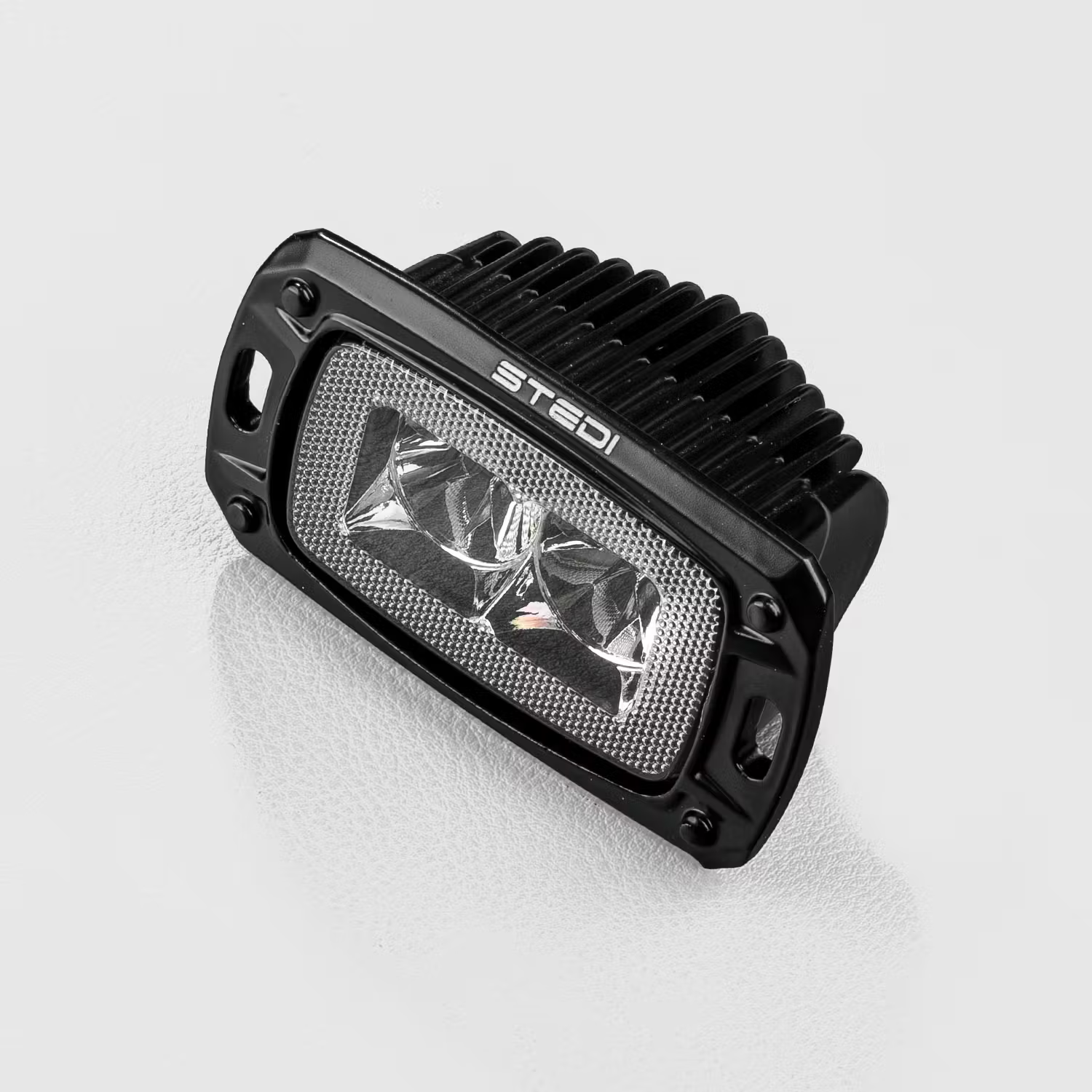

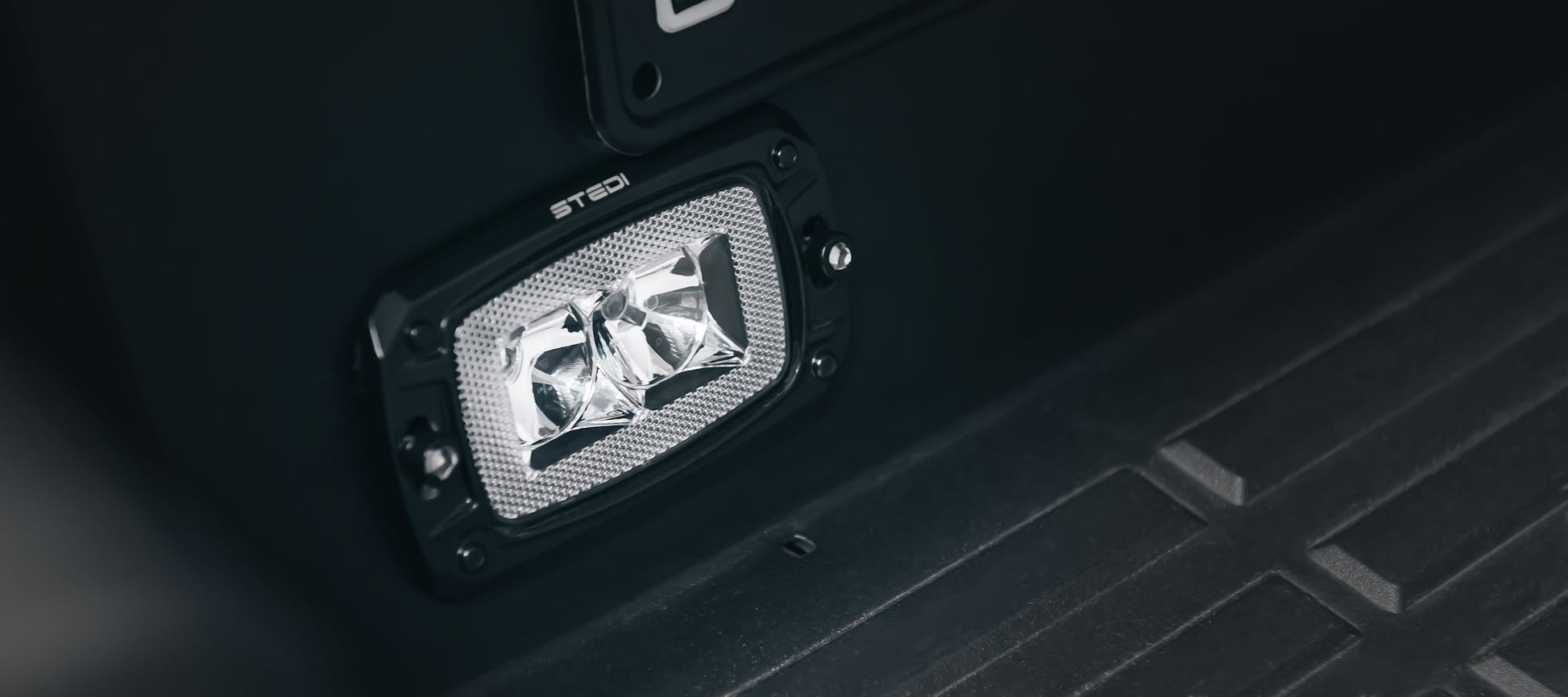

Meet the newest addition to the STEDI™ Mini lineup — the 10W Mini Flush Mount LED Work Light. Designed for a clean, OEM-style installation, it’s the perfect choice for those looking to integrate powerful reverse or work lighting seamlessly into their vehicle’s body or bumper. Combining compact design with high output, this flush mount delivers the perfect factory-finish look without compromising brightness.
⚡ Low Power, High Brightness
Small in size but big on performance — the 10W Mini Flush Mount runs 2 × 5W OSRAM LEDs, producing 1,000 lumens of crisp white light. Its 40° flood beam provides excellent spread for close-range visibility, while the low 0.5A draw @ 13.8V ensures efficiency without draining your system. All this performance packed into a compact, 300 glight makes it one of our best-selling LED work lights.
🧭 Versatile Applications
The 10W Mini Flush Mount is built for versatility. Use it as a reverse light, camp light, or compact work light — its sleek flush mounting design makes it ideal for bumpers, canopies, or toolboxes. Whether for off-road setups, utility vehicles, or everyday practicality, it’s the perfect blend of performance and style.
🔩 Key Features
-
40° flood beam optics for broad, even illumination
-
12V & 24V compatible for flexible setup
-

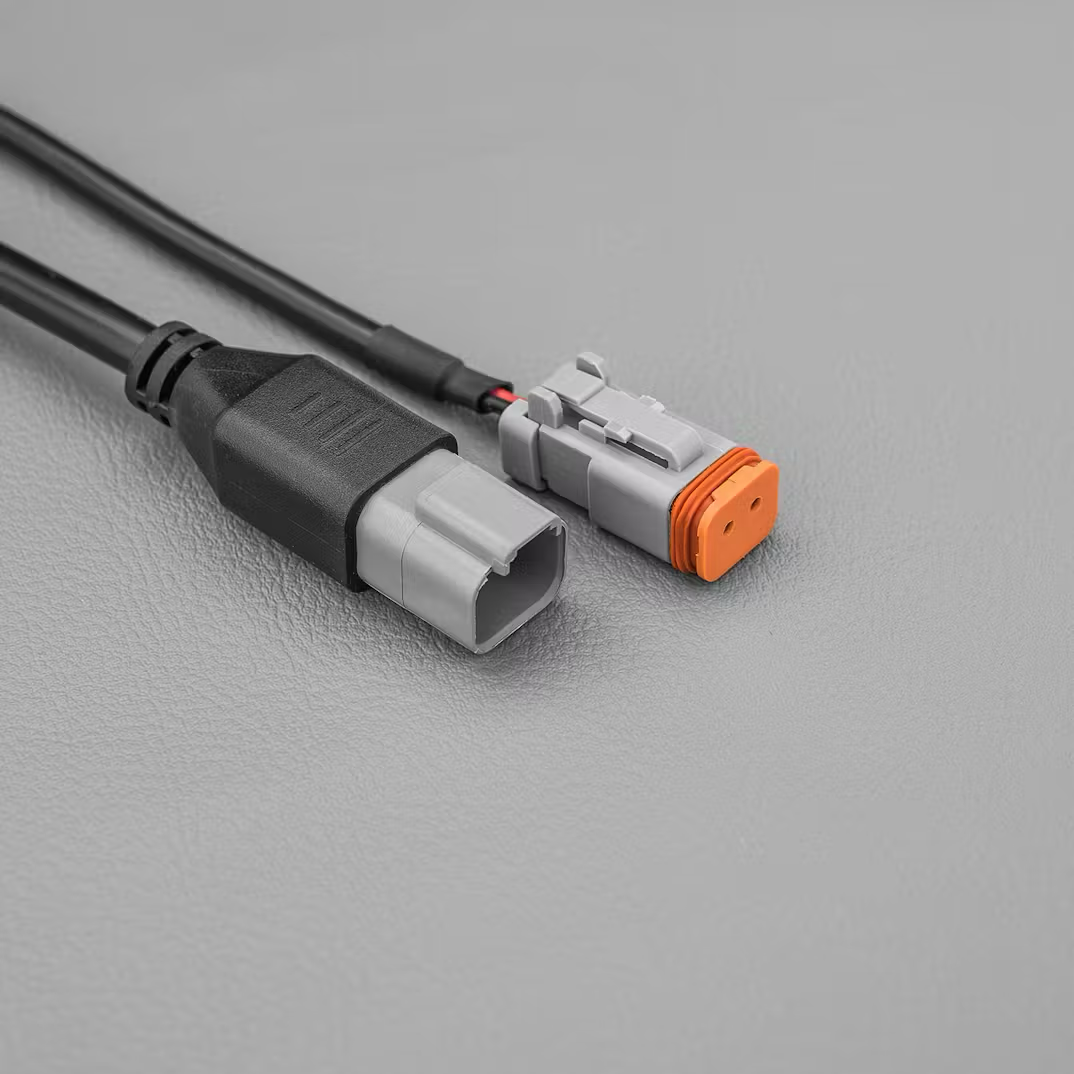

Waterproof Deutsch connectors (male & female included)
-
Stainless steel fittings for long-lasting corrosion resistance
-
IP67 waterproof rating – submersible up to 1 m for 30 minutes
-

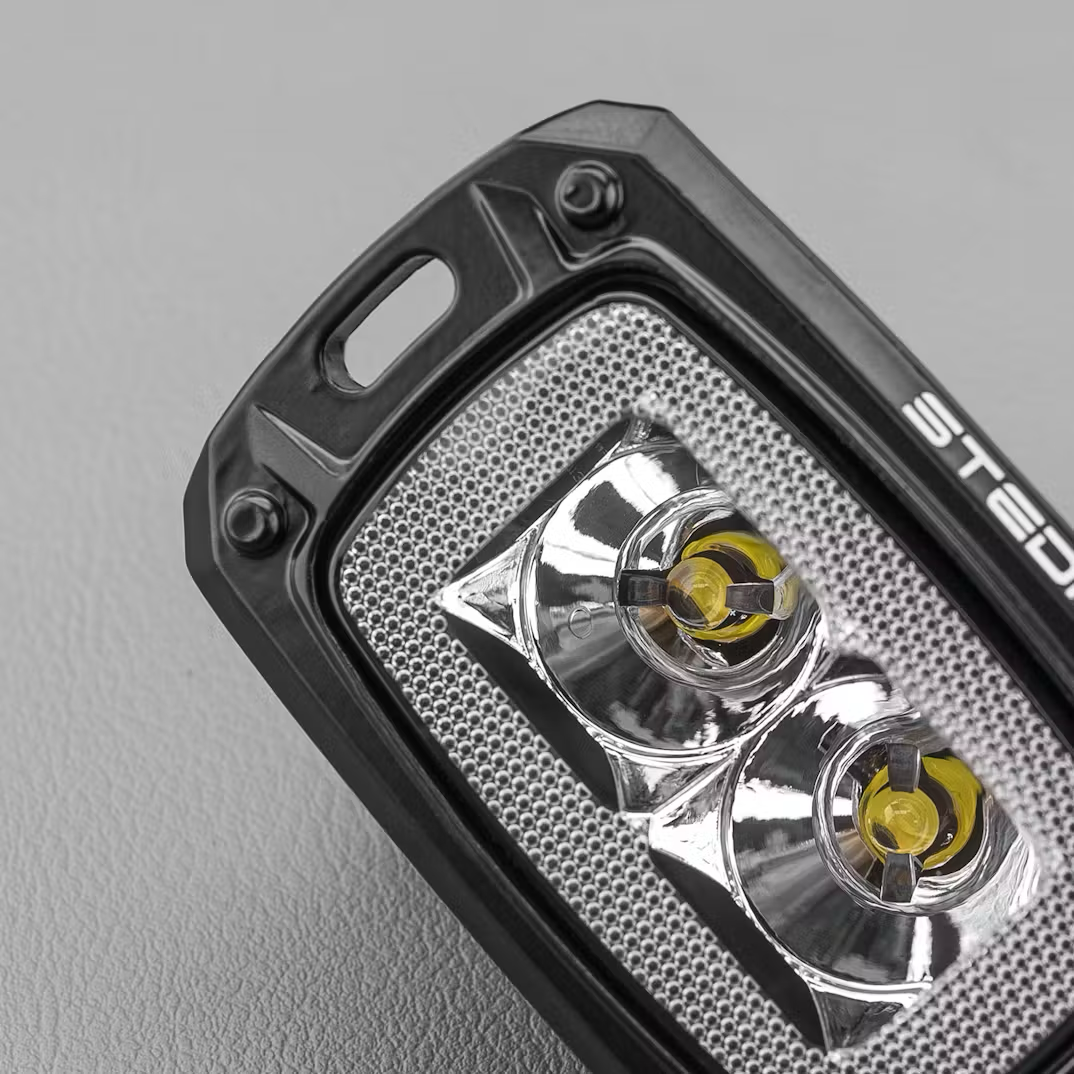

OSRAM GmbH emitters for superior light output and durability
-
Compact design for OEM-style integration
-
CE, RoHS & ECE certified
🛠 Technical Specifications
| Specification |
Details |
| LED Power |
10 W |
| Operating Voltage |
12 V & 24 V Compatible |
| LED Chips |
2 × 5 W OSRAM™ LEDs |
| Colour Temperature |
5700 K |
| Raw Lumens |
1,000 Lm |
| Current Draw |
0.5 A @ 13.8 V |
| Beam Pattern |
40° Flood |
| Waterproof Rating |
IP67 |
| Dustproof & Anti-Vibration |
Yes |
| Lens Material |
Optical Polycarbonate |
| Mounting Bracket |
Stainless Steel |
| Housing Material |
Cast Aluminium |
| Lifespan |
50,000+ Hours |
| Dimensions (W × H × D) |
77 × 48 × 55 mm |
| Certifications |
CE, RoHS & ECE |
| Weight |
0.3 kg |
| Operating Temperature |
–40 °C to +60 °C |
📦 What’s Included
🚙 Ideal Applications
-

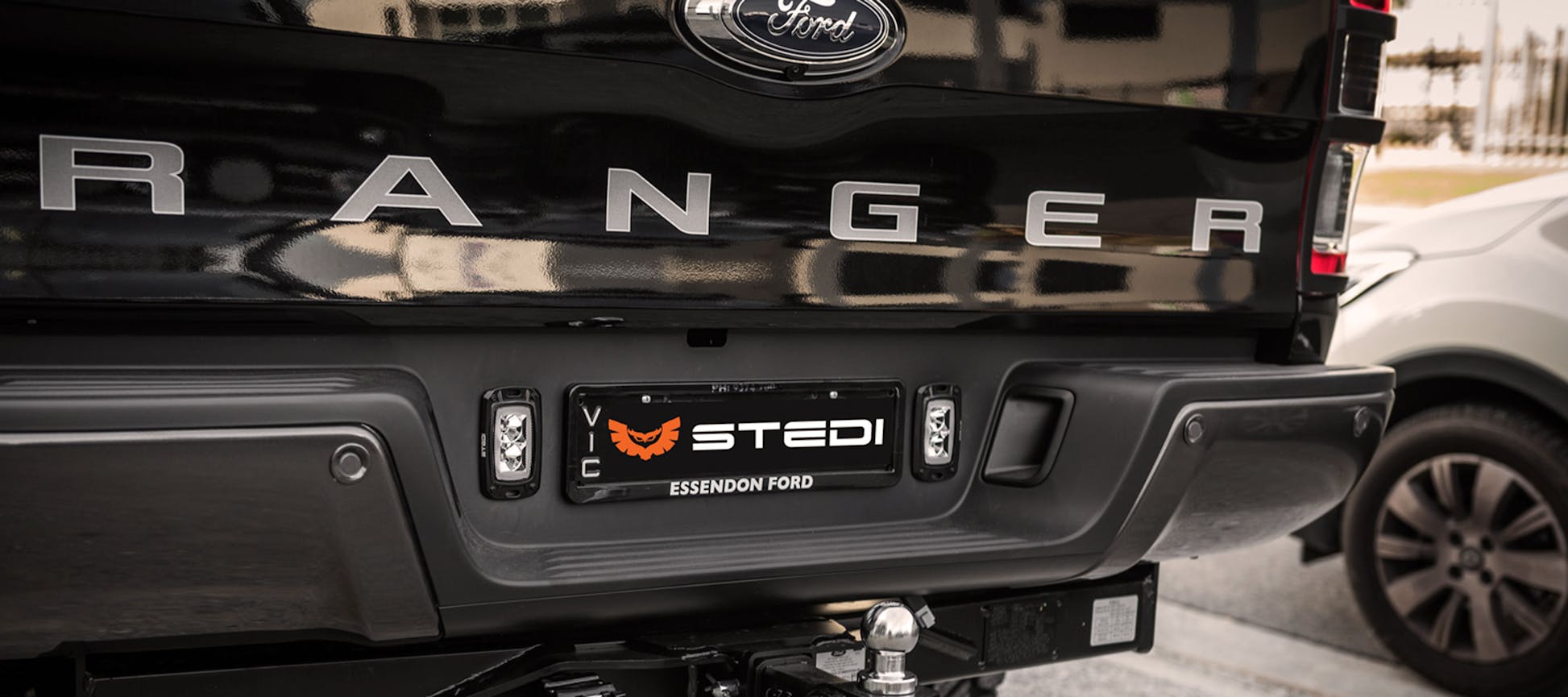

Flush-mounted reverse or work lighting
-

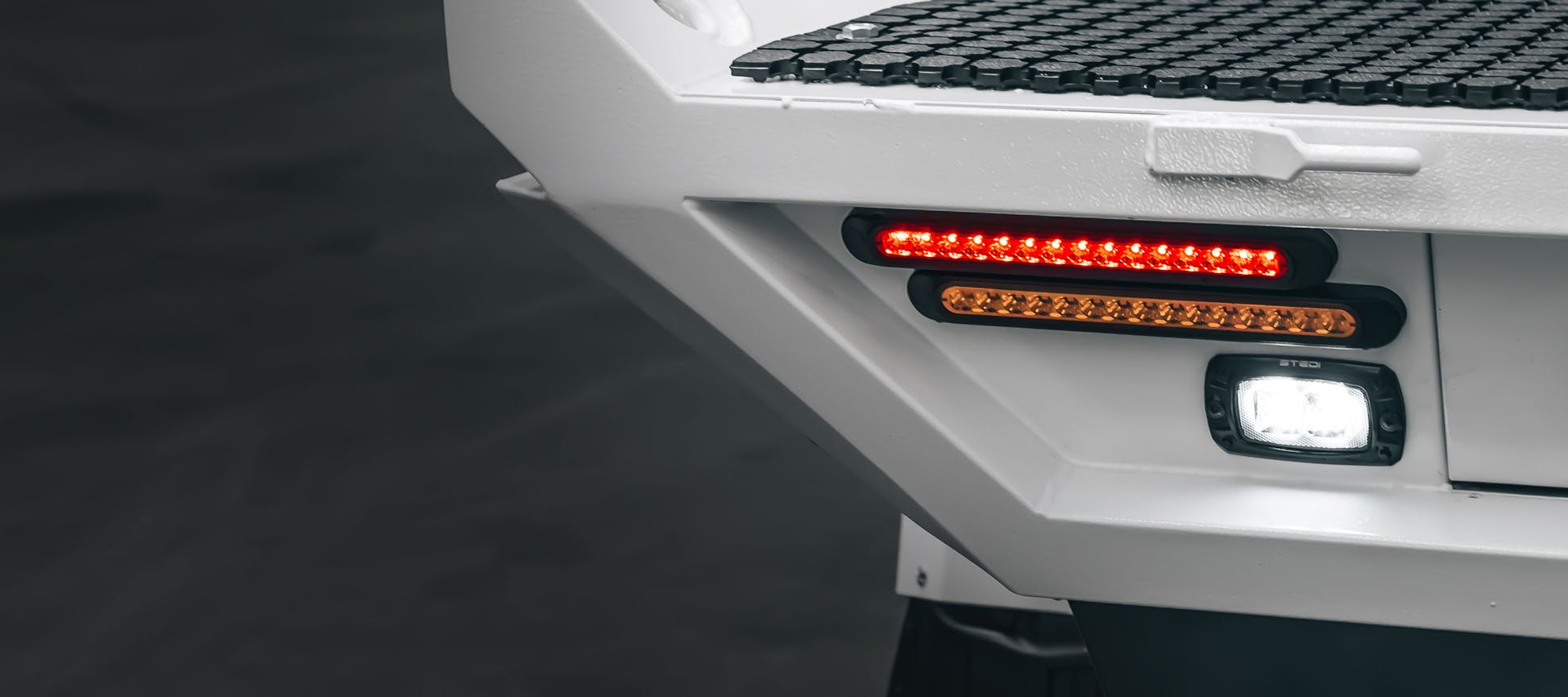

Bumper or tailgate installations
-
Canopy, trailer, or utility setups
-
Camping and area lighting
-
Compact auxiliary lighting for off-road vehicles
