Without a Shadow of a Doubt.

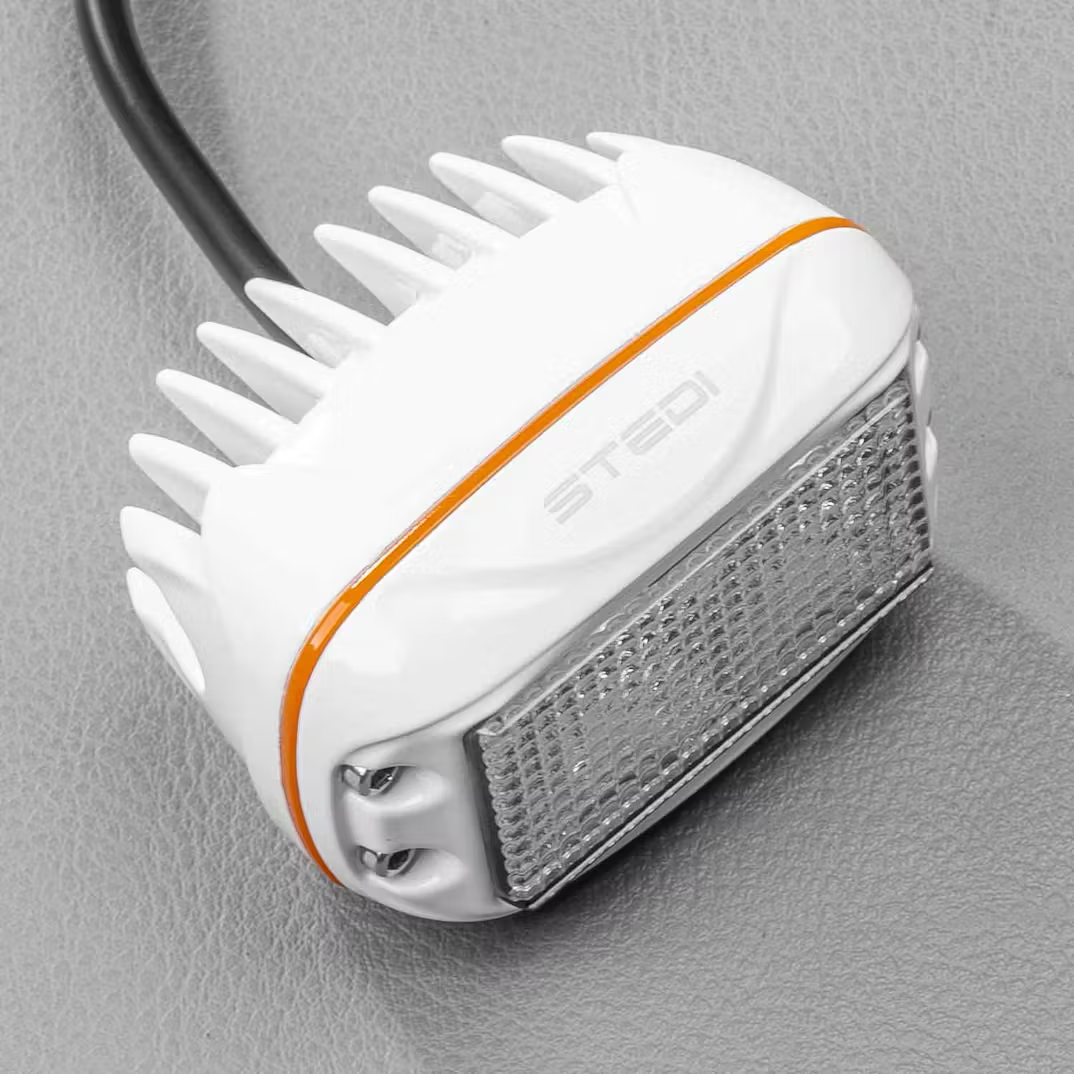

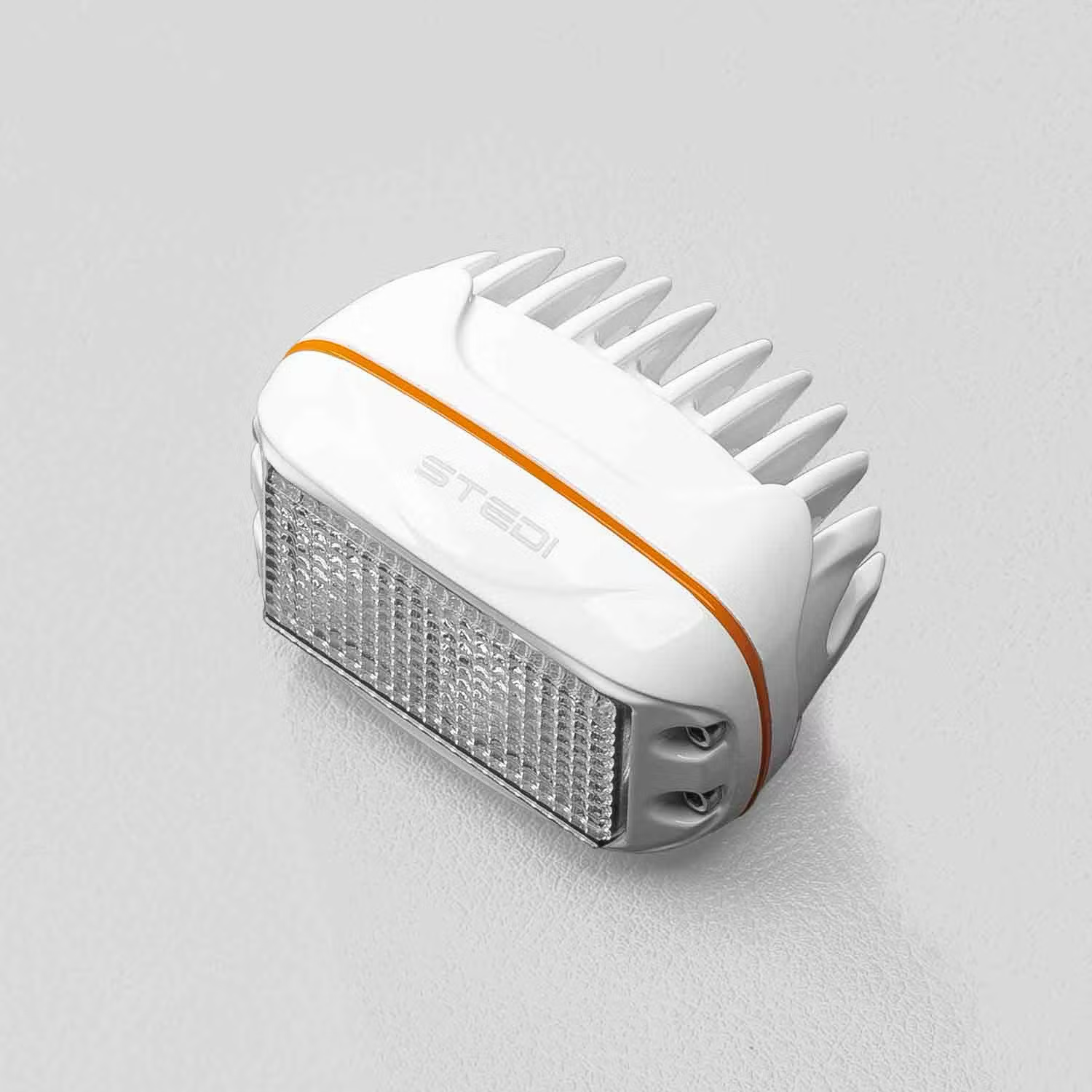

The STEDI™ 10W Mini V2 Marine White LED Flood Light is compact, powerful, and purpose-built for marine use. We’ve enhanced our popular Mini series with improved lens fasteners and a marine-grade finish, ensuring unmatched durability in saltwater and offshore conditions. At just 300 g, this light packs a serious punch and delivers an OEM-quality look with exceptional reliability.
⚡ Powerful Performance
Running on 2 × 5W OSRAM LEDs, the Mini V2 Marine produces 1,000 lumens of bright, diffused white light with a 40° flood beam. Designed for efficiency, it draws only 0.5A @ 13.8V, making it ideal for boats, docks, and marine vehicles where power conservation matters. Its 5700 K color temperature provides crisp, natural light for visibility and safety at sea.
🧭 Built for the Marine Environment

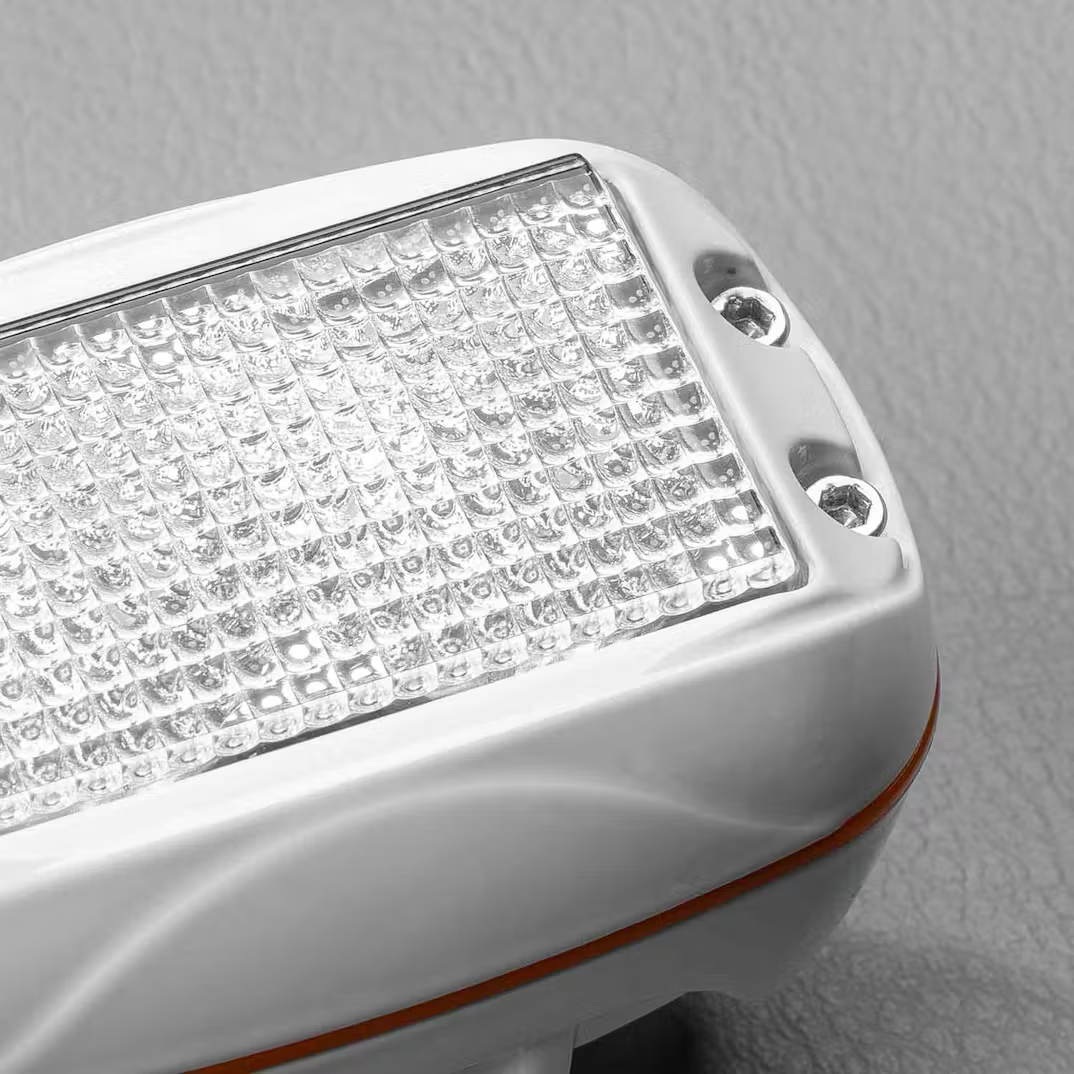

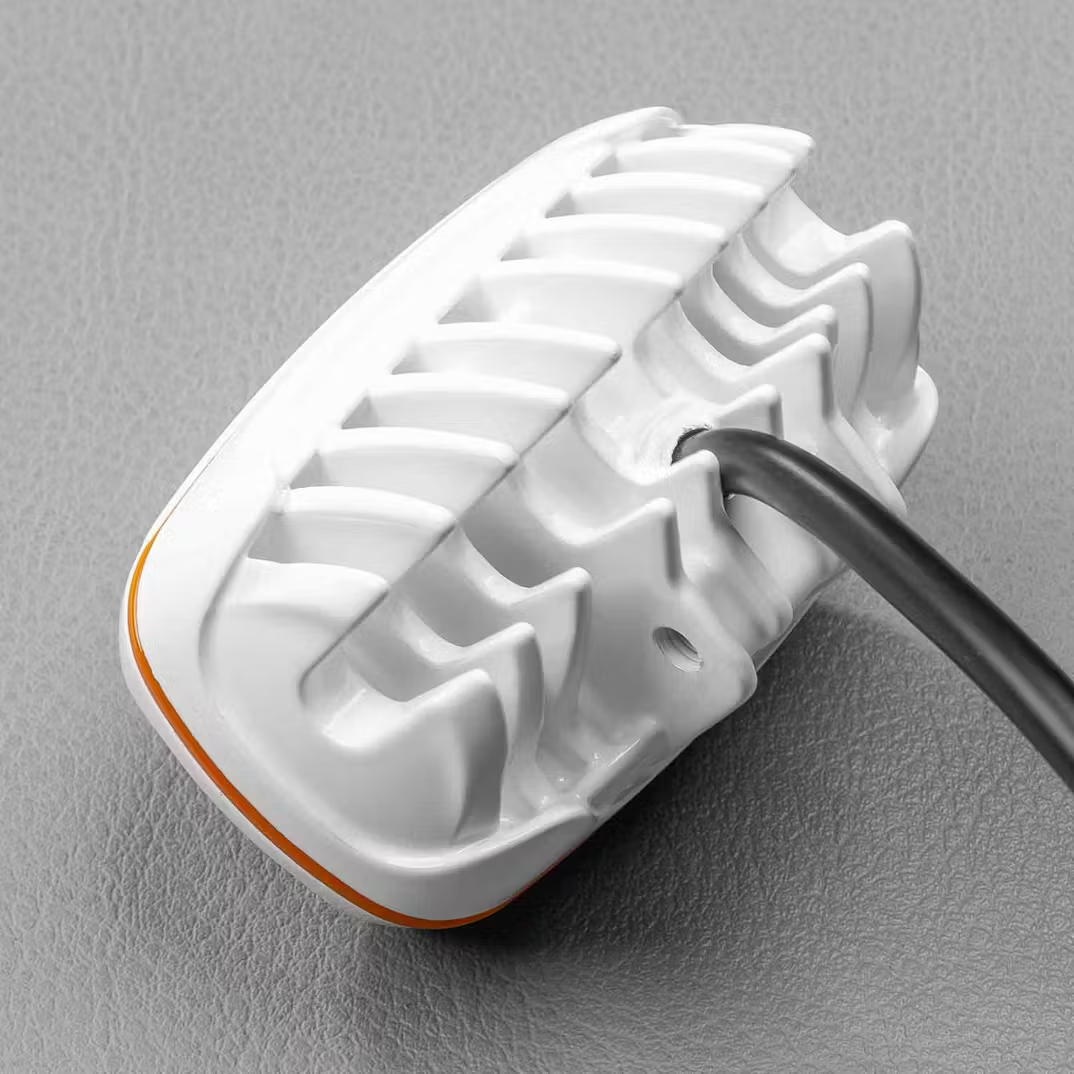

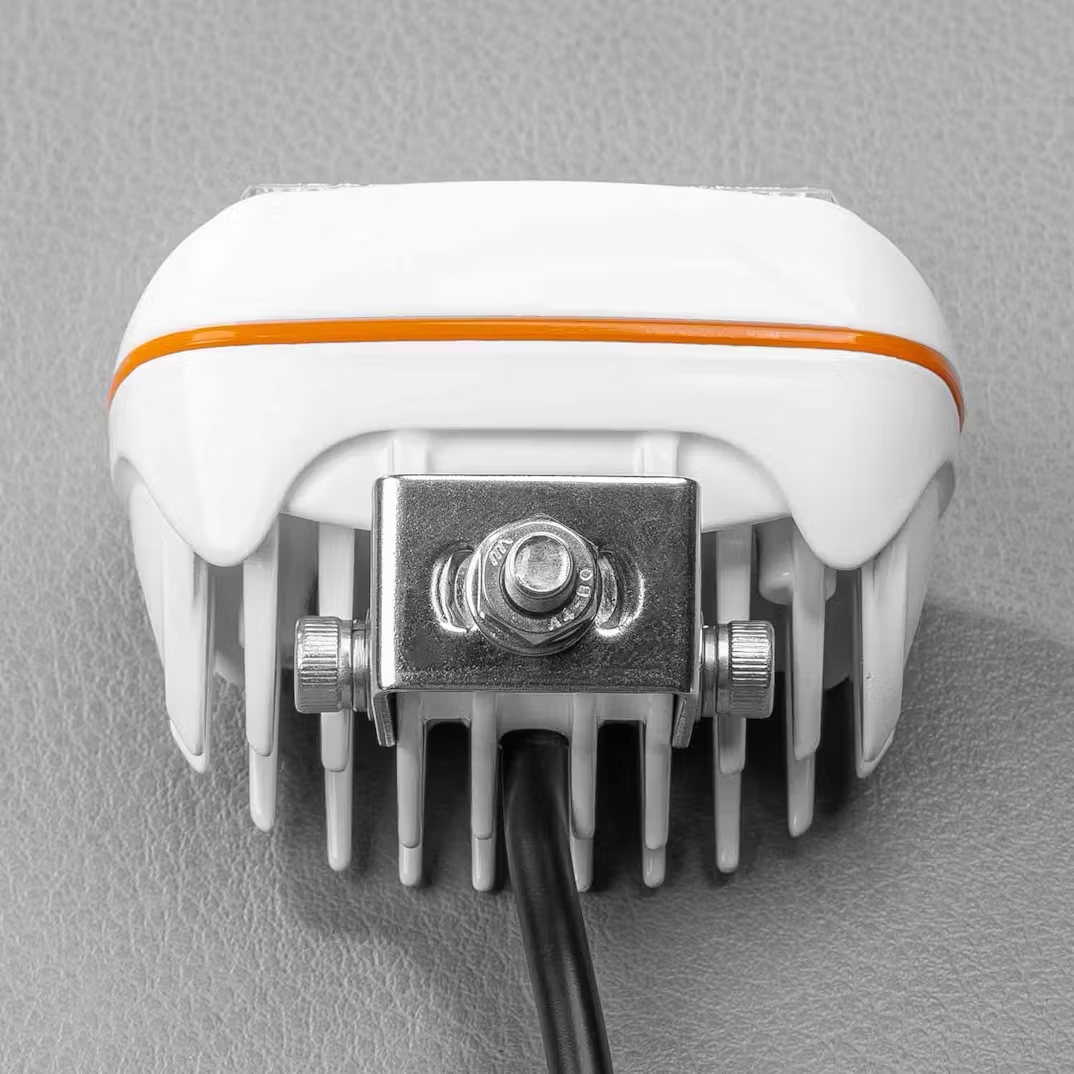

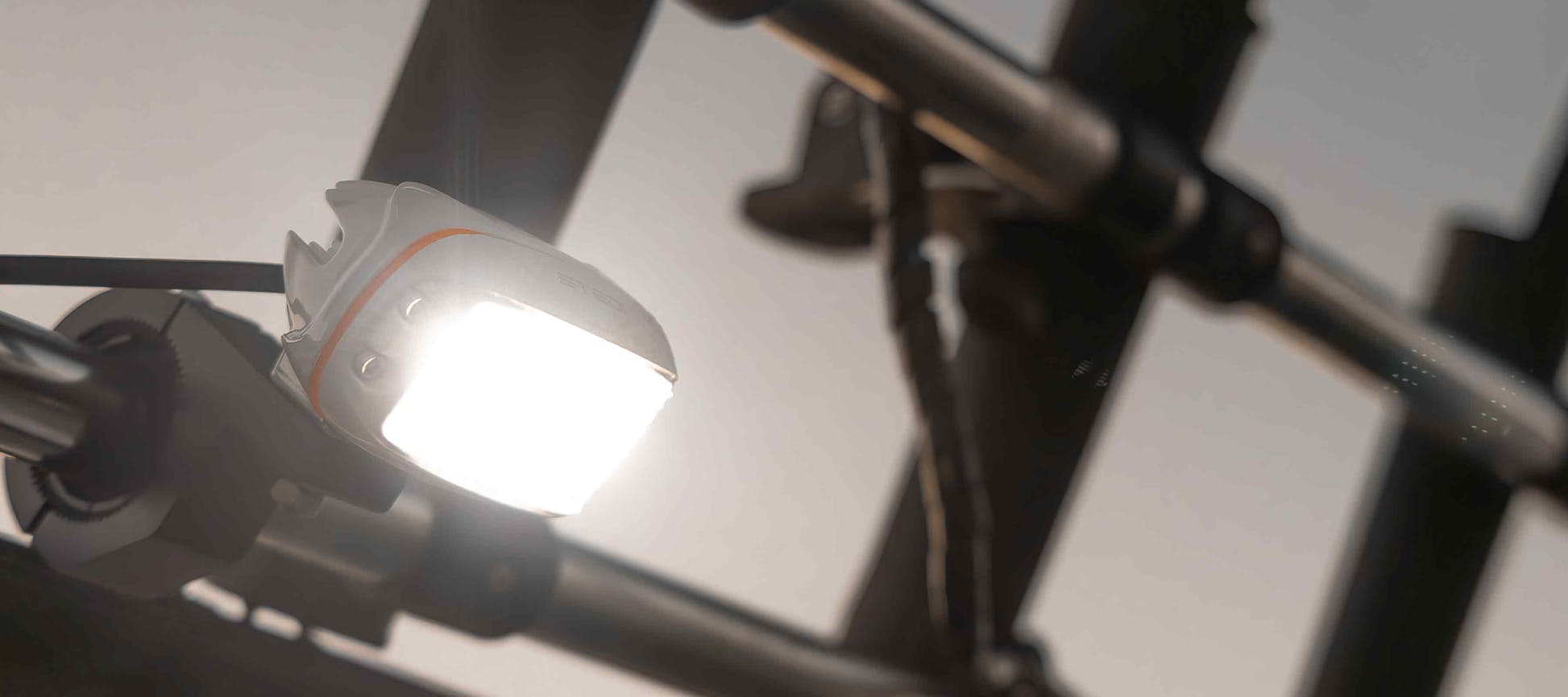

Specifically engineered for harsh marine conditions, the Mini V2 Marine Diffused Flood Light features a cast aluminum housing, stainless steel fittings, and a polycarbonate optical lens that resists salt, UV, and corrosion. Whether used as a deck light, anchor light, or utility light, its compact design and U-bracket mount ensure quick, secure installation on virtually any surface.
🔩 Key Features
-
Diffused flood beam for even, wide-area illumination
-
12V & 24V compatible – versatile power options for marine systems
-

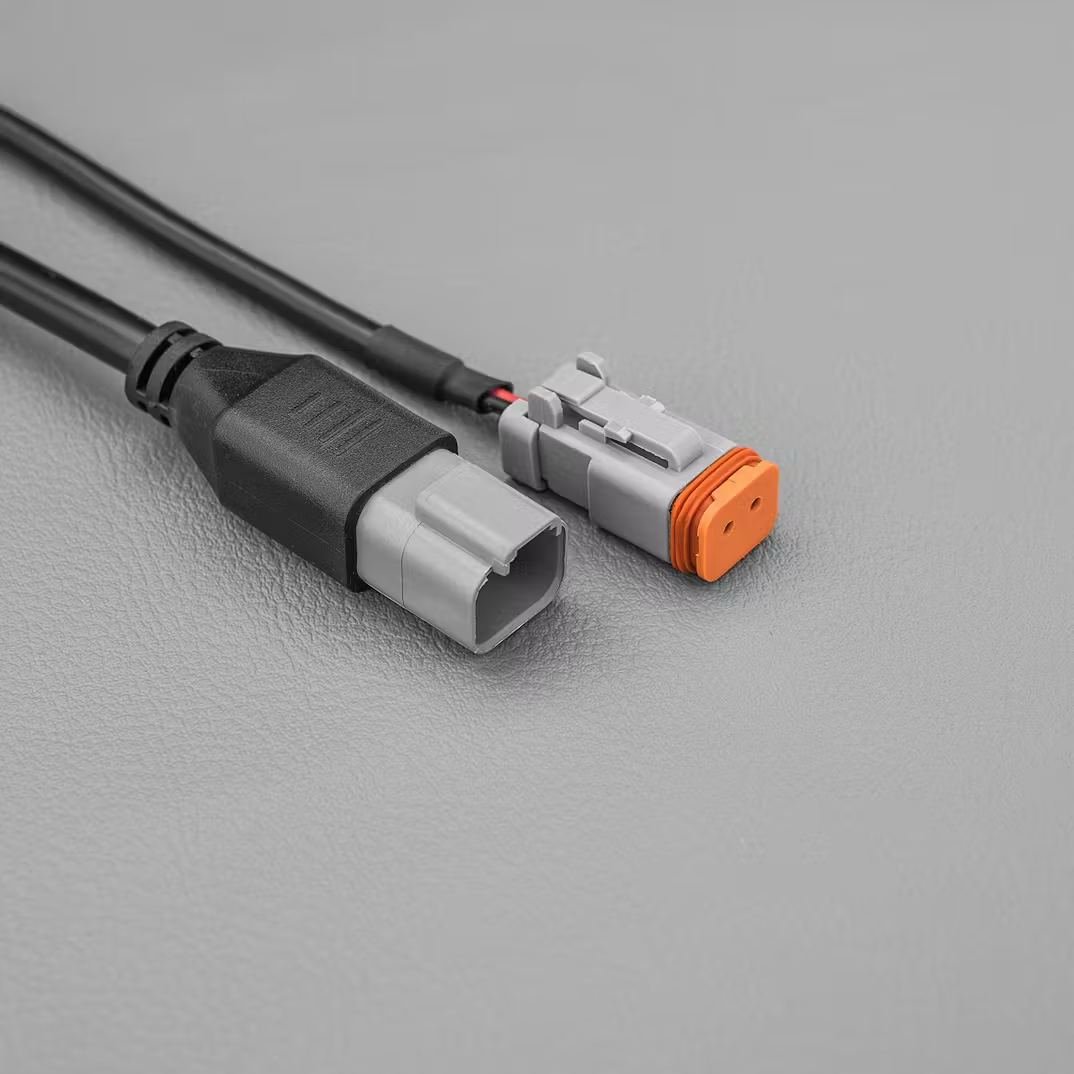

Waterproof Deutsch connectors (male & female included)
-
Marine-grade white finish for corrosion resistance
-
IP67 waterproof rating – submersible up to 1 m for 30 minutes
-
OSRAM GmbH LED emitters – exceptional light quality and reliability
-
Lightweight construction – only 300 g
-
CE, RoHS & ECE certified for safety and performance
🛠 Technical Specifications
| Specification |
Details |
| LED Power |
10 W |
| Operating Voltage |
12 V & 24 V Compatible |
| LED Chips |
2 × 5 W OSRAM LEDs |
| Colour Temperature |
5700 K |
| Operating Temperature |
–40 °C to +60 °C |
| Raw Lumens |
1,000 Lm |
| Current Draw |
0.5 A @ 13.8 V |
| Beam Pattern |
Flood / Diffused |
| Waterproof Rating |
IP67 |
| Dustproof & Anti-Vibration |
Yes |
| Lens Material |
Optical Polycarbonate |
| Mounting Bracket |
Stainless Steel |
| Housing Material |
Cast Aluminium |
| Lifespan |
50,000+ Hours |

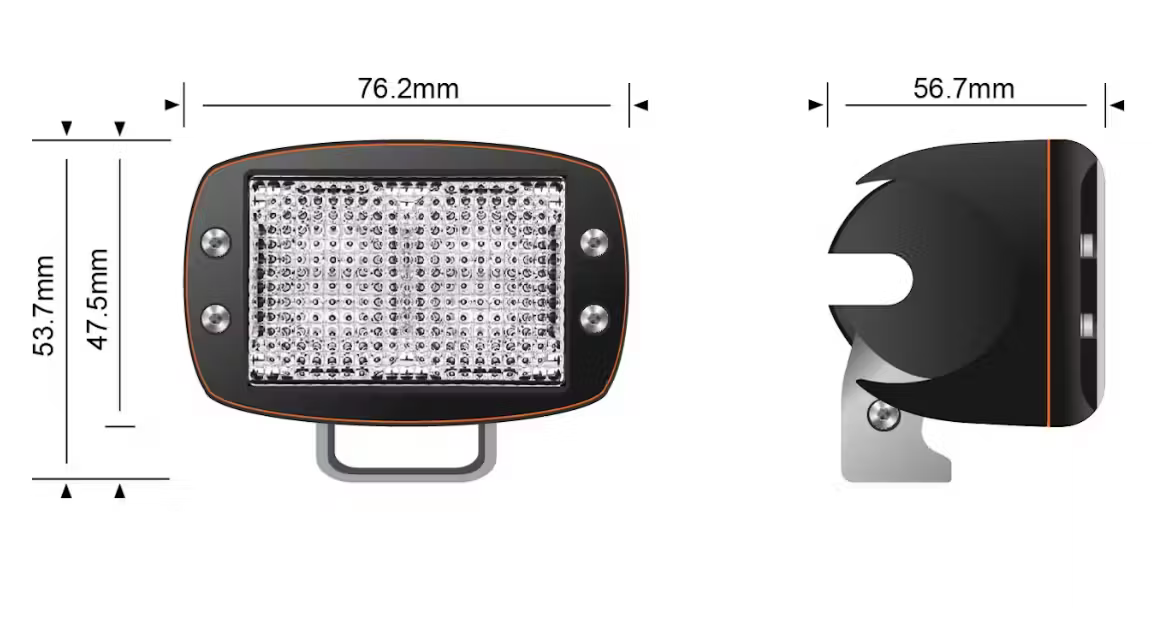

| Dimensions (W × H × D) |
77 × 48 × 55 mm |
| Certifications |
CE, RoHS & ECE |
| Weight |
0.3 kg |
📦 What’s Included
-
1 × STEDI™ 10W Mini V2 Marine White LED Flood Light (5700K)
-
2 × M6 Bolts
-
1 × Nylock Nut + 1 × Standard Nut
-
1 × Flat Washer + 1 × Lock Washer
-
Male & Female Deutsch Connectors
⚓ Ideal Marine Applications
-
Deck or cabin lighting
-
Boat transom or anchor lighting
-
Dock, trailer, or pontoon illumination
-
Engine bay and under-gunwale lighting
-
Utility or work lighting in marine environments
