High Performance. Accessible Price. Refined Design.
Introducing the STEDI™ TYPE-X™ SPORT 7" — the compact powerhouse redefining accessible performance lighting.
Engineered with precision, design, and detail at its core, the 7" Type-X™ Sport inherits the legendary DNA of the original Type-X™ while bringing cutting-edge advancements in optics, build quality, and styling.
With its balanced beam pattern, enhanced optical depth, and remarkable 895 m beam throw, this driving light delivers class-leading visibility without compromise.
🔑 Key Features
✅ Incredible Performance: 895 m beam distance (pair tested) with smooth width and distance balance

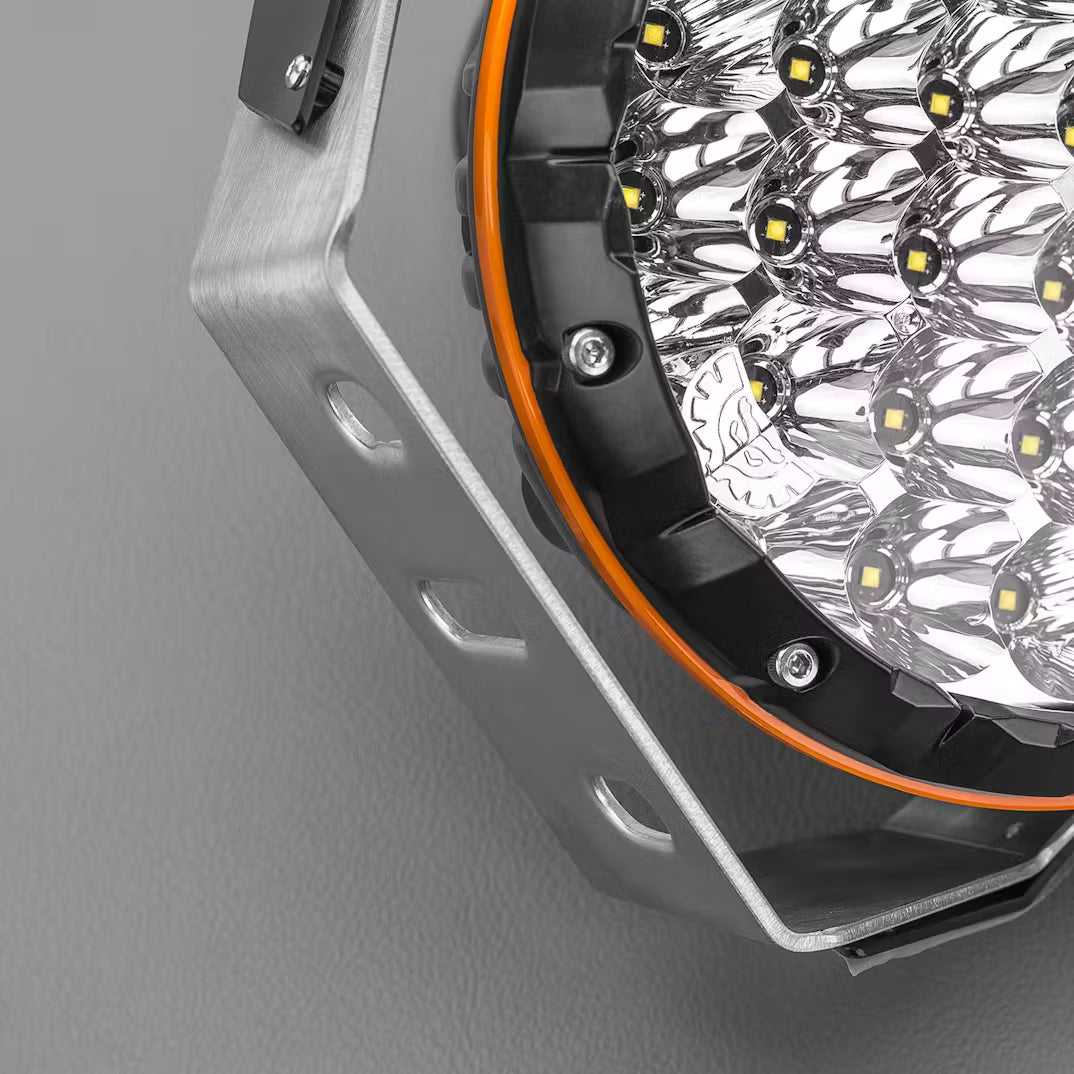

💡 32 OSRAM Oslon LEDs: Industry-leading luminous flux and optical efficiency
🌈 Integrated Flood Optics: 4 dedicated wide-beam reflectors for superior near-field coverage
💧 IP68 Rated: Fully dustproof and waterproof – submersible up to 3 m

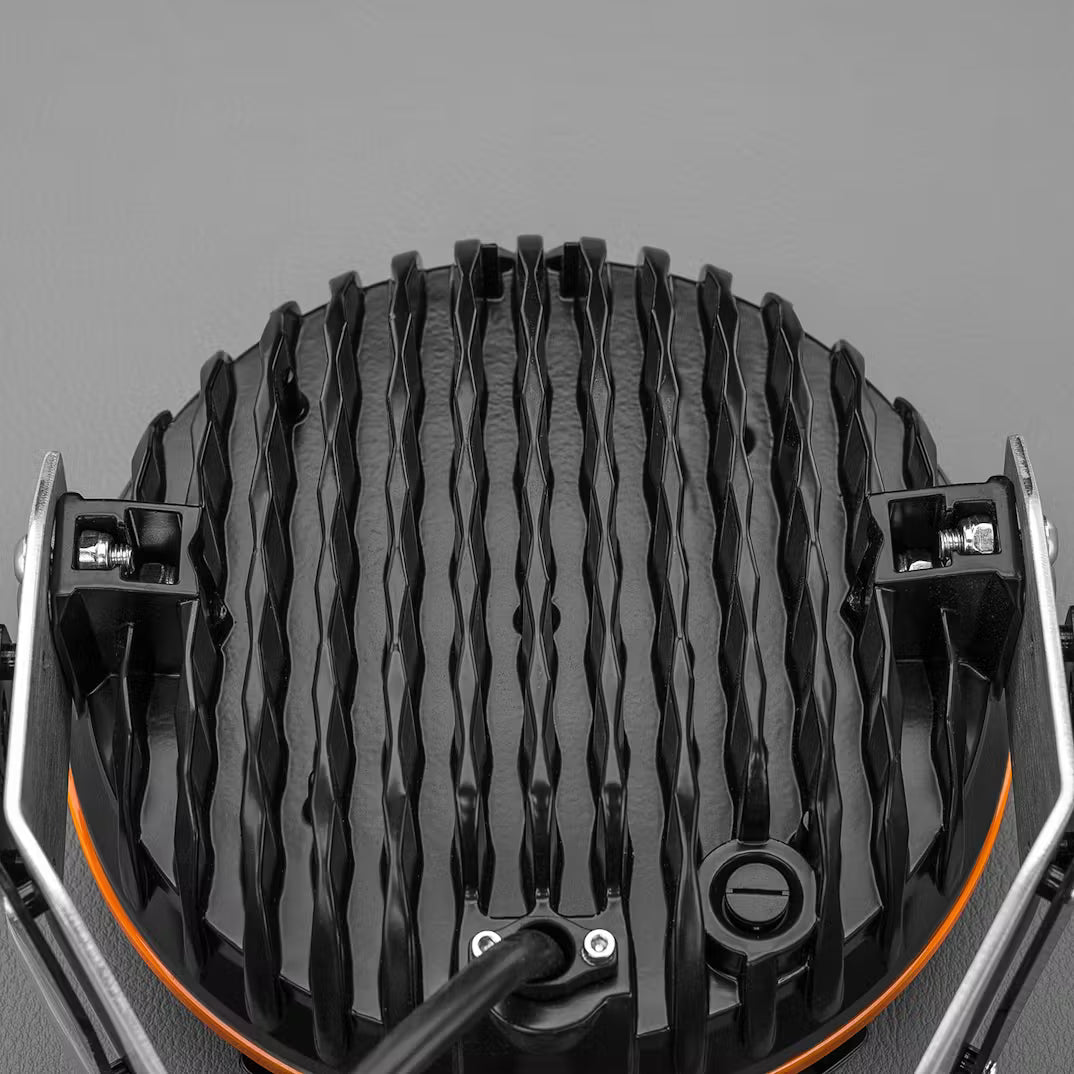

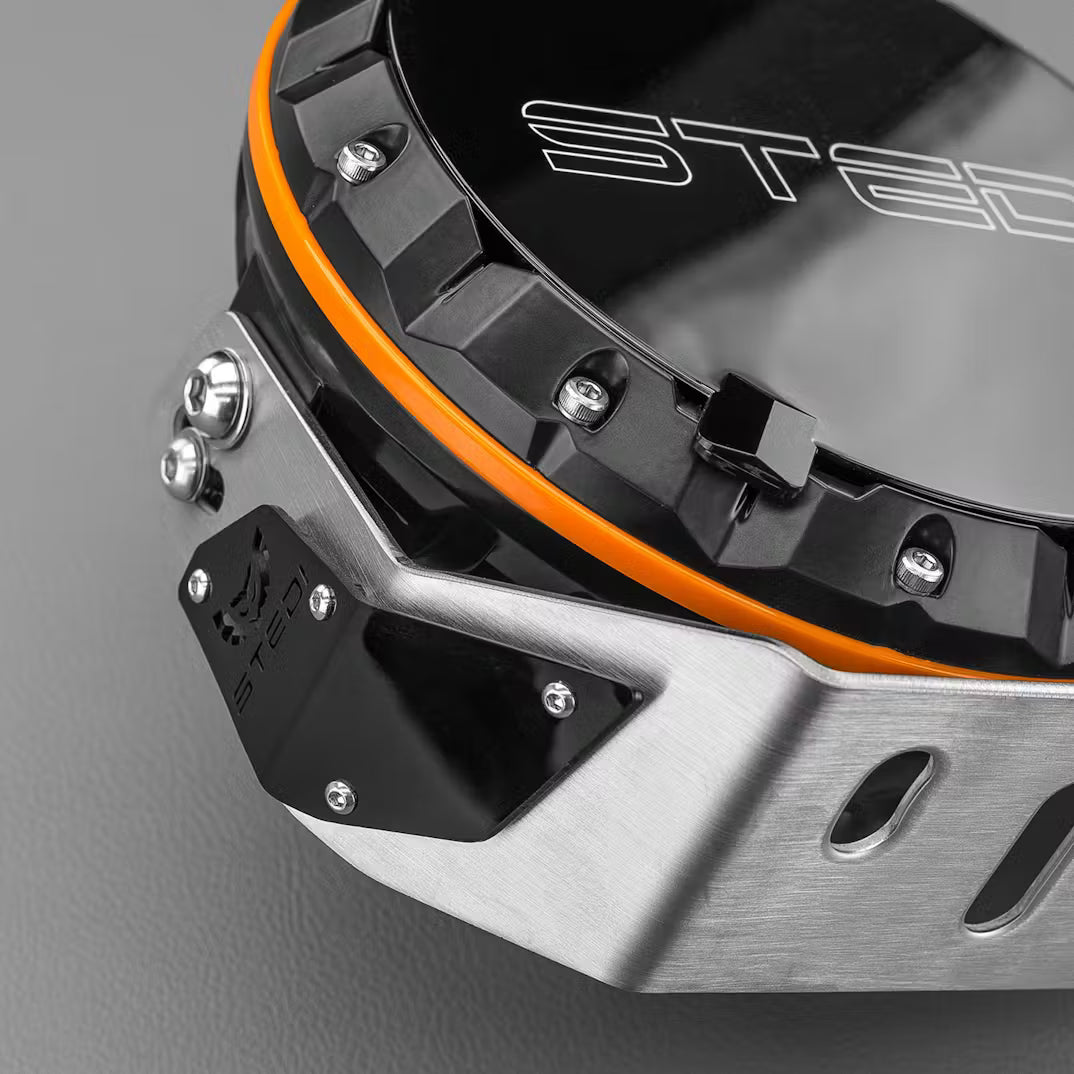

⚙️ Rugged Construction: 4 mm stainless-steel bracket + cast A360 aluminium housing
🔩 Virtually Unbreakable Lens: 3 mm GE Lexan with hard coating for scratch resistance
🧊 UV-Resistant Finish: 100% polyester powder coat for corrosion resistance and longevity
🌡️ Colour Temperature: 5700 K True White for natural colour rendering and definition
🔌 Plug & Play Integration: Includes complete high-beam wiring harness with adapters

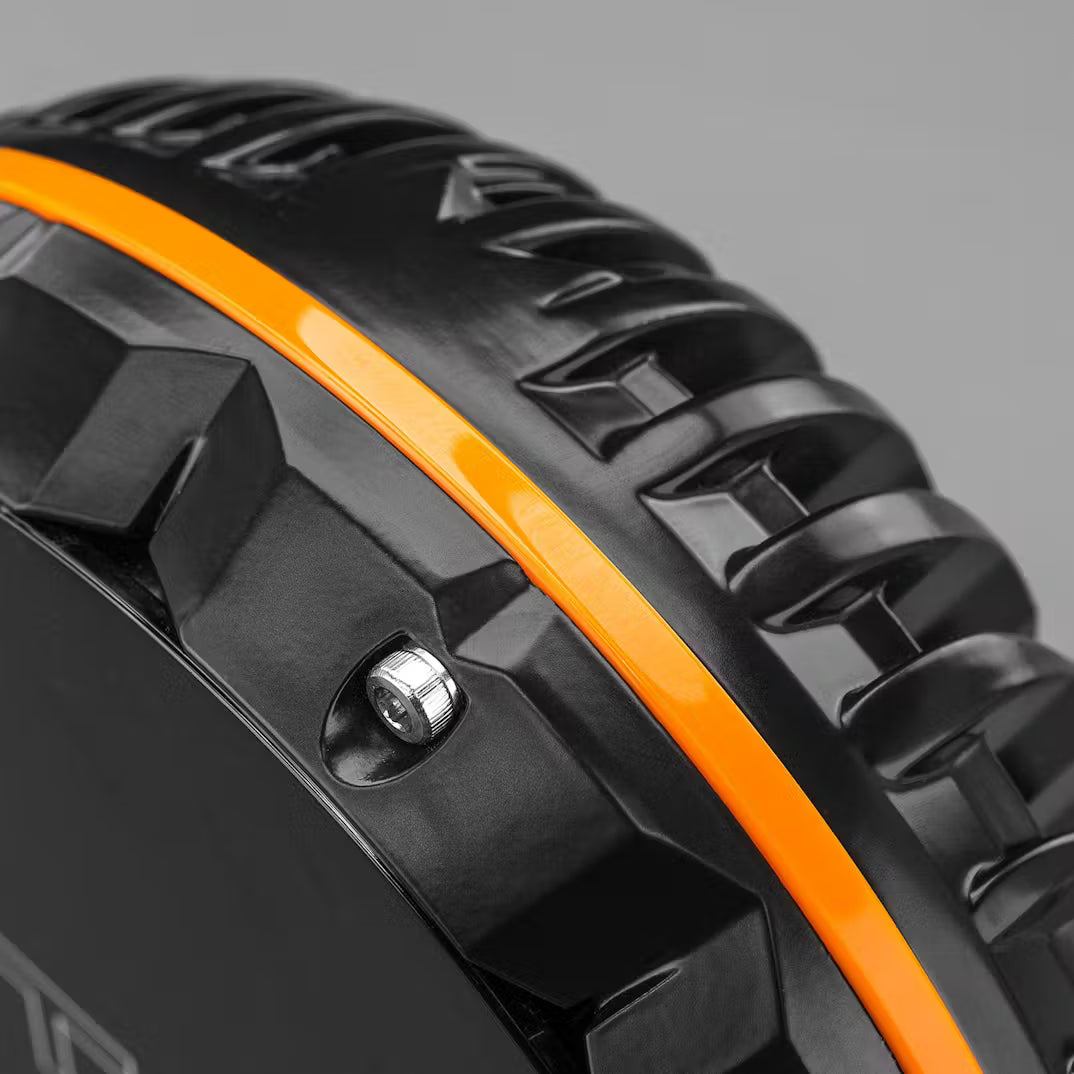

🧰 Signature Design: Laser-cut STEDI™ branding and signature orange rim styling
⏳ Longevity: 50,000+ hour LM-80 LED lifespan
💥 Benefits
-
Compact 7" housing with full-size light performance
-

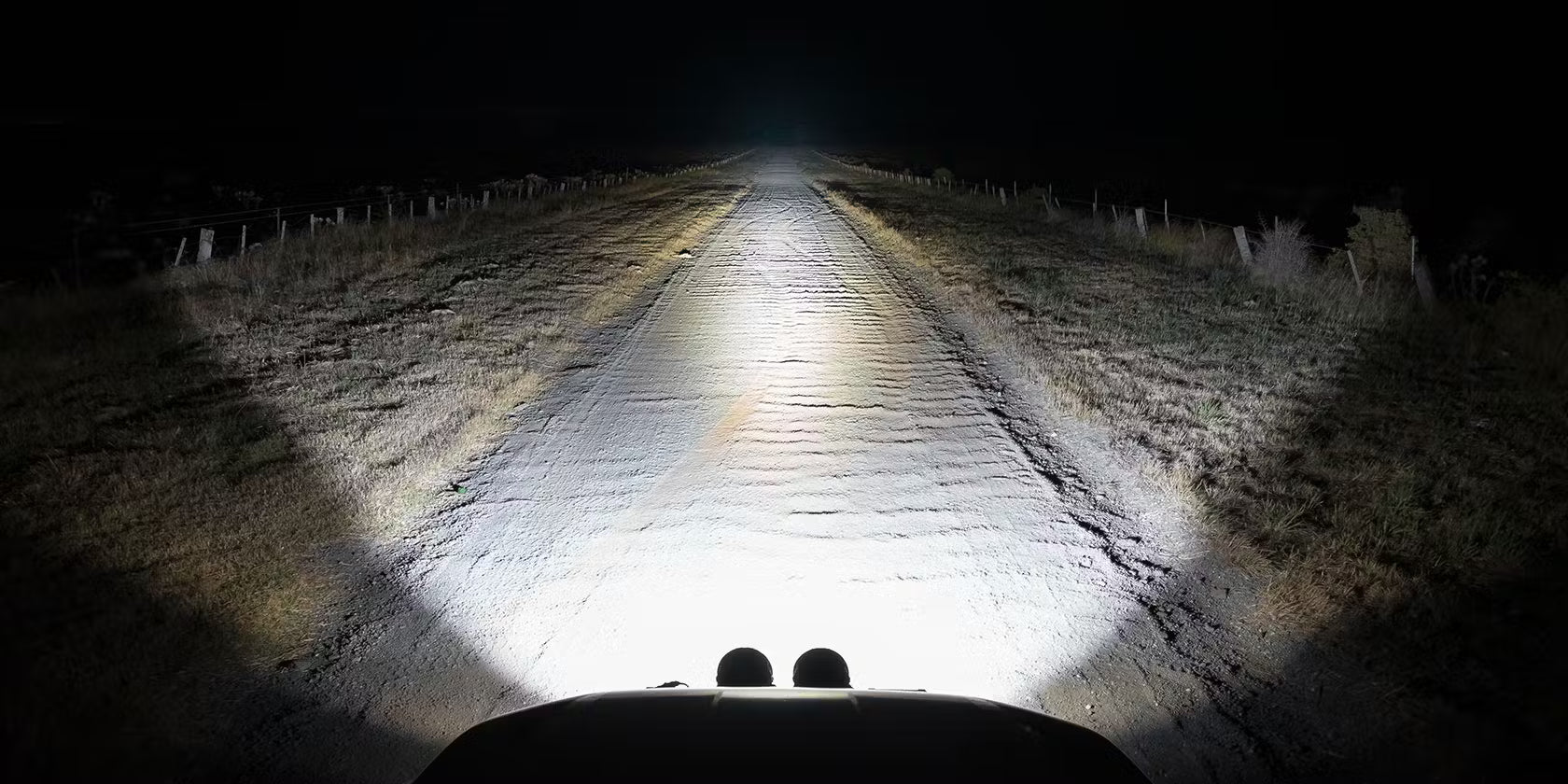

Balanced beam pattern with wide shoulder illumination
-
Durable construction for extreme off-road and touring use
-
Refined, automotive-inspired styling for modern vehicles
-
Exceptional clarity, efficiency, and durability at a truly accessible price
📦 What’s Included
-

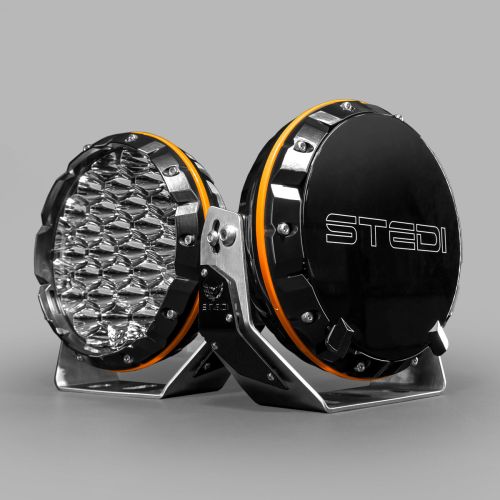

2 × STEDI™ 7" TYPE-X™ SPORT LED Driving Lights
-
2 × STEDI™ Black-Out Protective Covers
-

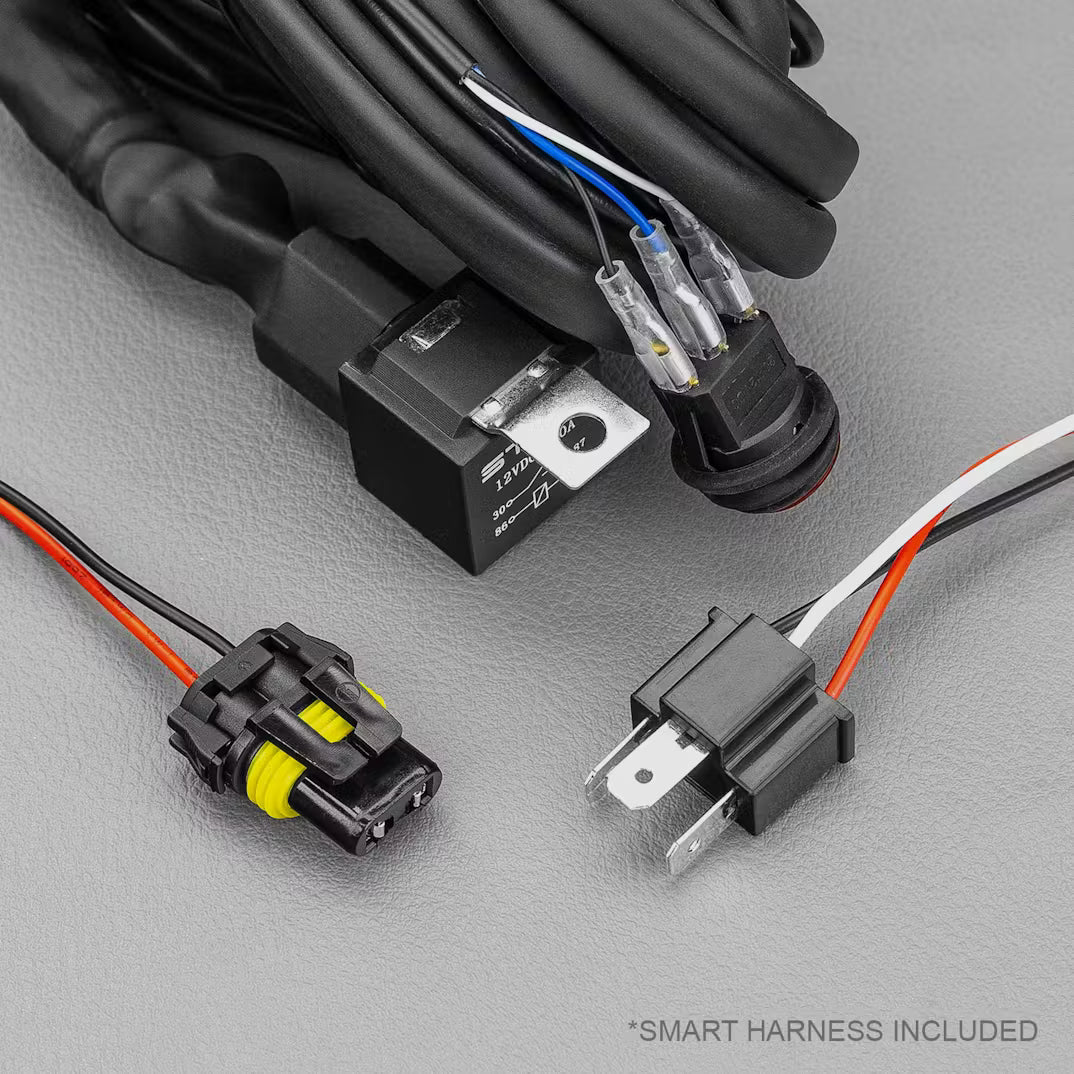

1 × Easy Fit High Beam Wiring Harness
-
Complete 3-Series Stainless-Steel Fastener Kit
-
Rubber Shock Dampener
-
Wiring Instructions
⚙️ Technical Specifications
| Specification |
Details |
| LEDs |
32 × OSRAM Oslon SSL LEDs |
| Raw Lumens |
16,640 lm (pair) |
| Tested Lumens |
12,820 lm (pair) |
| Amp Draw |
6.4 A @ 13.2 V (each) |
| Power Draw |
85 W (each) |
| Candela |
819,200 cd |

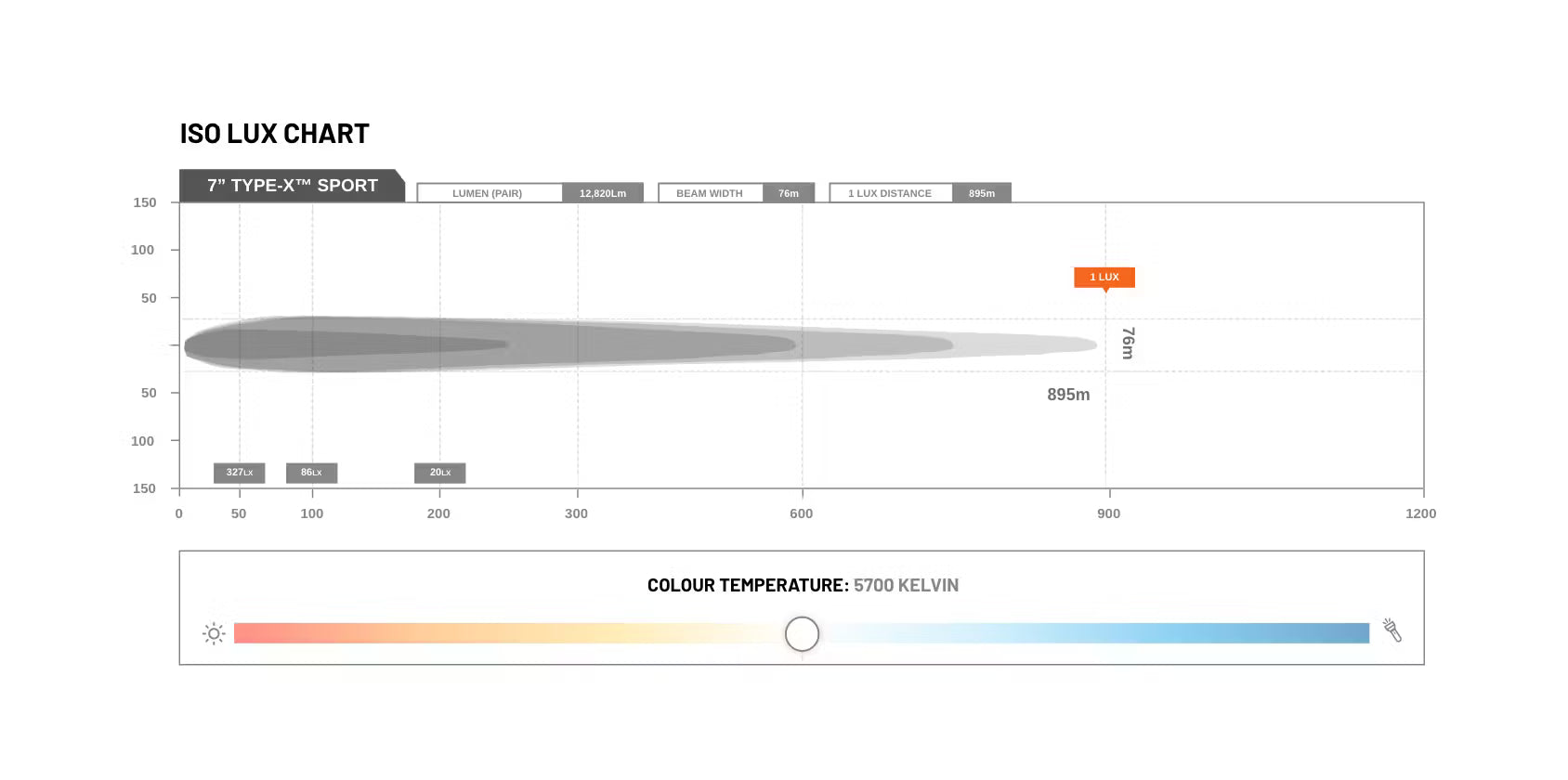

| 1 Lux Distance |
895 m (pair) |
| Beam Pattern |
4 × Spread / 28 × Spot Beam |
| Ingress Protection |
IP68 – Submersible up to 3 m |
| Colour Temperature (CCT) |
5700 K |
| Voltage Compatibility |
12 V & 24 V DC |
| Lumen Maintenance |
50,000 hr LM-80 rated |
| Weight |
2.25 kg (each) |
| Operating Temperature |
–40 °C to +60 °C |
🛡️ Why Choose the STEDI™ TYPE-X™ SPORT 7"?
📦 Fast global shipping
💳 Flexible financing available
🧰 Easy installation with included harness
🛡️ Covered by a 5-Year STEDI™ Replacement Warranty
