Evolution Adapts. Designed for Real-World Vision.
The STEDI™ TYPE-X™ EVO 7" Flood Beam continues the evolution of driving lights, combining design, power, and performance in a perfectly balanced 7” package. Following the success of the 8.5” TYPE-X™ EVO, this compact version brings the same next-generation engineering and craftsmanship to smaller mounting locations — without sacrificing capability.
With over 475 m of elongated horizontal illumination and 140 m of lateral spread, the Flood Beam delivers unmatched coverage of the critical zone ahead. Whether on open highways or challenging off-road tracks, TYPE-X™ EVO provides the clarity, precision, and control you need to drive with confidence.
🔑 Key Features
✅ Dedicated Flood Optics: Ultra-wide 30° beam for maximum horizontal visibility

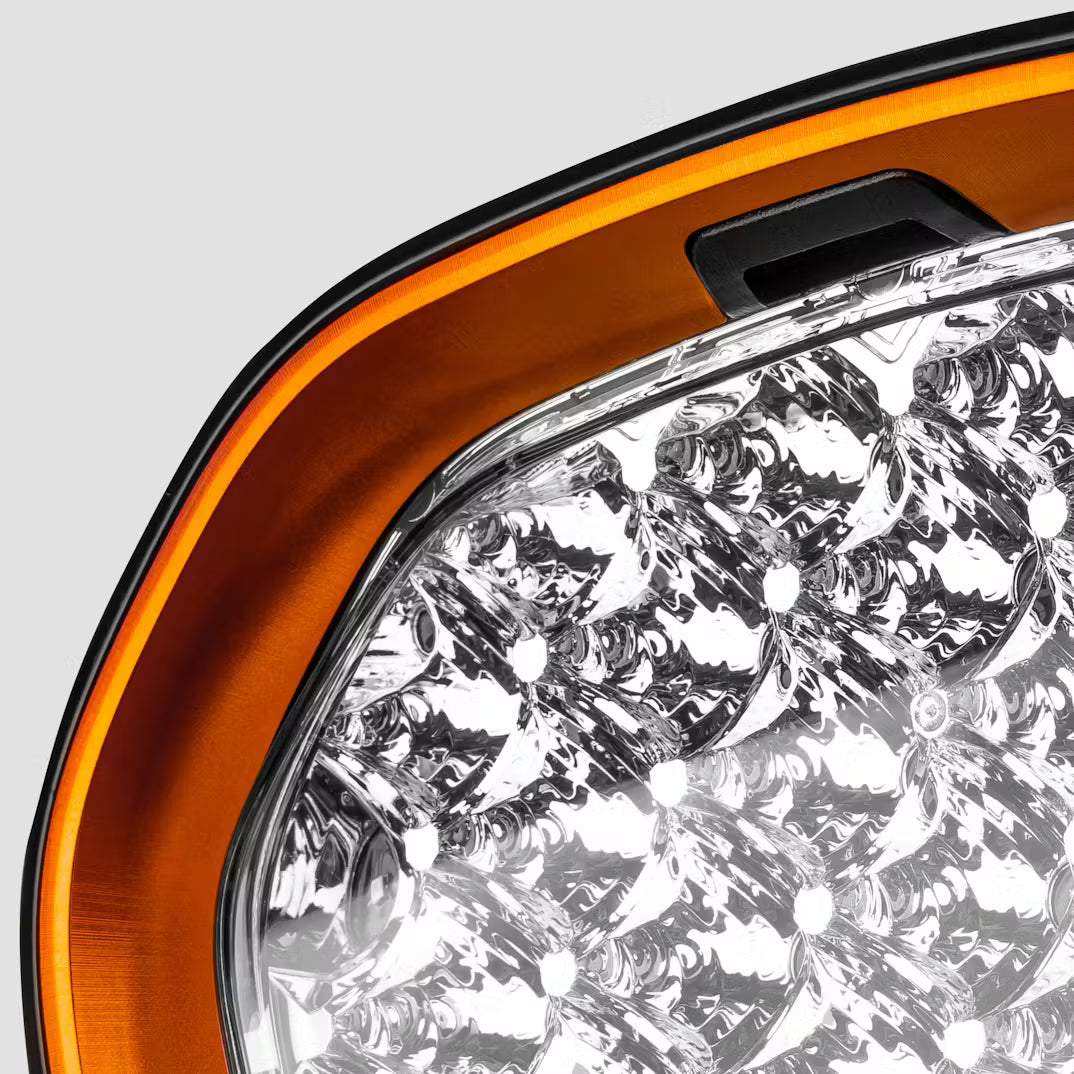

💡 Balanced Performance: 32 × CREE XP LEDs for efficient, high-output illumination

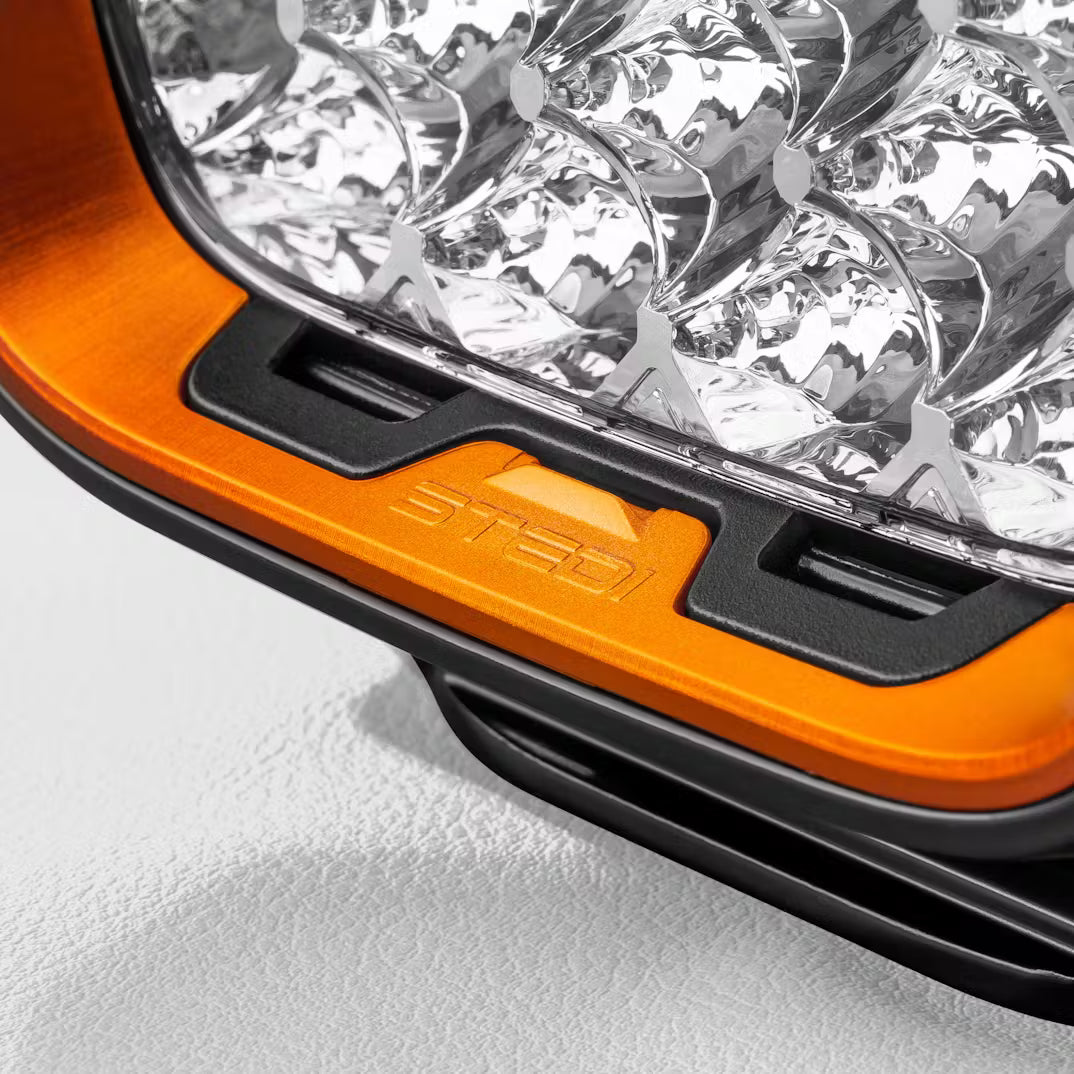

🌈 Tool-Free Customisation: Includes orange & grey brushed-metallic fascias
🌡️ Colour Temperature: 5000 K True White – natural daylight clarity
💧 IP68 Rating: Dustproof & waterproof – submersible up to 3 m

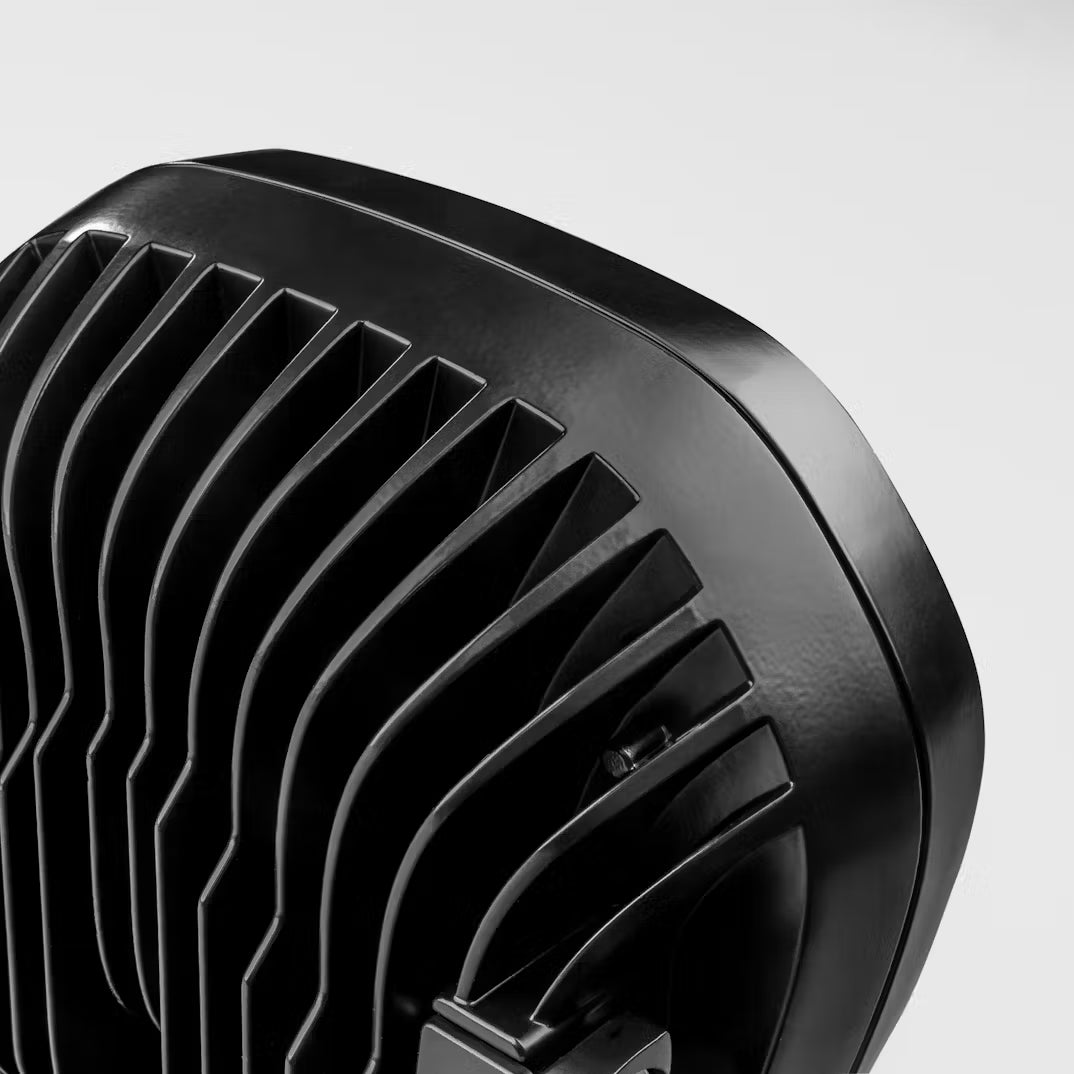

🧊 Advanced Thermal Design: High-efficiency heat dissipation for consistent output
⚙️ Voltage Compatibility: 12 V & 24 V systems

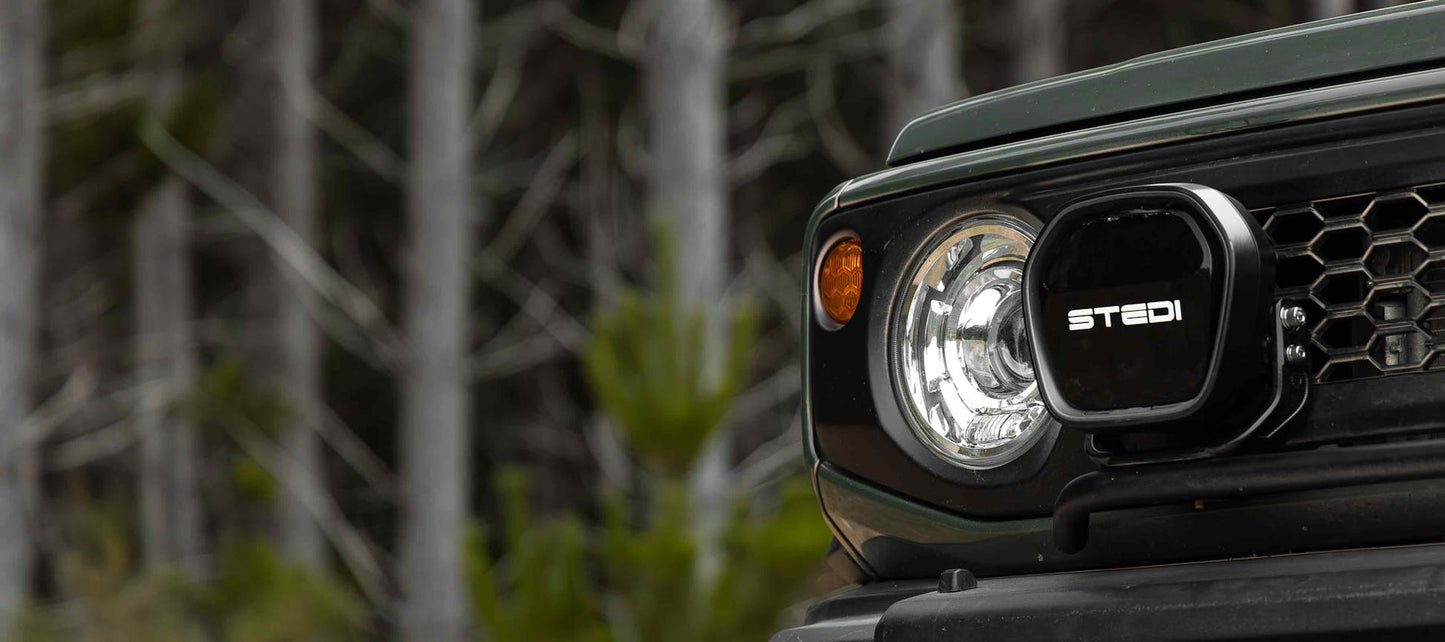

🔩 Compact Fitment: Ideal for modern vehicles & limited-space installations
🧳 Premium Packaging: Supplied in a reusable, water-resistant STEDI™ hard case
⏳ Durability: 50,000+ hour LED lifespan, LM-80 certified
💥 Benefits
-
Wide-angle beam for superior roadside and peripheral illumination
-
Perfect for off-road, rural, and touring environments
-
Compact 7” design fits tight spaces while maintaining big-light performance
-
Sleek, modern silhouette inspired by advanced automotive styling
-
Mix with TYPE-X™ EVO Spot Beam for a perfectly balanced beam combo
-
Fast, tool-free fascia swaps for complete personalisation
📦 What’s Included
-

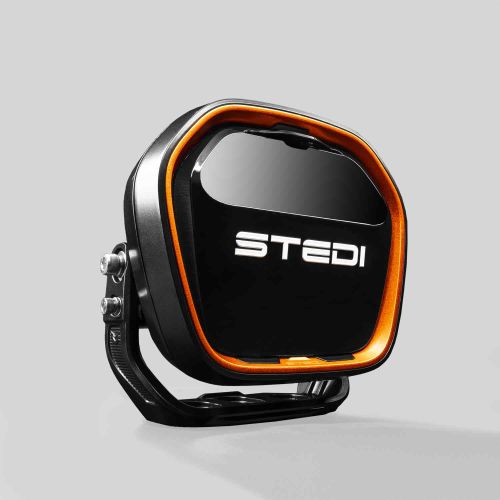

1 × STEDI™ TYPE-X™ EVO 7" LED Driving Light (Flood Beam)
-

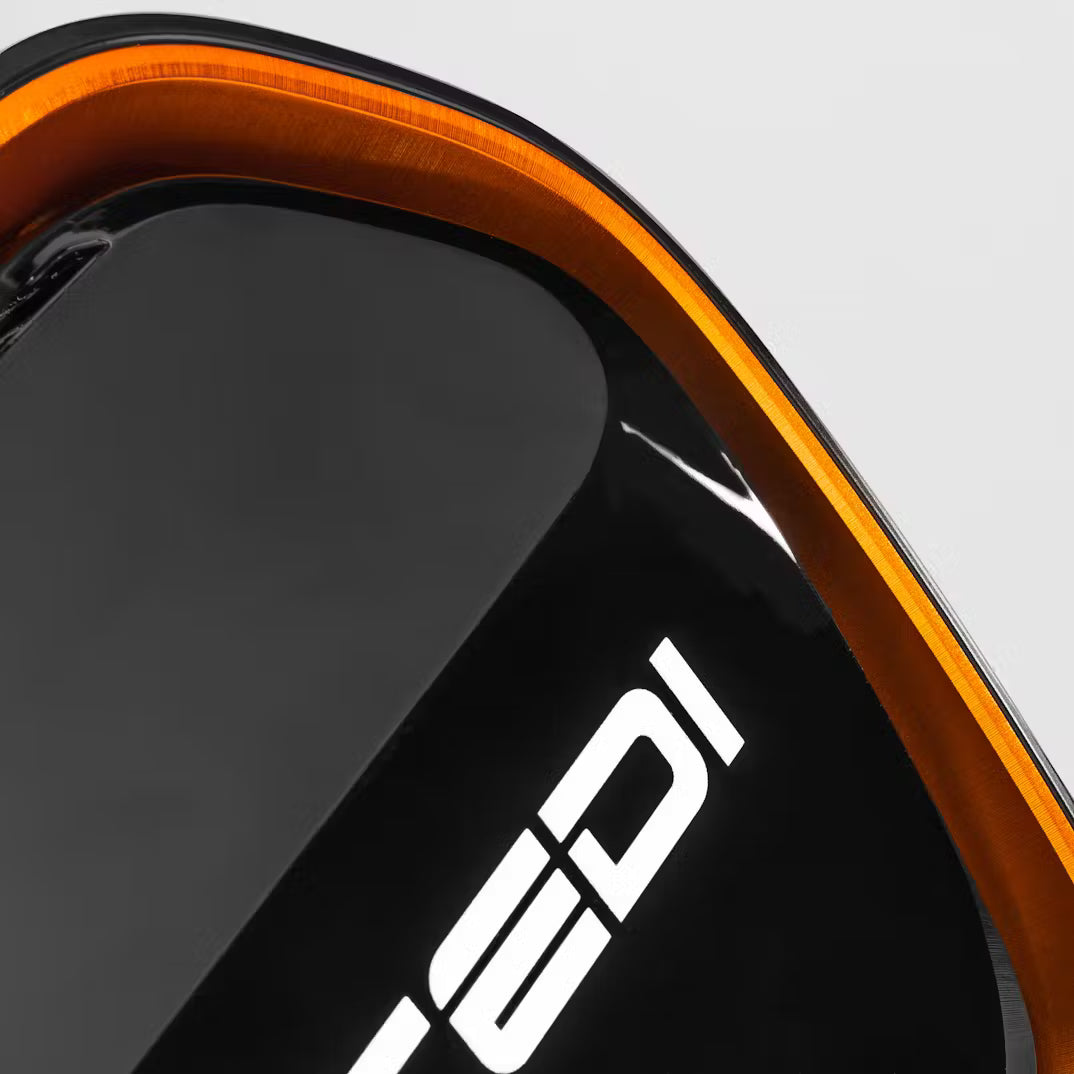

1 × Protective STEDI™ Black-Out Cover
-
1 × Grey Colour Fascia
-
1 × Orange Colour Fascia
-
1 × TYPE-X™ EVO 7" Carry Case
-

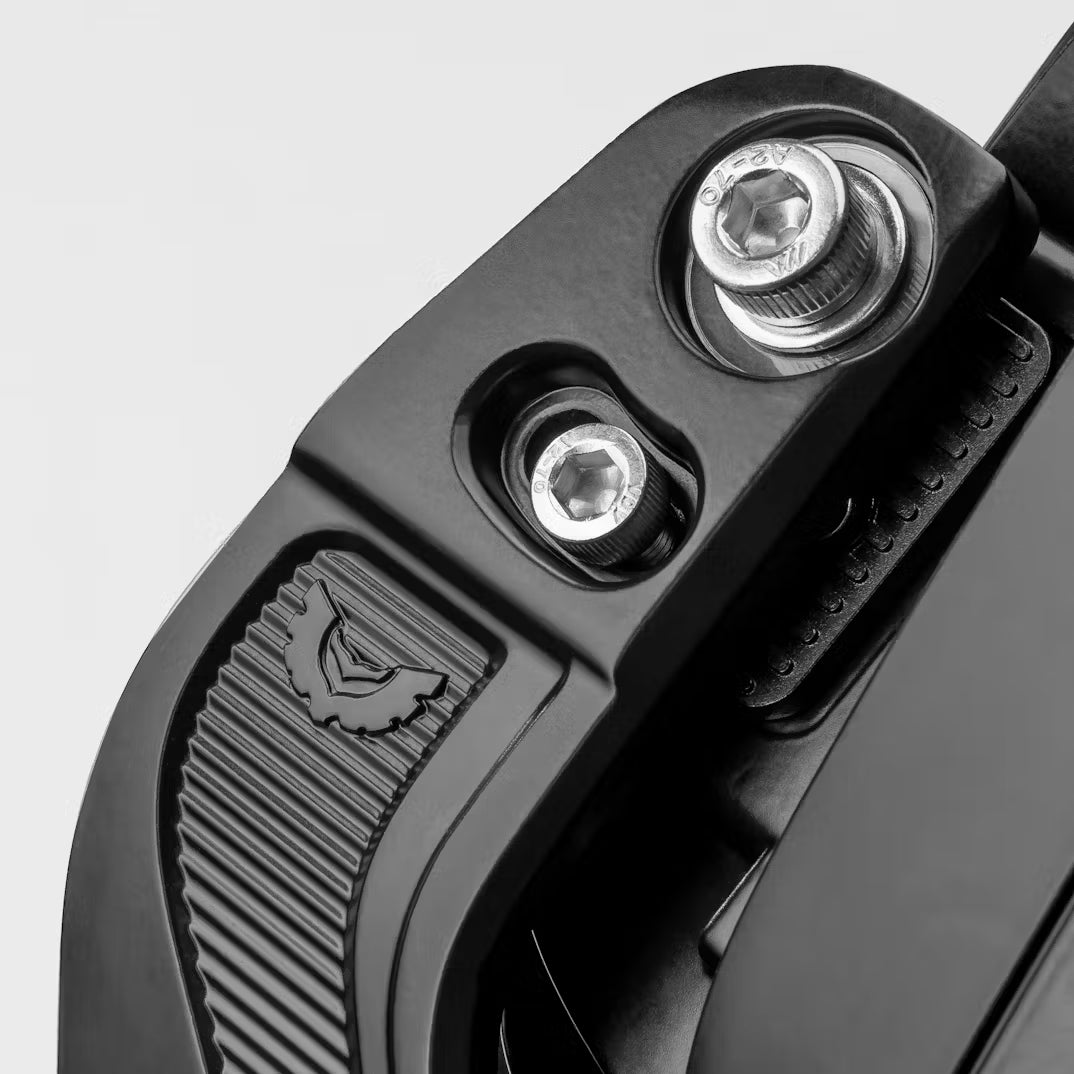

Complete Bracket & Stainless-Steel Fastener Kit
-
Fitting Instructions
⚙️ Technical Specifications
| Specification |
Details |
| LEDs |
32 × CREE LEDs (each) |
| Raw Lumens |
8,200 lm (each) |
| Tested Lumens |
7,000 lm (each) |
| Amp Draw |
8.5 A @ 12 V / 4.25 A @ 24 V (each) |
| Power Draw |
95 W (each) |
| Candela |
207,000 (each) / 414,000 (pair) |

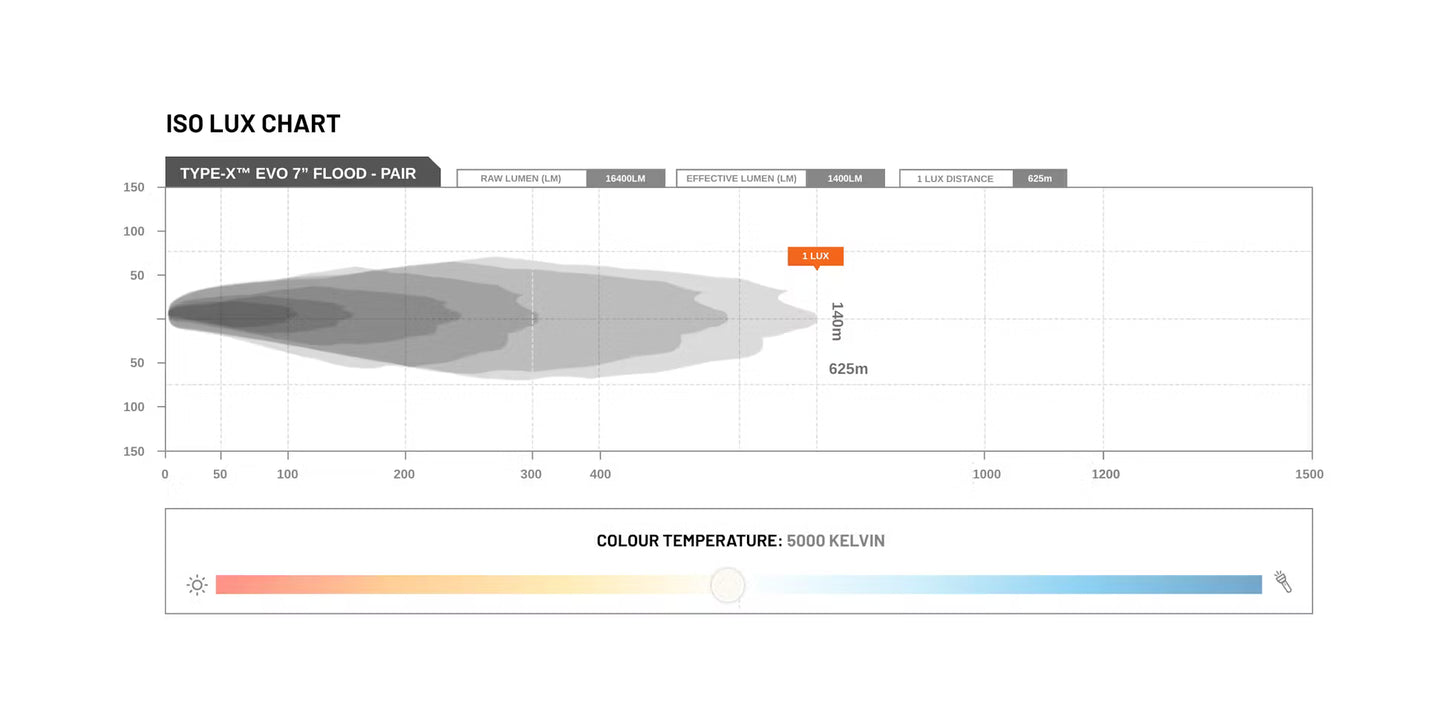

| 1 Lux Distance |
625 m (pair) |
| Beam Pattern |
32 × 30° Flood Spread |
| Ingress Protection |
IP68 – Submersible up to 3 m |
| Colour Temperature (CCT) |
5000 K |
| Lumen Maintenance |
30,000 hr LM-80 rated |
| Voltage Compatibility |
12 V & 24 V DC |
| Weight |
2.35 kg (each) |
| Operating Temperature |
–40 °C to +60 °C |
🛡️ Why Choose the STEDI™ TYPE-X™ EVO 7" Flood Beam?
📦 Fast worldwide shipping
💳 Flexible payment options
🧰 Expert installation support
🛡️ Backed by a 5-Year STEDI™ Replacement Warranty
