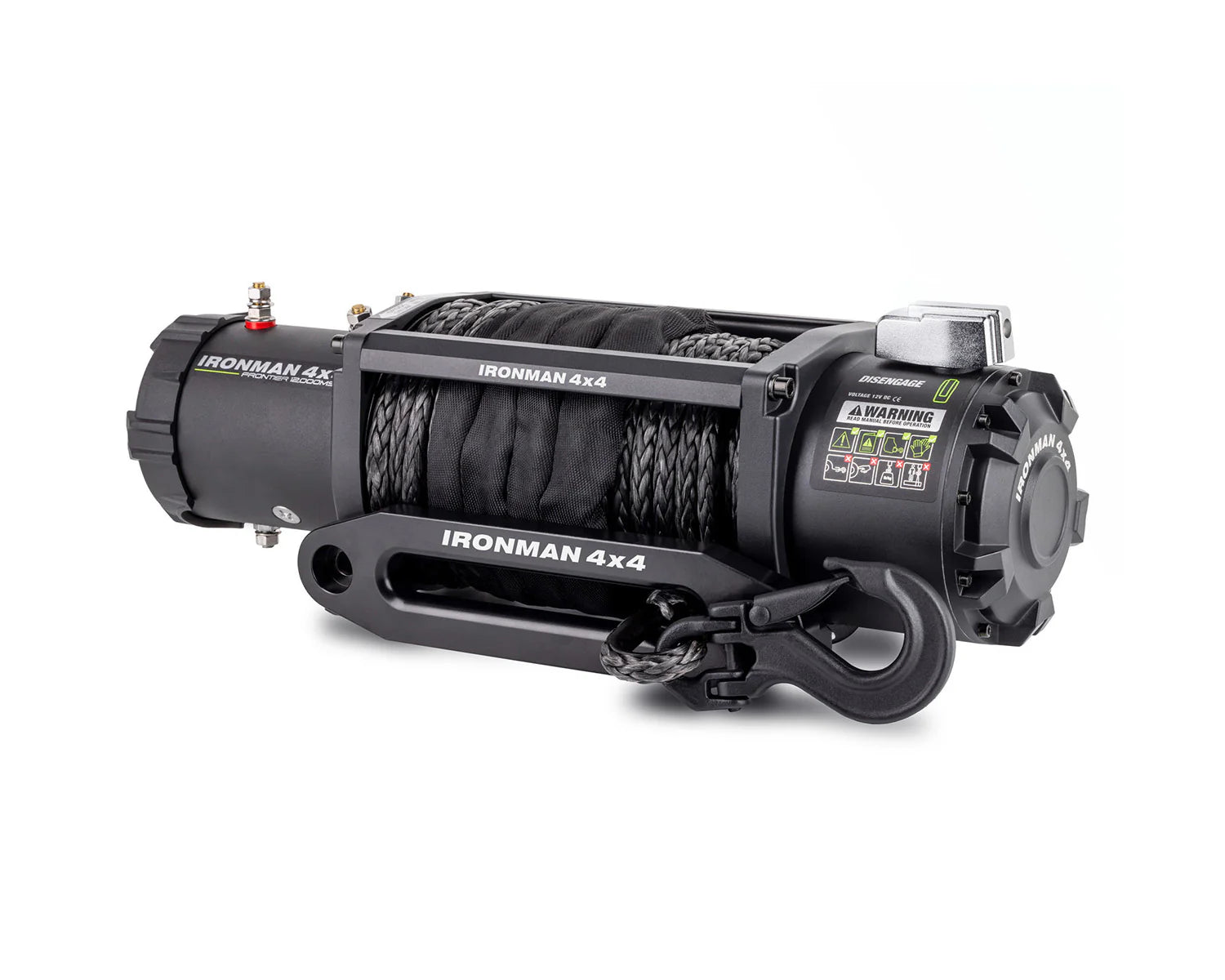

The Frontier Winch Range is the result of over a decade of development, engineered for superior durability, power, and reliability in the harshest environments. With its low-maintenance synthetic rope, advanced sealing, and powerful motor, this winch is built to perform when recovery matters most.
Designed for serious off-roaders, overlanders, and adventurers, the Frontier Winch combines rugged performancewith modern technology—including dual remote functionality for ultimate convenience and control.
Key Features
-
Superior Durability – Over 10 years of proven design and synthetic rope built to withstand extreme use
-
Water Resistant (IP68) – Submersible up to 5 ft for 30 minutes without performance loss
-
Advanced Breather Technology – Expels moisture to protect seals and extend service life
-
Dual Remote Functionality – Choose between wireless or plug-in remote control for flexible, safe operation
-
Powerful Performance – 6 HP motor with 12,000 lb capacity and up to 34 ft/min line speed
-
Long-Term Warranty – Backed by a 5-year mechanical warranty
Specifications
-
Brake: Auto cam lock-in brake
-

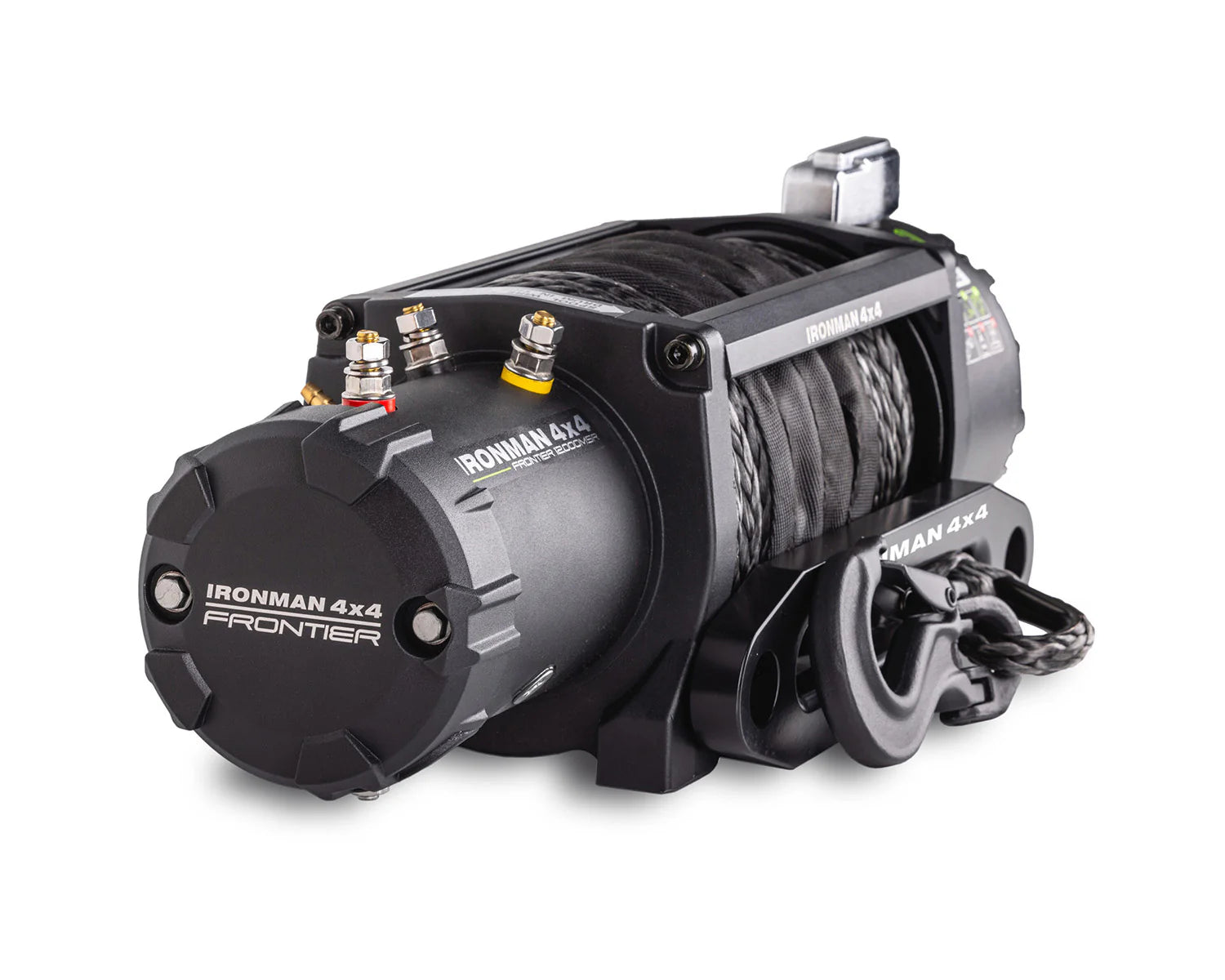

Motor: 6 HP, 12V
-
Rating: IP68
-

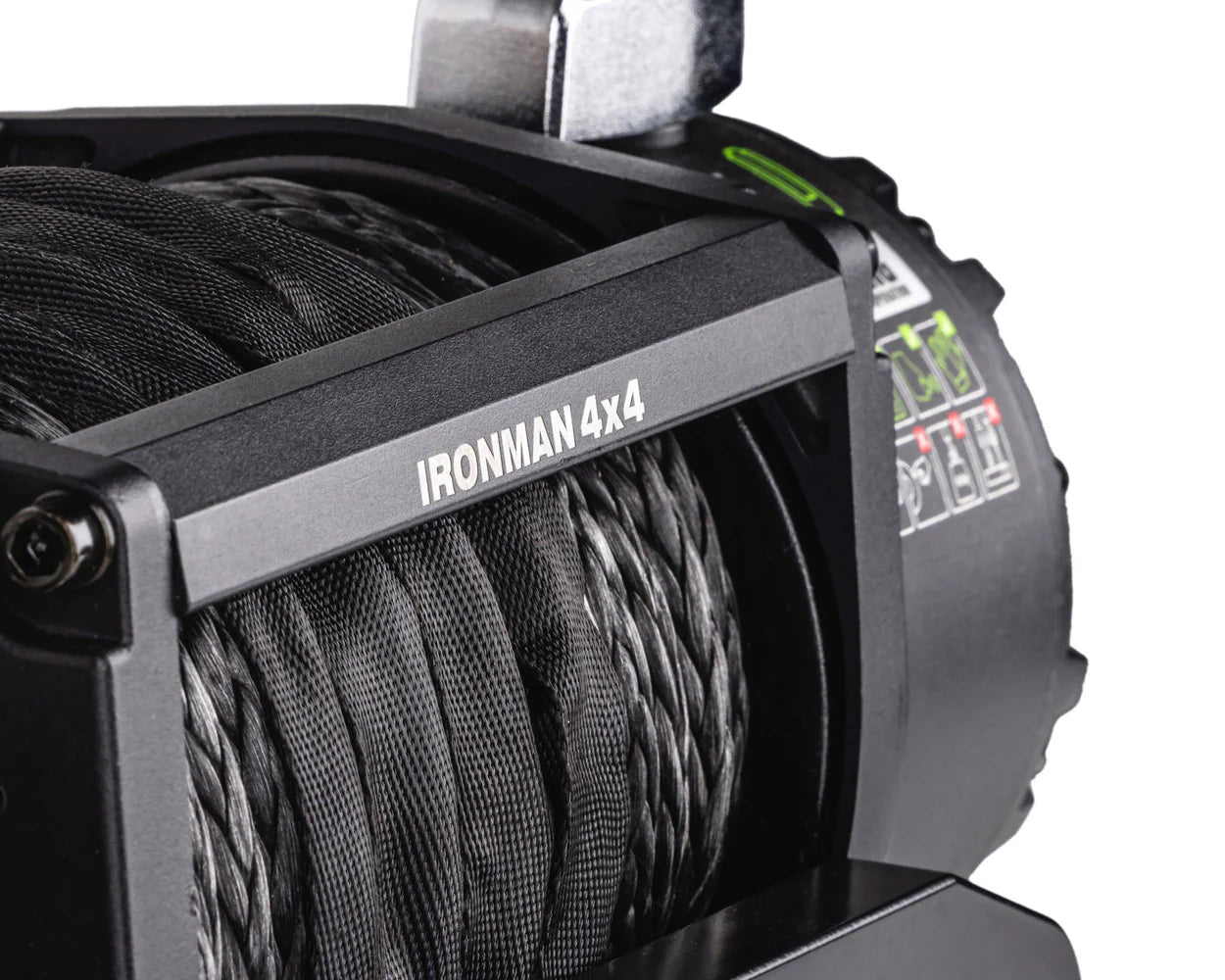

Cable: 3/8" Synthetic Rope, 82 ft length
-
Capacity: 12,000 lb
-
Current Draw @ 12V: 75A normal / 360A max
-
Gear Train: 3-Stage Planetary
-
Reduction Ratio: 218:1
-

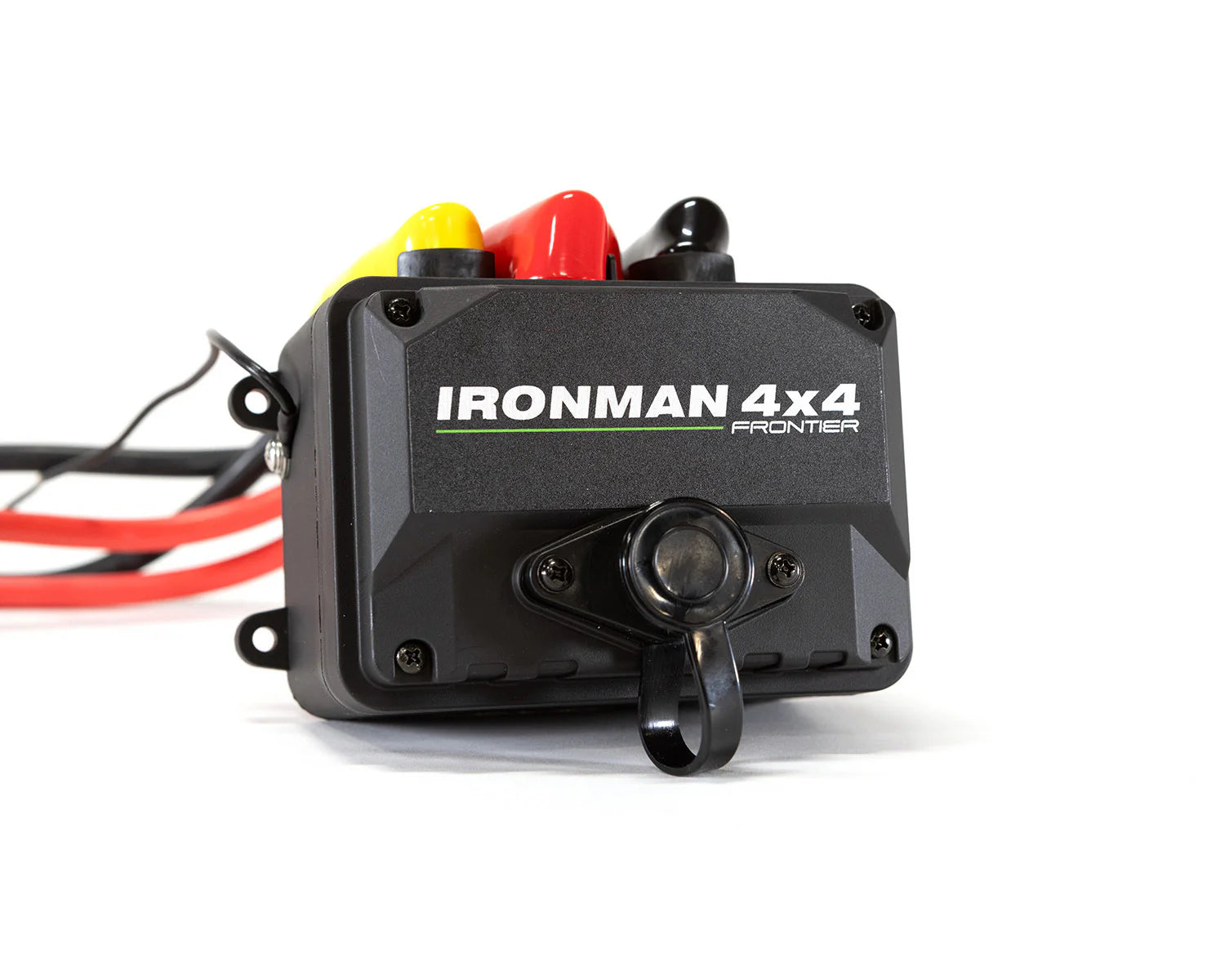

Dimensions (with control box): 21.1" x 6.3" x 10.5"
-
Dimensions (without control box): 21.1" x 6.3" x 7.2"
-
Weight: 61.6 lbs
-

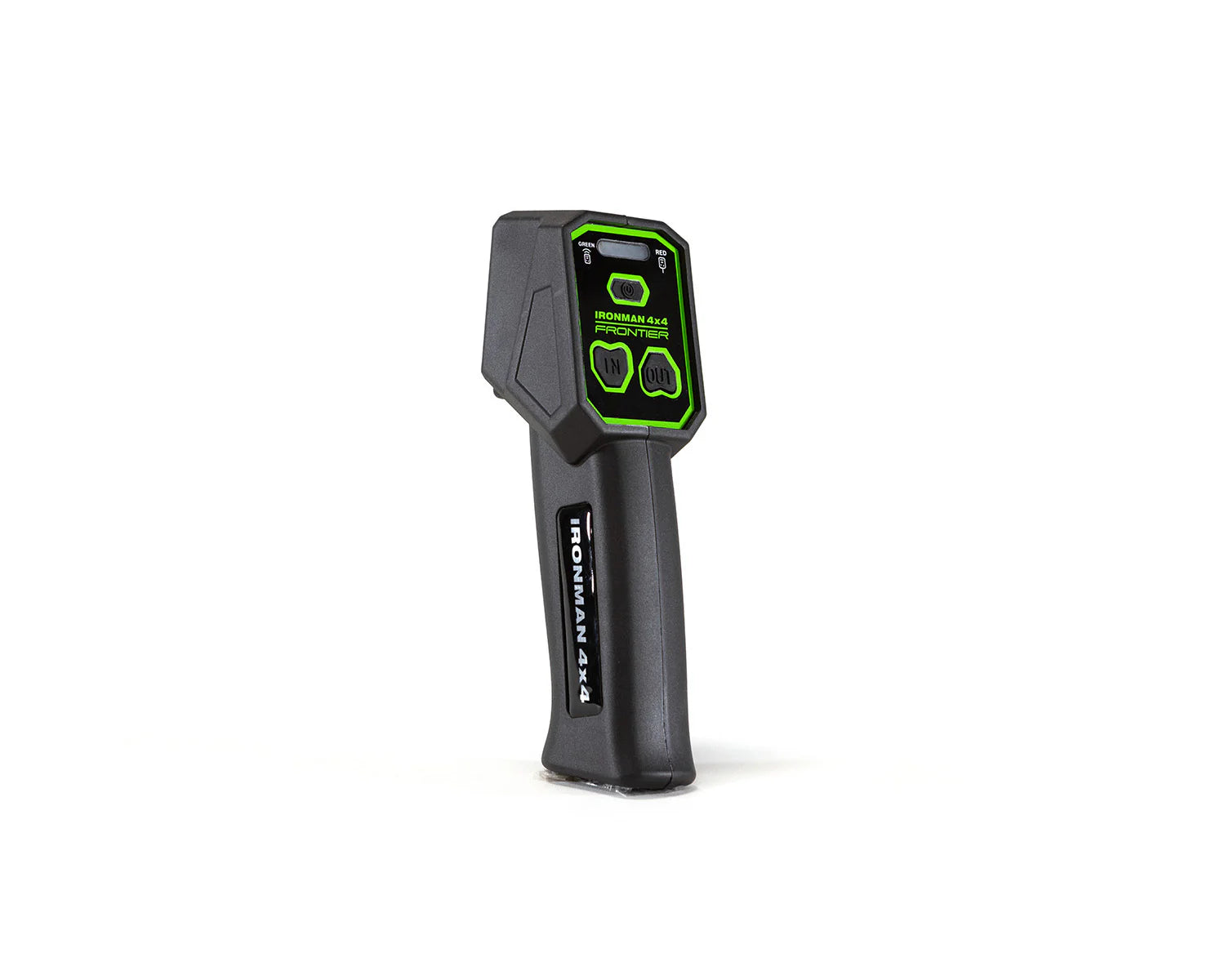

Remote: Wireless + plug-in (wireless remote uses CR2450 battery)
What’s Included
✅ 12,000 lb pulling capacity with synthetic rope
✅ IP68 water-resistant design for extreme conditions
✅ Dual remote controls for safety and convenience
✅ Backed by a 5-year mechanical warranty
