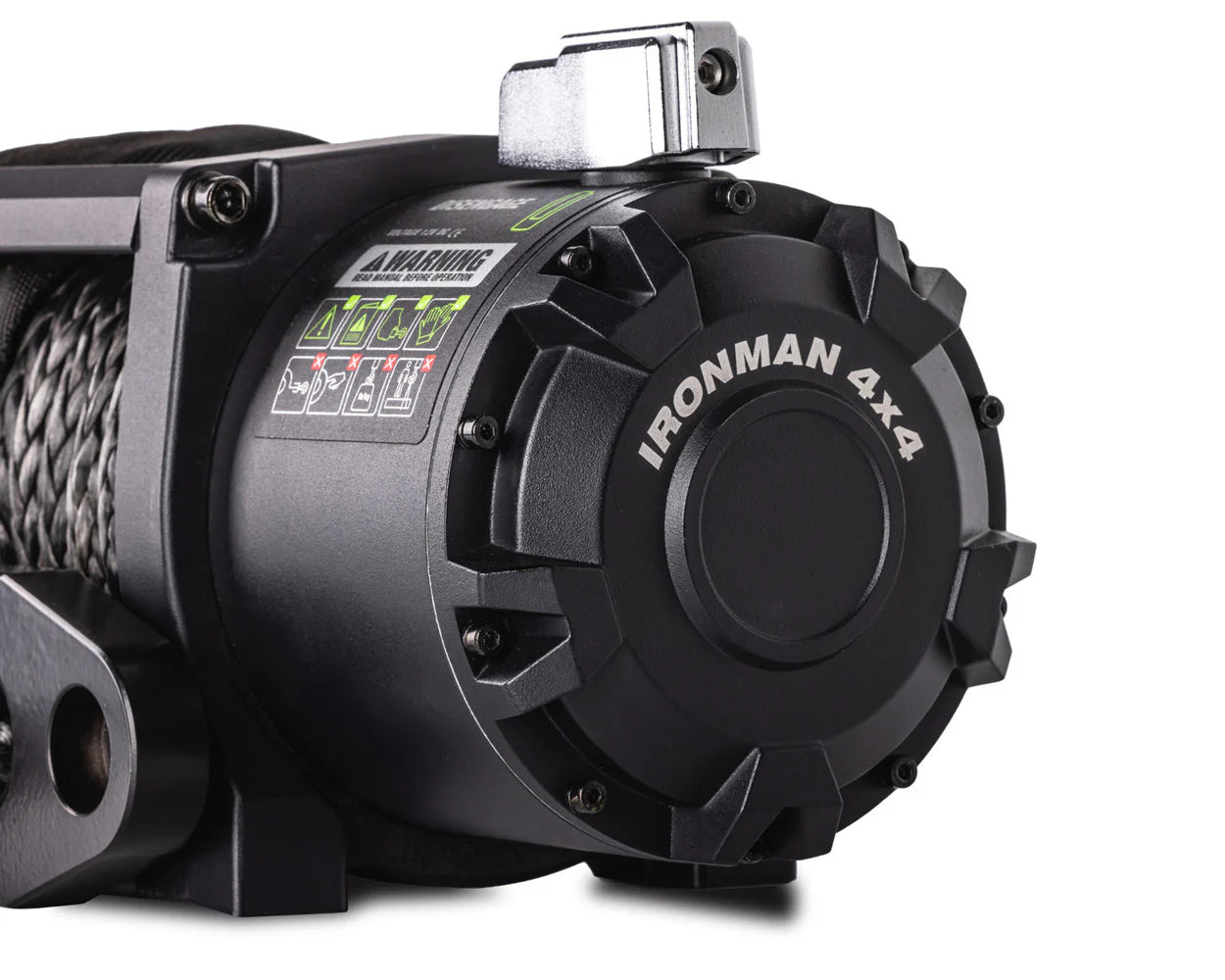

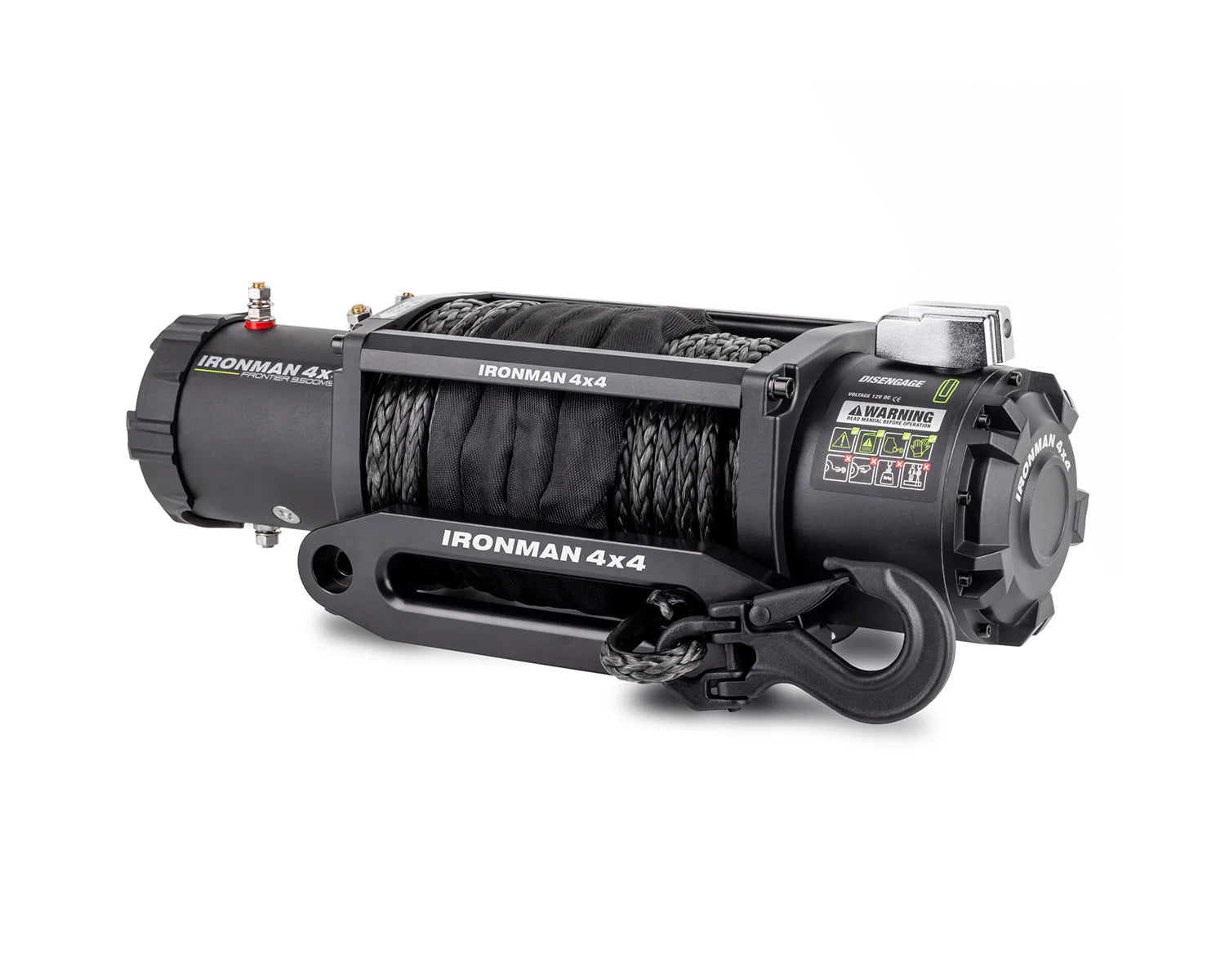

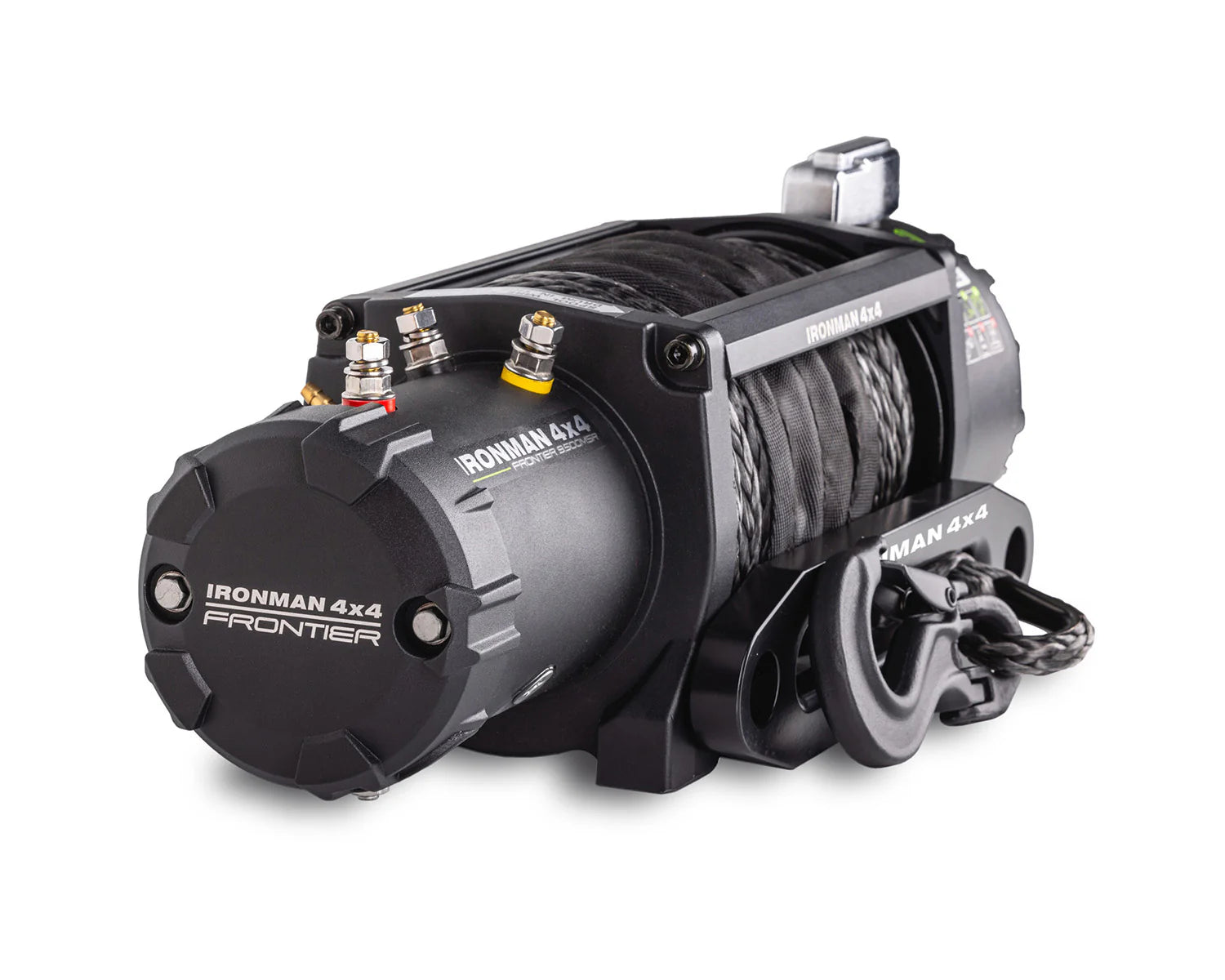

Engineered from over a decade of development, the Frontier Winch Range delivers superior durability, reliability, and performance in the toughest conditions. Featuring a synthetic rope that’s lightweight and low-maintenance, this winch is built to tackle demanding recoveries with confidence.
Its IP68 rating ensures water resistance up to 5 feet for 30 minutes, while the advanced breather system protects seals by expelling moisture, extending the winch’s life in extreme environments. Equipped with both wireless and plug-in remote controls, the Frontier Winch provides flexibility, safety, and convenience in every recovery scenario.
Key Features
-
9,500 lb capacity powered by a 4.5 HP motor
-
Superior durability with synthetic rope for tough conditions
-
IP68 water-resistant rating – submersible up to 5 ft for 30 min
-
Advanced breather technology for seal protection and longevity
-

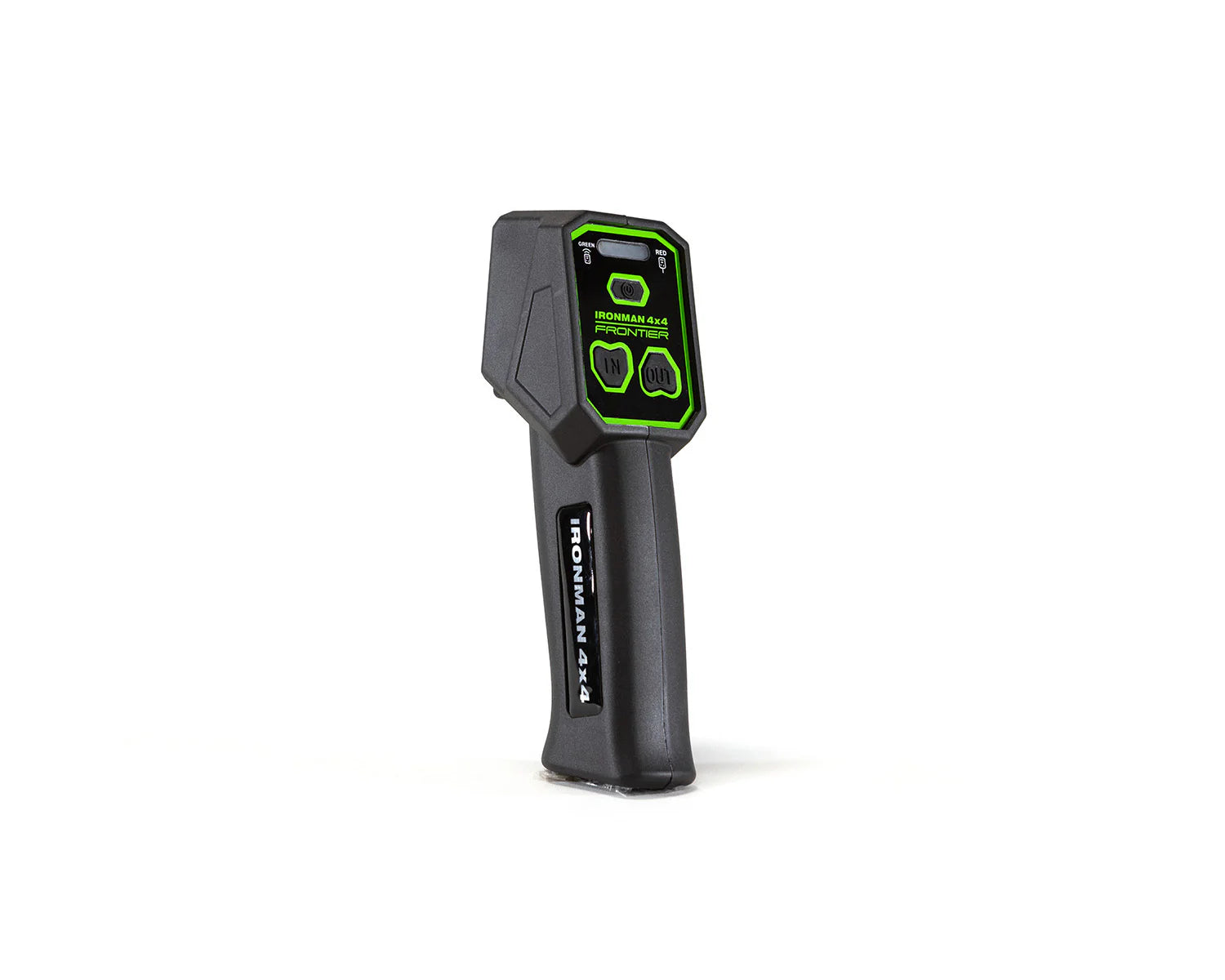

Dual remote functionality – wireless & plug-in included
-
Fast line speed – up to 28 ft/min for efficient recovery
-
5-year mechanical warranty for peace of mind
Specifications
-
Brake: Auto cam lock-in brake
-
Motor: 4.5 HP, 12V
-
Rating: IP68
-
Cable: 3/8" Synthetic Rope, 82 ft length
-
Capacity: 9,500 lb
-
Current Draw @ 12V: 74A normal / 350A max
-
Gear Train: 3-Stage Planetary
-
Reduction Ratio: 218:1
-

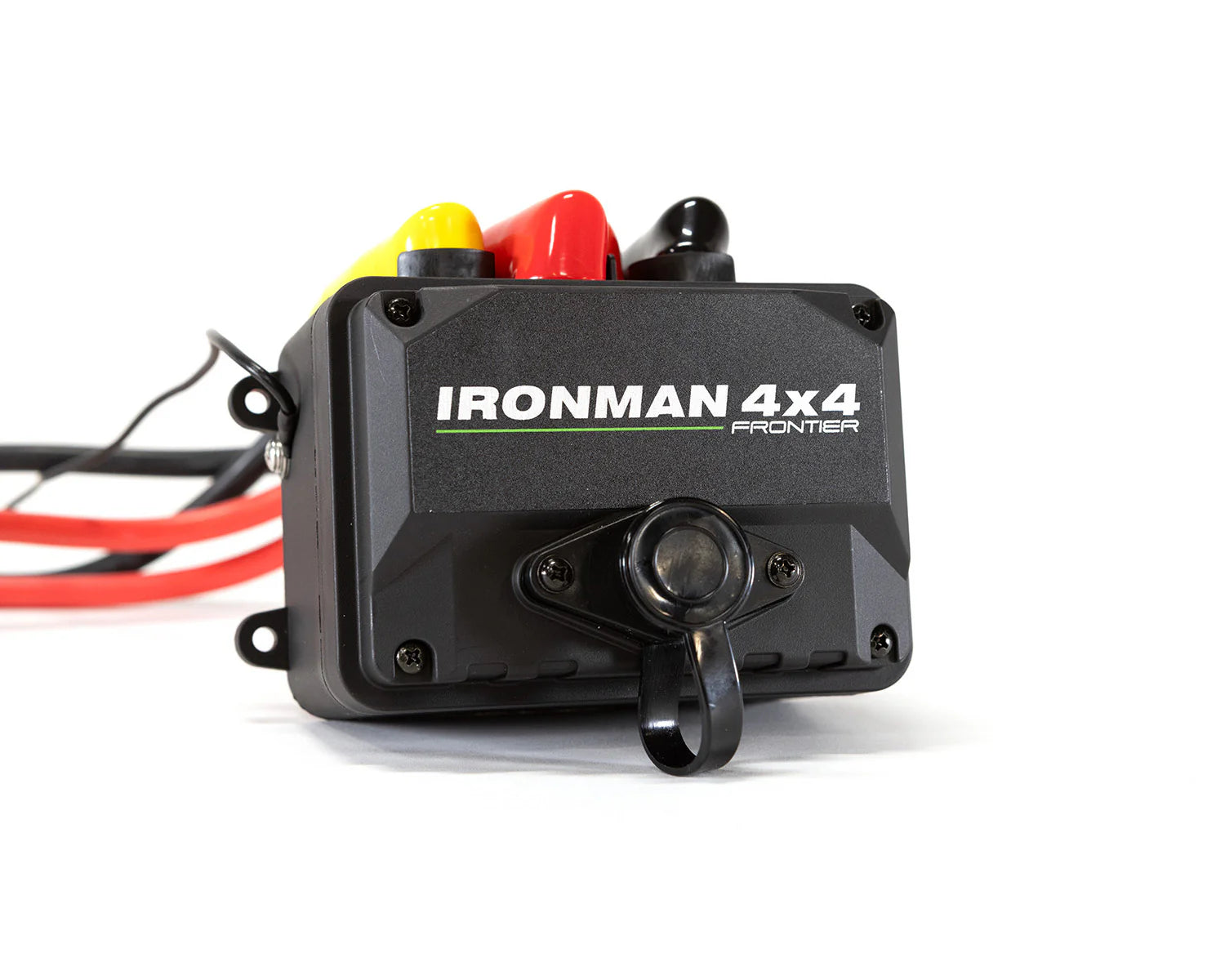

Dimensions (with control box): 21.1" x 6.3" x 10.5"
-
Dimensions (without control box): 21.1" x 6.3" x 7.2"
-
Weight: 60.5 lbs
-
Remote: Wireless + plug-in (wireless uses CR2450 battery)
What’s Included
✅ 9,500 lb pulling power with synthetic rope
✅ Submersible IP68 design for extreme terrain
✅ Dual remote system for safety & flexibility
✅ Backed by a 5-year mechanical warranty
