The Evolution of Light. Designed for the Horizon.

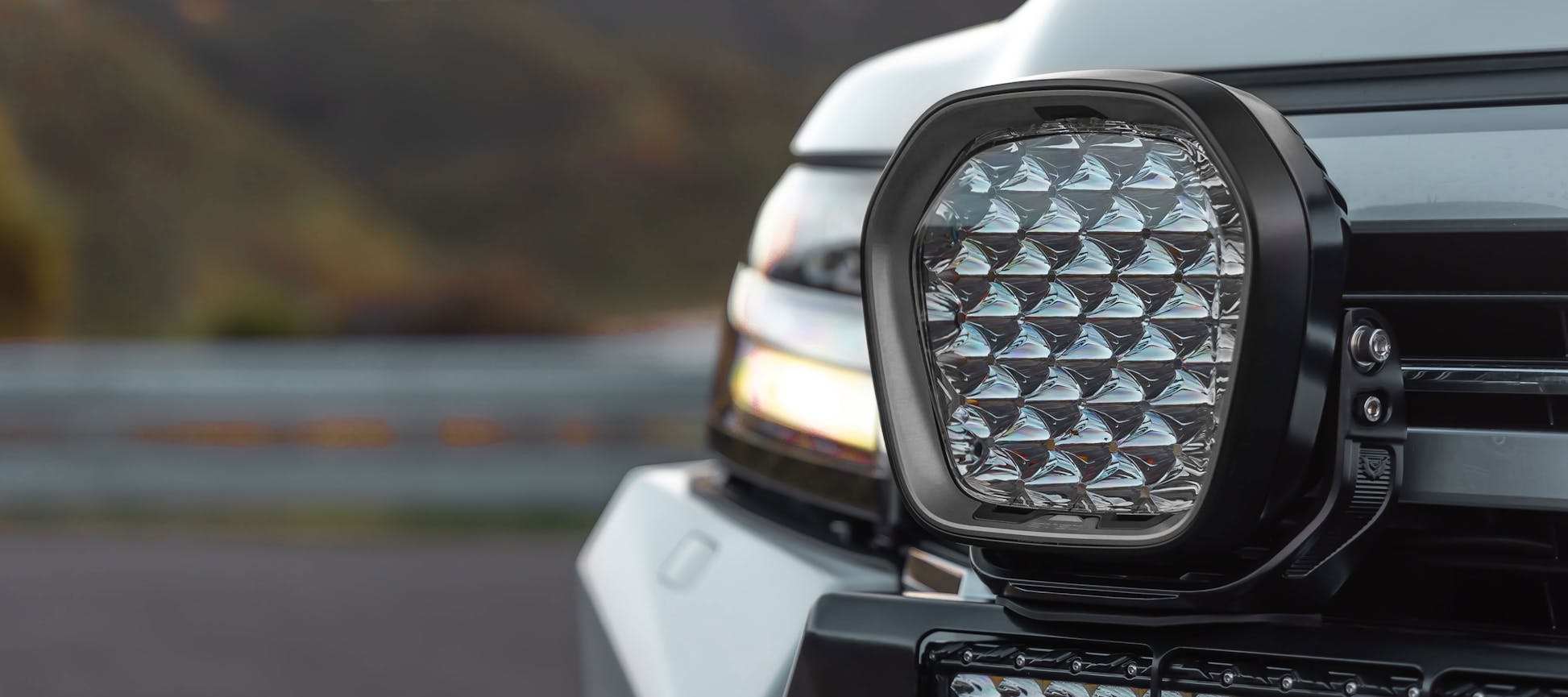

The STEDI™ TYPE-X™ EVO 8.5" Flood Beam isn’t just a light — it’s the embodiment of our vision for the future of off-road illumination. After three years of design, countless prototypes, and thousands of refinements, we’ve redefined what’s possible. This is where cutting-edge engineering meets sculpted elegance, and where pure performance meets timeless design.
Built for those who demand total command of their lighting setup, the TYPE-X™ EVO comes in dedicated Flood and Spot beam variants — giving you complete control to mix, match, and master your visibility across every terrain.
🔑 Key Features
✅ Next-Generation Flood Optics: Up to 475 m of lateral illumination with wide, flat horizon coverage
💡 Precision-Engineered LEDs: 44 × CREE XP series for balanced intensity and efficiency

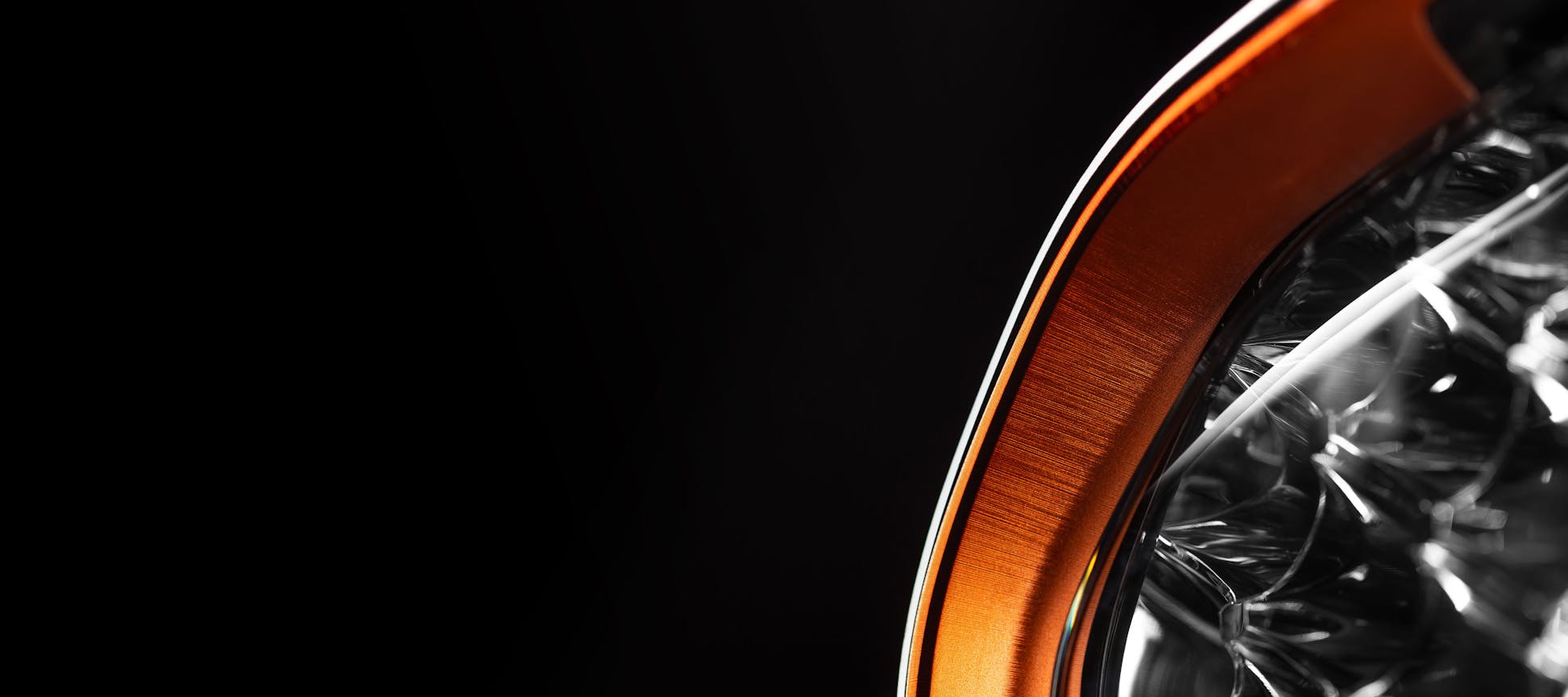

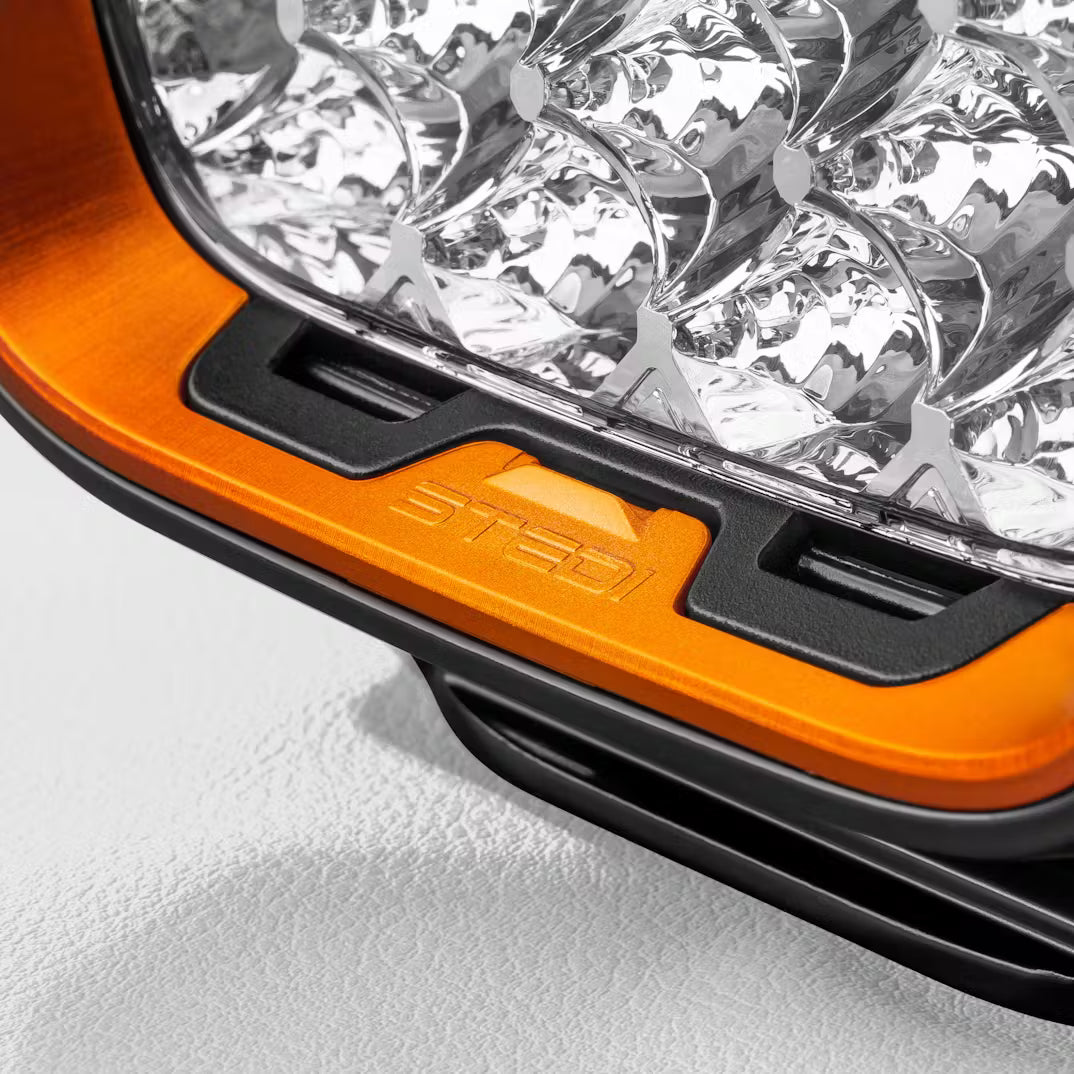

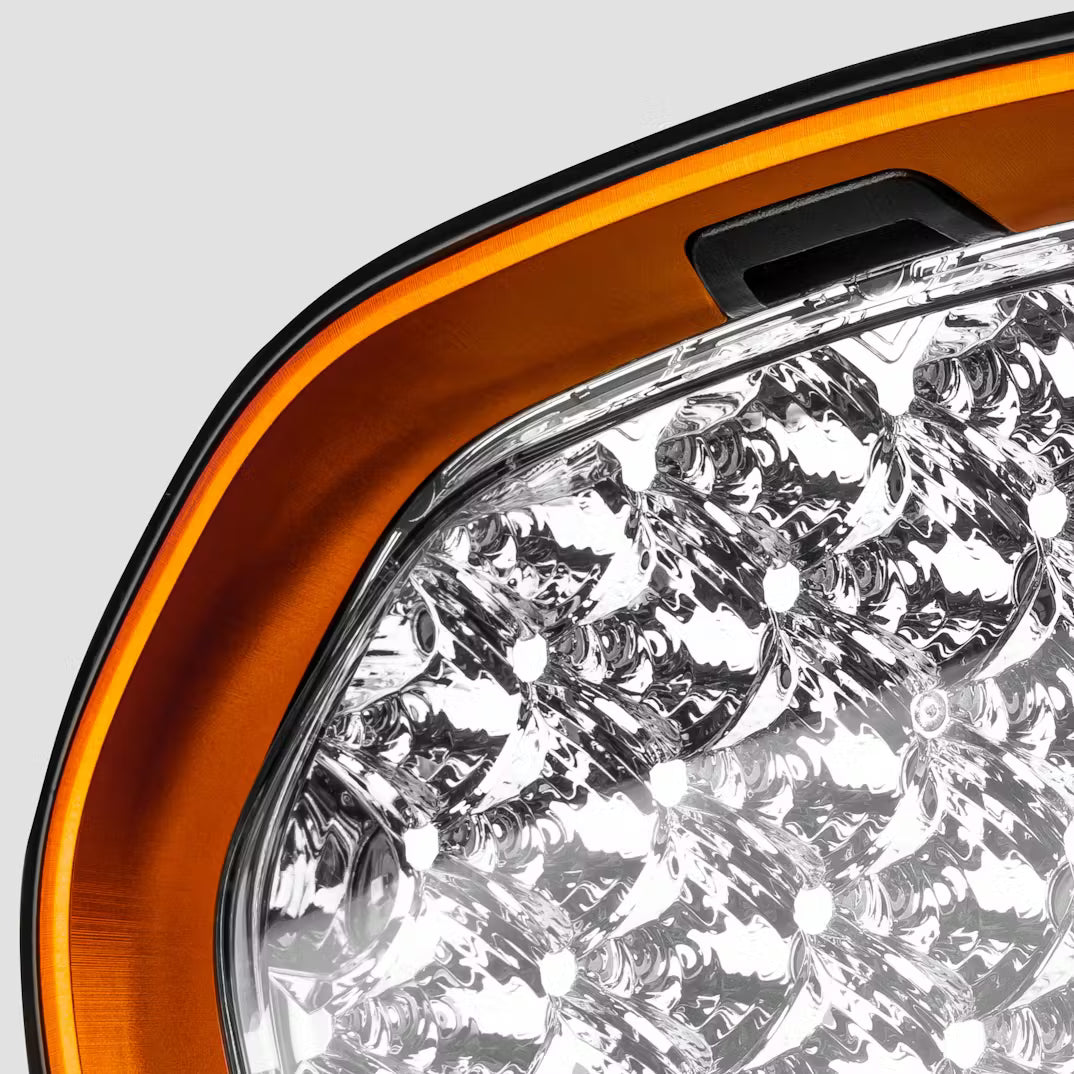

🌈 Tool-Less Customisation: Includes orange & grey brushed-metallic rings — no allen key required
🌡️ Colour Temperature: 5000 K True White for natural clarity and reduced eye fatigue
💧 IP68 Rated: Dustproof, waterproof, and submersible up to 3 m

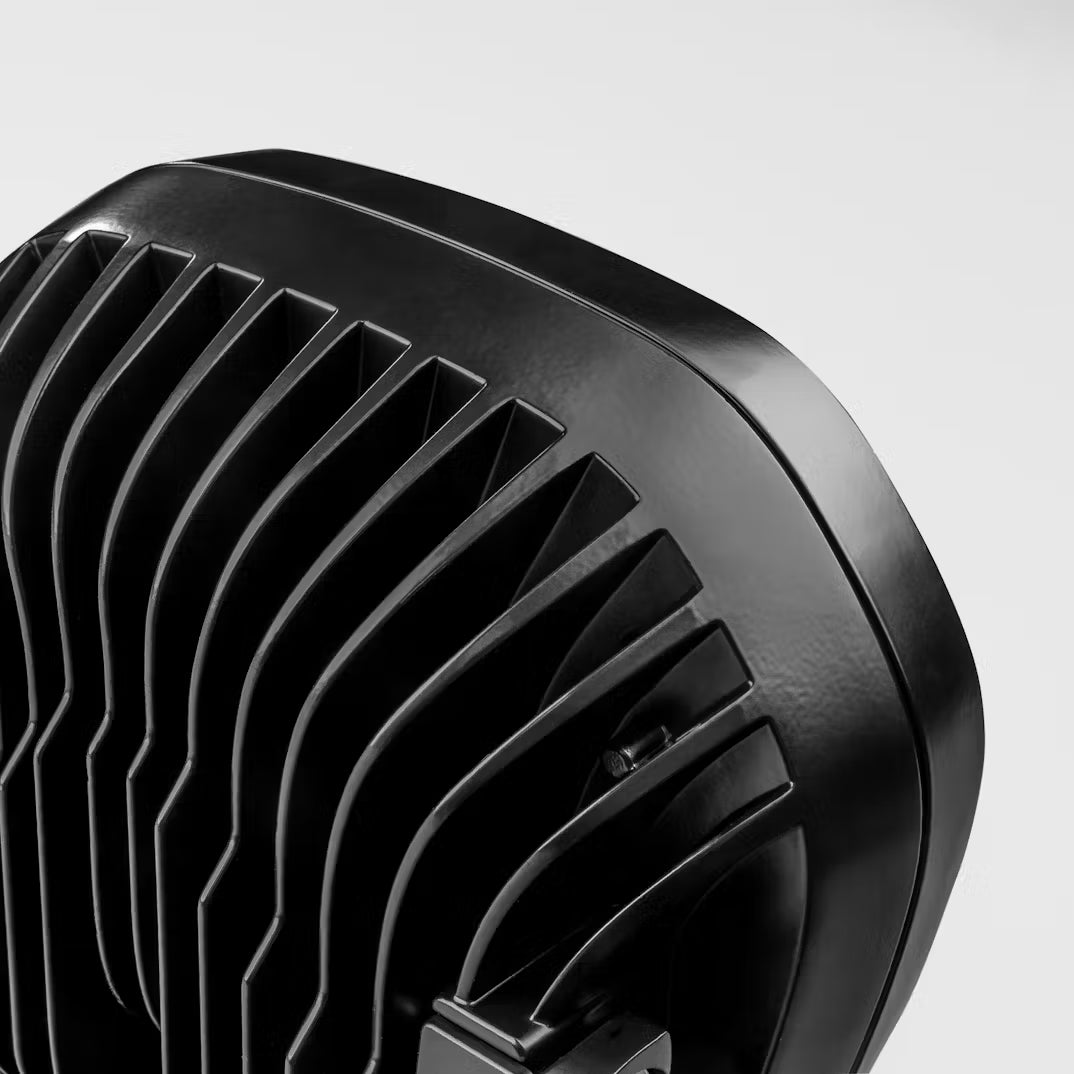

🧊 Optimised Heat Dissipation: Advanced heat-sink system ensures consistent peak performance
⚙️ Voltage Compatibility: 12 V & 24 V systems

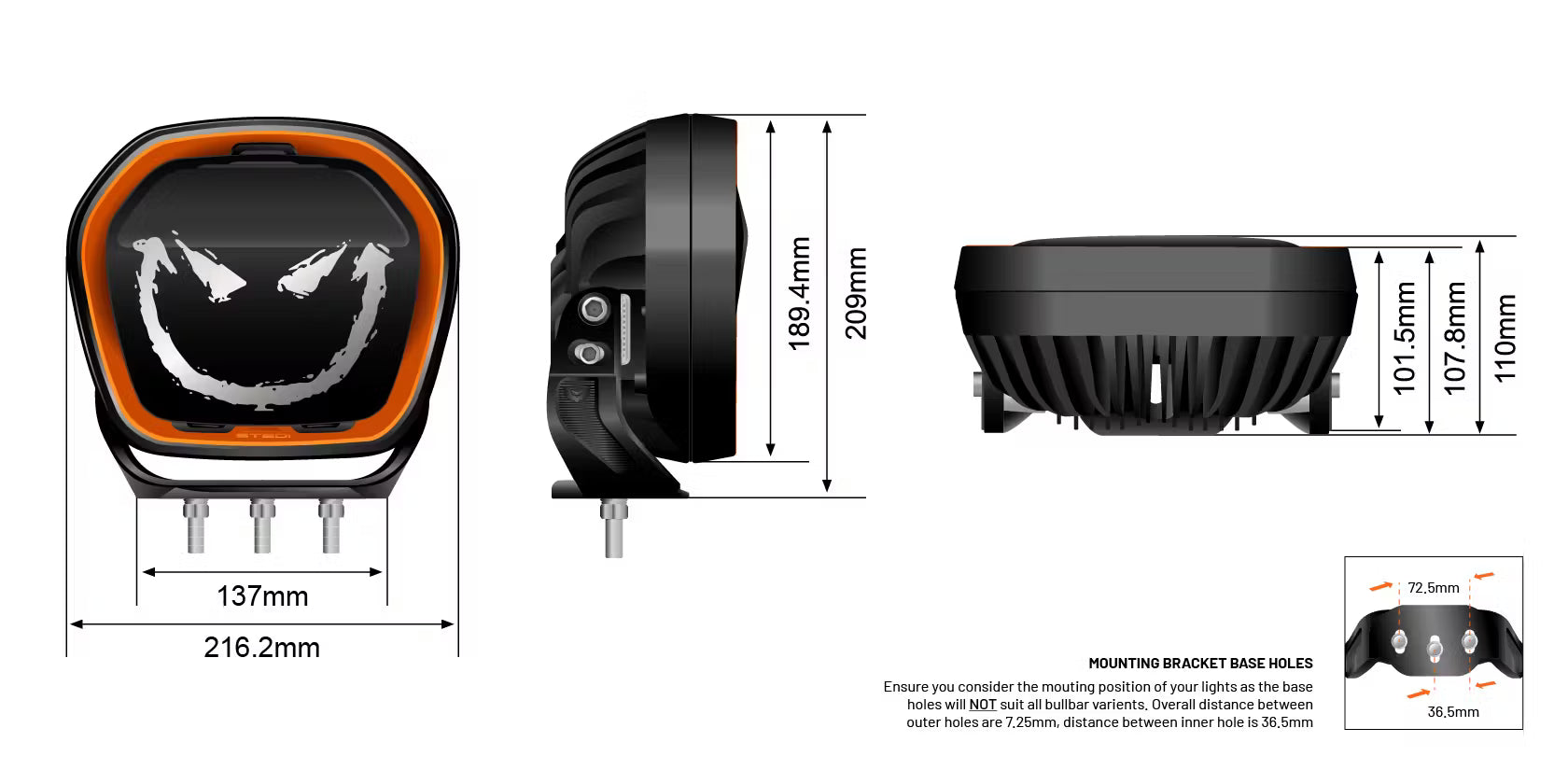

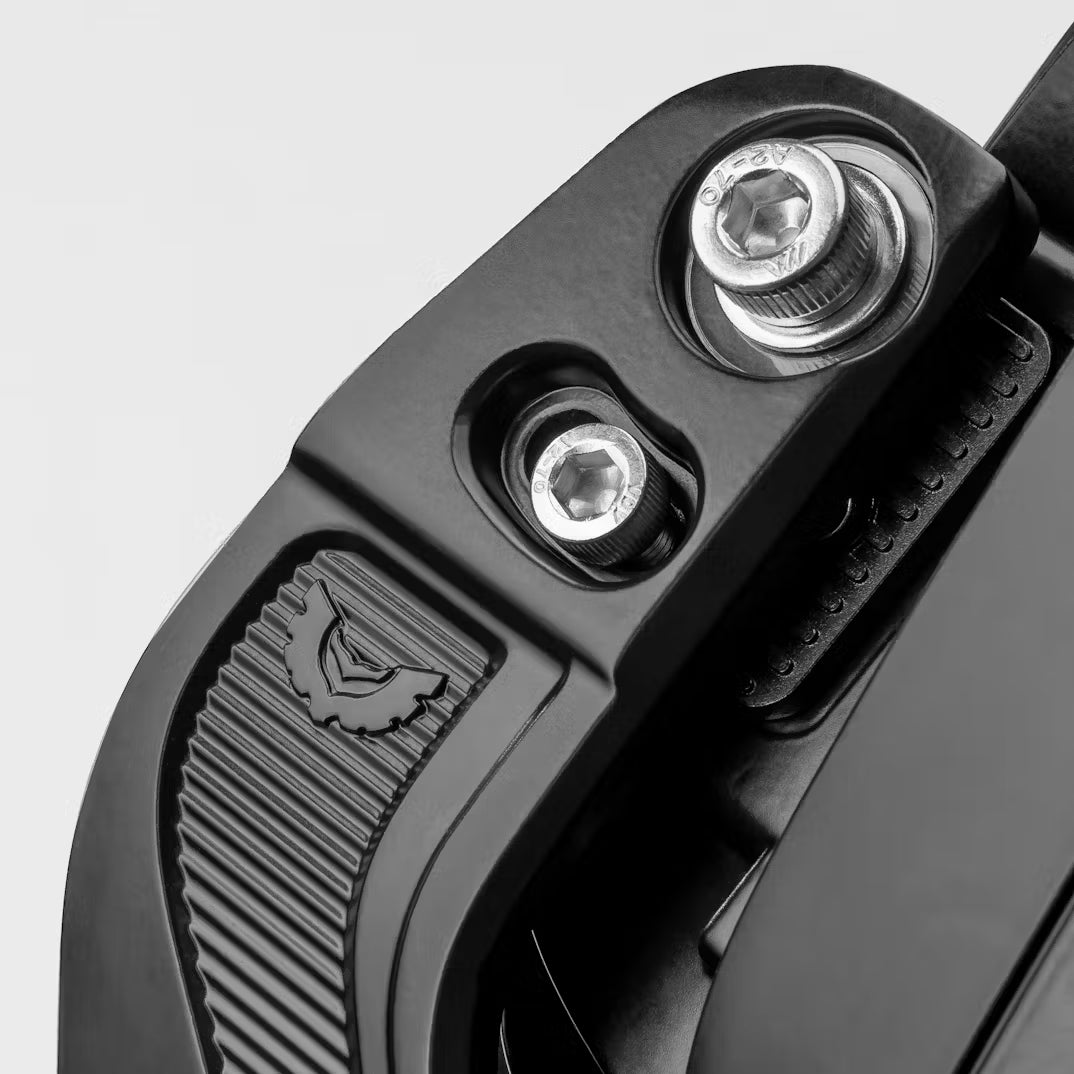

🔩 Low-Profile Mounting: Gusseted 3-bolt aluminium bracket for rugged fitment
🧳 Luxury Packaging: Delivered in a bespoke, water-resistant STEDI™ hard case
⏳ Longevity: Over 50,000 hours lifespan with LM-80-rated LED efficiency
💥 Benefits
-
Ultra-wide horizontal beam for superior peripheral visibility
-
Perfectly tuned to illuminate the “critical zone” — 200–300 m ahead
-
Ideal for off-road trails, rural highways, and night touring
-
Modern, minimalist design that complements any vehicle aesthetic
-
Durable construction built to withstand harsh environments
-
Mix and match with TYPE-X™ EVO Spot Beam for the ultimate setup
📦 What’s Included
-
1 × STEDI™ TYPE-X™ EVO LED Driving Light (Flood Beam)
-

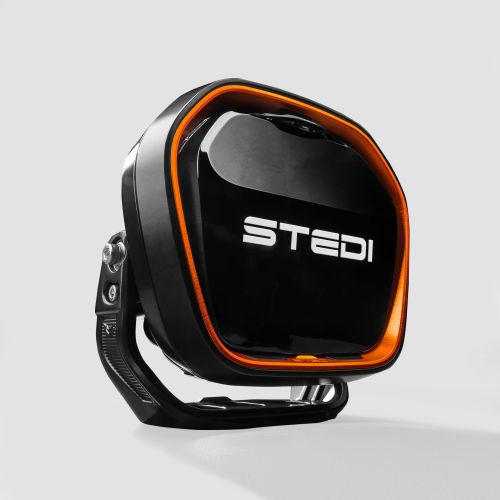

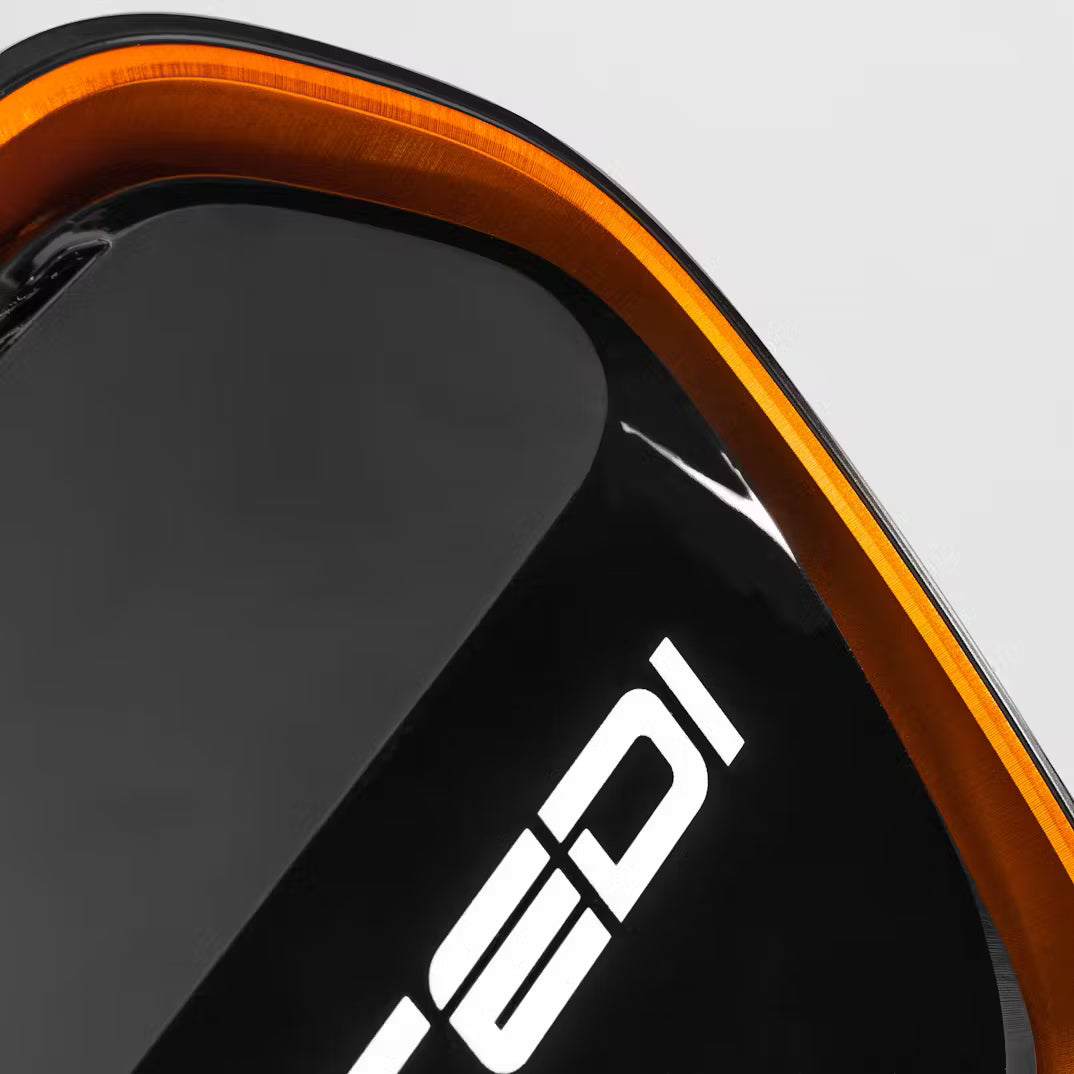

1 × Protective STEDI™ Black-Out Cover
-
1 × Grey Colour Fascia
-
1 × Orange Colour Fascia
-
1 × TYPE-X™ EVO Hard Carry Case
-
Complete Bracket & Stainless-Steel Fastener Kit
-
Fitting Instructions
-
Optional Wiring Harness
⚙️ Technical Specifications
| Specification |
Details |
| LEDs |
44 × CREE XP LEDs (each) |
| Raw Lumens |
18,920 lm (each) |
| Tested Lumens |
11,920 lm (each) |
| Amp Draw |
12.5 A @ 13.2 V (each) |
| Power Draw |
150 W (each) |
| Beam Pattern |
44 × 50° Spread (Flood) / 44 × 5.8° Pencil (Spot) |
| 1 Lux Distance |
Up to 475 m (Flood Beam) |
| Ingress Protection |
IP68 – Submersible up to 3 m |
| Colour Temperature (CCT) |
5000 K |
| Voltage Compatibility |
12 V & 24 V DC |
| Weight |
3.3 kg (each) |
| Operating Temperature |
–40 °C to +60 °C |
🛡️ Why Choose the STEDI™ TYPE-X™ EVO Flood Beam?
📦 Fast worldwide shipping
💳 Flexible financing available
🧰 Expert installation support
🛡️ Backed by a 5-Year STEDI™ Replacement Warranty
