Land Cruiser 200 Series Preload Collar Lift Kit (2008-2021)-Westcott Designs

Name: Land Cruiser 200 Series Preload Collar Lift Kit (2008-2021)-Westcott Designs
Brand: Westcott Designs
SKU: 35601A
Price: 739.99 CAD
Availability: InStock

35601A

$739.99 CAD

Finish

Raw Aluminium Black Anodize

Awaiting stock, shipping soon

Description

Elevate your Land Cruiser 200 the right way — without sacrificing factory ride quality. 🚙🔥

The Westcott Designs Preload Collar Lift Kit for the 200 Series Land Cruiser delivers a true 3” front lift and 1.25” rear lift while maintaining factory suspension geometry, alignment specs, and ride comfort.

This is not your typical spacer lift.

💪 Engineered for OEM Performance

✔ Retains factory ride quality
✔ Maintains factory suspension geometry
✔ Aligns to factory specifications after install
✔ No replacement Upper Control Arms (UCA) required
✔ Complete hardware included for easy installation

Built for performance — without compromise.

🚀 Lift Specifications

2008–2021 Toyota Land Cruiser (LC200)

3.0” Front Lift
1.25” Rear Lift

Delivers a leveled stance and improved ground clearance.

🛞 Tire Fitment

Run up to 285/70R18 tires*
No Body Mount Chop (BMC) required
Minor trimming required

1.25” wheel spacers required.

Clean clearance. Aggressive presence.

🛠 Premium Construction

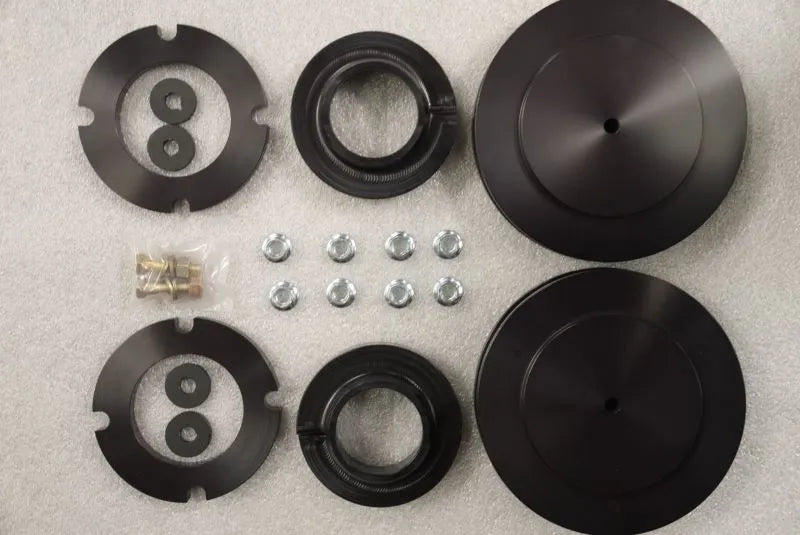

CNC-machined lower preload collars
CNC-machined top spacer plates
Billet rear lift pucks
Hard anodized black finish for durability and corrosion resistance
Precision engineered and manufactured for long-term reliability

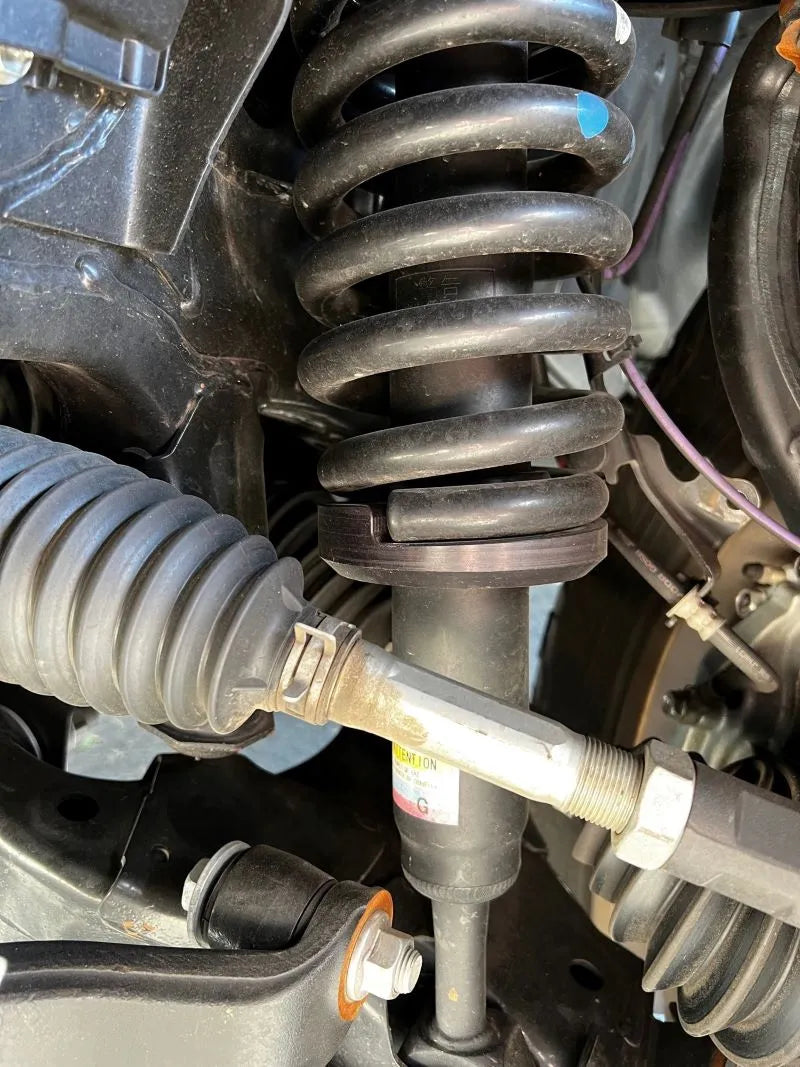

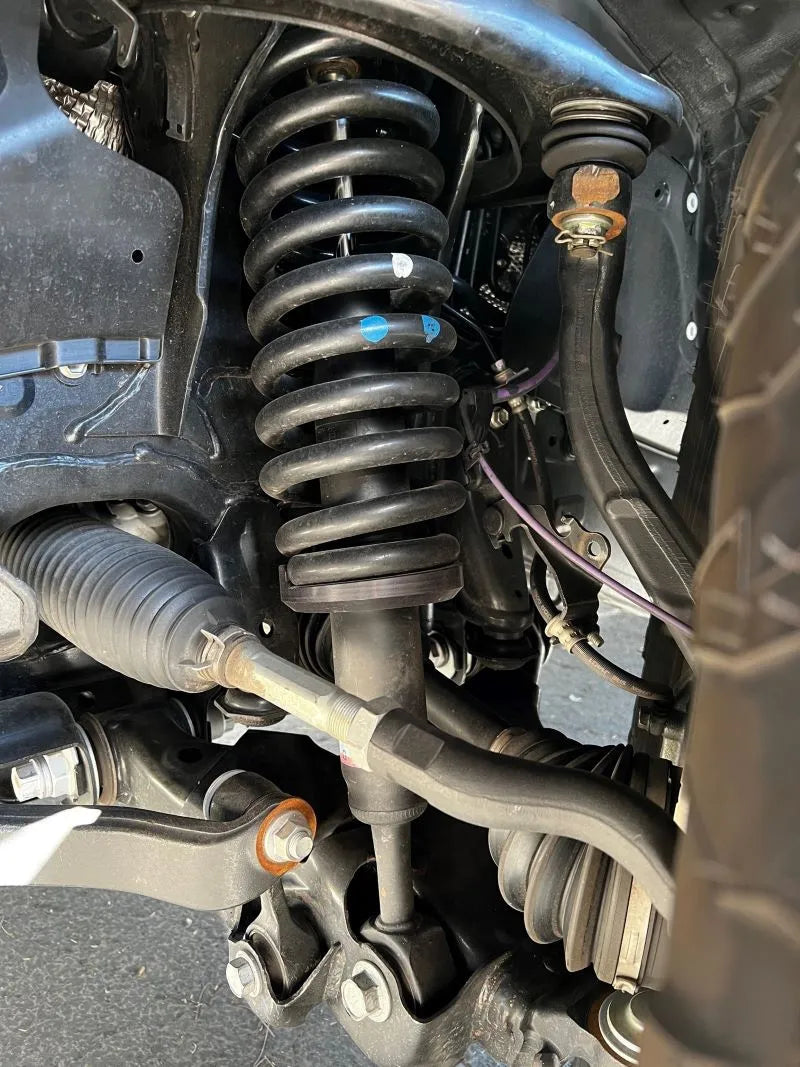

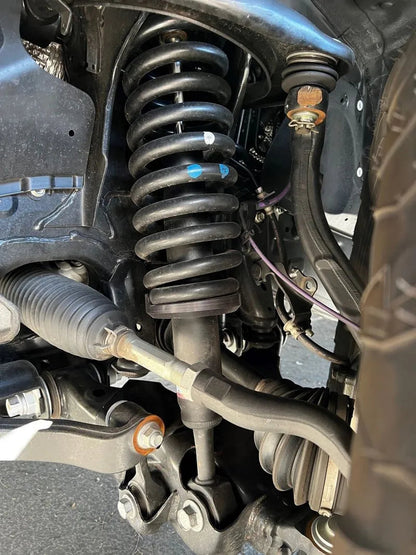

Designed to use the preload in your factory spring — similar in function to a coilover — without reducing travel or altering geometry.

📦 Additional Information

Weight: 15 lbs
Dimensions: 12 × 10 × 8 in
Finish Options:
- Raw Aluminum
- Black Anodized

More clearance. Level stance. Factory ride quality. 🔥

Upgrade your LC200 with confidence.

🛡 Westcott Designs Limited Warranty

Westcott Designs warrants its products to be free from defects in materials and workmanship for as long as the original purchaser owns the product — provided proper installation per instructions.

Coverage Includes:

Repair or replacement of defective components (at Westcott’s discretion)
Maximum liability limited to original purchase price
Powder coat coverage: 1 year from purchase

Warranty Does NOT Cover:

Misuse, abuse, racing, accidents, environmental damage
Improper installation or maintenance
Unauthorized modifications or repairs
Corrosion from chemicals or contaminants
Overloading or non-standard applications
Normal wear and tear
Commercial vehicle use (voids warranty)

Preload Collar Lift Kit - 2022-2026 Toyota Tundra SR5, Limited, Platinum, 1794, Hybrid, TRD Sport, TRD Off-Road, AVS/Air Ride, Capstone Westcott Designs

Questions?

We’re here to answer it.

What is the lift height?

This kit provides the following lifts:
2022-2026 Tundra static suspension equipped trucks: 2.5” (front lift) and 1.00” (rear lift)
2022-2026 Tundra AVS/Air Ride equipped trucks: 2.0″ (front lift) and 7/8″ (rear lift)

How Westcott design retain factory drive?

Westcott Designs lift kits retain factory drive because:

They use your factory shocks and springs rather than replacing them with aftermarket suspension, preserving ride quality.

They’re designed so you can realign the suspension back to factory specs after install.

They don’t alter core suspension geometry as much as some other lift kits, meaning drivetrain angles and handling stay closer to stock

What size tires can I install with a Westcott Designs lift kit?

you can run up to a 35” tire without a Body Mount Chop and without UCA replacement (37” tires are compatible if used with the correct wheel size & offset with minor trimming)

Will this liftkit fit hybrid models

Yes, they are designed to be installed on hybrid models
