Built to Shine. Engineered for Extremes.
The STEDI™ ST3301 PRO 41” LED Light Bar redefines what’s possible in the world of mid-range illumination. Combining power, precision, and refinement, this light bar is built for drivers who demand both performance and reliability in any environment.

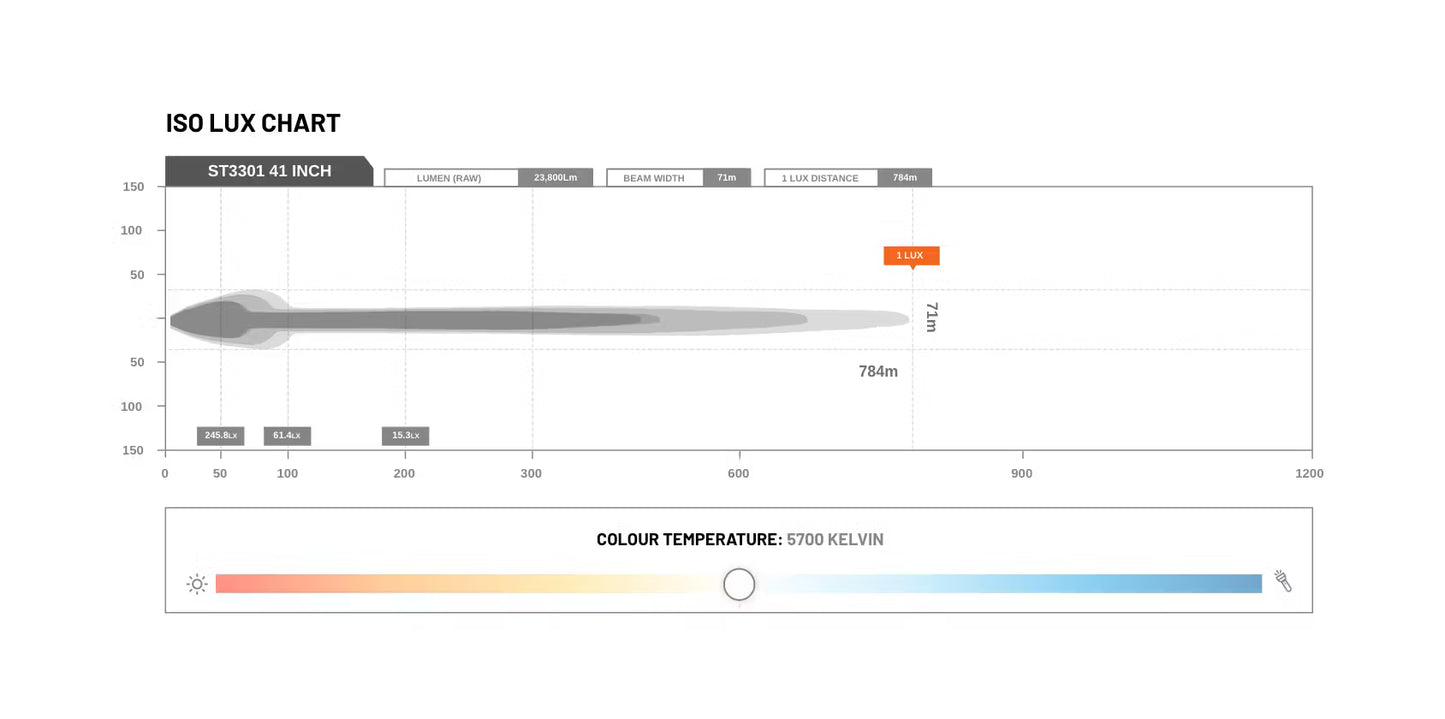

With 28 high-output OSRAM™ LEDs producing an astonishing 23,800 raw lumens (11,850 effective), the ST3301 PRO projects a beam reaching up to 784 metres at 1 lux, while maintaining flawless shoulder illumination. Perfect for rural touring, off-road expeditions, or night drives through wildlife zones — it’s your ultimate lighting companion.
🔑 Key Features

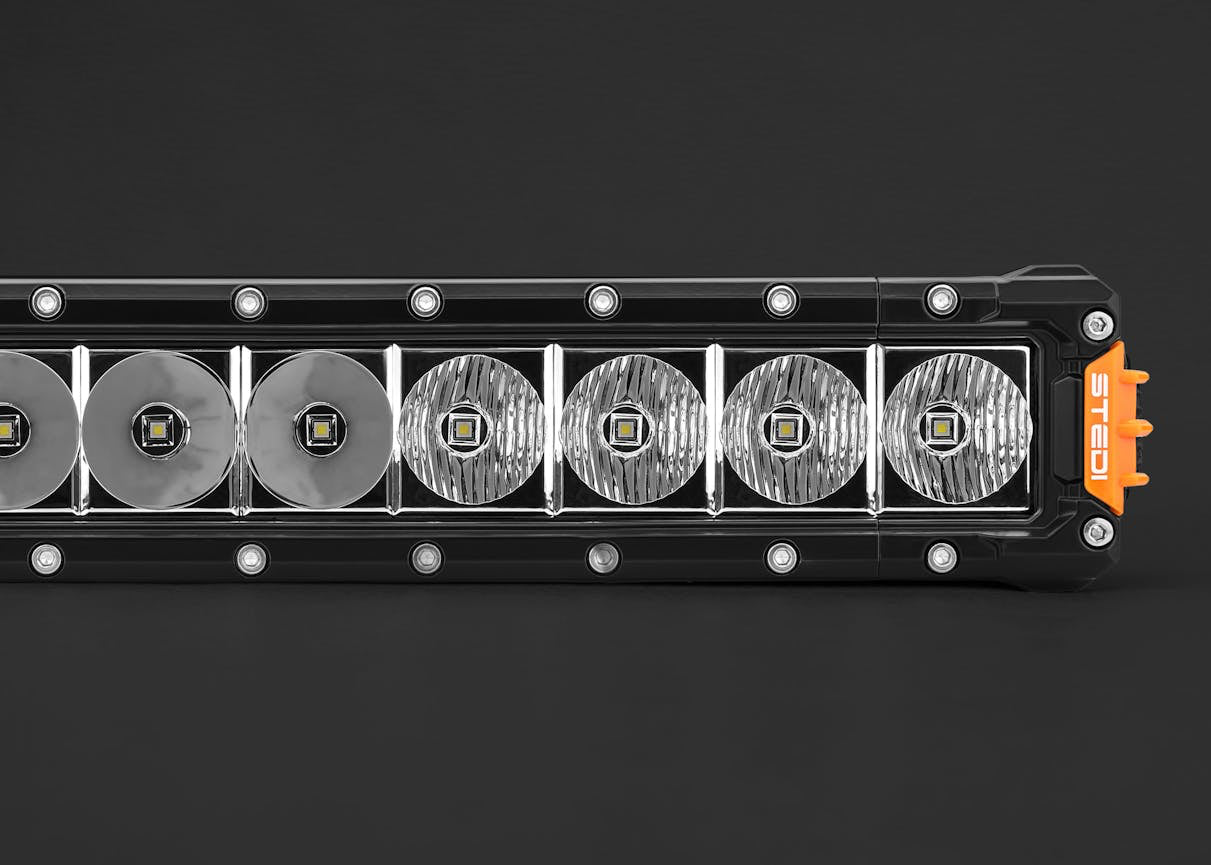

✅ Advanced Optics: Flood/Spot/Flood beam design for powerful throw and consistent spread

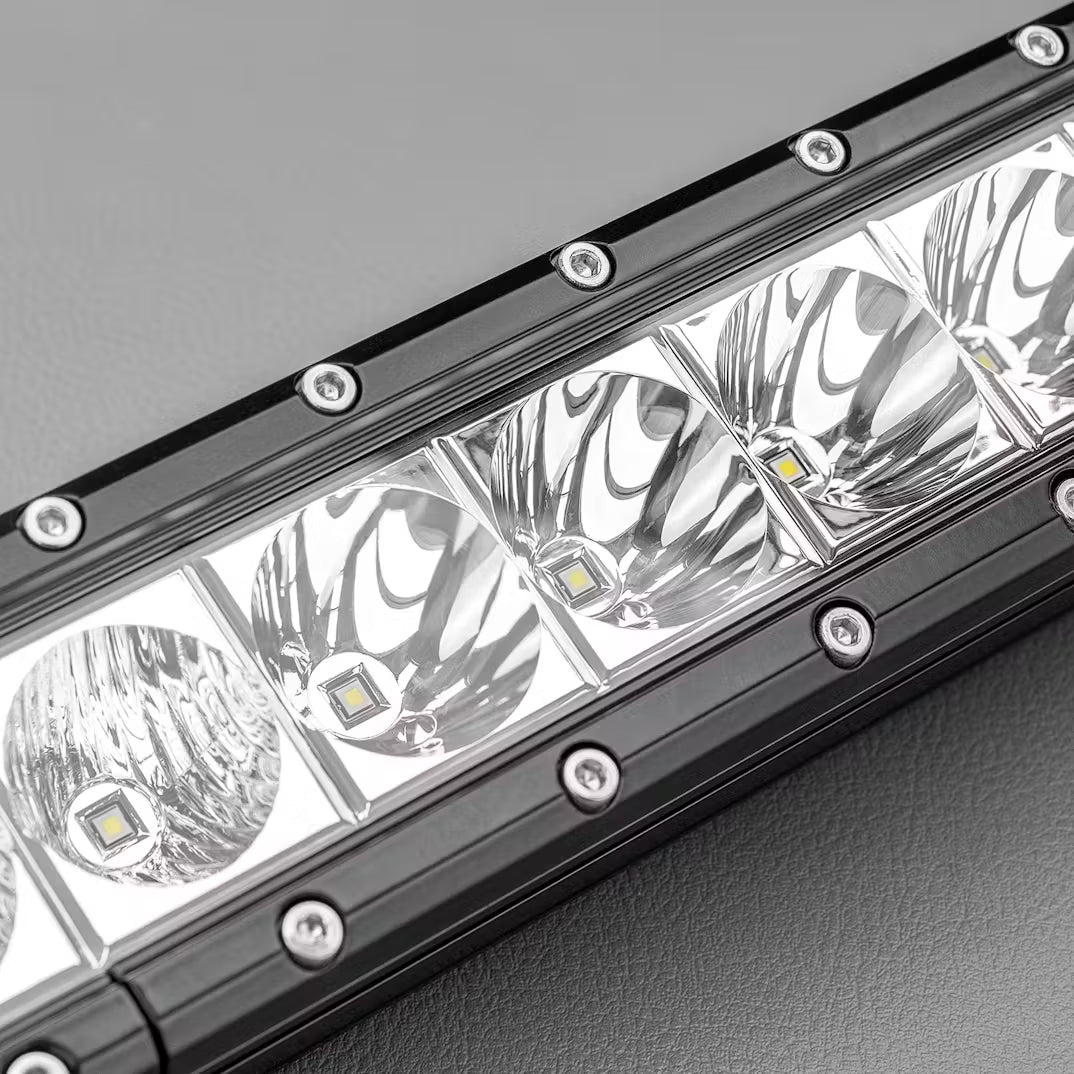

💡 OSRAM™ LED Power: 28 premium diodes engineered for maximum brightness and efficiency
🌡️ Balanced Output: 5700K colour temperature for sharp contrast and reduced eye strain
💧 IP68 Certified: Dustproof and fully submersible up to 3 metres
🔩 Virtually Indestructible Lens: GE Lexan™ optical-grade polycarbonate — 250× stronger than glass

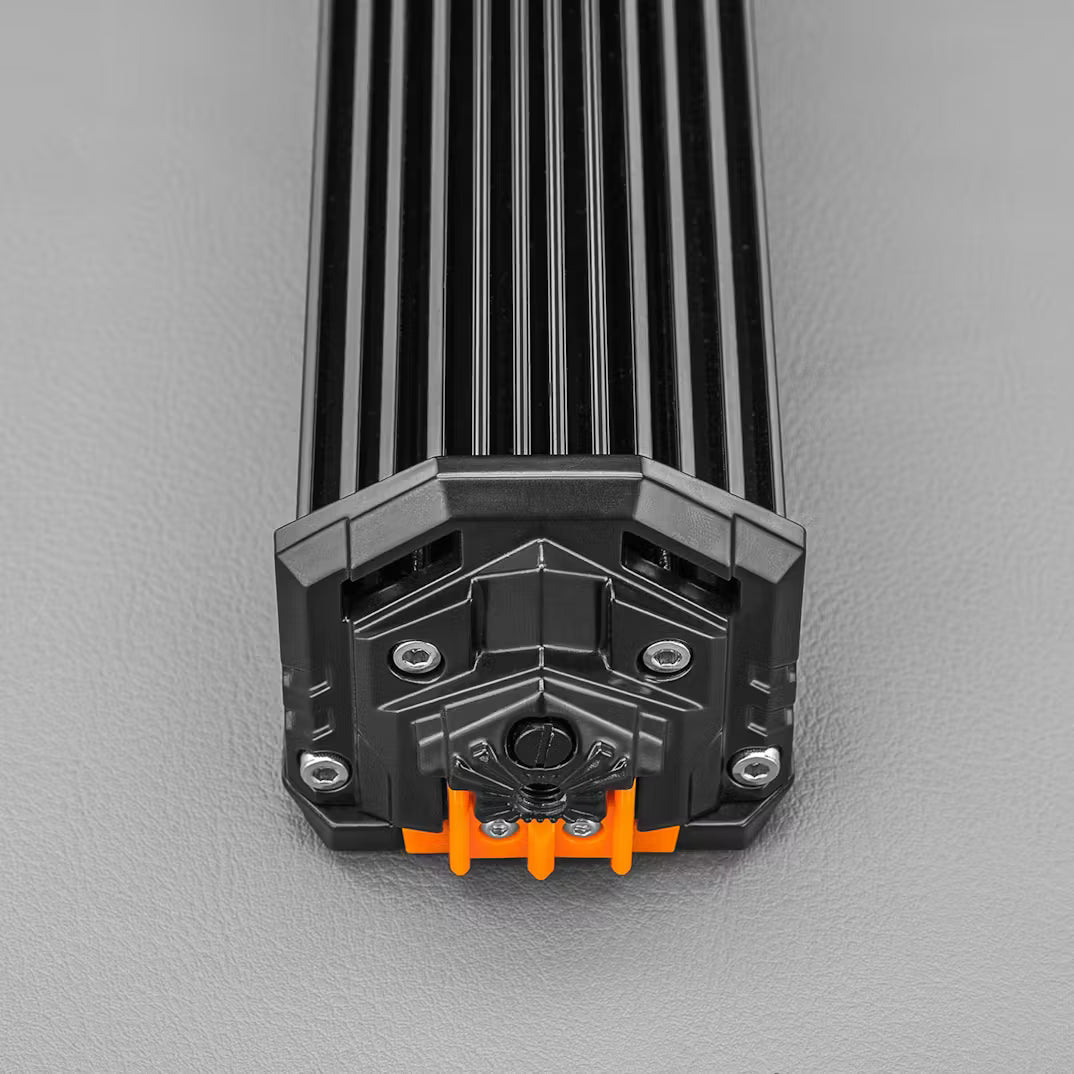

⚙️ Rugged Housing: Die-cast aluminium body built to withstand the toughest conditions
🚀 Effortless Installation: Includes quick-fit wiring harness, relay, and switch

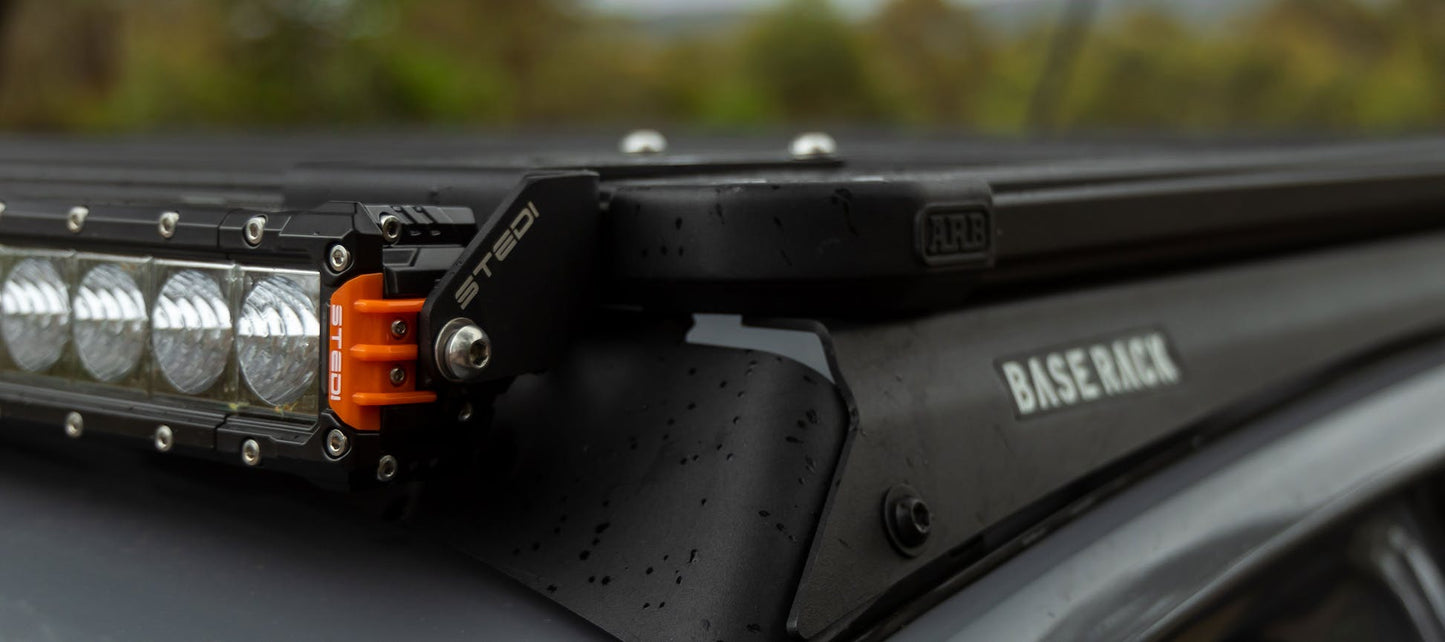

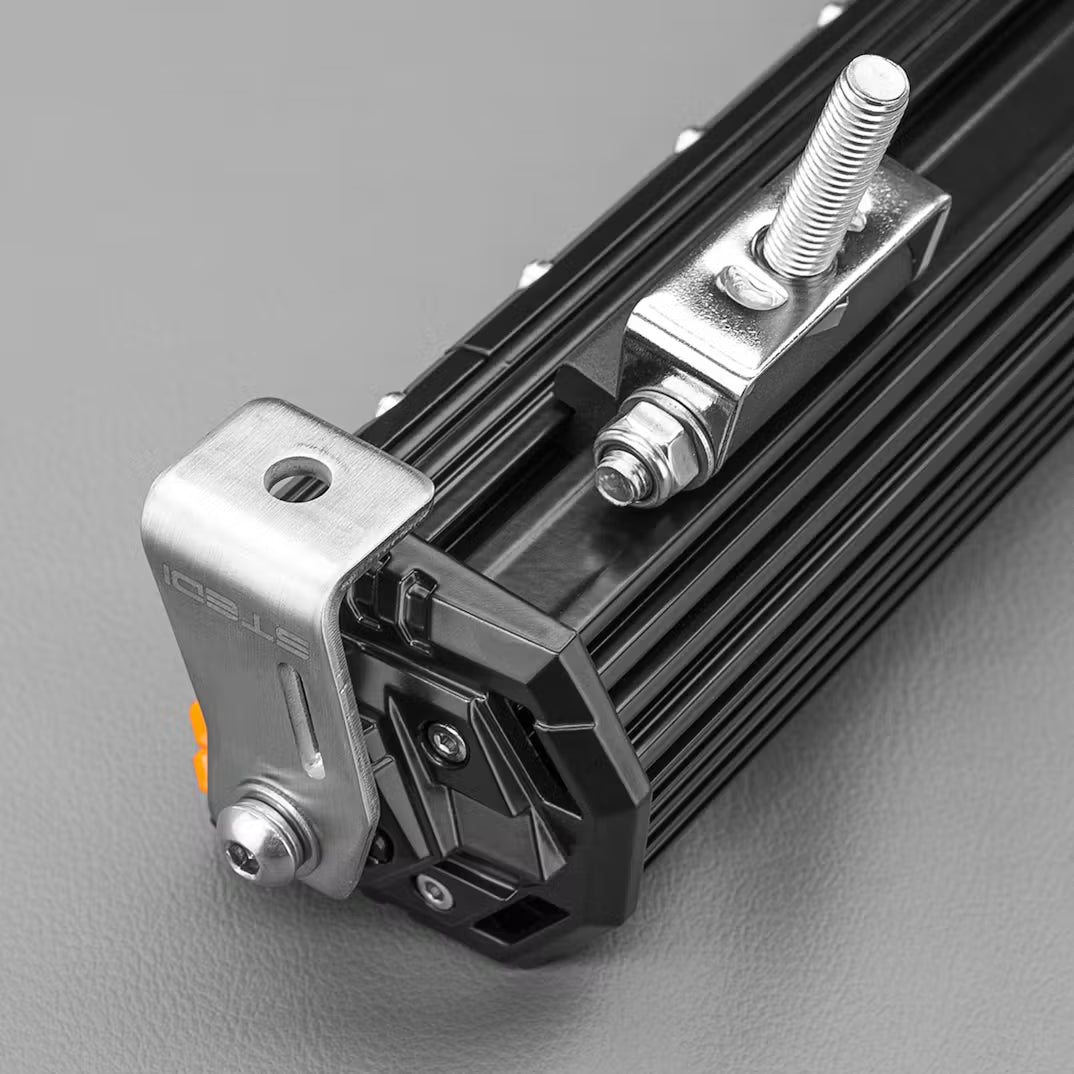

🧰 Flexible Mounting: Sliding lower mounts and stainless side brackets for perfect fitment
💪 STEDI™ Proven: Backed by a 5-year warranty and 30-day money-back guarantee
💥 Benefits
-
Superior brightness and shoulder illumination for confident nighttime driving
-
Designed to perform in harsh weather and off-road conditions
-
Balanced beam pattern delivers exceptional clarity in the mid-to-long range
-

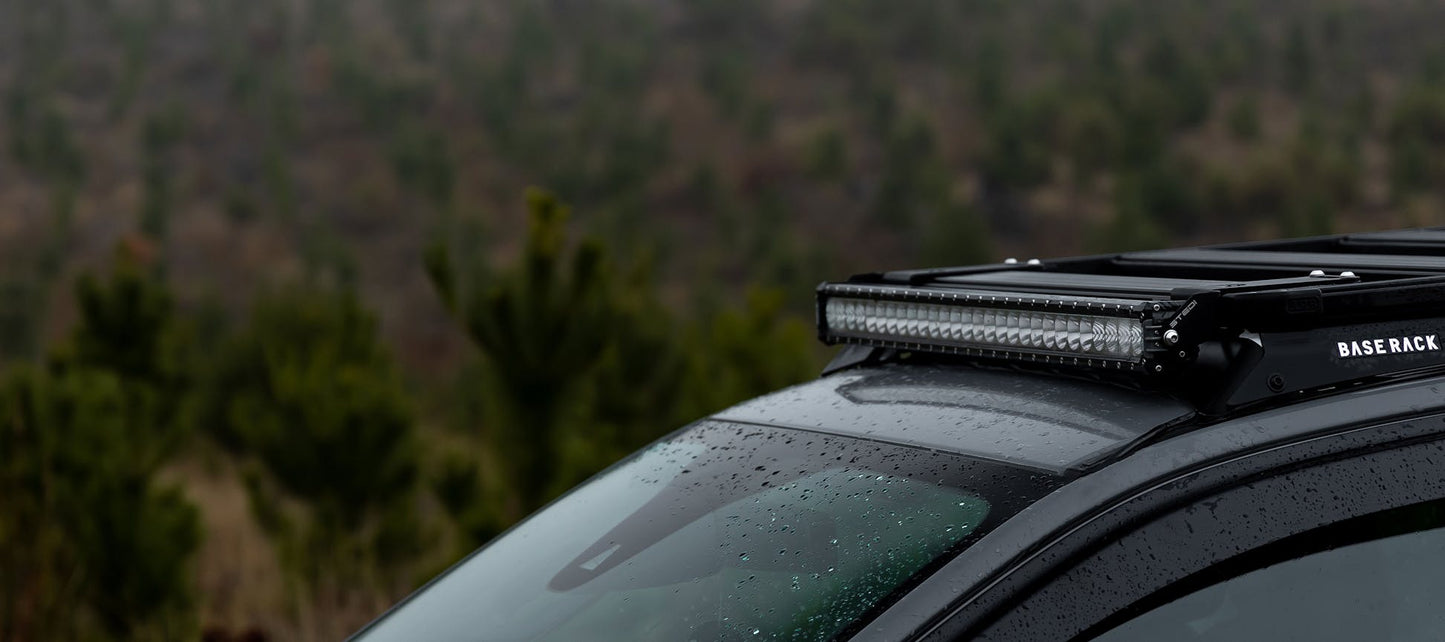

Compact yet powerful — the perfect fit for bull bars, roof racks, or front mounts
-
Designed, tested, and perfected in Australia
⚙️ Technical Specifications
| Specification |
Details |
| Lumen Output (Raw) |
23,800 lm |
| Lumen Output (Effective) |
11,850 lm |
| LED Type |
28 × OSRAM™ |
| Beam Pattern |
4 Flood + 18 Spot + 4 Flood |
| Peak Intensity (Candela) |
614,656 cd |
| Light Distance (1 Lux) |
784 m |
| Colour Temperature |
5700K |
| Operating Voltage |
10 – 45V DC |
| Waterproof Rating |
IP68 |
| Lens Material |
GE Lexan™ Optical-Grade Polycarbonate |
| Housing Material |
Die-Cast Aluminium |
| Bracket Material |
Aluminium + 3 Series Stainless Steel Hardware |
| Flood Beam Angle |
45° |
| Spot Beam Angle |
11° |
| Current Draw |
12.3A @ 13.6V |
| Operating Temperature |
-40°C to +60°C |
| Weight |
4.9 kg |
| Lumen Maintenance |
50,000 LM-80 Certified |

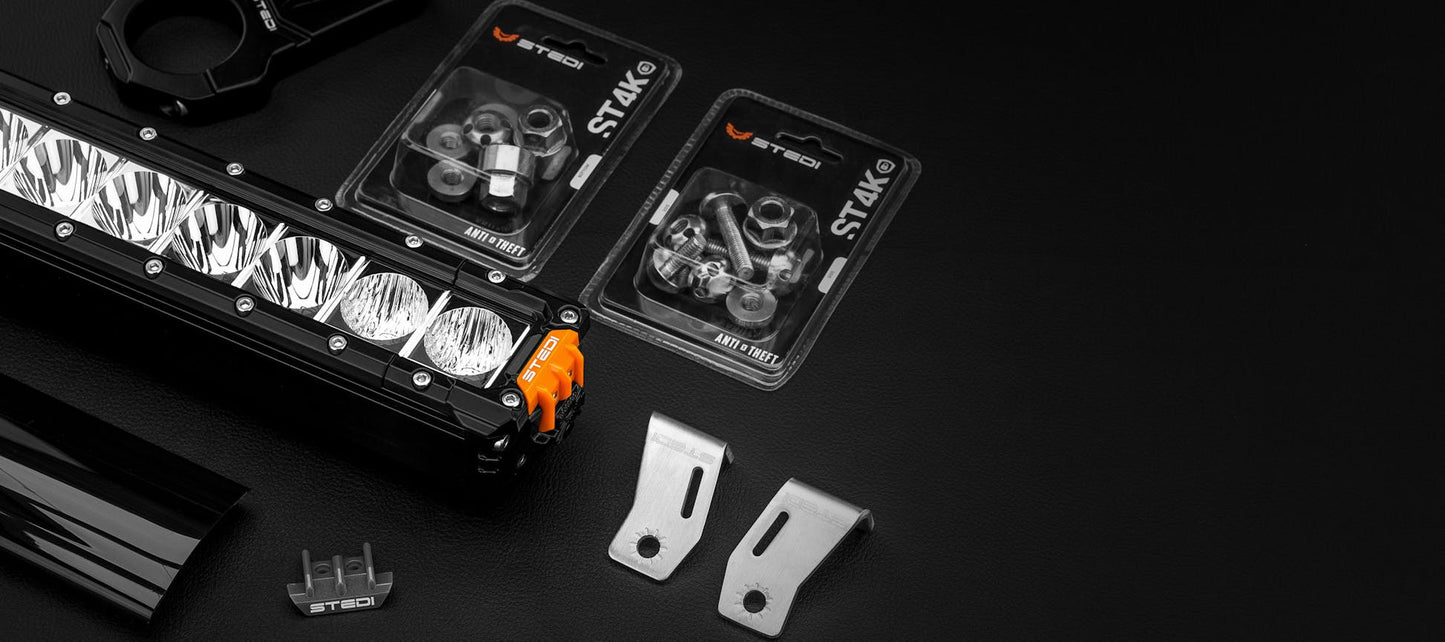

📦 What’s Included
-
1 × STEDI™ ST3301 PRO 41" LED Light Bar (28 LED)
-
Stainless Bolt and Nut Set
-
Sliding Lower Mounting Brackets + Stainless Steel Side Brackets
-

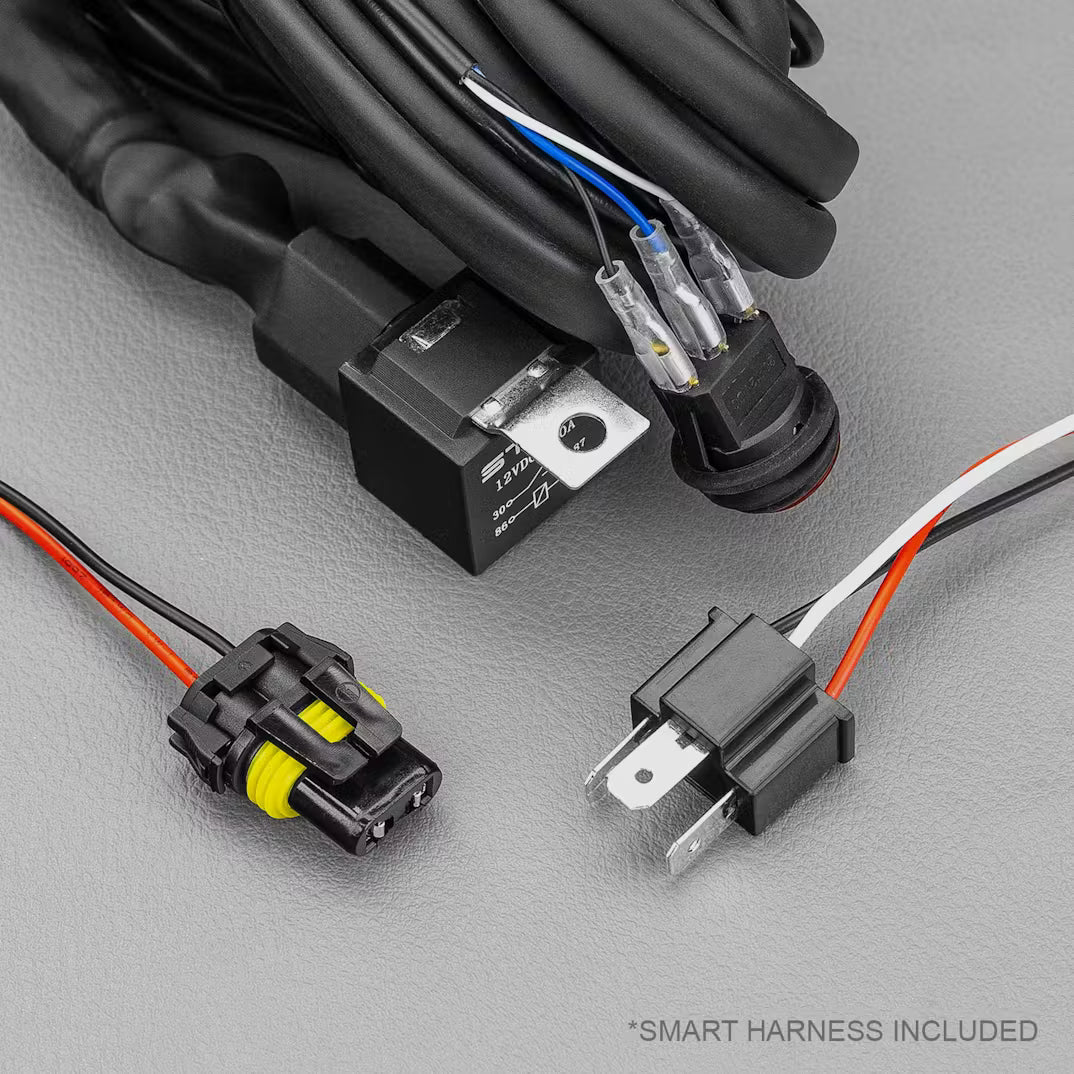

Quick-Fit High Beam Wiring Harness (12V Relay, Fuse, On/Off Switch)
-

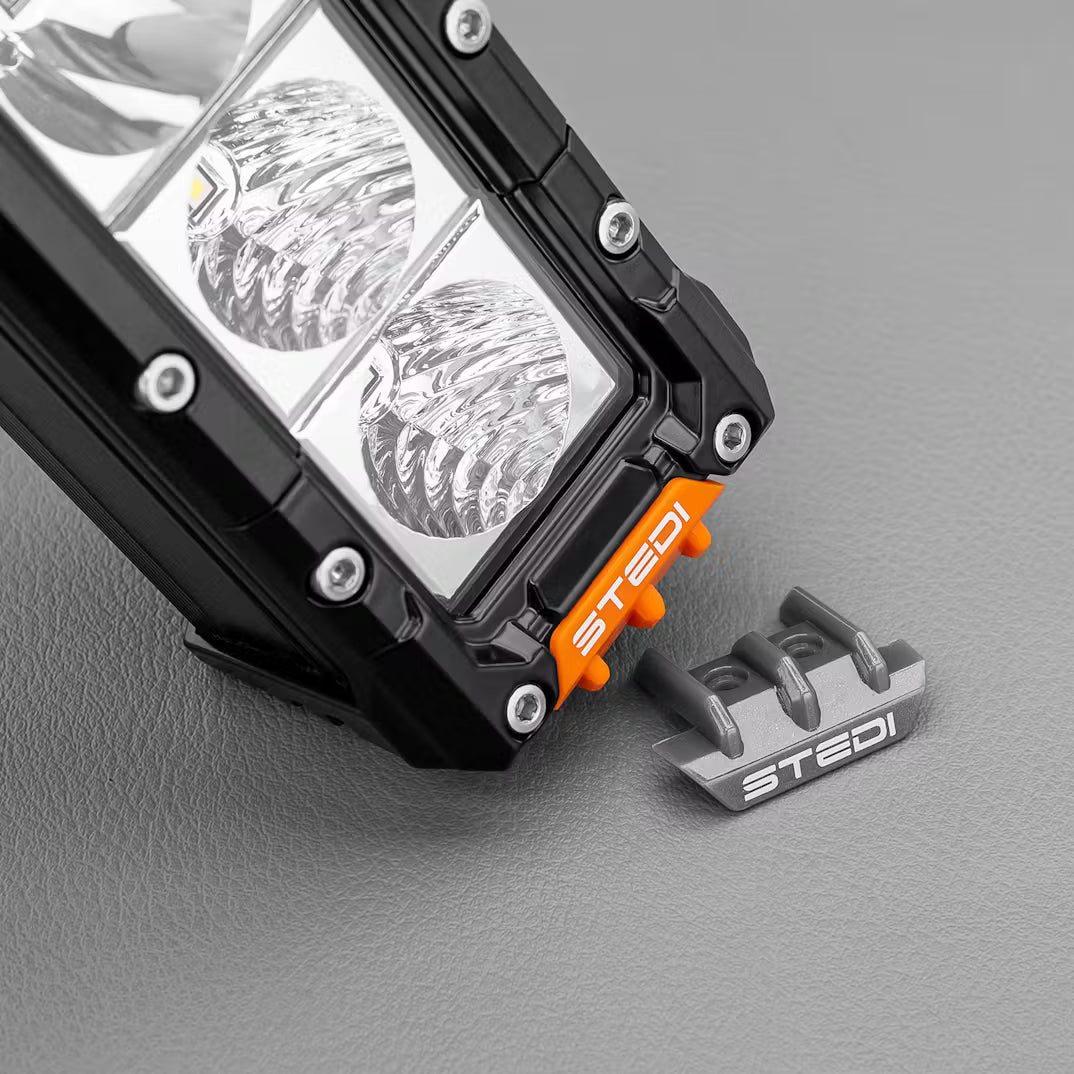

2 × Orange Side Caps
-
2 × Grey Side Caps
-
HB3 and H4 Piggyback Adaptors
