Built to Shine. Engineered for the Bold.

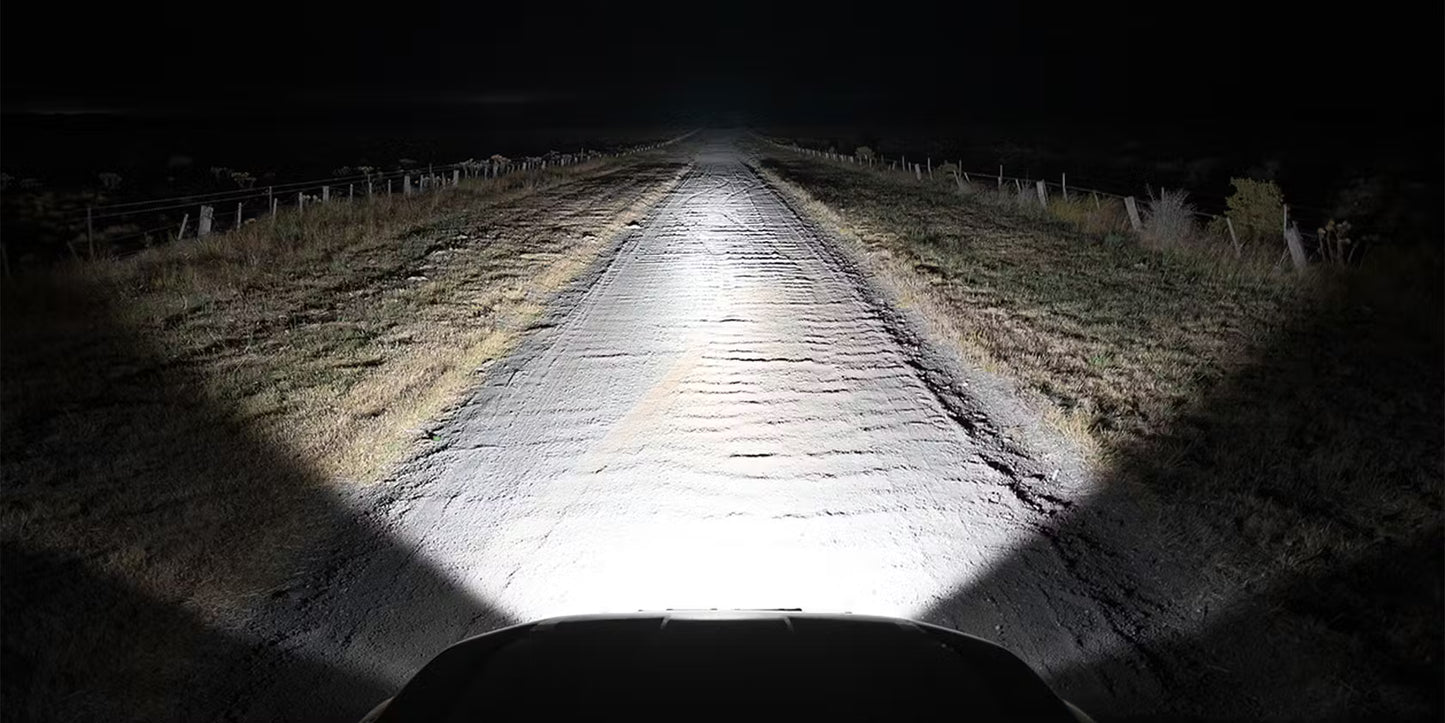

Meet the STEDI™ ST3301 PRO 24.5” LED Light Bar — a true powerhouse of precision and performance. Designed to flood the road ahead with high-intensity illumination, this bar delivers exceptional mid-range and shoulder visibility, making it the ultimate choice for those who want maximum coverage and control.
Powered by 16 OSRAM™ LEDs, the ST3301 PRO produces 13,600 raw lumens (7,650 effective) and throws light up to 544 metres at 1 lux. With its balanced flood/spot/flood optical design, it offers a seamless beam pattern that’s perfect for both on-road and off-road adventures.
🔑 Key Features

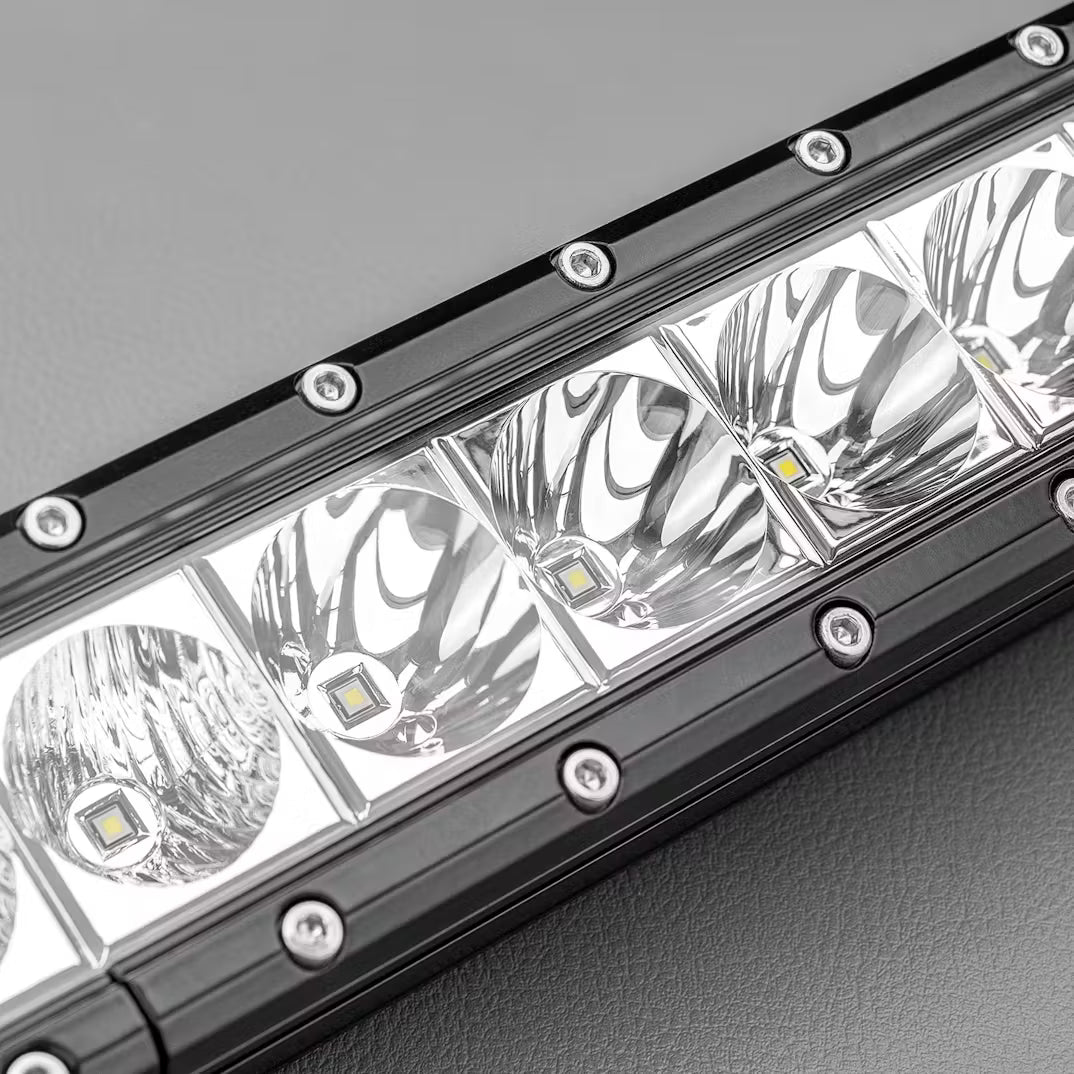

✅ Optimised Beam Pattern: Flood/Spot/Flood configuration for even distribution and mid-range punch
💡 OSRAM™ LED Technology: Class-leading brightness and efficiency for superior visibility
🌡️ Neutral White Output: 5600K colour temperature delivers crisp contrast without harsh glare
💧 IP68 Certified: Fully dust-proof and submersible up to 3 metres — ready for any terrain
🔩 Unbreakable Lens: GE Lexan™ primary lens, 250× stronger than glass and 30× stronger than acrylic
⚙️ Rugged Construction: Die-cast aluminium housing and stainless steel hardware built to last
🚀 Plug & Play Installation: Includes wiring harness, relay, and switch for effortless setup
🧰 Adjustable Mounting: Sliding mounts and stainless side brackets for flexible positioning
💪 STEDI™ Assurance: Backed by a 5-year warranty and 30-day money-back guarantee
💥 Benefits
-
Superior light coverage ideal for wildlife zones and off-road trails
-
Balanced beam geometry ensures maximum width and mid-range intensity
-
Compact and aerodynamic design for reduced wind noise and drag
-
Premium durability against vibration, corrosion, and impact
-
Easy DIY installation — plug it in and light up the night
⚙️ Technical Specifications
| Specification |
Details |
| Lumen Output (Raw) |
13,600 lm |
| Lumen Output (Effective) |
7,650 lm |
| LED Type |
16 × OSRAM™ |

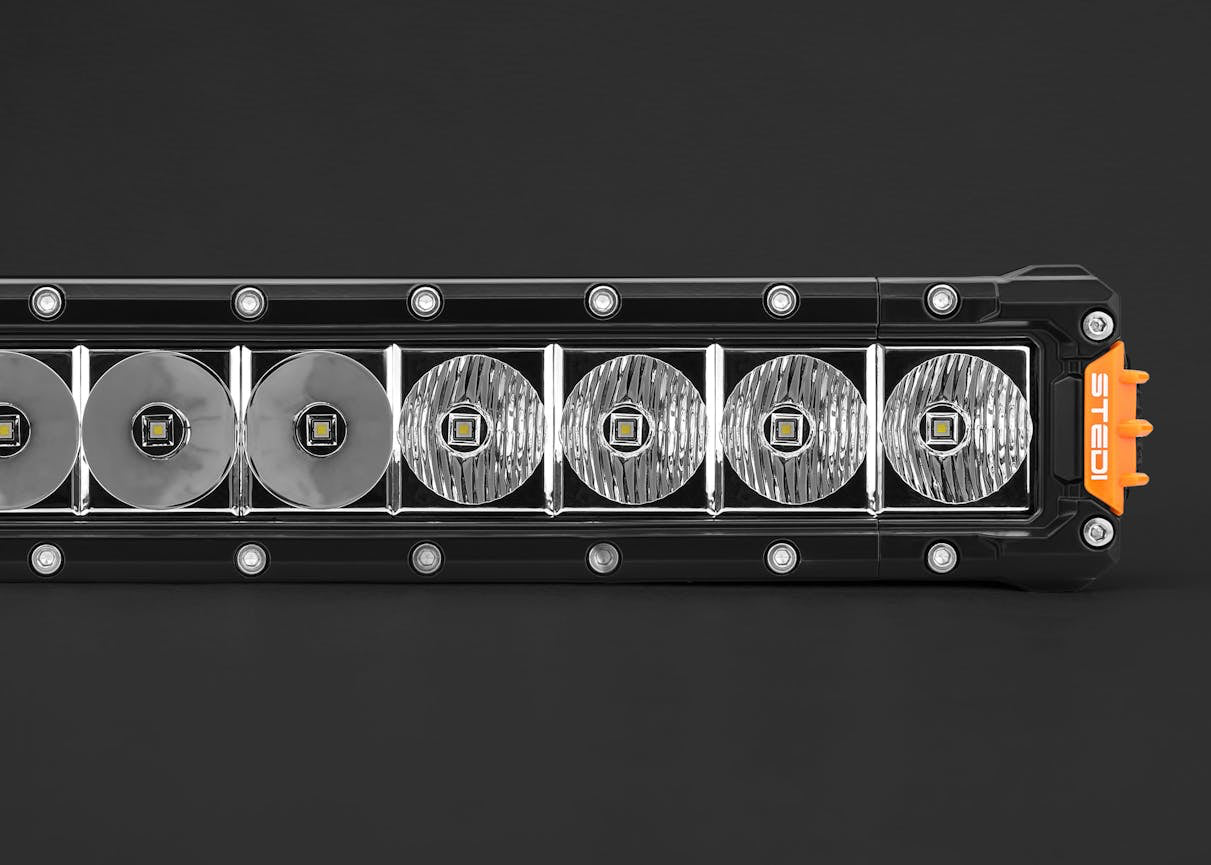

| Beam Pattern |
4 Flood + 8 Spot + 4 Flood |
| Peak Intensity (Candela) |
295,936 cd |

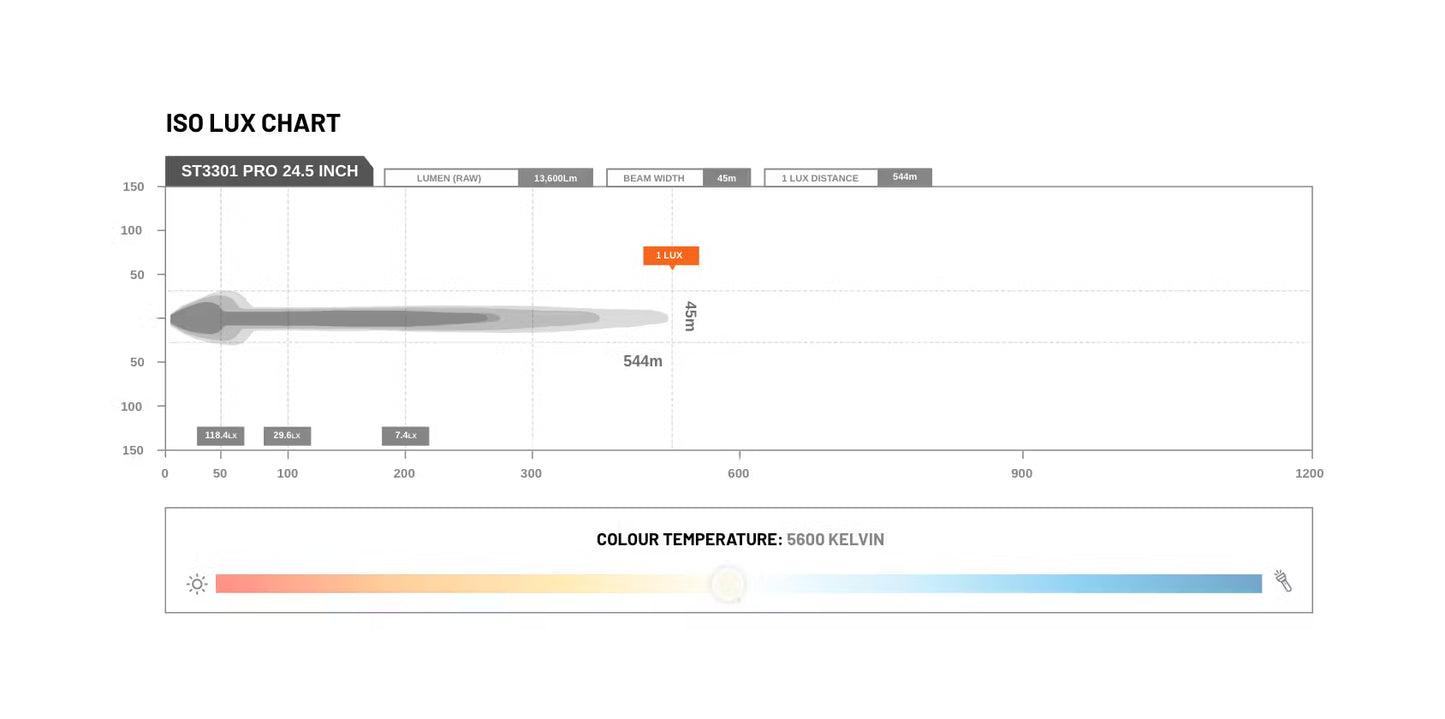

| Light Distance (1 Lux) |
544 m |
| Colour Temperature |
5600K |
| Operating Voltage |
10 – 45V DC |
| Waterproof Rating |
IP68 |
| Lens Material |
GE Lexan™ Polycarbonate |
| Housing Material |
Die-Cast Aluminium |
| Bracket Material |
Aluminium + 3 Series Stainless Steel Hardware |
| Flood Beam Angle |
45° |
| Spot Beam Angle |
11° |
| Current Draw |
9.7A @ 13.6V |
| Operating Temperature |
-40°C to +60°C |
| Weight |
2.495 kg |
| Lumen Maintenance |
50,000 LM-80 Certified |

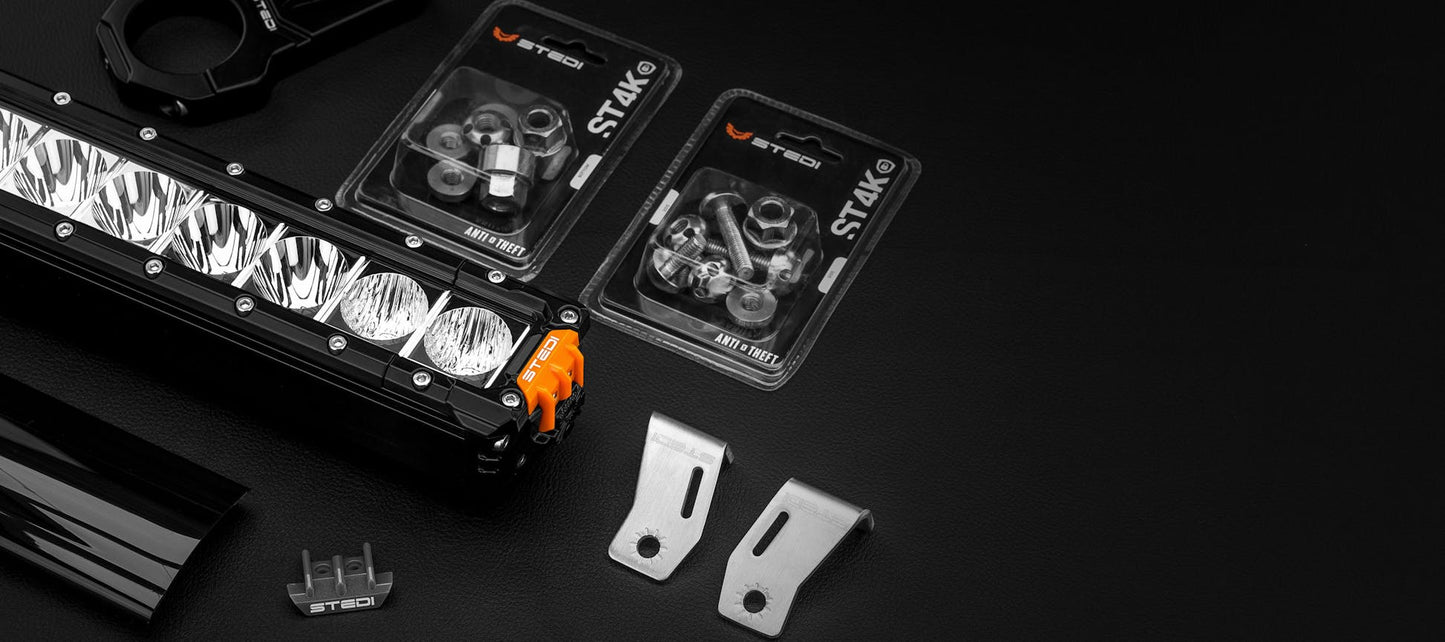

📦 What’s Included
-
1 × STEDI™ ST3301 PRO 24.5" LED Light Bar (16 LED)
-
Stainless Bolt and Nut Set
-

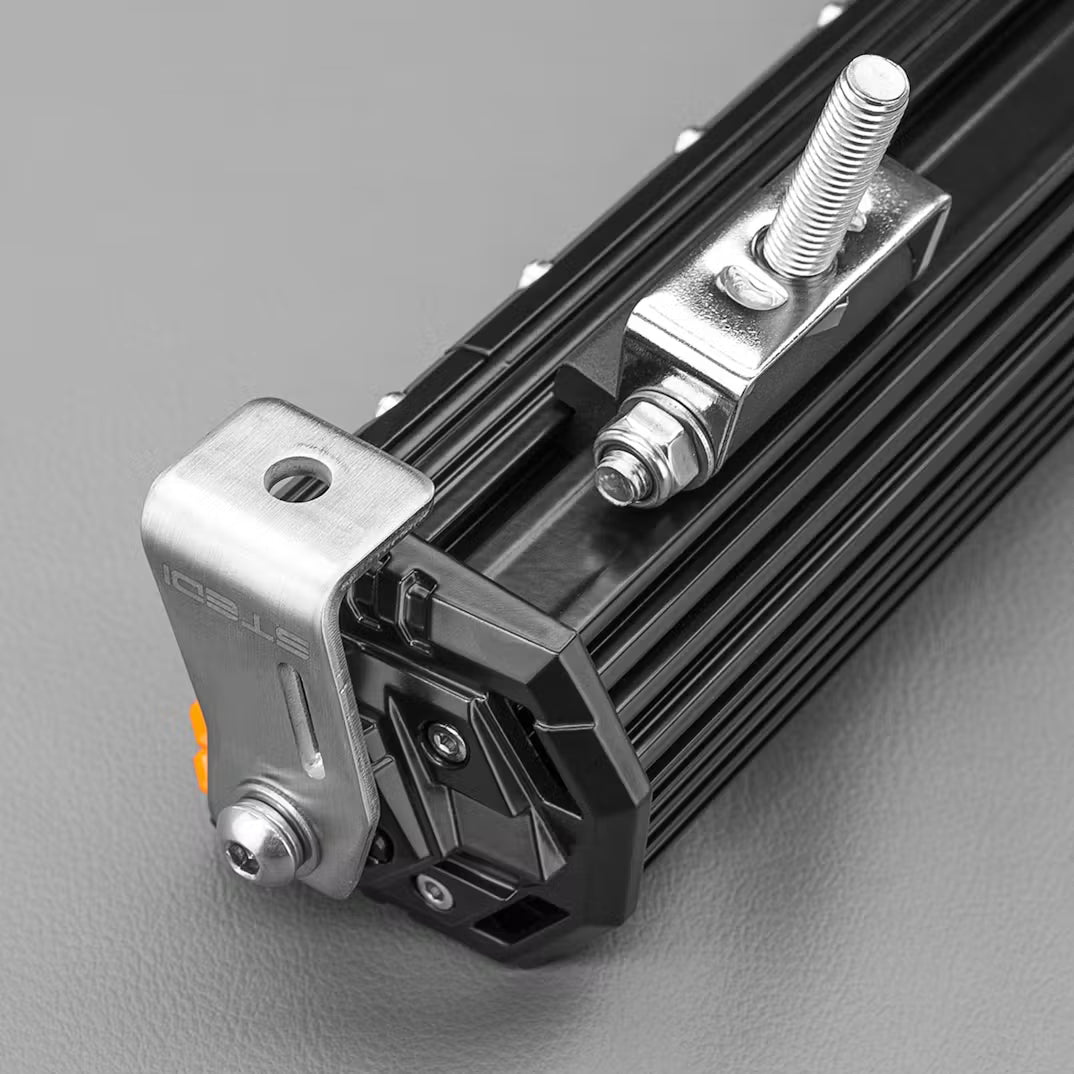

Sliding Lower Mounting Brackets + Stainless Steel Side Brackets
-

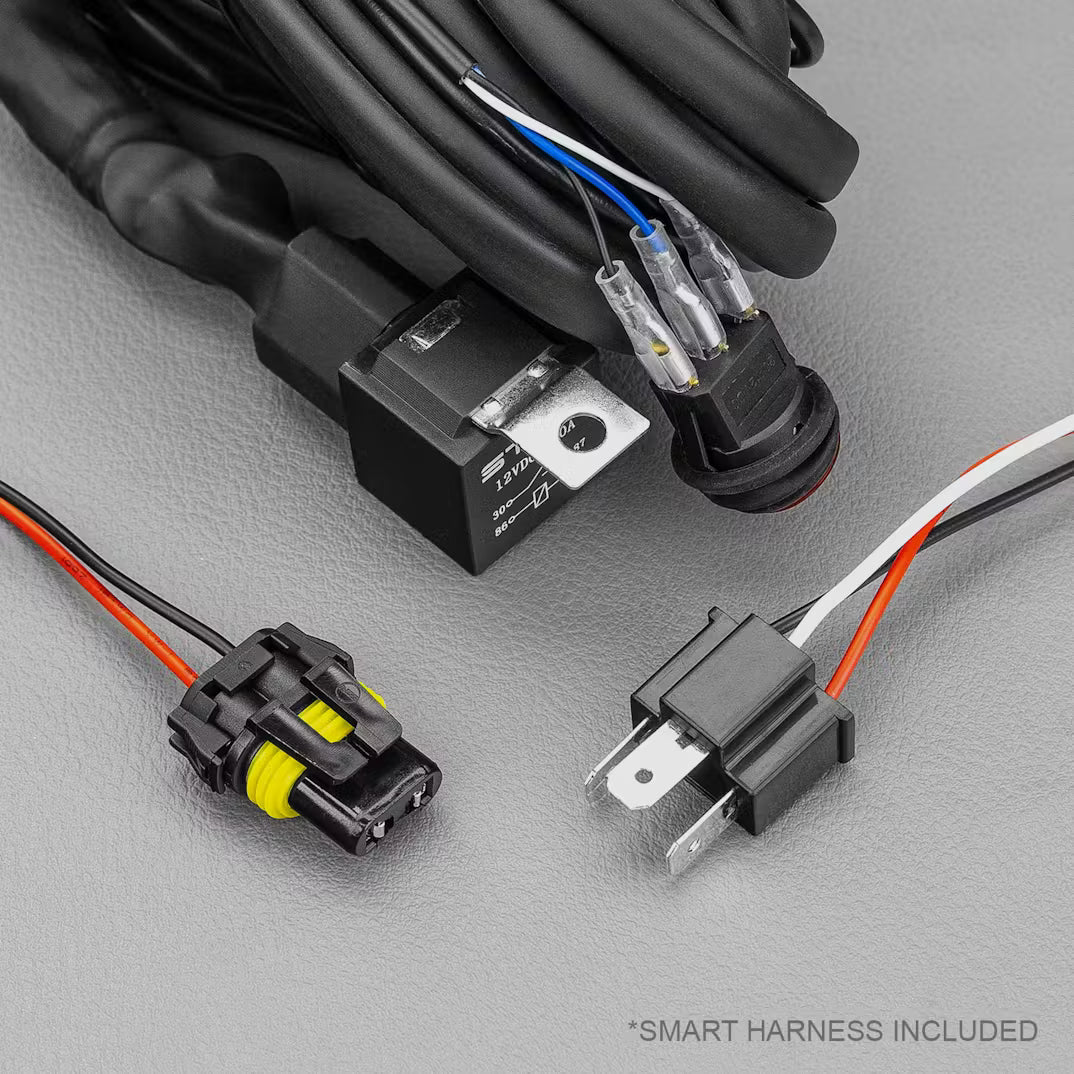

Quick-Fit High Beam Wiring Harness (12V Relay, Fuse, On/Off Switch)
-

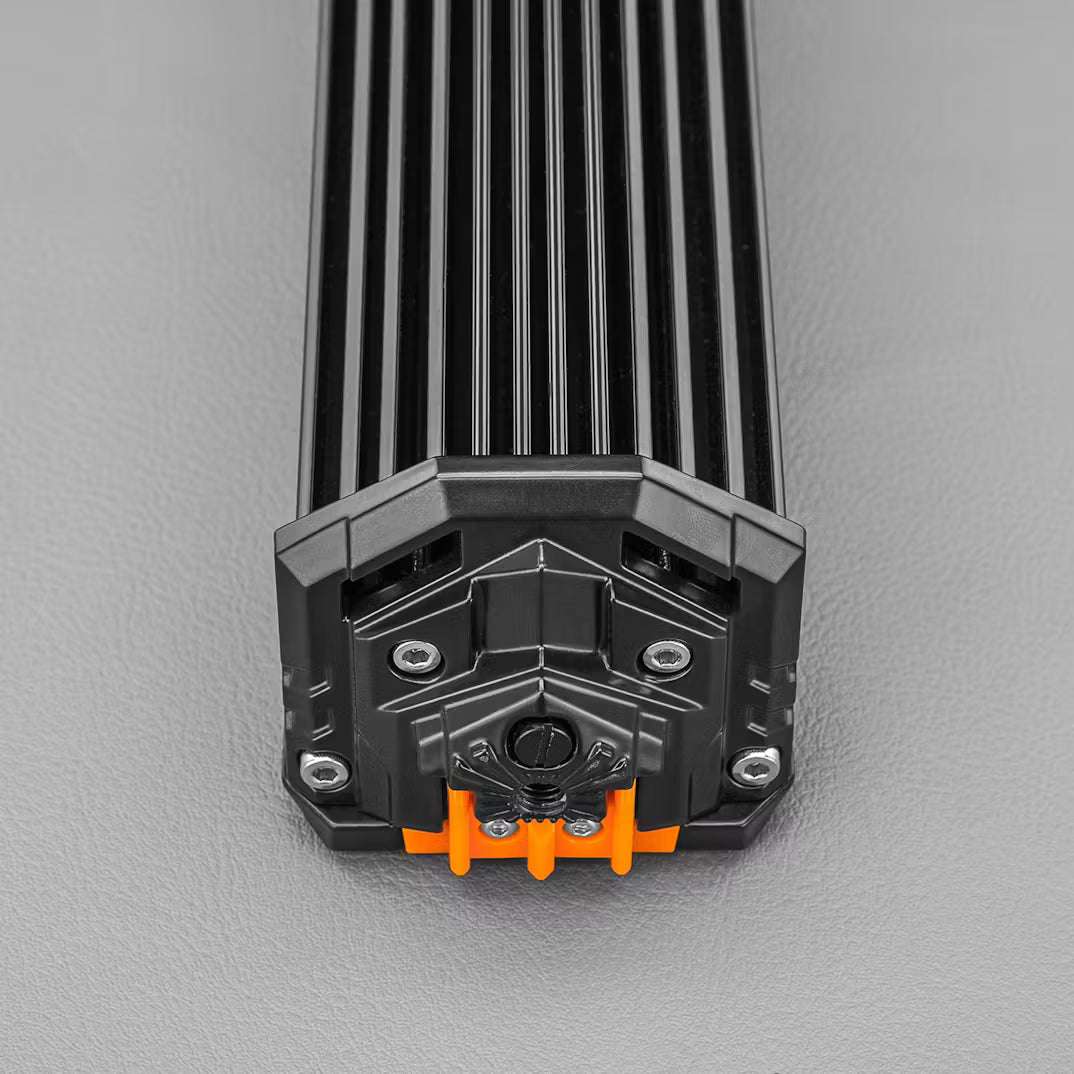

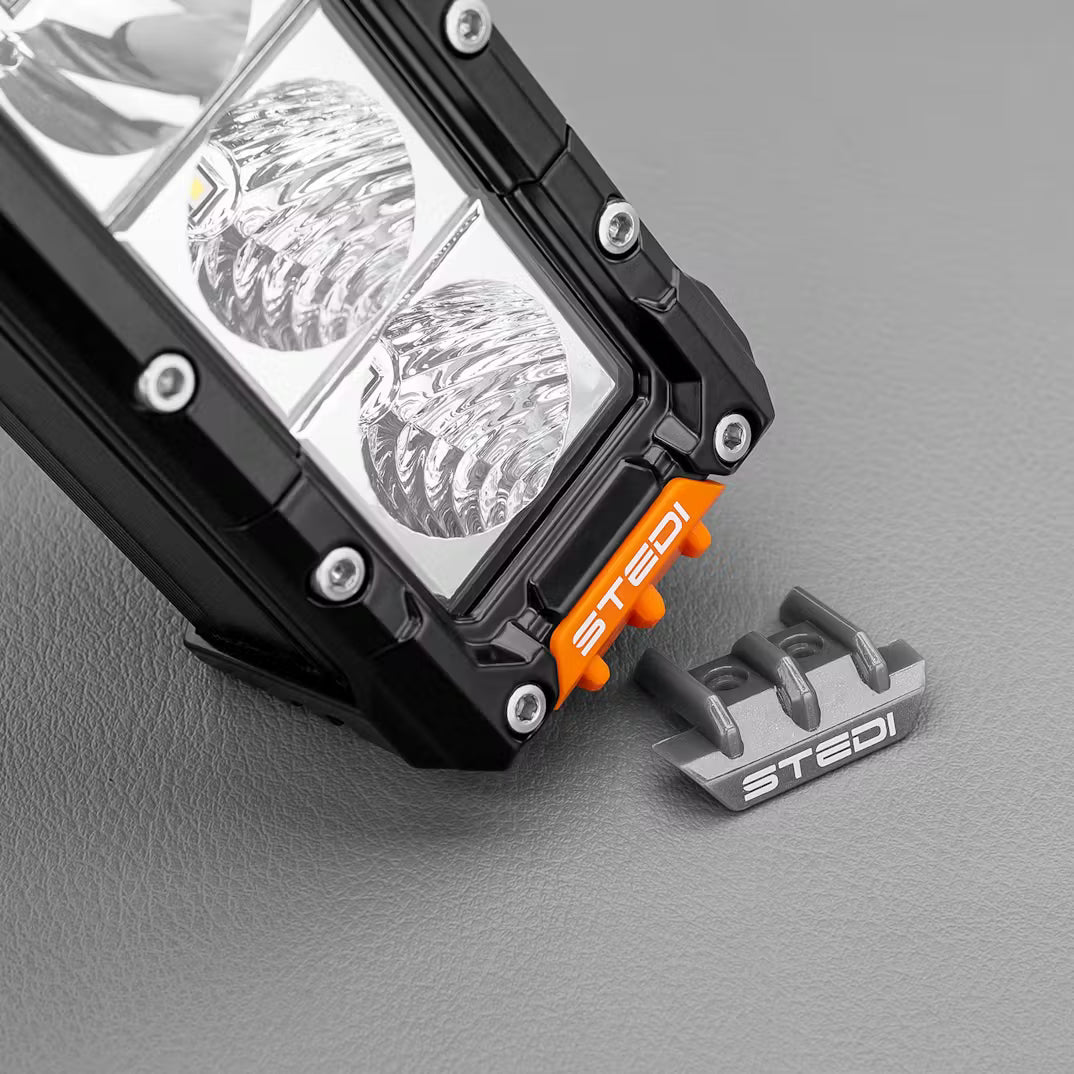

2 × Orange Side Caps
-
2 × Grey Side Caps
-
HB3 and H4 Piggyback Adaptors
